BK/MAX-50: Descriptionautomotive fuses 32v 50a blade red; CategoryCircuit protection; File Size69KB，1 Pages; ManufacturerBussmann (Eaton)

Download Datasheet Parametric Compare View All

BK/MAX-50 Overview

automotive fuses 32v 50a blade red

BK/MAX-50 Parametric

Parameter Name	Attribute value
Manufacture	Cooper Bussm
Product Category	Automotive Fuses
RoHS	N
Current Rating	50 A
Voltage Rating DC	32 V
Mounting Style	Holde
Termination Style	Blade
Fuse Type	Fast Blow
Fuse Size / Grou	Maxi
Dimensions	21.6 mm L x 21.6 mm W
Indicator Style	Without Indic
Case Heigh	8.9 mm
Case Length	21.6 mm
Case Width	21.6 mm
Interrupt Rating	1 kA
Packaging	Bulk
Produc	Automotive Fuses
Factory Pack Quantity	250
Type	Heavy Duty Blade Fuse with/without Indicati
Unit Weigh	7.257 g

Preview

Download Datasheet

View All

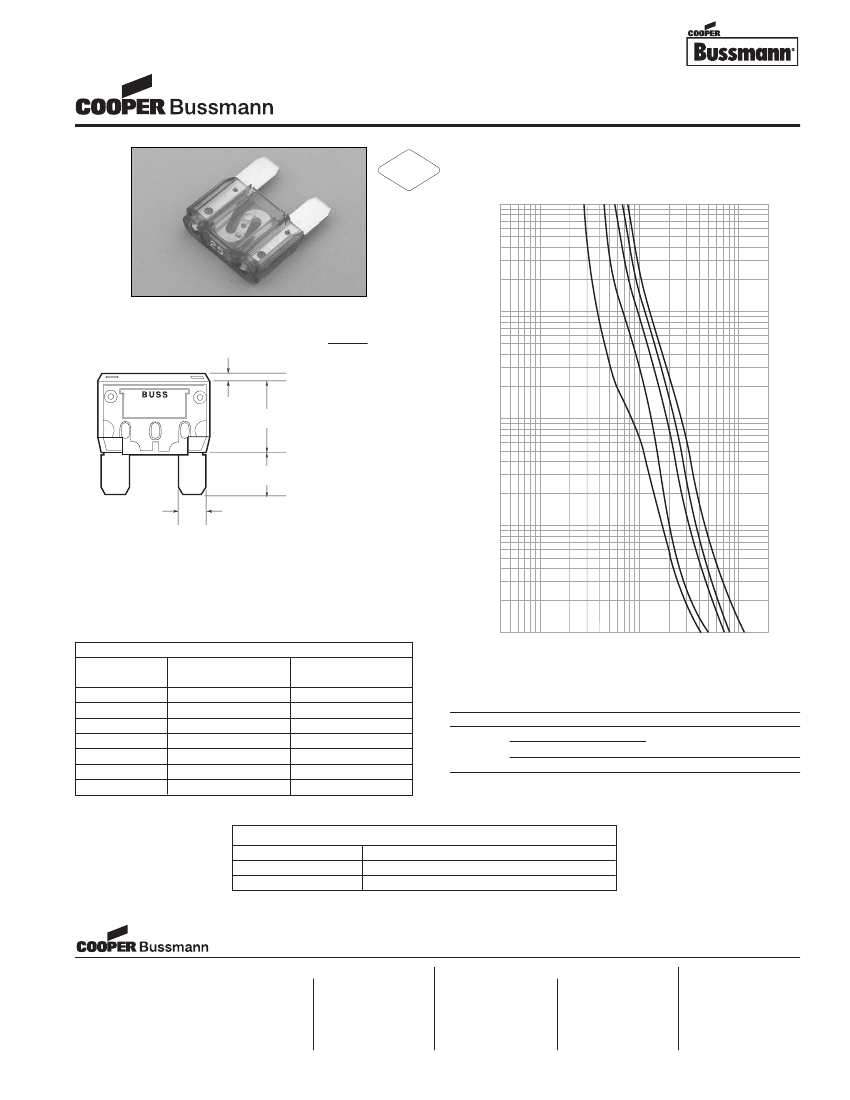

Blade-Type Fuses

MAX Series

Time-Current Characteristic Curves–Average Melt

RoHS

2002/95/EC

100

AMPERE

RATING

Dimensional Data

All tolerances:

±0.008"/-.005"

±0.20mm/-0.13mm

30

10

BUSS

M A X I

I

- F U S E

MAX -FUSE

32 V

.350"

0

0"

(8.9mm)

8.9mm)

.850"

0

0"

(21.6mm)

1.6mm)

TIME IN SECONDS

1

0.5"

"

(12.7mm)

2.7mm)

.315"

(8.0mm)

.1

Catalog Symbol:

MAX

Fast-Acting

Ampere Rating:

20 to 80 Amperes

Interrupting Rating:

1,000 Amperes

Ordering:

Specify packaging and product code

20

30

40

50

4

10

100

1,000

—

SPECIFICATIONS

Product

Code

MAX-20

MAX-30

MAX-40

MAX-50

MAX-60

MAX-70

MAX-80

Body

Color

Yellow

Green

Orange

Red

Blue

Tan

Natural

Voltage

Rating DC

32V

CURRENT IN AMPERES

Recommended Bussmann Fuseholders

Blade-Type

MAX

Part

HHX

HHX-B

HHX-C

Description

Fuseholder w/Cover

Body Only

Cover Only

Fuse Size

20-60 Amps

—

Wire Size

#6 Lead Wire;

5" Length

PACKAGING CODE

Packaging Code

Blank

BK

Description

1 pieces of fuses packed in a tin

250 pieces of fuses packed in a carton

Visit us on the web at:

www.cooperbussmann.com

OC-2601 3/07

Technologies 2007

North America

Cooper Electronic Technologies Cooper Bussmann

1225 Broken Sound Parkway NW P.O. Box 14460

Suite F

St. Louis, MO 63178-4460

Boca Raton, FL 33487-3533

Tel: 1-636-394-2877

Tel: 1-561-998-4100

Fax: 1-800-544-2570

Fax: 1-561-241-6640

Toll Free: 1-888-414-2645

Europe

Cooper Electronic Technologies Cooper Electronic Technologies

Cooper (UK) Limited

Avda. Santa Eulalia, 290

Burton-on-the-Wolds

08223

Leicestershire • LE12 5TH UK

Terrassa, (Barcelona), Spain

Tel: +44 (0) 1509 882 737

Tel: +34 937 362 812

Fax: +44 (0) 1509 882 786

+34 937 362 813

Fax: +34 937 362 719

Asia Pacific

Cooper Electronic Technologies

1 Jalan Kilang Timor

#06-01 Pacific Tech Centre

Singapore 159303

Tel: +65 278 6151

Fax: +65 270 4160

2,000

.01

20

30

40

50

60
