PS2R63-111GDB-U: DescriptionBoard Connector, 11 Contact(s), 1 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size201KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

PS2R63-111GDB-U Overview

Board Connector, 11 Contact(s), 1 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Black Insulator, Plug

PS2R63-111GDB-U Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1164682290
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.079 inch
subject depth	0.199 inch
body length	0.886 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
JESD-609 code	e4
Manufacturer's serial number	PS2R
Plug contact pitch	0.079 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.114 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	11

Preview

Download Datasheet

View All

F

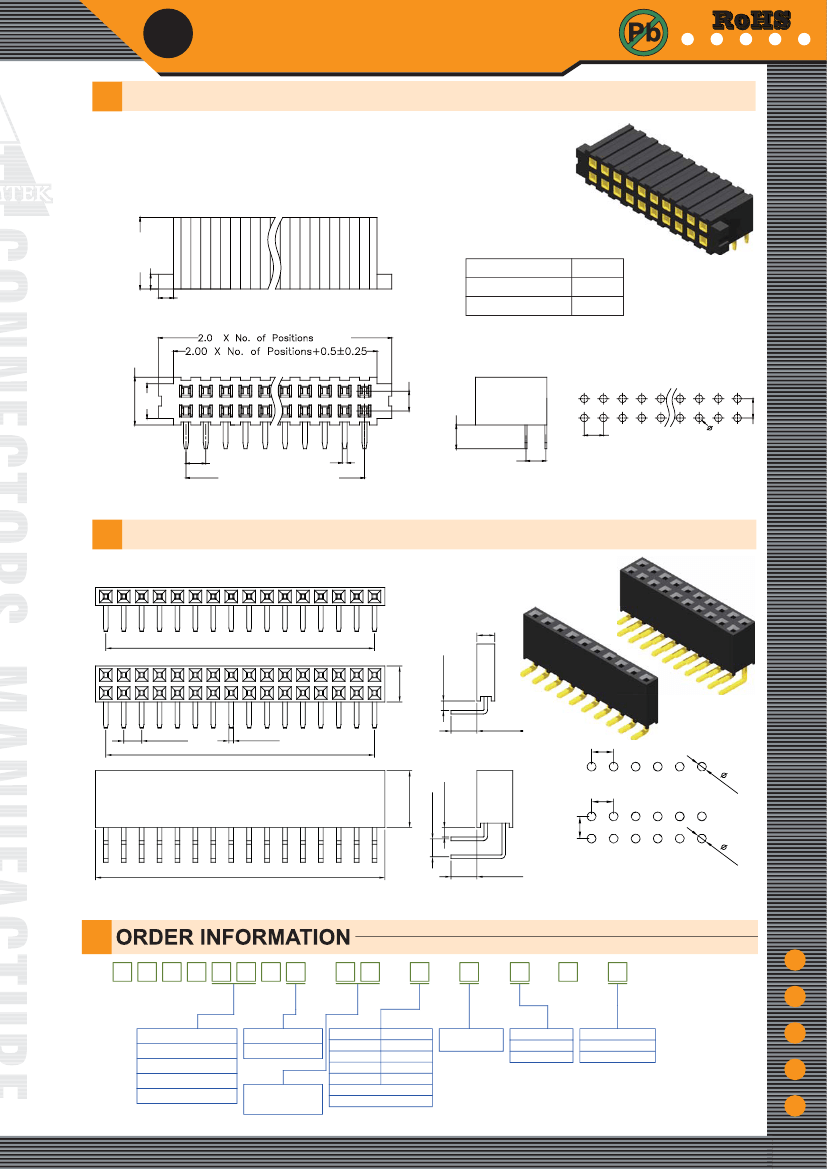

emale Header 2.0mm

Material

Insulator:Polyester,UL 94V-0

◎

Standard:P.B.T or Nylon 6T

Terminal:Copper Alloy

Plating:Gold Plated

Female Header 2.0mm 2 Row H=4.8mm Right Angle Type

Specifications

Current Rate:2.0 AMP

Insulation Resistance:1000MΩ Min.

Contact Resistance:20mΩ Max.

Dielectric Voltage:500V AC for one minute

Operation Temperature:-40°C to +105°C

7.20±0.15

1.50

Part No.

1.50

Dim. A

PS2R48-2XX-1-U 2.40mm

PS2R48-2XX-2-U 2.80mm

0

+3.5±0.30

2.00±0.10

4.80±0.15

Dim.A±0.25

3.50

2.00

0.8

0

2.00±0.10

PIN0.50*0.20

2.00±0.15

Recommended P.C.B Layout(TOP Side)

(PCB BOARD TOLERANCE±0.05)

2.00XNo.of Contacts/2-2.0±0.25

Part No.:PS2R48-2XX-U

Female Header 2.0mm 1 & 2 Row H=6.35mm Right Angle Type

2.00±0.20

2.00 x No.of Contacts-2.00 ±0.20

4.00±0.25

1.05±0.25

0

2.90±0.20

2.00±0.10

0.52x0.40

2.00 x (No.of Contacts/2-1) ±0.20

2.00

0.8

0

6.35±0.25

2.00±0.20

1.05±0.25

2.00

0.8

0

2.00 x No.of Positions+0.50 ±0.30

2.90±0.20

Recommended PCB Layout

(PCB TOLERANCE ±0.05)

Part No.:PS2R63-1/2XX-L/U

P S 2 R X X - X

X X

X

B

X

-

X

SIngle Row Insulation Height

63:Insulation Height H=6.35mm

Dual Row Insulation Height

48:Insulation Height H=4.8mm

63:Insulation Height H=6.35mm

1:SIngle Row

2:Dual Row

◎

G:Gold Flash

GA:5u"

GB:10u"

GC:20u"

GD:30u"

S:Selective

SA:5u"

SB:10u"

SC:20u"

SD:30u"

B:Black Insulator

1: 2.40mm

2: 2.80mm

(For PS2R48 Only)

L:RoHS + P.B.T

(PS2R48 For P.B.T)

U:RoHS + Nylon 6T

No. of contacts per row

(02~40)

T:Tin Plated

TE:Tin 200u"

◎:Standard

Recommended

www.amtek-co.com.tw

2-70

2.00
