TR/3216LV250-R: Descriptionsurface mount fuses 3216lv chip fuse; CategoryCircuit protection; File Size74KB，2 Pages; ManufacturerBussmann (Eaton); Environmental Compliance

Download Datasheet Parametric Compare View All

TR/3216LV250-R Overview

surface mount fuses 3216lv chip fuse

TR/3216LV250-R Parametric

Parameter Name	Attribute value
Manufacture	Cooper Bussm
Product Category	Surface Mount Fuses
RoHS	Yes
Current Rating	250 mA
Voltage Rating AC	125 V
Voltage Rating DC	125 V
Fuse Type	Fast Blow
Fuse Size / Grou	1206 (3216 metric)
Dimensions	3.2 mm L x 1.6 mm W
Case Heigh	0.9 mm
Case Length	3.2 mm
Case Width	1.6 mm
Interrupt Rating	50 Amps
Packaging	Reel
Produc	Surface Mount Fuses
Factory Pack Quantity	3000
Type	Chip Fuse Fast Acting Line Voltage
Unit Weigh	453.592 mg

Preview

Download Datasheet

View All

Chip

™

Fuses

3216LV Series, Fast Acting, Line Voltage

Description

• Surface mount fuse, fast acting, 125 VAC

• Utilize thick and thin metal film technologies for

superior fusing action and enhanced reliability.

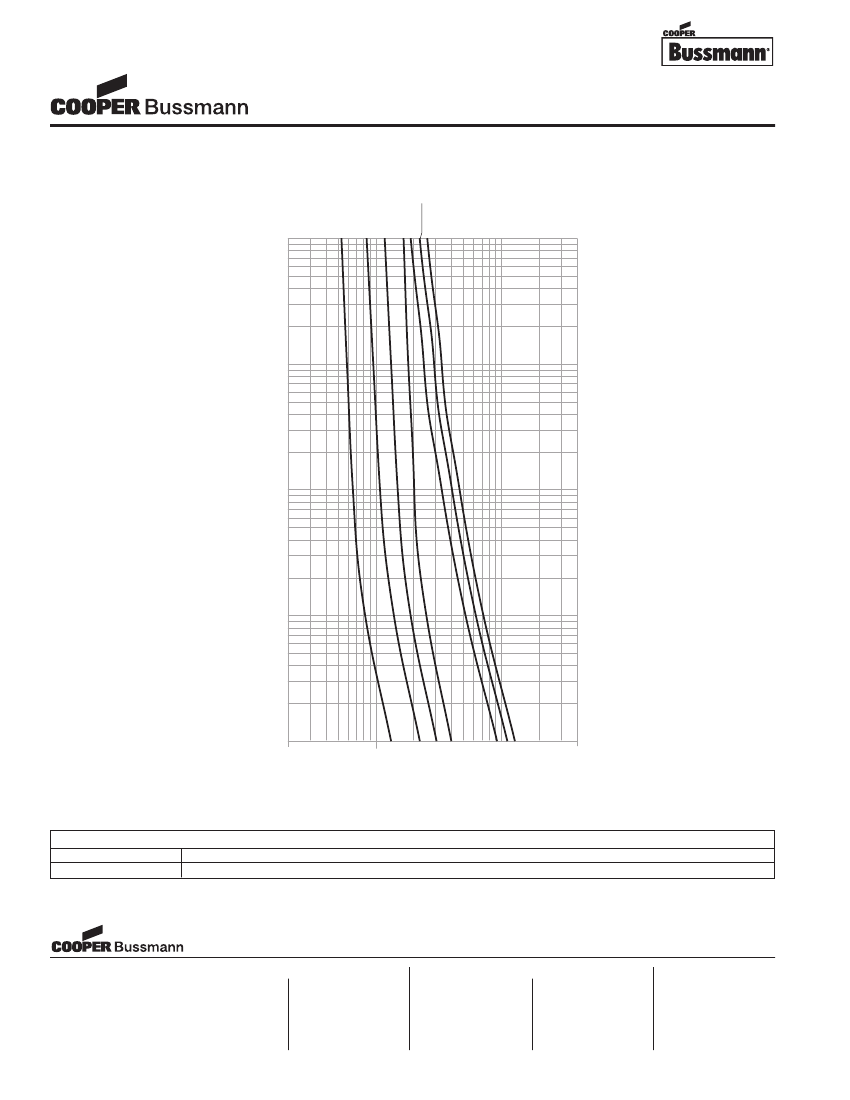

ELECTRICAL CHARACTERISTICS

% of Amp Rating

Opening Time

4 hours minimum

100%

250%

5 seconds maximum

RoHS

2002/95/EC

Agency Information

• UL Recognition Guide & File numbers:

JDYX2 & E19180.

• CSA Component Acceptance: 053787 C 000 &

Class No: 1422 30.

Environmental Data

• Operating Temperature Range: -65 to +125°C,

with proper derating

• Thermal Shock: MIL-STD-202, Method 107, Test

Condition B (-65 to 125°C), 1000 cycles, fuses soldered

to FR-4 glass-epoxy circuit board

• Vibration: MIL-STD-202, Method 204, Test Condition C

(55 to 2000 HZ, 10G)

• Solderability: Withstands 60 seconds above 200°C,

260°C maximum

• Moisture Resistance: MIL-STD-202, Method 106,

10 day cycle

• Solder Leach Resistance & Terminal Adhesion:

EIA-576 (30 seconds submersion in 260°C

tin-lead solder)

Ordering

• Specify packaging and product code

(i.e. TR/3216LV1-R)

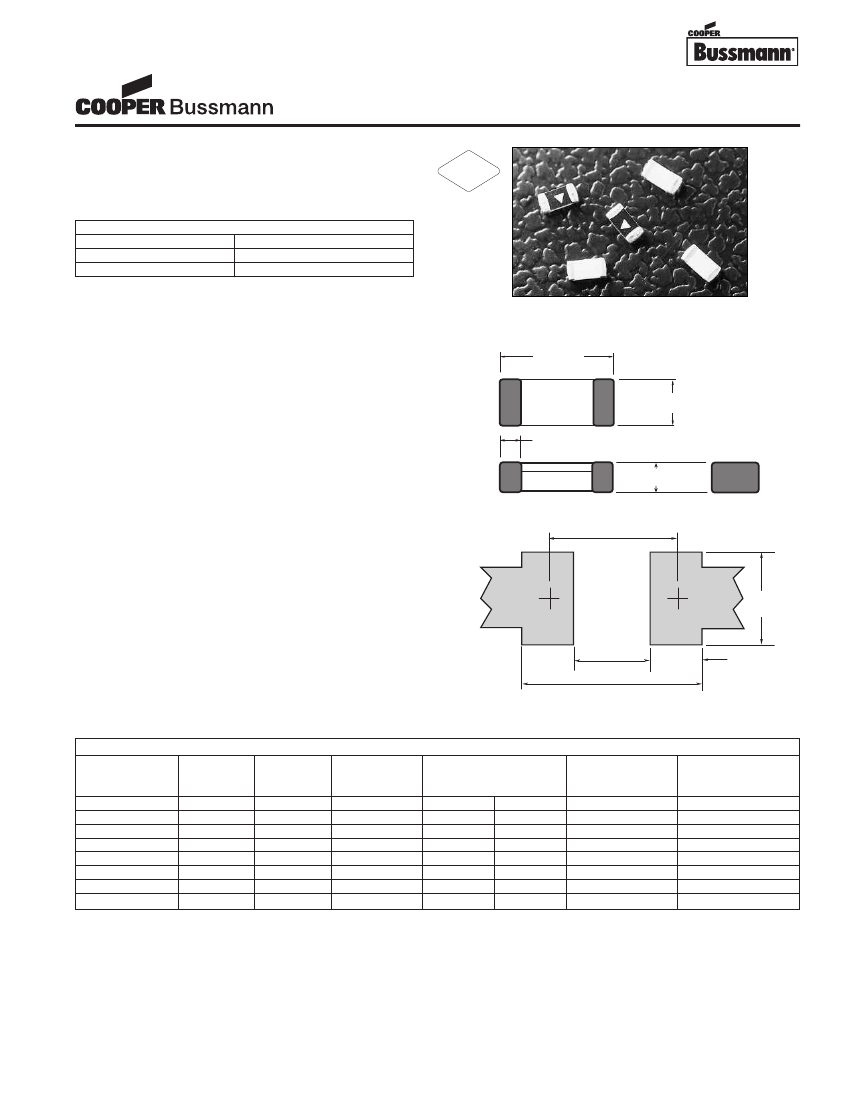

Dimensions

mm

⁄

(inches)

Drawing Not to Scale

3.20

±

0.2

(0.126

±

0.008)

.75

0.50

±

0.25

(0.020

±

0.010)

1.60

±

0.2

(0.063

±

0.008)

0.90 + 0.20, -0.15

(0.035 + 0.008, -0.006)

Land Pattern

2.80

1.80 to

2.00

1.20 to 1.40

4.20 to 4.40

1.60

SPECIFICATIONS

Product Code

3216LV250-R

3216LV375-R

3216LV500-R

3216LV750-R

3216LV1-R

3216LV1.25-R

3216LV1.5-R

Current

Rating

250mA

375mA

500mA

750mA

1A

1.25A

1.5A

Voltage

Rating

AC/DC

125V

Interrupting

Rating

125V AC/DC

50A

Typical Melting

Integral @ 10X Rated

Current (A

2

* sec)

AC

DC

.00016

.000084

.001

.0002

.0014

.0019

.0033

.00379

.0084

.020

.035

.021

.038

.024

Typ. Resistance

@

≤

10% Rated

Current (Ohms)

4.5

1.80

1.15

.75

.52

.40

.26

Typ. Voltage

Drop @ Rated

Current (Volts)

1.4

.73

.66

.63

.62

.49

Notes:

1. AC interrupting rating, melting integral and total clearing integral measured at 125V, unity power factor

2. DC interrupting rating, melting integral and total clearing integral measured at 125V with a battery source

3. Voltage drop measured at 23 ± 3°C ambient temperature with the device mounted on a suitable circuit board trace

4. It is recommended that fuses be mounted with ceramic (white) side facing up

5. Device designed to carry rated current for four hours minimum. An operating current of 80% or less of rated current is recommended,

with further derating required at elevated ambient temperatures

TR/3216LV250-R Related Products

	TR/3216LV250-R	TR/3216LV-1.25A	TR/3216LV1-R	TR/3216LV375-R	TR/3216LV1.25-R	TR/3216LV1.5-R	TR/3216LV500-R	TR/3216LV750-R
Description	surface mount fuses 3216lv chip fuse	surface mount fuses 125vadc 1.25a fast acting chip fuse	surface mount fuses 3216lv chip fuse	surface mount fuses 3216lv chip fuse	surface mount fuses 3216lv chip fuse	surface mount fuses 3216lv chip fuse	surface mount fuses 3216lv chip fuse	surface mount fuses 3216lv chip fuse
Manufacture	Cooper Bussm	Cooper Bussm	Cooper Bussm	Cooper Bussm	Cooper Bussm	Cooper Bussm	Cooper Bussm	Cooper Bussm
Product Category	Surface Mount Fuses	Surface Mount Fuses	Surface Mount Fuses	Surface Mount Fuses	Surface Mount Fuses	Surface Mount Fuses	Surface Mount Fuses	Surface Mount Fuses
RoHS	Yes	N	Yes	Yes	Yes	Yes	Yes	Yes
Current Rating	250 mA	1.25 A	1 A	375 mA	1.25 A	1.5 A	500 mA	750 mA
Voltage Rating AC	125 V	125 V	125 V	125 V	125 V	125 V	125 V	125 V
Voltage Rating DC	125 V	125 V	125 V	125 V	125 V	125 V	125 V	125 V
Fuse Type	Fast Blow	Fast Blow	Fast Blow	Fast Blow	Fast Blow	Fast Blow	Fast Blow	Fast Blow
Fuse Size / Grou	1206 (3216 metric)	1206 (3216 metric)	1206 (3216 metric)	1206 (3216 metric)	1206 (3216 metric)	1206 (3216 metric)	1206 (3216 metric)	1206 (3216 metric)
Dimensions	3.2 mm L x 1.6 mm W	3.2 mm L x 1.6 mm W	3.2 mm L x 1.6 mm W	3.2 mm L x 1.6 mm W	3.2 mm L x 1.6 mm W	3.2 mm L x 1.6 mm W	3.2 mm L x 1.6 mm W	3.2 mm L x 1.6 mm W
Case Heigh	0.9 mm	0.9 mm	0.9 mm	0.9 mm	0.9 mm	0.9 mm	0.9 mm	0.9 mm
Case Length	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm
Case Width	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm
Interrupt Rating	50 Amps	50 Amps	50 Amps	50 Amps	50 Amps	50 Amps	50 Amps	50 Amps
Packaging	Reel	Reel	Reel	Reel	Reel	Reel	Reel	Reel
Produc	Surface Mount Fuses	Surface Mount Fuses	Surface Mount Fuses	Surface Mount Fuses	Surface Mount Fuses	Surface Mount Fuses	Surface Mount Fuses	Surface Mount Fuses
Factory Pack Quantity	3000	3000	3000	3000	3000	3000	3000	3000
Type	Chip Fuse Fast Acting Line Voltage	Chip Fuse Fast Acting Line Voltage	Chip Fuse Fast Acting Line Voltage	Chip Fuse Fast Acting Line Voltage	Chip Fuse Fast Acting Line Voltage	Chip Fuse Fast Acting Line Voltage	Chip Fuse Fast Acting Line Voltage	Chip Fuse Fast Acting Line Voltage
Unit Weigh	453.592 mg	453.592 mg	453.592 mg	453.592 mg	453.592 mg	453.592 mg	453.592 mg	453.592 mg
