KLP42X-60-W/Y: Descriptionrca phono connectors rca phono jack vert grn; CategoryThe connector; File Size2MB，1 Pages; ManufacturerKycon; Environmental Compliance

Download Datasheet Parametric Compare View All

KLP42X-60-W/Y Overview

rca phono connectors rca phono jack vert grn

KLP42X-60-W/Y Parametric

Parameter Name	Attribute value
Manufacture	Kyc
Product Category	RCA Phono Connectors
RoHS	Yes
Packaging	Tray
Factory Pack Quantity	80

Preview

Download Datasheet

View All

2D Drawing

Solder Profile

Certificate of Origin

IGES

CofC RoHS Compliant

Check Stock

STEP

CofC REACH Compliant

Request a Sample

3D PDF

UL Plastic File

Send Us An Email

Generated Part Number

KLP42X-60-R/W

Part Number Builder

LR78160

KLP42X

Series

60

Type

R/W

Color

Option

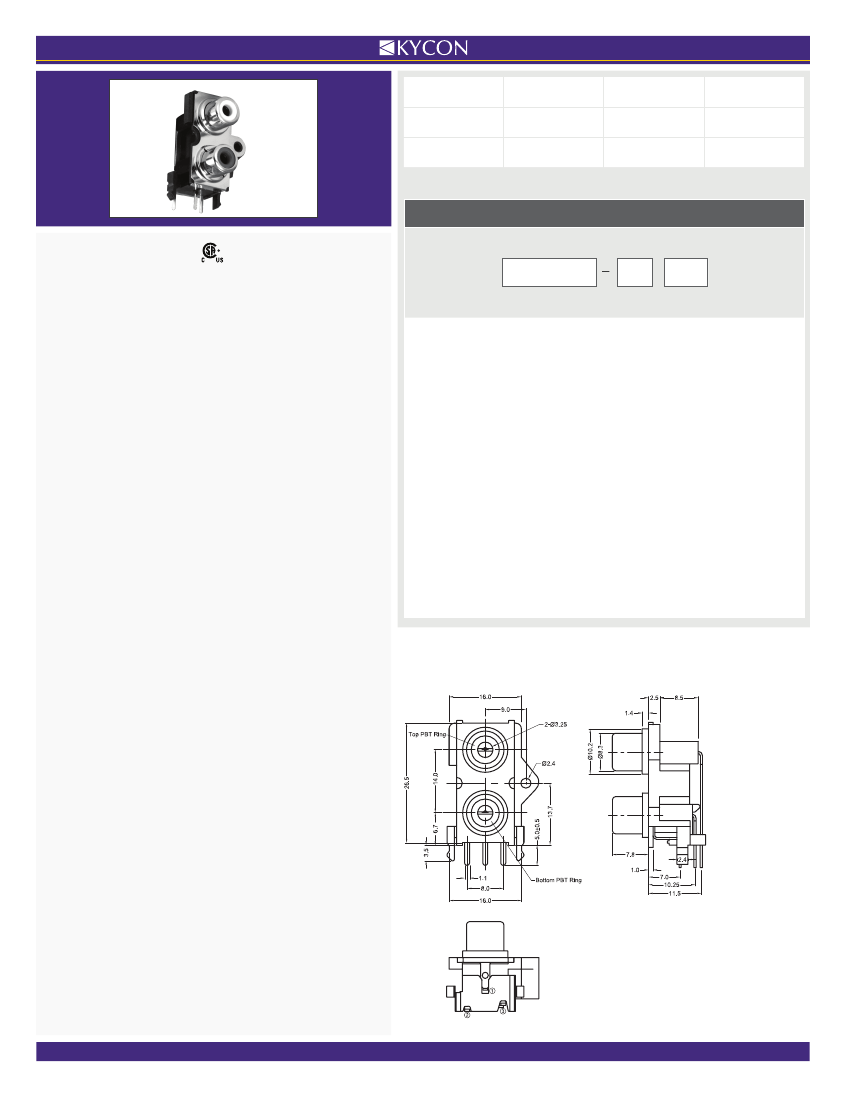

RCA PHONO JACKS: KLP42X Series

Stacked RCA Phono Jack PCB Mount

Product Features

Audio Applications for Computers and Multimedia

Gold Plating Available Upon Request

Various Color and Stacking Options Available

CSA/NRTL Certified File No. LR78160

Series

KLP42X

- Stacked RCA Phono Jack

Type

60

- Single Column, Double Row

Color Option

B/B

- Black/Black

R/R

- Red/Red

R/W

- Red/White

W/B

- White/Black

W/R

- White/Red

W/W

- White/Yellow

W/Y-

White/White

Y/Y

- Yellow/Yellow

Color Layout

- X/Z

Performance Specifications

Materials and Finish

Housing

PBT Thermoplastic, UL94V-0 Rated

Terminals

Brass,Tin Plated

Ground Pin

Brass,Nickel Plated

Electrical Characteristics

Rated Current:

0.3A

Rated Voltage:

16V DC

Contact Resistance

50 milliohms Max.

Insulation Resistance

100 Megohms Min. at 500V DC

Dielectric Withstanding Voltage

500V AC RMS for 1 Minute

Contact Kycon for other options

KLP42X-60

Dimensions in mm

Mechanical Characteristics

Insertion Force

0.3kg - 5.0kg

Extraction Force

0.3kg - 5.0kg

Durability

1000 Mating Cycles Min.

Operating Temperature

-20°C to +60°C

X

Z

Phone: +1.408.494.0330

l

Fax: +1.408.494.0325

l

WWW.KYCON.COM

l

2013
