0.86
0.19 MAX
PANEL THICKNESS
0.38
REF
NOTES:
1. MATES WITH STANDARD
1/8 PHONO PLUG.
2. SLEEVE TERMINAL, WASHER, AND HEX NUT
PACKAGED UNASSEMBLED.
3. MATERIALS
HOUSING - COPPER ALLOY, TIN PLATED
INSULATORS - THERMOPLASTIC
TIP TERMINAL - COPPER ALLOY, MATTE TIN PLATED
SOLDER TERMINAL - STEEL, NICKEL PLATED
WASHER - STEEL, NICKEL PLATED
HEX NUT - COPPER ALLOY, NICKEL PLATED
4. THIS PRODUCT IS RoHS COMPLIANT.
0.38
0.328
1/4-32 2A THREAD
SEE NOTE 2
0.20
TIP
TERMINAL
0.43
0.50
SLEEVE
TERMINAL
0.56 MAX
(0.550 NOMINAL)
0.09

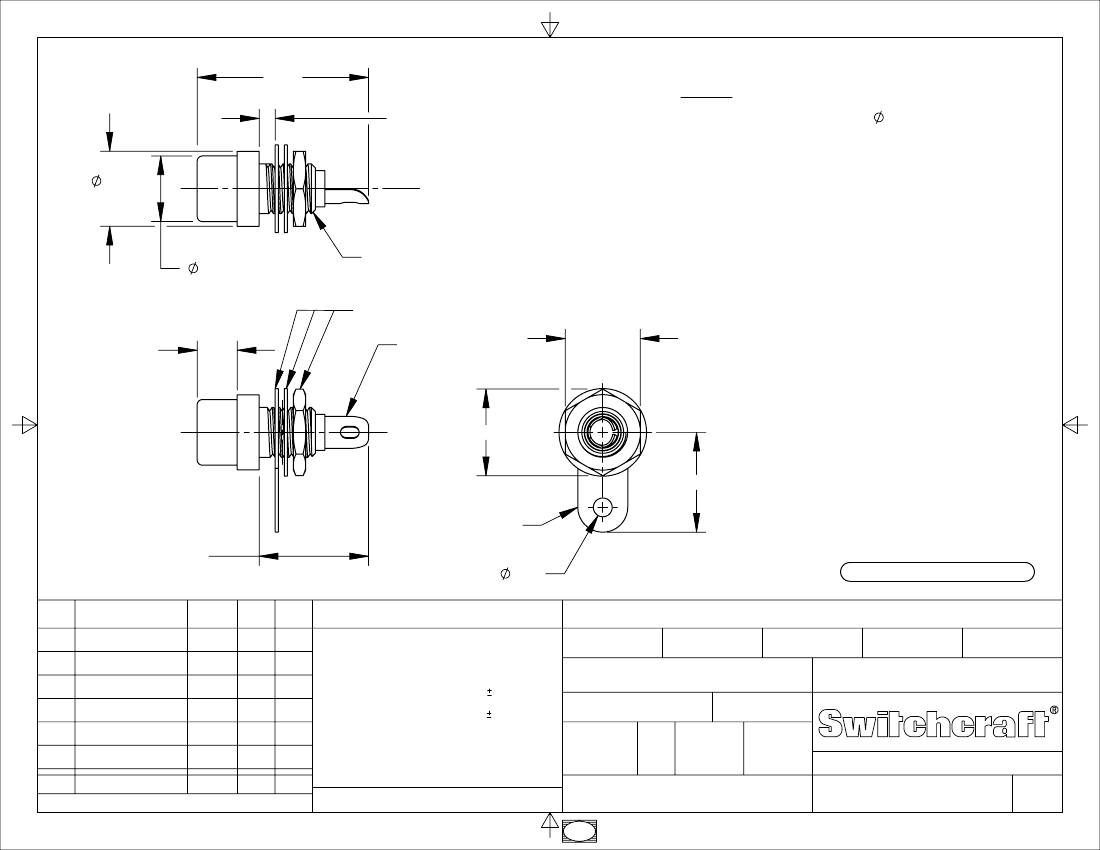

CUSTOMER DRAWING
THIS DRAWING DESCRIBES A DESIGN CONSIDERED PROPRIETARY IN NATURE, DEVELOPED AND MANUFACTURED
BY SWITCHCRAFT INC. AND IS RELEASED ON A CONFIDENTIAL BASIS FOR IDENTIFICATION PURPOSES ONLY.
UNLESS OTHERWISE SPECIFIED
1. ALL DIMENSIONS IN INCHES
- TWO PLACE DECIMALS
- THREE PLACE DECIMALS
B
A
REV
SIZE
FINISH
WIDTH
MULT
MATERIAL
SPEC No.
SCALE
LBS/M
TEMPER
0.02
0.005
SPEC No.
FIRST USED ON
DATE DRAWN
BY
CHKD
4:1
25504
26172
ECO NUMBER
12/8/06
10/20/06
DATE
RS
RS
BY
TJK
TJK
APVD
12/16/08
RS
RS
12/16/08
TJK
1/23/09
PART No.
APVD
REVISIONS
DO NOT SCALE DRAWING
NAME
PHONO JAX
FRONT PANEL MOUNT, RoHS
A
SHEET
1
OF
1
REV
3501FPX
SolidWorks CAD File
B
