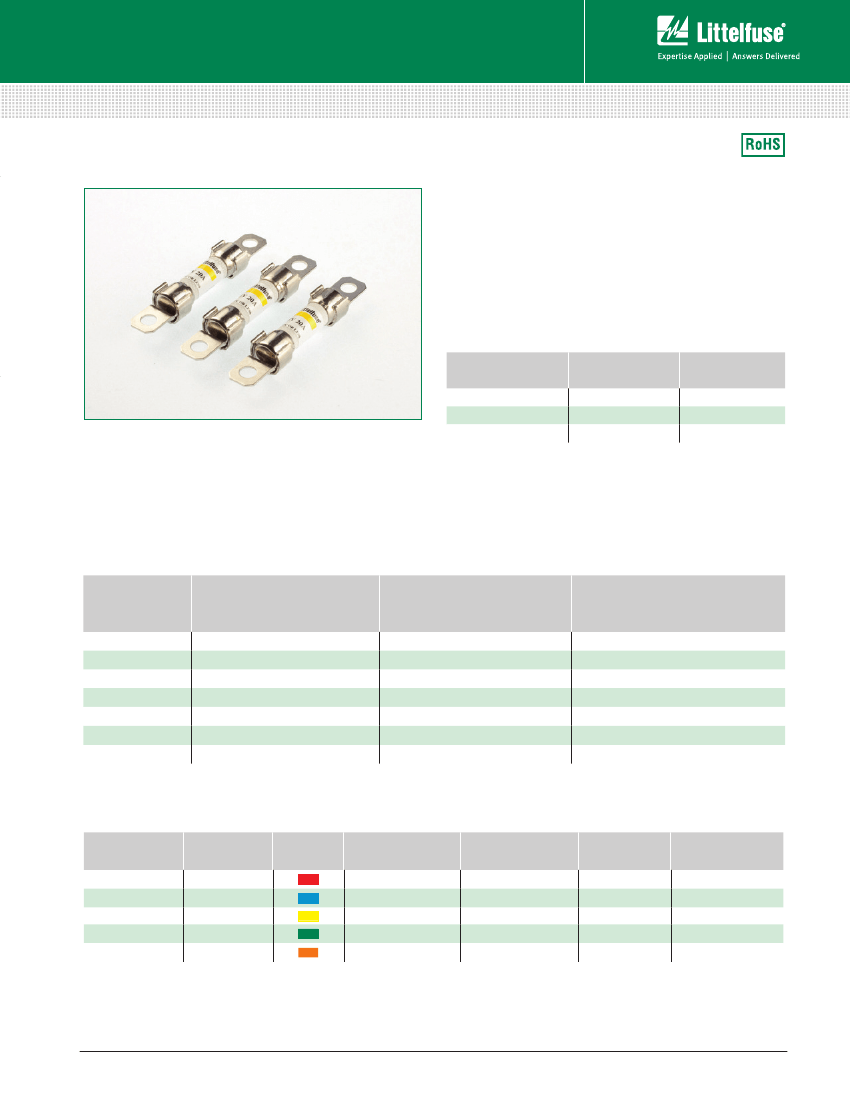

Advanced Power Systems
LC HEV FUSE
Specifications
Interrupting Rating (10A, 15A, 20A, 30A):
Interrupting Rating (40A):
Voltage Rating (10A, 15A, 20A, 30A):
Voltage Rating (40A):
Operating Temperature Range:
10kA @ 450 VDC
10kA @ 425 VDC
450 VDC
425 VDC
-40ºC to +125ºC
Ordering Information
Part Number
0HEVxxx.SXC
0HEVxxx.SXBD
0HEVxxx.SXBDY
Termination
Cartridge
Bolt Down
Blade
Package Size
36
20
20
Description
The LC HEV fuse is designed for protection of high-voltage
accessory circuits in electric and hybrid electric vehicles.

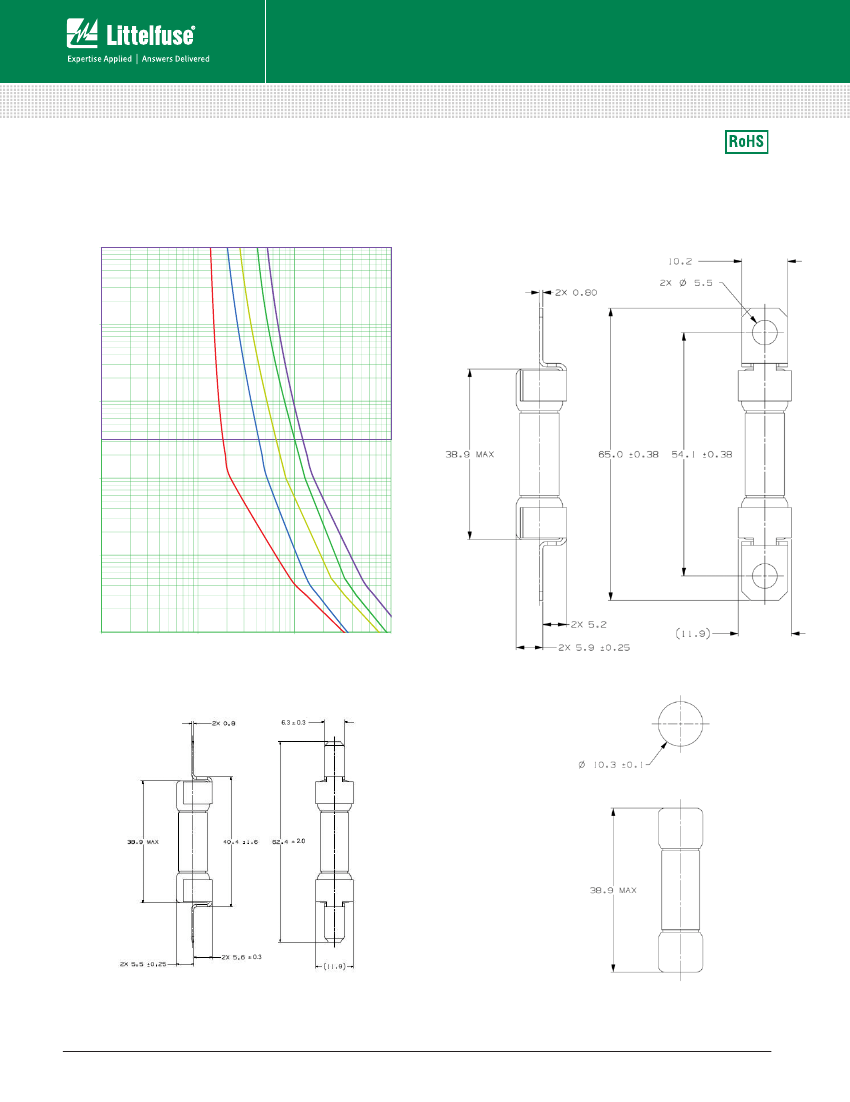

Time-Current Characteristics
% of Rating
100
110
135
150
200
300
500
Opening Time Min / Max (s)
10A
100 hrs / -
4 hrs / -
100 / 3600
10 / 1000
0.5 / 100
0.1 / 15
0.05 / 1
Opening Time Min / Max (s)
15A, 20A, 30A
100 hrs / -
4 hrs / -
150 / 3600
10 / 1000
0.5 / 100
0.1 / 15
0.05 / 1
Opening Time Min / Max (s)
40A
100 hrs / -
-
150 / 3600
10 / 1000
0.5 / 100
0.1 / 15
0.05 / 1
Ratings
Part Number
0HEV010.xxx
0HEV015.xxx
0HEV020.xxx
0HEV030.xxx
0HEV040.xxx
Current Rating
10A
15A
20A
30A
40A
Color Code
Typical Voltage Drop Maximum Voltage
Cold Resistance Minimum Melting I²t
at 70% I
R
Drop Spec at 100% IR
114 mV
96 mV
79 mV
67 mV
69 mV
Average Initial
Measurements
300 mV
200 mV
200 mV
200 mV
200 mV
13.3 mOhm
7.9 mOhm
6.4 mOhm
2.7 mOhm
1.3 mOhm
255 A²s
133 A²s
268 A²s
993 A²s
1495 A²s
© 2012 Littelfuse • Transportation Products Catalog
77
www.littelfuse.com
