217.630XEP: Descriptioncartridge fuses .63 amp 250v FA cartridge; CategoryCircuit protection; File Size296KB，2 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric Compare View All

217.630XEP Overview

cartridge fuses .63 amp 250v FA cartridge

217.630XEP Parametric

Parameter Name	Attribute value
Manufacture	Littelfuse
Product Category	Cartridge Fuses
RoHS	Yes
Body Style	Cylindrical Leaded
Current Rating	630 mA
Voltage Rating AC	250 V
Mounting Style	Through Hole
Fuse Type	Fast Blow
Fuse Size / Grou	5 mm x 20 mm
Dimensions	22.5 mm L x 6 mm D
Case Diamete	6 mm
Case Length	22.5 mm
Indicator Style	Without Indic
Interrupt Rating	35 A at 250 VAC
Operating Temperature Range	- 55 C to + 125 C
Packaging	Bulk
Produc	Specialty Fuses
Resistance	190 mOhms
Factory Pack Quantity	1000
Termination Style	Axial
Type	Axial Lead and Cartridge Fuse

Preview

Download Datasheet

View All

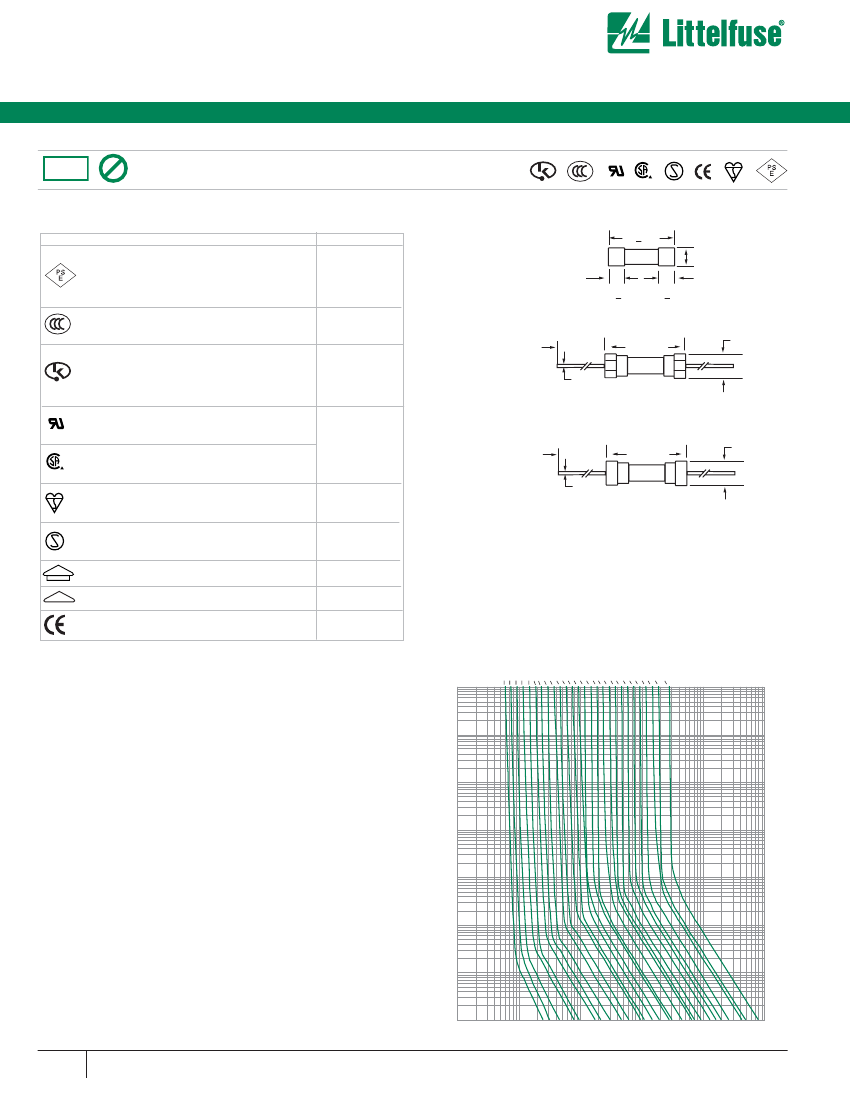

Axial Lead and Cartridge Fuses

Designed to IEC Standard

RoHS

Pb

5 x 20 mm

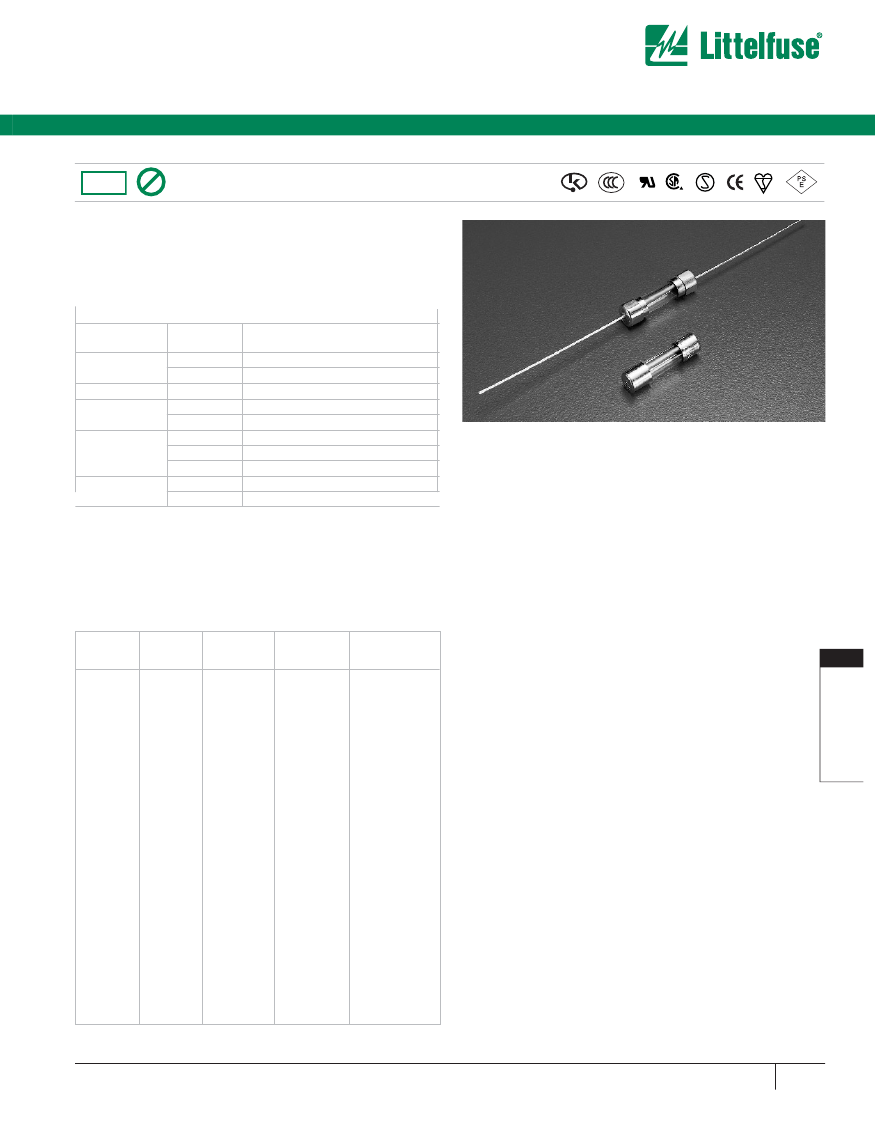

Fast-Acting Fuse 217P Series

®

• Designed to International (IEC) Standards for use globally.

• Meets the IEC 60127-2, Sheet 2 specification for Fast-Acting Fuses.

• Available in Cartridge and Axial Lead Form.

• Available in ratings of 0.032 to 15 amperes.

• RoHS Compliant and Lead-Free

ELECTRICAL CHARACTERISTICS:

% of Ampere

Rating

150%

210%

275%

400%

Ampere

Rating

.032 – 6.3

8-15

.032-15

.032 – .100

.125 – 15

.032 – .100

.125 – 6.3

8 - 15

.032 – 6.3

8-15

Opening

Time

60 minutes,

Minimum

30 minutes,

Minimum

30 minutes,

Maximum

0.01 sec.,

Min.;

.5 sec.

Max.

0.05 sec.,

Min.;

2 sec.

Max.

.003 sec.,

Min.;

0.1 sec.

Max.

.01 sec.,

Min.;

0.3 sec.

Max.

.01 sec.,

Min.;

0.4 sec.

Max.

.02 second,

Maximum

.04 second,

Maximum

ENVIRONMENTAL SPECIFICATIONS:

Operating temperature:

-55˚C to 125˚C

Thermal Shock:

MIL-STD-202F Method 107G, Test Condition B: (5

cycles –65°C to +125°C)

Vibration:

MIL-STD-202F Method 201A

Humidity:

MIL-STD-202F Method 103B, Test Condition A. high relative

humidity (95%) and elevated temperature (40°C) for 240 hours.

Salt Spray:

MIL-STD-202F Method 101D, Test Condition B

1000%

INTERRUPTING RATING:

35 amperes or 10 x rated current;

(whichever is greater) to a maximum 100 amperes @ 250VAC, unity

Power Factor.

PHYSICAL SPECIFICATIONS:

Material:

Body: Glass

Cap: Nickel Plated Brass

Leads: Tin Plated Copper

Terminal Strength

:

MIL-STD-202F Method 211A,

Test Condition A

Solderability:

Reference IEC 60127 Second Edition 2003-01 Annex A

Terminal strength: MIL-STD-202F Method 211A, Test Condition A

11

Product Marking:

Cap 1: current and voltage rating.

Cap 2: Agency approval markings.

Packaging:

Available in Bulk (V=5, H=100, M=1000 pcs/pkg) or on

Tape/Reel (MRET1=1000 pcs/reel).

ORDERING INFORMATION:

Cartridge

Catalog

Number

217.032P

217.040P

217.050P

217.063P

217.080P

217.100P

217.125P

217.160P

217.200P

217.250P

217.315P

217.400P

217.500P

217.630P

217.800P

217

001.P

217

1.25P

217

01.6P

217

002P

217

02.5P

217

3.15P

217

004.P

217

005.P

217

06.3P

217

008.P

217

010.P

217

015.P

Ampere

Rating

.032

.040

.050

.063

.080

.100

.125

.160

.200

.250

.315

.400

.500

.630

.800

1

1.25

1.6

2

2.5

3.15

4

5

6.3

8*

10*

15*

Voltage

Rating

250

Nominal

Resistance

Cold Ohms

262.2

183.2

15.20

10.45

7.890

5.775

3.820

2.525

1.700

1.233

0.894

0.277

0.207

0.190

0.120

0.096

0.070

0.053

0.042

0.033

0.022

0.016

0.014

0.009

0.007

0.006

0.004

Nominal

Melting I

2

t

A

2

Sec.

0.000060

0.000085

0.000190

0.000555

0.000828

0.00450

0.00477

0.010

0.024

0.042

0.112

0.127

0.219

0.409

0.847

1.042

2.230

4.616

5.726

9.460

17.722

29.164

42.796

62.466

198.158

217.633

607.133

w w w. l i t t e l f u s e . c o m

411

AXIAL LEAD AND

CARTRIDGE FUSES

217.630XEP Related Products
