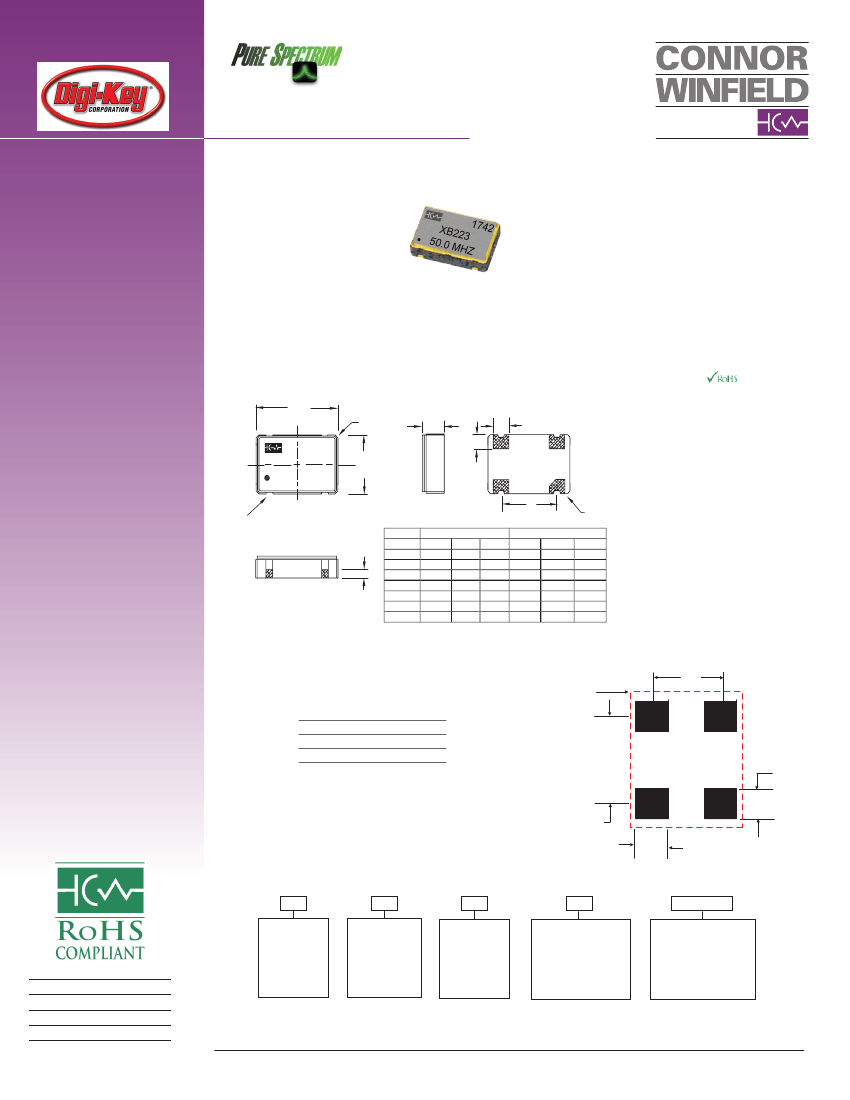

Low Phase Noise

Clock Oscillator Series

XB Series

2111 Comprehensive Drive

Aurora, Illinois 60505

Phone: 630- 851- 4722

Fax: 630- 851- 5040

www.conwin.com

Description:

The Connor-Winfield XB-

series is a 5x7mm surface

mount LVCMOS oscillator

with ultra-low phase noise.

This XB-series operates at

either 1.8, 2.5, or 3.3V supply

voltages with temperature

stabilities as low as ±20ppm.

Features:

•

5.0 x7.0mm Surface Mount Package

•

1.8V, 2.5V, or 3.3V Operation

•

LVCMOS Output Logic

•

Frequency Stabilities Available:

±20ppm; ±25ppm; ±50ppm; ±100ppm

•

Temperature Ranges Available:

XB1xx Series: 0 to 70°C; XB2xx Series: -40 to 85°C

XB3xx Series: 0 to 85°C; XB4xx Series: -20 to 70°C

•

Low Jitter: <0.1ps RMS

•

Low Phase Noise

•

Tri-State Enable/Disable

•

Tape and Reel Packaging

•

RoHS Compliant / Lead (Pb) Free

Package Outline

E

C

L

Marking

A

L

b

3

4

C

L

1742

XB223

50.0MHZ

Top View

D

(Bottom View)

2

1

Pin 1 ID

e

Pin 1

Index

Side View

Bottom View

A1

Side View

Symbol

A

D

E

A1

L

b

e

Min

-

4.85

6.86

-

mm

Nom.

-

5.0

7.00

0.65

1.20

1.40

5.08

Max.

1.5

5.15

7.16

-

Min

-

0.191

0.270

-

inches

Nom.

-

0.197

0.275

0.0265

0.0470

0.055

0.200

Max.

0.060

0.203

0.282

-

Suggested Pad Layout

Pad Connections

1: Enable / Disable (OE)

2: Ground

3: Output

4: Supply Voltage (Vdd)

Keep Out Area

0.165

(4.2mm)

1

4

Top

View

0.070

(1.8mm)

0.200

(5.08mm)

2

3

* Digi-Key Stock available

for XB223-050.0M and

XB223-064.0M only.

0.079

(2.0mm)

Ordering Information

1

Temperature

Range

XB

Type

LVCMOS

Clock Series

5x7 mm

Bulletin

Page

Revision

Date

2

Frequency

Tolerance

4 = ±20 ppm

1 = ±25 ppm

2 = ±50 ppm

3 = ±100 ppm

3

Supply Voltage

1 = 1.8 Vdc

2 = 2.5 Vdc

3 = 3.3 Vdc

-050.0M

Output Frequency

Frequency Format

-xxx.xM Min*

-xxx.xxxxxxM Max*

* Min 1 and Max 6

decimal places allowed

for frequency. M=MHz.

Sm142

1 of 4

04

04 Jan 2018

1 = 0 to 70°C

2 = -40 to 85°C

3 = 0 to 85°C

4 = -20 to 70°C

Example Part Numbers:

XB123-050.0M = LVCMOS Output, 0 to 70°C, ±50 ppm, 3.3 Vdc, E/D Pad 1, Output Frequency 50.0 MHz

XB223-064.0M = LVCMOS Output, -40 to 85°C, ±50 ppm, 3.3Vdc, E/D Pad 1, Output Frequency 64.0 MHz

2111 Comprehensive Drive

Aurora, Illinois 60505

Phone: 630- 851- 4722

Fax: 630- 851- 5040

www.conwin.com

Parameter

Absolute Maximum Ratings

Minimum

-55

-0.6

Storage Temperature

Supply Voltage (Vdd)

Input Voltage (OE)

Nominal

-

Maximum

125

6.0

Vdd+0.6

Units

°C

Vdc

Notes

Absolute Ratings: Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only. The functional operation of

the device at those or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to conditions outside the "recommended operating

conditions" for any extended period of time may adversely impact device reliability and result in failures not covered by warranty.

Parameter

Operating Specifications

Minimum

20

-20

-25

-50

-100

0

-40

0

-20

1.71

2.375

3.135

-

Output Frequency (Fo)

Total Frequency Tolerance

Model XBx4x

Model XBx1x

Model XBx2x

Model XBx3x

Operating Temperature Range

Model XB1xx

Model XB2xx

Model XB3xx

Model XB4xx

Supply Voltage (Vdd)

Model XBxx1

Model XBxx2,

Model XBxx3

Supply Current (Idd)

20 to 49.999 MHz

50 to 64 MHz

Jitter Fo=50.0 MHz:

Period Jitter

Integrated Phase Jitter (BW = 12 KHz to 20 MHz)

SSB Phase Noise (Fo = 50 MHz)

@ 10 Hz offset

@ 100 Hz offset

@ 1 KHz offset

@ 10 KHz offset

@ 100 KHz offset

@ 1 MHz offset

@ 10 MHz offset

Start-Up Time

Nominal

-

1.8

2.5

3.3

-

3.0

60

-70

-110

-140

-160

-162

-163

-170

-

Maximum

64

20

25

50

100

70

85

70

1.89

2.625

3.465

15

26

5.0

100

-

2

Units

MHz

ppm

°C

Vdc

mA

ps RMS

fs RMS

dBc/Hz

ms

Notes

1

OE Input Characteristics

Parameter

Enable Voltage (High) (Vih)

Disable Voltage (Low) (Vil)

Enable Time

Disable Time

Output Disable Current (Standby Current) (Idd)

Minimum

70%Vdd

-

Nominal

-

Maximum

-

30%Vdd

2

200

10

Units

Vdc

ms

ns

uA

Notes

2

CMOS Output Characteristics

Parameter

Load

Output Voltage: High (Voh)

Low (Vol)

Output Current: High (Ioh)

Low (Iol)

Duty Cycle at 50% of Vdd

Rise / Fall Time: 10% to 90%

Minimum

-

Vdd-0.4

-

-8

-

45

-

Nominal

15

-

50

1

Maximum

-

0.4

-

8

55

2

Units

pF

V

mA

%

ns

Notes

Notes:

1) Inclusive of calibration @ 25°C, frequency vs. temperature stability, supply voltage change, load change, shock and vibration,

10 years aging.

2) When the oscillator is disabled, the output is high impedance. Output is enabled with no connection on pad 1.

Specifications subject to change without notification. See Connor-Winfield's website for latest revision.

Not intended for life support applications.

Bulletin

Page

Revision

Date

Sm142

2 of 4

04

04 Jan 2018

2111 Comprehensive Drive

Aurora, Illinois 60505

Phone: 630- 851- 4722

Fax: 630- 851- 5040

www.conwin.com

Package Characteristics

Package

Moisture Sensitivity Level

Termination Finish

Ceramic Surface Mount Package

MSL-1

0.7um Gold (Au) over 2.5um Nickel (Ni)

Environmental Characteristics

Shock

Sinusoidal Vibration

Random Vibration

Moisture

Marking Permanency

Solder Process

500 G’s 1ms, Halfsine, 3 shocks per direction, per MIL-STD 202G, Method 213B Test Condition D.

0.06” D.A. or 10G’s Peak, 10 to 500 Hz, per MIL-STD-202G, Method 204D, Test Condition A.

5.35 G’s rms. 20 to 2000 Hz per MIL-STD-202G, Method 214,Test Condition 1A, 15 minutes each axis.

10 cycles, 95% RH, Per MIL-STD-202G, Method 112.

Per MIL-STD-202G, Method 215J.

RoHS compliant, lead free. See solder profile below.

Enable / Disable Function (OE)

Function (Pad 1)

High (Vih) or Open

Low (Vil)

Output

Enabled

Disabled (High Impedance)

Temperature

260°C

220°C

180°C

150°C

120°C

Solder Profile

260°C

0

10 s

Up to 120 s

60 to 90 s

Typical

Meets IPC/JEDEC J-STD-020C

Test Circuit

Vcc

POWER

SUPPL

Y

CMOS Output Waveform

OSCILLOSCOPE

CMOS Output, Squarewave

A

PROBE

V

.01uf

1

4

3

90%

OSC

2

CL

50%

10%

INPUT for E/D

FREQ

COUNTER

Bulletin

Page

Revision

Date

Specifications subject to change without notification. See Connor-Winfield's website for latest revision.

Not intended for life support applications.

Sm142

3 of 4

04

04 Jan 2018

2111 Comprehensive Drive

Aurora, Illinois 60505

Phone: 630- 851- 4722

Fax: 630- 851- 5040

www.conwin.com

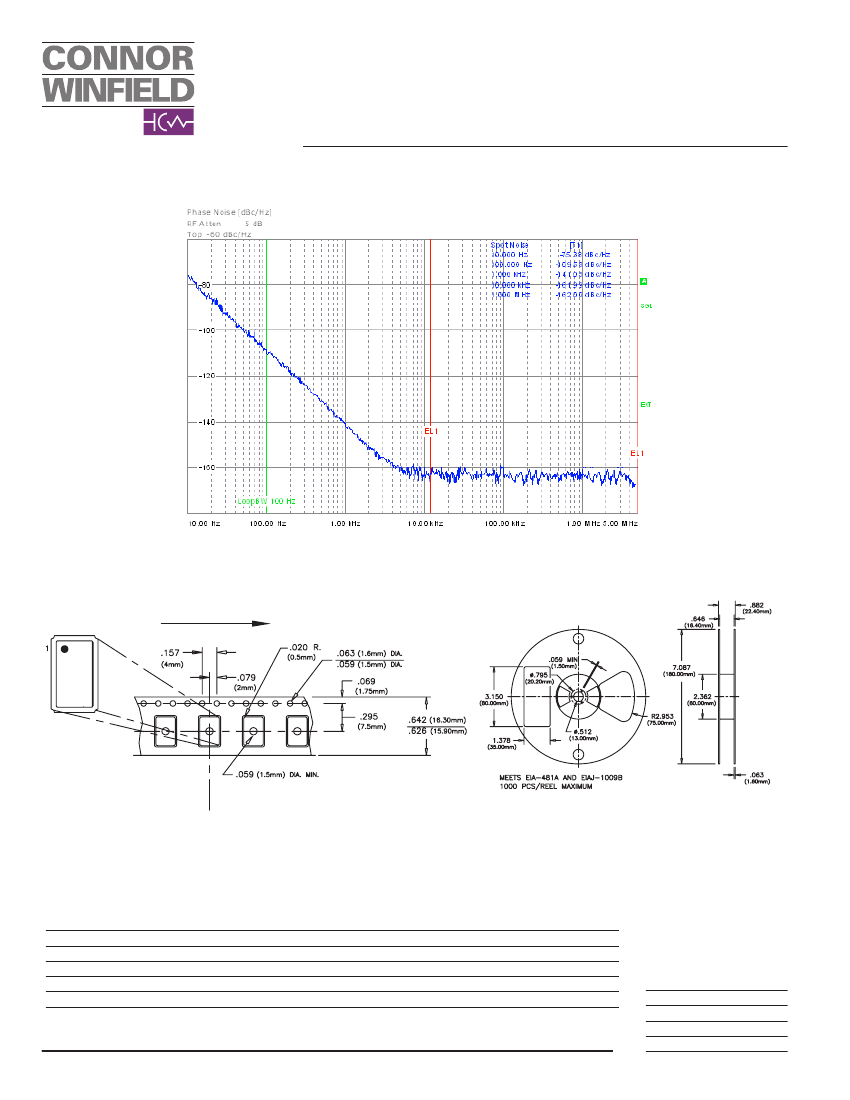

Typical Phase Noise at Fo=50MHz

Tape and Reel Dimensions

Direction of Feed (Customer)

16mm Tape

Revision History

Revision

00

01

02

03

04

Date

09/21/16

01/26/17

03/14/17

01/03/18

01/04/18

Changes

Data sheet released

Frequency range update

Updated phase noise numbers.

Updated Frequency Range

Update frequency range under supply current

Bulletin

Page

Revision

Date

Sm142

4 of 4

04

04 Jan 2018

Specifications subject to change without notification. See Connor-Winfield's website for latest revision.

Not intended for life support applications.

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7341514347
Reach Compliance Code	unknown
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; TR, 7 INCH
maximum descent time	2 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Nominal operating frequency	20 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	LVCMOS
Output load	15 pF
physical size	7.16mm x 5.15mm x 1.5mm
longest rise time	2 ns
Maximum supply voltage	2.625 V
Minimum supply voltage	2.375 V
Nominal supply voltage	2.5 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
