TQDILP
Typical Applications
Base Stations
Test Equipment
Synthesizers
PXO
Features
AT-Cut Crystal
Dual-inline oszillator
Hermetically Sealed Package
Surface Mount Option
Frequency range
Standard frequencies
Frequency stabilities
Parameter
Code II
30 MHz – 90 MHz
30.72; 32.768; 50; 68.768MHz
Frequency stability
Operating temp range
vs. operating temperature range
20
21
22
24
34
32
10
12
14
16
18
Code I
±
100 ppm
±
50 ppm
±
50 ppm
±
25 ppm
±
15 ppm
±
10 ppm
±
50 ppm
±
20 ppm
±
10 ppm
±
7.5 ppm
±
5.0 ppm
Frequency stability
-55 ... +125°C
-55 ... +105°C
-40 ... +90°C
-30 ... +80°C
-20 ... +70°C
Parameter
Condition
Initial tolerance
01
02
03
05
07
±
100 ppm
±
50 ppm
±
20 ppm
±
10 ppm
±
5 ppm
Value
@ 25°C
RF output
Parameter
Condition
Signal
Fan out
Rise and Fall time
Duty cycle
LS-TTL
10
< 10 ns
< 6 ns
40/60 %
Value
30 MHz to 40 MHz
≥
40 MHz
@ 1.5 V
Condition
Supply voltage
Parameter
Supply voltage (Vs)
Current consumption
5.0 V ± 5 %
< 40 mA
Value
Condition
Additional parameters
Parameter
Phase Noise
Weight
<-80 dBc/Hz
<-110 dBc/Hz
<-135 dBc/Hz
<-145 dBc/Hz
<-150 dBc/Hz
<6g
10
100
1
10
100
Hz
Hz
kHz
kHz
kHz
Note 1
Corning Frequency Control • Worldwide Data Book 2001
v1.0.2000-10-31
Corning Frequency Control Inc.
• 100 Watts Street • Mt. Holly Springs, PA 17065 • Tel 1-717-486-3411 • Fax 1-717-486-5920 • www.corningfrequency.com
Tele Quarz GmbH & Co. KG
• Landstrasse • D-74924 Neckarbischofsheim, Germany • Tel +49-7268-801-0 • Fax +49-07268-801-281 • www.telequarz.de
1/2
TQDILP
Additional Parameters
Parameter
Value
PXO
Condition
Operable temperature range
Storage temperature range
Processing & Packing
Screening
-55 ... +105°C
-60 ... +125°C
handling&processing note
Option I
Condition
S
B
C
Screening MIL STD 883 C method 5008.2 class B
Screening MIL-O-55310, Class B
Screening MIL-O-55310, Class C
Enclosure
Type
Option II
Case
Condition
Blank
A

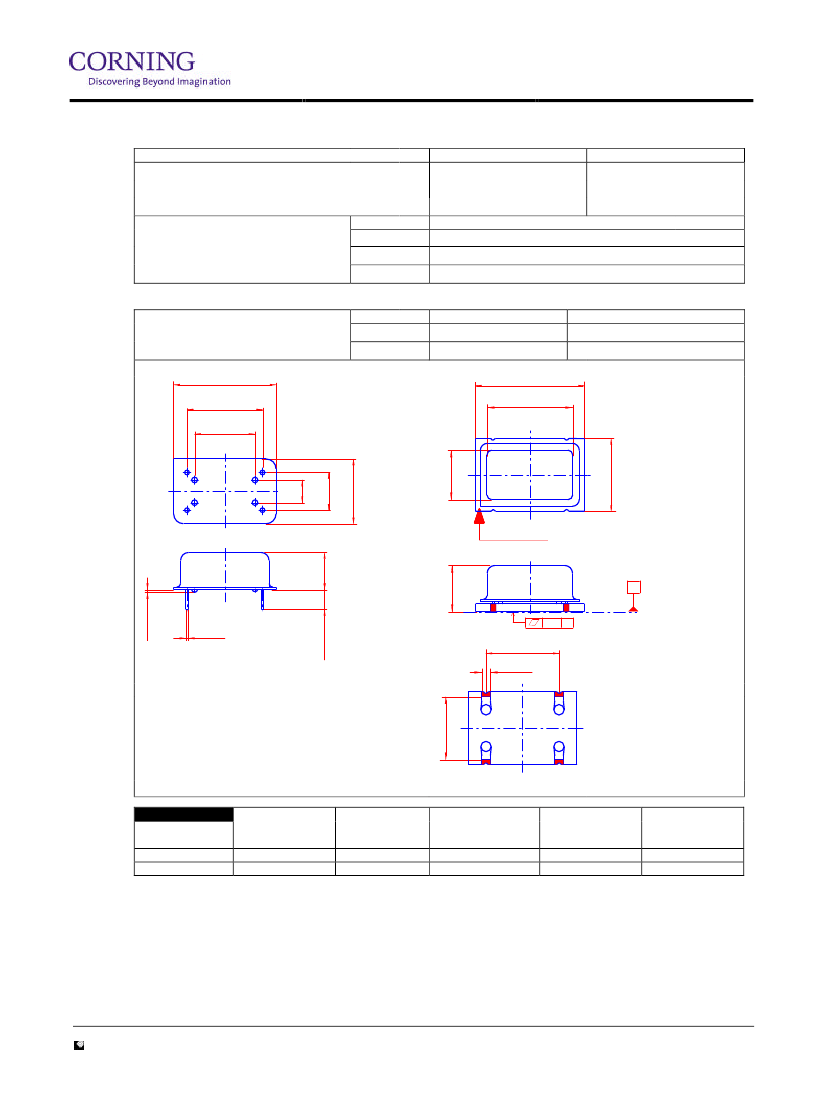

Drawing
20,7max.
±0,3
15,24
G125
G175
22,7max.
G 125
H = 7,5max.; G125 Standard
18,5max.
14
10,9max.
8
G 175
H = 9,4; G175 Standard
15,1max.
12,2
±0,5
4,58
±0,5
14
8
13,1max.
7,62
±0,3
1
7
1
Pin 1 corner
H
7
±0,2
H
S
Auflage
fläche
0,8max.
5,85min.
0,1
±0,1
S
ø0,45
15,24
1,8
±0,1
13,2
Pin Connections
Pin 1
Pin 7
Pin 8
Pin 14
N.C.
GND, Case
RF-Output
Supply Voltage (V
S
)
±0,1
all units in mm
Ordering Code
Model
Example:
Order:
Note
1
TQDILP
TQDILP
Code I
Adjustment
tolerance
05.
Code II
Frequency
Stability
14.
Option I
Screening
Option II
Case
A
Frequency
30M00000
Typical values @ 30 MHz
Unless otherwise stated all values are valid after warm-up time and refer to typical conditions for supply voltage,
frequency control voltage, load, temperature (25°C)
Subject to technical modification; Not all options and codes are available at all Frequencies
