35HDRANAU datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 35HDRANAU

35HDRANAU: Descriptionphone connectors 3.5mm R/A plug nick; CategoryThe connector; File Size94KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

35HDRANAU Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	35HDRANAU	-	-	View	Buy Now

35HDRANAU Overview

phone connectors 3.5mm R/A plug nick

35HDRANAU Parametric

Parameter Name	Attribute value
Manufacture	Switchcraf
Product Category	Phone Connectors
RoHS	Yes
Standard	3.5 mm, 1/8 i
Number of Positions	3 (TRS, Stereo)
Gende	Male
Switch Configurati	Not Switched
Termination Style	Solde
Mounting Style	Cable
Orientati	Right Angle
Contact Material	Copper Alloy
Contact Plating	Gold
Col	Black
Factory Pack Quantity	100

Preview

Download Datasheet

View All

PART NUMBER PLUG FINGER

35HDRABAU

35HDRABAUS

35HDRANAU

35HDRANAUS

35HDRANN

35HDRANNS

GOLD

NICKEL

HANDLE

BLACK

NICKEL

HANDLE

CABLE

OPENING I.D.

0.29

0.175

0.29

0.175

0.29

0.175

MATERIALS:

PLUG MOLDING COMPOUND - L.C.P. BLACK

SLEEVE, PLUG BODY

RING SLEEVE

TIP ROD

HOUSING

TUBULAR INSULATOR

HANDLE

CLAMP TERMINAL

SOLDER LUGS (TIP & RING)

- BRASS, NICKEL OR GOLD PLATED

- ZINC, BLACK OR NICKEL PLATED

- MYLAR, TRANSLUCENT

- BRASS, BLACK OR NICKEL PLATED

- CRS, TIN PLATED

- BRASS, TIN PLATED

.51 REF

1.52 REF

.41 REF

.14 REF

[3.5mm]

SOLDER LUG

(TIP)

SOLDER LUG

(RING)

TUBULAR INSULATOR

SHIPPED UNASSEMBLED

HANDLE

SHIPPED UNASSEMBLED

CABLE OPENING I.D.

SEE TABLE

HOUSING

CLAMP TERMINAL

(SLEEVE)

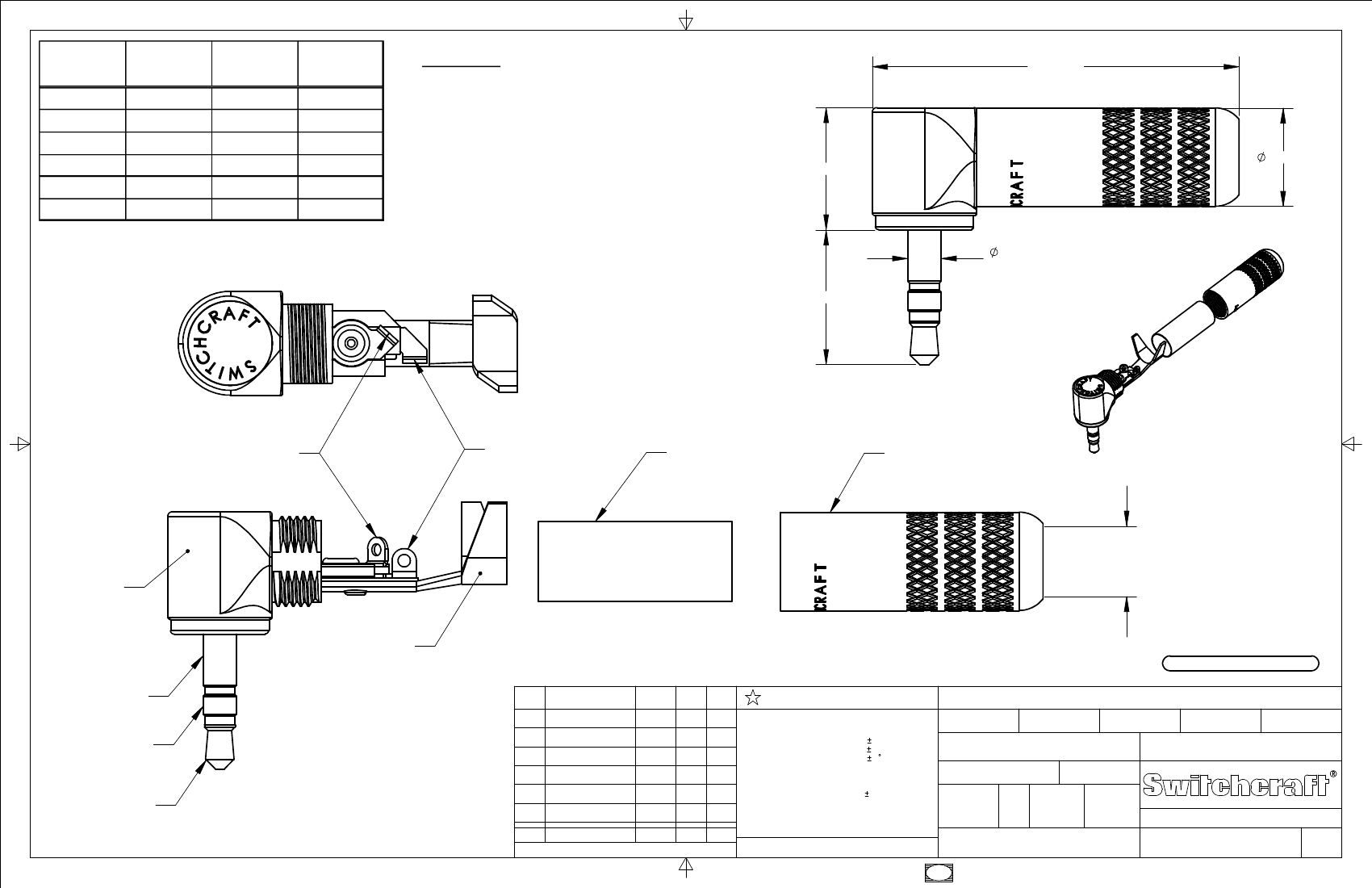

CUSTOMER DRAWING

SLEEVE,

PLUG BODY

STAR SYMBOL DENOTES CRITICAL DIMENSION

THIS DRAWING DESCRIBES A DESIGN CONSIDERED PROPRIETARY IN NATURE, DEVELOPED AND MANUFACTURED

BY SWITCHCRAFT INC. AND IS RELEASED ON A CONFIDENTIAL BASIS FOR IDENTIFICATION PURPOSES ONLY.

UNLESS OTHERWISE SPECIFIED

SIZE

WIDTH

MULT

LBS/M

TEMPER

RING

1. ALL DIMENSIONS IN INCHES

- TWO PLACE DECIMALS

0.01

- THREE PLACE DECIMALS

0.005

- ANGLES

- ALL DIA. CONCENTRIC WITHIN 0.005 T.I.R.

2. FEATURES ON THE SAME CENTERLINE

MUST BE ALIGNED WITHIN 0.002

FINISH

SPEC No.

FIRST USED ON

SCALE

MATERIAL

SPEC No.

DATE DRAWN

CHKD

3:1

APVD

TIP

REV

24662

ECO NUMBER

3-23-04

DATE

AKE

APVD

3. REMOVE ALL BURRS

6-27-00

NAME

AKE

3-23-04

AKE

3-23-04

PART No.

SHEET

REV

REVISIONS

DO NOT SCALE DRAWING

3.5mm RA STEREO PLUG

35HDRA SERIES

SolidWorks CAD File

35HDRANAU Related Products

	35HDRANAU	35HDRANAUS	35HDRAAU	35HDRANN	35HDRANNS	35HDRANNPKG	35HDRABAUS	35HDRABAU
Description	phone connectors 3.5mm R/A plug nick	phone connectors 3.5mm R/A plug nkl/G	phone connectors 3.5mm R/A plug nickel	phone connectors 3.5mm R/A ster plug	phone connectors 3.5 MM R/A plug nick	phone connectors 3.5mm right angle ST	phone connectors 3.5mm R/A plug black/gold	phone connectors 3.5mm plug R/A
Manufacture	Switchcraf	Switchcraf	Switchcraf	Switchcraf	Switchcraf	Switchcraf	Switchcraf	Switchcraf
Product Category	Phone Connectors	Phone Connectors	Phone Connectors	Phone Connectors	Phone Connectors	Phone Connectors	Phone Connectors	Phone Connectors
RoHS	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Standard	3.5 mm, 1/8 i	3.5 mm, 1/8 i	3.5 mm, 1/8 i	3.5 mm, 1/8 i	3.5 mm, 1/8 i	3.5 mm, 1/8 i	3.5 mm, 1/8 i	3.5 mm, 1/8 i
Number of Positions	3 (TRS, Stereo)	3 (TRS, Stereo)	3 (TRS, Stereo)	3 (TRS, Stereo)	3 (TRS, Stereo)	3 (TRS, Stereo)	3 (TRS, Stereo)	3 (TRS, Stereo)
Gende	Male	Male	Male	Male	Male	Male	Male	Male
Switch Configurati	Not Switched	Not Switched	Not Switched	Not Switched	Not Switched	Not Switched	Not Switched	Not Switched
Termination Style	Solde	Solde	Solde	Solde	Solde	Solde	Solde	Solde
Mounting Style	Cable	Cable	Cable	Cable	Cable	Cable	Cable	Cable
Orientati	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle
Contact Material	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy
Contact Plating	Gold	Gold	Gold	Ti	Ti	Ti	Gold	Gold
Col	Black	Black	Black	Nickel	Nickel	Nickel	Black	Black
Factory Pack Quantity	100	100	100	100	100	100	100	100
