9922S-Y02-02-03-MR datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 9922S-Y02-02-03-MR

Preview

9922S-Y02-02-03-MR: DescriptionBoard Connector, 22 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Plug; CategoryThe connector The connector; File Size159KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/

Download Datasheet Parametric View All

9922S-Y02-02-03-MR Overview

Board Connector, 22 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Plug

9922S-Y02-02-03-MR Parametric

Parameter Name	Attribute value
Objectid	1166956949
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT,METAL PAD,REEL
body width	0.165 inch
subject depth	0.138 inch
body length	0.378 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	500VAC V
Insulation resistance	100000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	99
Plug contact pitch	0.031 inch
Match contact row spacing	0.094 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.9878 mm
Plating thickness	FLASH inch
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.7874 mm
Termination type	SURFACE MOUNT
Total number of contacts	22

Preview

Download Datasheet

View All

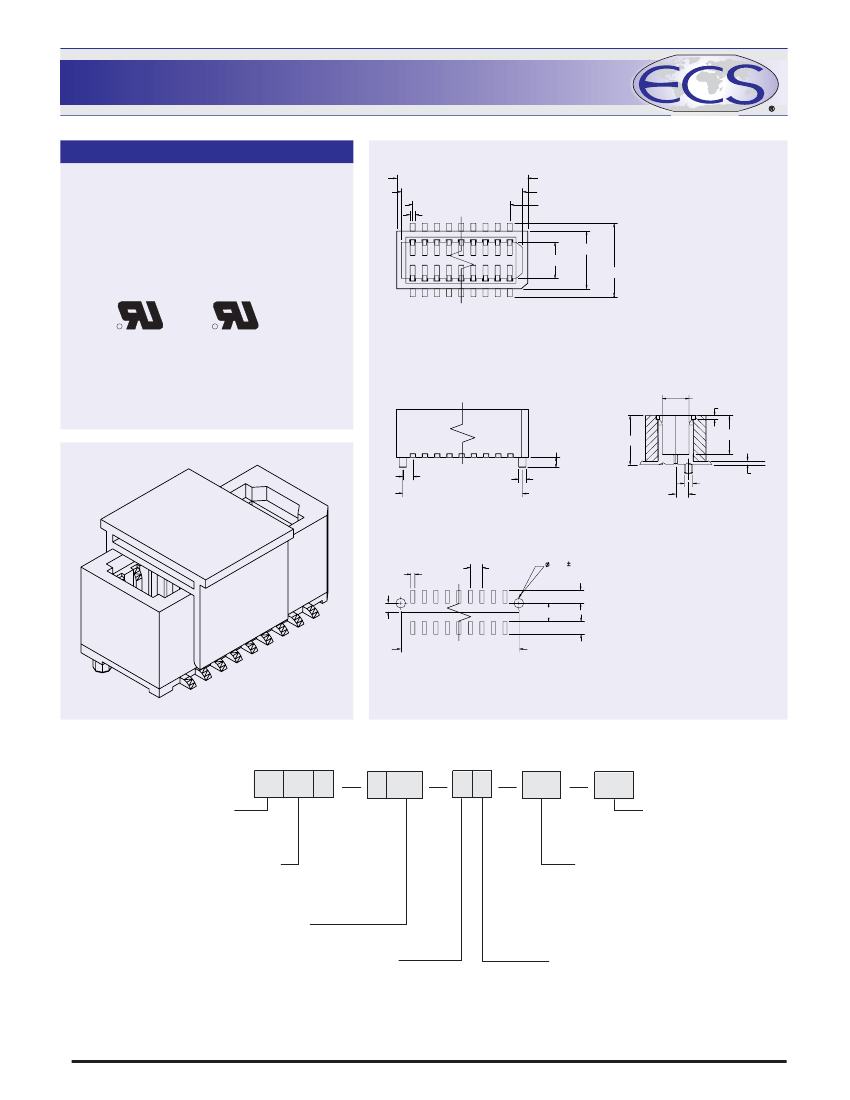

.032 [0.80] BOARD TO BOARD SMT SOCKET

Specifications

Current Rating:

0.5 Amps

Insulator Resistance: 100 Megohms min

Contact Resistance:

40m ohm max

Dielectric Withstanding: AC 500V

Operating Temperature: -40° ~± 85° C

Contact Material:

Phosphor Bronze

Insulator Material:

High Temperature

Thermoplastic. UL 94V-0

Finish:

See Contact Plating

.063 [1.6]+.032 [.80] X (No of Positions-1)

.030 [.75]+.032 [.80] X (No of Positions-1)

.032 [.80] X (No of Contacts/2-1)

.0118 [.30]

.165 [4.2]

.095 [2.4]

.201 [5.1]

R

C

R

Recognized under the recognized component

Program of Underwriters Laboratories, Inc.

Products specifications are subject to be changed

without notice.

.079 [2.0]

.020 [.05]

.028 [0.70]

H

.098 [2.5]

.035 [.90]

.024 [.60]

.049 [1.25]

.010 [.25]

.030 [.75]

.071 [1.8] + .032 [.80] X (No. of Contacts/2-1)

.020 [.50]

.049

[1.25]

.032 [.80]

.034

004 [.85]

.059 [1.5]

.098 [2.5]

.059 [1.5]

.071 [1.80] + .032 [.80] X (No. of Position-1)

Recommended P.C.B Layout

Dimensions are in inches [mm]

PART NUMBERING

99 XX S

SERIES CODE

NO. OF CONTACTS

10

to

98

A0

= 100 Contacts

Y XX

XX

PACKAGING

MT

= Metal Pad + Tube

MR

= Metal Pad + Reel

CONTACT PLATING

Lead Free & RoHS Compliant

.000050” Nickel underplate

CONTACT

03

= Gold Flash

CONNECTOR HEIGHT

“H”

dimension

02

= .138 [3.50]

03

= .232 [5.90]

LOCATING PEG

0

= w/o locating peg

1

= with locating peg

INSULATOR MATERIAL

1

= Nylon-6T

2

= L.C.P.

CONSULT FACTORY FOR CONNECTORS BUILT TO YOUR DESIGN

WWW.ECSCONN.COM
