2F150A-030D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 2F150A-030D

2F150A-030D: DescriptionRectifier Diode, 1 Phase, 2 Element, 100A, 300V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size30KB，1 Pages; ManufacturerFuji Electric Co., Ltd.

Download Datasheet Parametric Compare View All

2F150A-030D Overview

Rectifier Diode, 1 Phase, 2 Element, 100A, 300V V(RRM), Silicon,

2F150A-030D Parametric

Parameter Name	Attribute value
package instruction	R-XUFM-X3
Reach Compliance Code	unknow
ECCN code	EAR99
application	FAST RECOVERY
Shell connection	ANODE AND CATHODE
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.25 V
JESD-30 code	R-XUFM-X3
Maximum non-repetitive peak forward current	800 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	100 A
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	300 V
Maximum reverse current	30000 µA
Maximum reverse recovery time	0.5 µs
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER
Base Number Matches	1

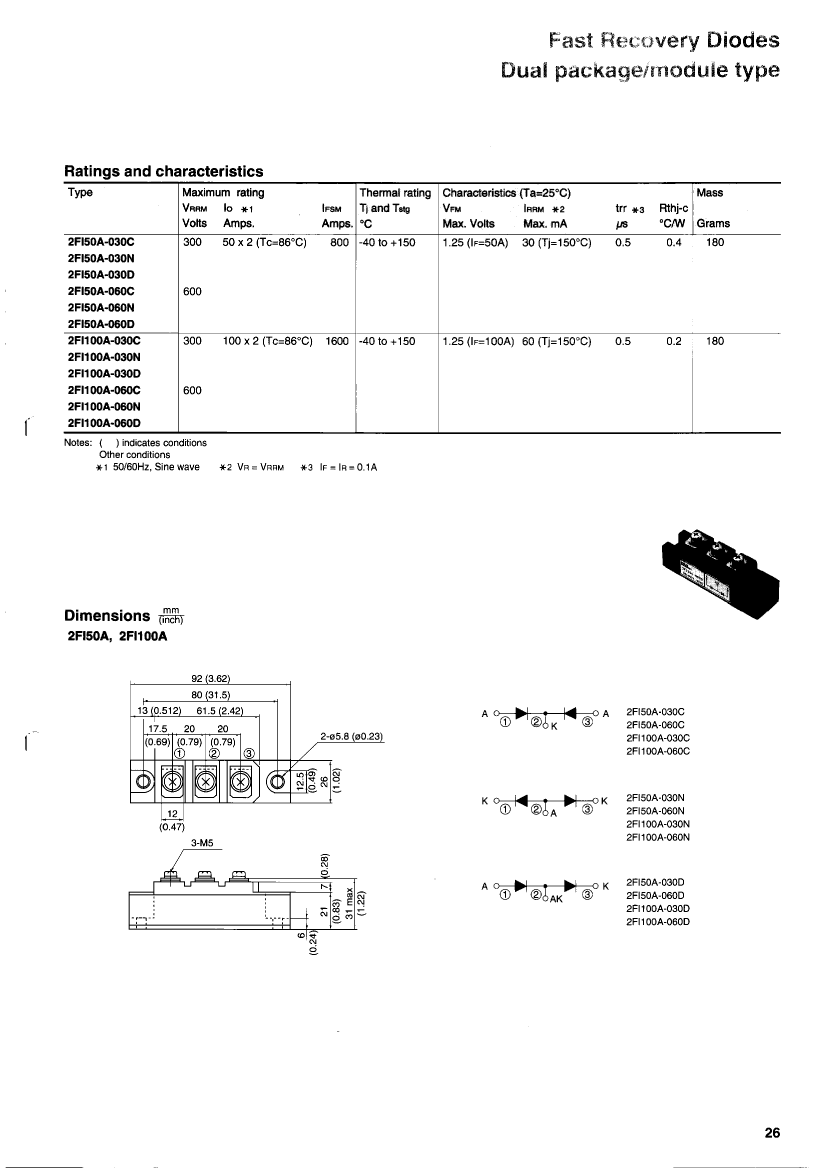

Preview

Download Datasheet

View All

2F150A-030D Related Products

	2F150A-030D	2F150A-060D	2F150A-060N	2F150A-060C	2F150A-030C	2F150A-030N
Description	Rectifier Diode, 1 Phase, 2 Element, 100A, 300V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 100A, 600V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 50A, 600V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 50A, 600V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 50A, 300V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 50A, 300V V(RRM), Silicon,
package instruction	R-XUFM-X3	R-XUFM-X3	R-XUFM-X3	R-XUFM-X3	R-XUFM-X3	R-XUFM-X3
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
application	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY
Shell connection	ANODE AND CATHODE	ANODE AND CATHODE	ANODE	CATHODE	CATHODE	ANODE
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.25 V	1.25 V	1.25 V	1.25 V	1.25 V	1.25 V
JESD-30 code	R-XUFM-X3	R-XUFM-X3	R-XUFM-X3	R-XUFM-X3	R-XUFM-X3	R-XUFM-X3
Maximum non-repetitive peak forward current	800 A	800 A	800 A	800 A	800 A	800 A
Number of components	2	2	2	2	2	2
Phase	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output current	100 A	100 A	50 A	50 A	50 A	50 A
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	300 V	600 V	600 V	600 V	300 V	300 V
Maximum reverse current	30000 µA	30000 µA	30000 µA	30000 µA	30000 µA	30000 µA
Maximum reverse recovery time	0.5 µs	0.5 µs	0.5 µs	0.5 µs	0.5 µs	0.5 µs
surface mount	NO	NO	NO	NO	NO	NO
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Base Number Matches	1	1	1	1	1	1
