Spezifikation für Freigabe / specification for release
Kunde / customer
:
Artikelnummer / part number
:
Bezeichnung :
description :
0603 SMD VARISTOR
82536259
Lead Free
SMD size:
0603
Datum / Date :
ROHS Compliant
31.07.06
A
Mechanische Abmessungen / dimensions :
SIZE
SISE
402
603
805
1206
1210
1812
2220
W
0.5
0.8
1.25
1.6
2.5
3.2
5.0
L
1.0
1.6
2.0
3.2
3.2
4.5
5.7
T
0.6
0.9
1.2
1.5
1.5
2.0
2.5
a
0.25
0.3
0.3
0.5
0.5
0.5
0.5
(Unit : mm)
B
Elektrische Eigenschaften / electrical properties :
TECHNICAL DATA
Part Number
AC
82536259
*
*
*
*
2.5
Working
Voltage
DC
3.3
Clamping
Voltage
V
(*2)
13
Peak
Current
A
(*3)
30
Energy
J
(*4)
0.1
Breakdown
Voltage
V
(*1)
5.5
Capacitance
pF
(*4)
180
+/-20%
1.0 A
1 MHz
1 The varistor voltage was measured at 1 mA current , tolerance at 12~18V(+-15%)，exceed 22V (+-10%)
Or tolerance to specify at :
2 The Clamping voltage tolerance at 12~18V(+-15%)，exceed 22V (+-10%).
Clamping voltage measured at standard current (A) :
3 The Peak Current was tested at 8/20 us waveform
4. The capacitance value and Energy only for customer reference, it’s not formal specification
Capacitance value measured at standard frequency :
0603
SURGE LEVEL IEC61000-4-5
Severity Level
(kV)
1
0,5
2
1
2
3
4
4
Special
X
Wave during
8/20 s
10/700 s CCITT
10/1000 s
T1
8 s
10 s
10 s
T2
20 s
700 s
1000 s
REFERENCE DATA
Response time
Leakage current at Vv × 80%
Leakage current at Vv × 80% (After reliability Test)
Operating ambient temperature
Storage temperature
Max. temperature solder
OTHER DATA
Body
End termination
Packaging
Complies with Standard
Procedure
Marking
T
rise
I
vv
I
vvA
<
<
<
1
50
200
-40½+85
-50½+125
260
ns
uA
uA
℃
℃
℃
ZnO
Ag/Ni/Sn
Reel
IEC61000-4-5
Solgel
None
Würth Elektronik eiSos GmbH & Co.KG - Radialex department
D-74638 Waldenburg · Max-Eyth-Straße 1 - 3 · Germany · Telefon (+49) (0) 7942 - 945 - 0 · Telefax (+49) (0) 7942 - 945 - 400
http://www.we-online.com
PAGE/SEITE 1 - TO/VON 5
Spezifikation für Freigabe / specification for release
Kunde / customer
:
Artikelnummer / part number
:
Bezeichnung :
description :
82.536.259
SMD size:
0603
0603 SMD VARISTOR
C
Lötpad / soldering spec. :
RECOMMENDED SOLDER PAD LAYOUT
SISE
402
603
805
1206
1210
1812
2220
3220
A
0.4~0.6
0.8~1.2
1.0~1.5
1.8~2.5
1.8~2.5
2.5~3.5
3.5~4.6
5.2~6.4
B
1.0~1.8
1.7~3.0
2.1~3.8
3.0~5.8
3.2~6.1
4.0~7.3
5.0~8.5
9.5~10.8
C
0.6~0.7
1.2~1.6
1.5~2.1
1.8~2.6
2.8~3.8
3.3~4.5
5.2~6.2
5.6~6.0
D
0.6~1.2
0.9~1.8
1.1~2.3
1.2~3.3
1.3~3.5
1.5~3.8
1.5~3.9
2.0~2.8
(Unit : mm)
1 - The solder paste shall be printed in a thickness of 150 to 200µm.
2 - The SIR test of the solder paste shall be done（Based on JIS-Z-3284）
3 - IR reflow Pb Free Process suggestin profile (Based on J-STD-020-C):
Rapid heating, partial heating or rapid cooling will easily cause defect of the component. So preheating and gradual cooling process is
suggested. IR soldering has the highest yields due to controlled heating rates and solder liquidus times. Make sure that the element is not
subjected to a thermal gradient steeper than 3 degrees per second. 2 degrees per second is the ideal gradient. During the soldering process,
pre- heating to within 175 degrees of the solders peak temperature is essential to minimize thermal shock.
4 -
Soldering recommend paste is Sn 96.5/Ag 3.5
- Preheat
1.The temperature rising speed is suggested to be 2~3°
C/s.
2.Appropriate preheat time will be from 60 to 120 seconds.
3.Temp. maintain at 175 +/-25° 120 seconds.
C
- Heating
1.Careful about sudden rise in temperature as it may worsen
the solder ability.
2.Set the peak temperature in 235° 10-20s or 260° 3-10s.
C
C
- Cooling
1.Ramp down rate 6°
C/s max.
※Perform
adequate test in advance as the reflow temperature
profile will vary according to the conditions of the manufacturing
process, and the specification of the reflow furnace
4 - Wave Soldering Process
Ramp-up rate 3°
C/s max.
Temp. maintain at 175 +/-25° 180 seconds max.
C
Peak temperature 260° 3-10s.
C
Ramp down rate 6°
C/s max.
to thermal shock, a preheat is recommended in the soldering
process. and the peak temperature should be under controlled
rigidly in the solder process.
5 - Hand Soldering Process
Preheating 150°
C
Temperature of soldering iron tip 380° max. 3 to 5 sec
C
The Varistorrs shall be cooled gradually at room ambient temperature
275
250
275
250
Peak Temp.
260°C
(3 to 10sec)
Temperature (°C)
225
200
175
150
125
100
75
25
01:00:00
02:00:00
03:00:00
04:00:00
Peak Temp.
175°C
(60 to 120sec)
Peak Temp.
245°C
(10 to 20sec)
Time (mn)
Peak Temp.
260°C
(3 to 10sec)
Temperature (°C)
225
200
175
150
125
100
75
25
01:00:00
02:00:00
03:00:00
04:00:00
Preheat.
175°C 150sec max.
Time (mn)
6 - Ultrasonic cleaning
For preventing failures or damages. Frequency 29MHz max - radied Power 20W/l max - Period 5mn max
Würth Elektronik eiSos GmbH & Co.KG - Radialex department
D-74638 Waldenburg · Max-Eyth-Straße 1 - 3 · Germany · Telefon (+49) (0) 7942 - 945 - 0 · Telefax (+49) (0) 7942 - 945 - 400
http://www.we-online.com
PAGE/SEITE 2 - TO/VON 5
Spezifikation für Freigabe / specification for release
Kunde / customer
:
Artikelnummer / part number
:
Bezeichnung :
description :
82.536.259
SMD size:
0603
0603 SMD VARISTOR
D

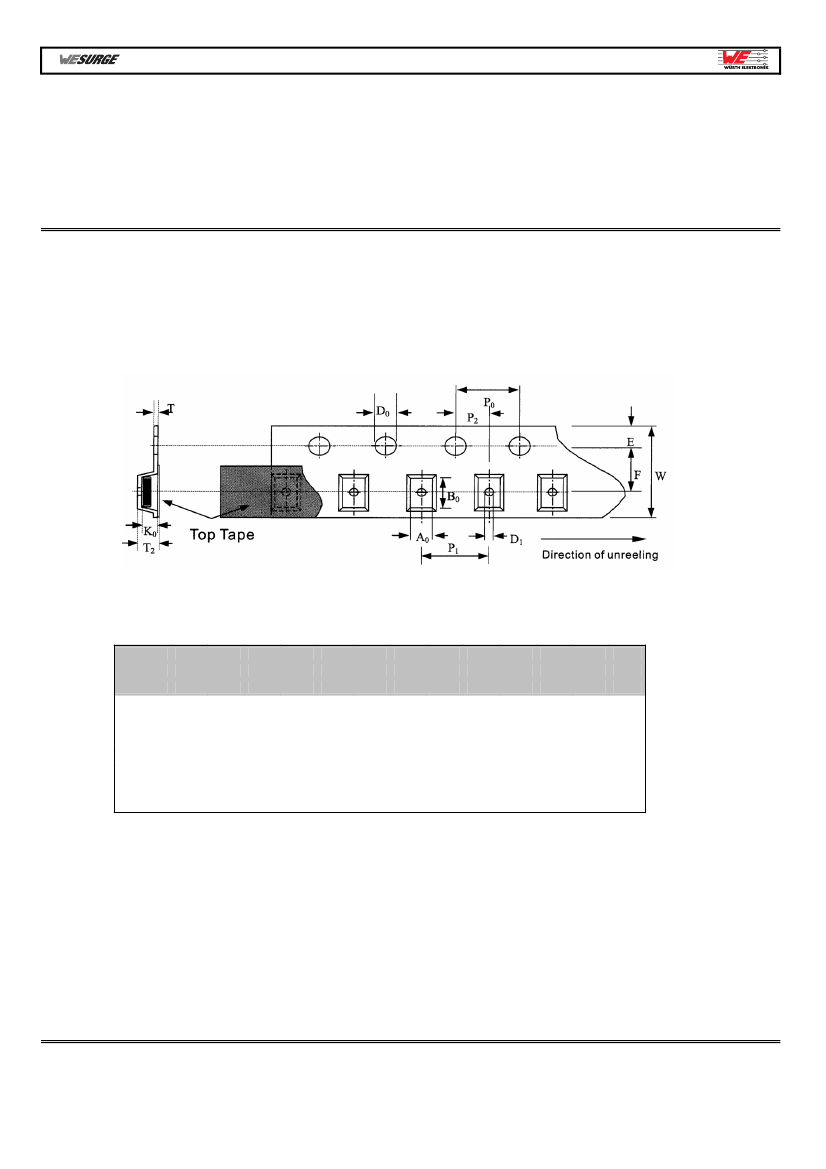

Rollenspezifikation / tape and reel specification :
1 - Carrier tape and transparent cover tape should be heat-sealed to carry the products, and the reel should be used
to reel the carrier tape.
2 - The adhesion of the heat-sealed cover tape shall be 40
﹢20/ ﹣15grams.
3 - Both the head and the end portion of the taping shall be empty for reel package and SMT auto-pickup machine.
And a normal paper tape shall be conected in the head of taping for the operator to handle.
(Unit : mm)
TAPE SPECIFICATION
Symbol
A
0
±0.10
402
603
805
1206
1210
1812
2220
0.85
1.05
1.42
1.88
2.18
3.66
5.10
B
0
±0.10
1.25
1.88
2.30
3.50
3.46
4.95
5.97
K
0
±0.10
0.65
0.95
1.04
1.27
1.45
1.74
2.80
T
2
±0.05
0.22
0.22
0.22
0.2
0.22
0.25
0.25
T
±0.05
0.10
0.10
0.10
0.10
0.10
0.10
0.10
D
0
+0.10
-0.00
1.50
1.50
1.50
1.50
1.50
1.50
1.50
1.00
1.00
1.00
1.00
1.00
1.50
1.50
4.00
4.00
4.00
4.00
4.00
8.00
8.00
2.00
2.00
2.00
2.00
2.00
2.00
2.00
4.00
4.00
4.00
4.00
4.00
8.00
8.00
8.00
8.00
8.00
D
1
±0.05
P
1
±0.10
P
2
±0.05
P
0
±0.05
W
±0.20
(Unit : mm)
E
±0.10
1.75
1.75
1.75
1.75
1.75
F
±0.05
3.50
3.50
3.50
3.50
3.50
5.50
5.50
4.00 12.00 1.75
4.00 12.00 1.75
Würth Elektronik eiSos GmbH & Co.KG - Radialex department
D-74638 Waldenburg · Max-Eyth-Straße 1 - 3 · Germany · Telefon (+49) (0) 7942 - 945 - 0 · Telefax (+49) (0) 7942 - 945 - 400
http://www.we-online.com
PAGE/SEITE 3 - TO/VON 5
Spezifikation für Freigabe / specification for release
Kunde / customer
:
Artikelnummer / part number
:
Bezeichnung :
description :
82.536.259
SMD size:
0603
0603 SMD VARISTOR
D
Rollenspezifikation / tape and reel specification :
(Unit : mm)

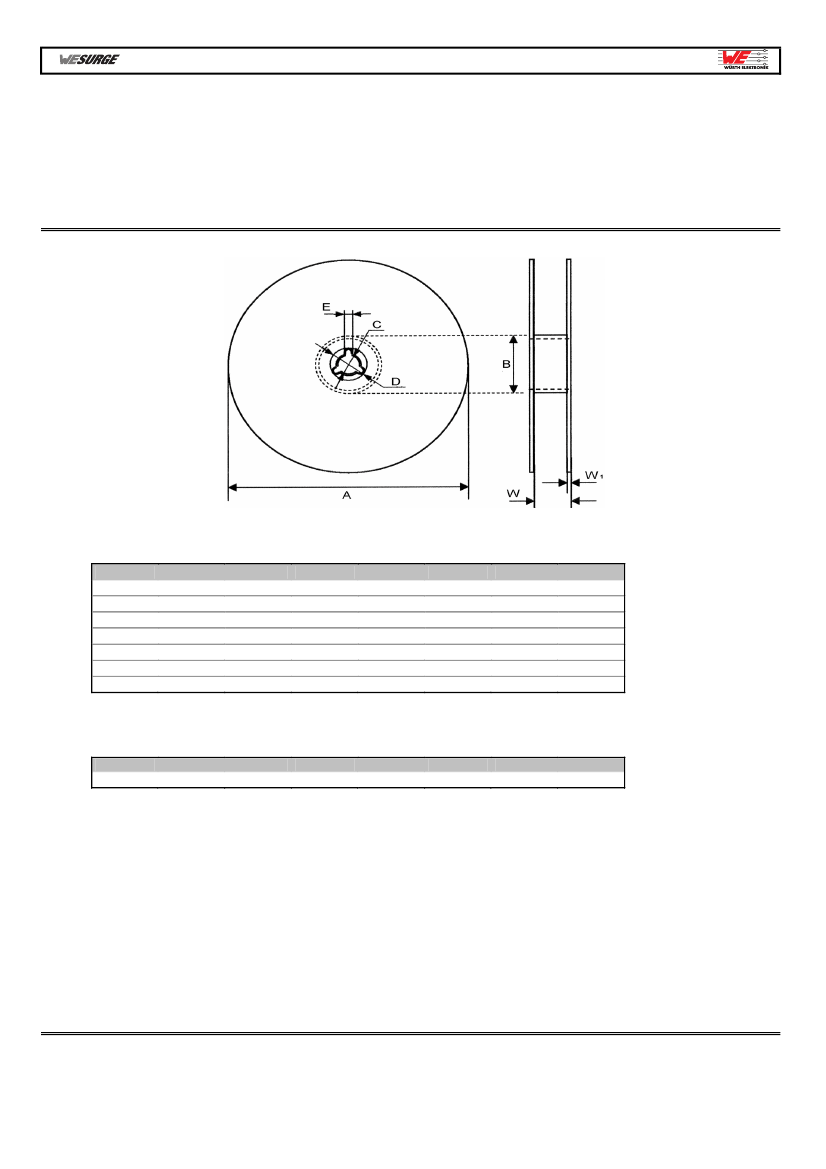

REEL DIMENSION
(Unit : mm)
Symbol
402
603
805
1206
1210
1812
2220
A
178.0±1.0
178.0±1.0
178.0±1.0
178.0±1.0
178.0±1.0
178.0±1.0
178.0±1.0
B
60.0±0.5
60.0±0.5
60.0±0.5
60.0±0.5
60.0±0.5
60.0±0.5
60.0±0.5
C
13.0±0.2
13.0±0.2
13.0±0.2
13.0±0.2
13.0±0.2
13.5±0.1
13.5±0.1
D
21.0±0.2
21.0±0.2
21.0±0.2
21.0±0.2
21.0±0.2
21.0±0.2
21.0±0.2
E
2.0±0.5
2.0±0.5
2.0±0.5
2.0±0.5
2.0±0.5
2.0±0.5
2.0±0.5
W
9.0±0.50
9.0±0.50
9.0±0.50
9.0±0.50
9.0±0.50
13.6±0.2
13.6±0.2
W
1
1.5±0.15
1.5±0.15
1.5±0.15
1.5±0.15
1.5±0.15
1.5±0.15
1.5±0.15
*
* 2.0 mm for 361 and 391
* 2.5 mm for 431 and 471
QUANTITY PER PACKING UNIT
Type
Pcs/reel
402
10 000
603
4 000
805
3 000
1206
3 000
1210
2 000
1812
1 000
2220
1 000
Würth Elektronik eiSos GmbH & Co.KG - Radialex department
D-74638 Waldenburg · Max-Eyth-Straße 1 - 3 · Germany · Telefon (+49) (0) 7942 - 945 - 0 · Telefax (+49) (0) 7942 - 945 - 400
http://www.we-online.com
PAGE/SEITE 4 - TO/VON 5
Spezifikation für Freigabe / specification for release
Kunde / customer
:
Artikelnummer / part number
:
Bezeichnung :
description :
82.536.259
SMD size:
0603
0603 SMD VARISTOR
E
Testbedingungen / test conditions :
BASIC TEST
Characteristics
Standard Test Condition
Max. Working Voltage
Varistor Voltage
Max. Clamping Voltage
Surge Current
Surge Shift
△V/V
Energy Absorption
Typical Capacitance
Leakage Current
ENVIRONMENTAL RELIABILITY TEST
Characteristic
High Temperature Storage
Test Method/Description
Environmental condition under which every measuring is done without doubt on the measuring results.
Unless specially specified, temperature, relative humidity are 5 to 35℃, 45 to 85﹪RH.
Maximum steady-state DC operating voltage the device can maintain and typical leakage current at 25℃
not exceed 50
µA.
With the specified measuring current of 1mA DC applied.
Maximum peak voltage across the TVS measured at a specified pulse current（A）and waveform 8/20µs.
Maximum peak current which may be applied with the specified waveform 8/20µs without device failure.
The shift of TVS voltage after suffering the specified surge current.
Maximum energy which may be dissipated with a specified waveform 10/1000µs.without device failure.
Device Capacitance measured with zero voltage bias 0.5VRMS and 1KHZ
Typical leakage current at 25℃＜50µA
Temperature Cycle
High Temperature Load
Damp Heat Load/Humidity Load
Test method and description
The specimen shall be subjected to 125 ± 2℃ for 1000 ± 12 hours in a thermostatic bath without load and
then stored at room temperature and humidity for 1 to 2 hours. The change of varistor voltage shall be
within 10
﹪.
The temperature cycle of specified temperature shall be repeated five times and then stored at room
temperature and humidity for one or two hours. the change of varistor voltage shall be within 10
﹪and
mechanical damage shall be examined.
Step
Temperature
Period
30Min±3
1
-40±3℃
Room
2
Temperature 1~2 hours
3
85±2℃
30Min±3
Room
4
Temperature 1~2 hours
After being continuously applied the maximum allowable voltage at 85 ± 2℃ for 1000± 2 hours, the
specimen shall be stored at room temperature and humidity for one or two hours, the change of varistor
voltage shall be within 10﹪.
The specimen should be subjected to 40 ± 2℃, 90 to 95
﹪RH
environment , and the maximum allowable
voltage applied for 1000 hours, then stored at room temperature and humidity for one or two hours. the
change of varistor voltage shall be within 10﹪
The specimen should be subjected to 40 ± 2℃, without load for 1000 hours and then stored at room
temperature for one or two hours. the change of varistor voltage shall be within 10
﹪
Low Temperature Storage
Freigabe erteilt /
general release:
Kunde / customer
Datum / date
Unterschrift / signature
Würth Elektronik
JP. PENLOU
JP. PENLOU
JP. PENLOU
JP. PENLOU
High Temperature Load
New P/N
Operating temp. Range
Lead free soldering
Änderung / modification
06-07-31
06-06-02
05-11-30
05-11-04
Geprüft / checked
2006-06-02
Kontrolliert / approved
JP. Penlou
Name
Datum / date
Würth Elektronik eiSos GmbH & Co.KG - Radialex department
D-74638 Waldenburg · Max-Eyth-Straße 1 - 3 · Germany · Telefon (+49) (0) 7942 - 945 - 0 · Telefax (+49) (0) 7942 - 945 - 400
http://www.we-online.com
PAGE/SEITE 5 - TO/VON 5
京公网安备 11010802033920号
EEWORLD
