5962R9662901VEC datasheet, PDF

5962R9662901VEC: Description4000/14000/40000 SERIES, DUAL POSITIVE EDGE TRIGGERED J-K FLIP-FLOP, COMPLEMENTARY OUTPUT, CDIP16; Categorylogic logic; File Size298KB，8 Pages; ManufacturerIntersil ( Renesas ); Websitehttp://www.intersil.com/cda/home/

Download Datasheet Parametric View All

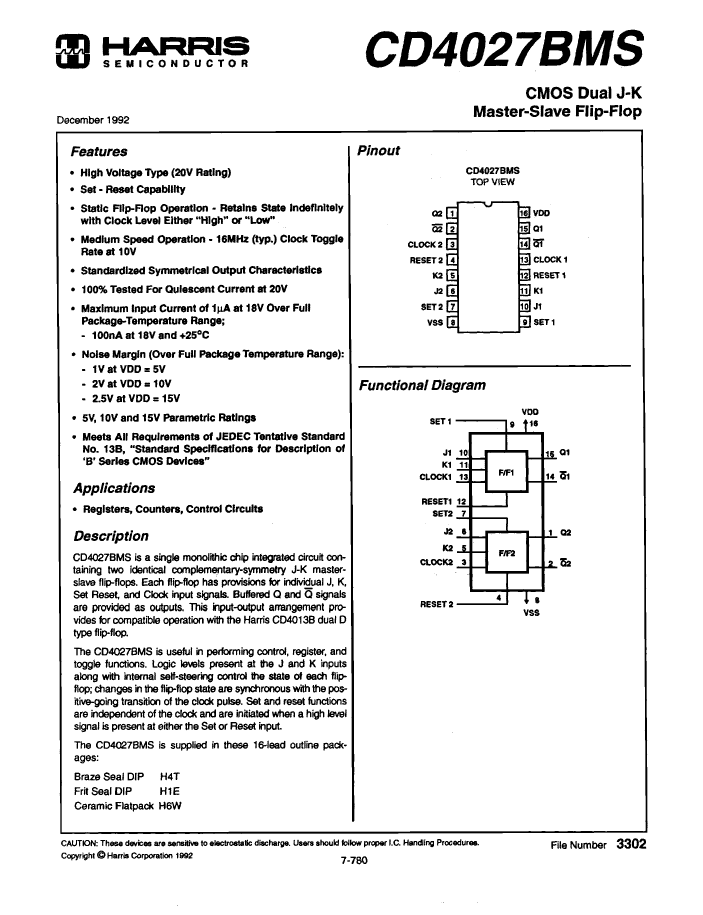

5962R9662901VEC Overview

4000/14000/40000 SERIES, DUAL POSITIVE EDGE TRIGGERED J-K FLIP-FLOP, COMPLEMENTARY OUTPUT, CDIP16

Parameter Name	Attribute value
Objectid	1532326087
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	unknown
Other features	RADIATION HARDENED; INPUT AC PARAMETRIC VALUES NOT FROM POST RADIATION MEASUREMENT
series	4000/14000/40000
JESD-30 code	R-CDIP-T16
JESD-609 code	e4
length	19.05 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	J-K FLIP-FLOP
Maximum Frequency@Nom-Sup	2590000 Hz
MaximumI(ol)	0.00064 A
Number of digits	2
Number of functions	2
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	COMPLEMENTARY
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5/15 V

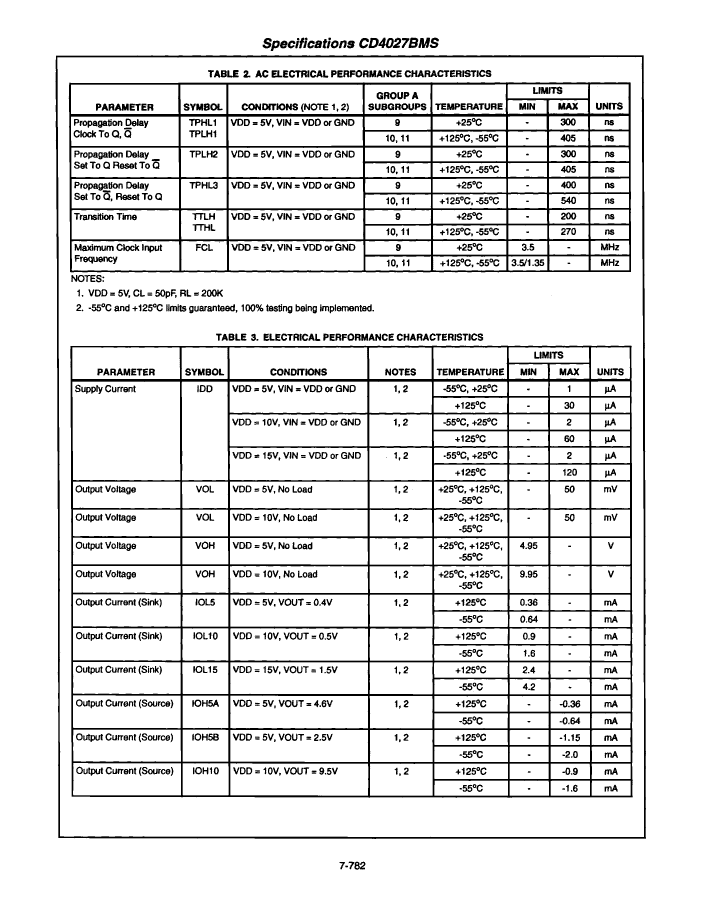

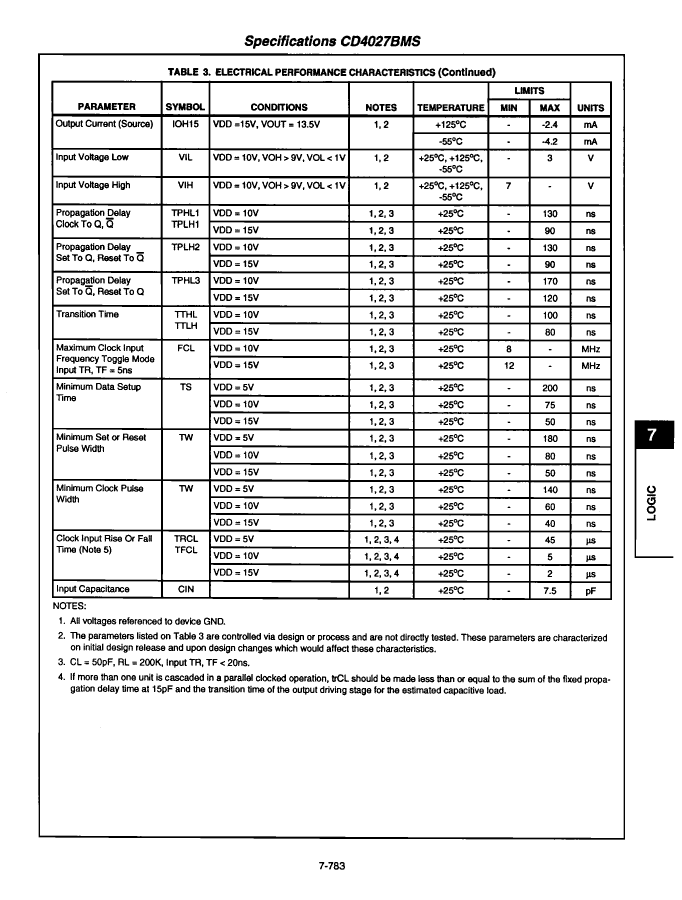

Prop。Delay @ Nom-Sup	405 ns
propagation delay (tpd)	405 ns
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class V
Maximum seat height	5.08 mm

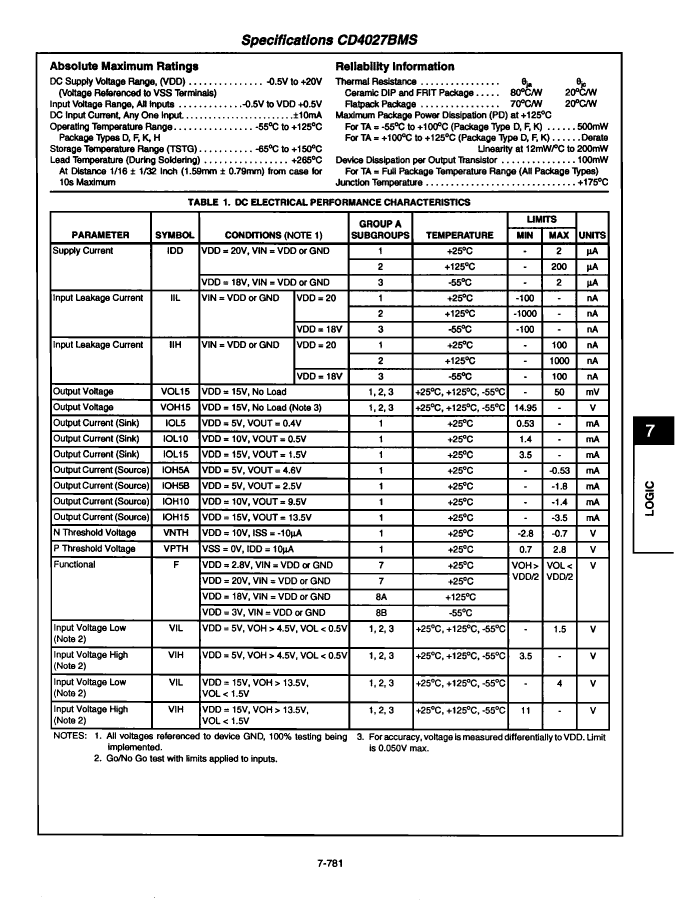

Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

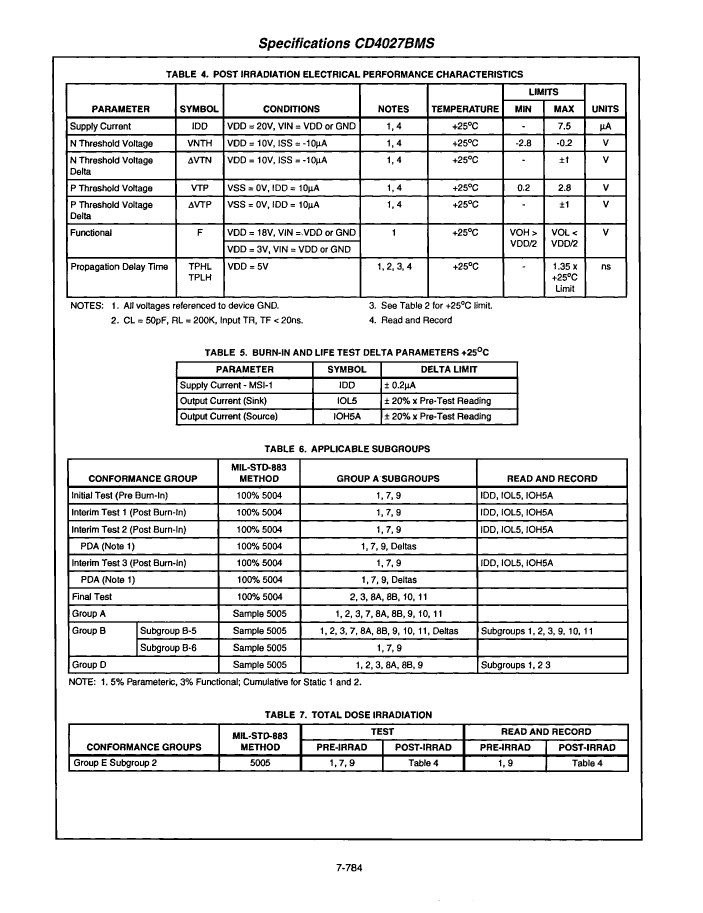

total dose	100k Rad(Si) V
Trigger type	POSITIVE EDGE
width	7.62 mm
minfmax	2.59 MHz
