Spezifikation für Freigabe / specification for release
Kunde / customer
:
Artikelnummer / part number
:
Bezeichnung :
description :
7499511611A
LAN-Übertrager WE-RJ45LAN 10/100/1000 BaseT PoE+
LAN-Transformer WE-RJ45LAN 10/100/1000 BaseT PoE+
DATUM / DATE : 2014-05-21
A

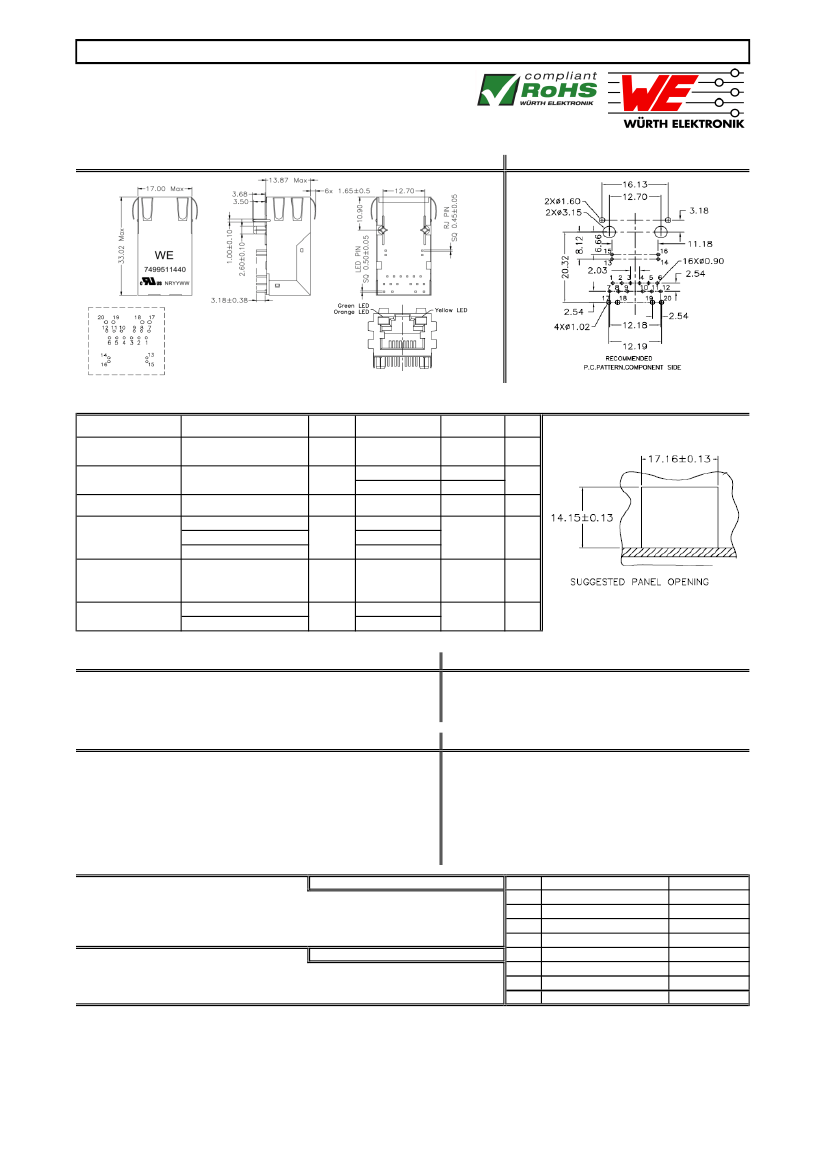

Mechanische Abmessungen / dimensions :
B Lötpad / soldering spec. :
C Elektrische Eigenschaften / electrical properties :
Eigenschaften /
properties
Induktivität /
Inductance
Übersetzungsverhältnis
/ Turns ratio
Testbedingungen /
test conditions
100kHz / 100mV @ 18mA
DC-Bias
100kHz / 100mV
1-100MHz
1-30MHz @ 100Ω
60-80MHz @ 100Ω
80-100MHz @ 100Ω
1-100MHz
1-100MHz
100-500MHz
Wert / value
Einheit / unit
tol.
min.
3%
max.
min.
OCL
TR
IL
RL
350
1:1
1:1
µH
Tx
Rx
dB
dB
Insertion Loss
Return Loss
-1,3
-16
-12
-10
-30
-30
-20
Cross Talk
Common Mode
Rejection
CT
CMR
dB
dB
min.
min.
D
Prüfgeräte / test equipment :
HP4395A
E
Testbedingungen / test conditions :
Luftfeuchtigkeit / humidity:
Umgebungstemperatur / temperature:
33%
+25°C
F
Werkstoffe & Zulassungen / material & approvals :
Basismaterial / base material:
Draht / wire:
Kontaktmaterial/ contact plating:
Gehäuse / housing
LED
Shield
Ferrit/ ferrite
4UEW 180°C
100% tin w. nickel underpalting
30µ"gold plating on contact area
G
Eigenschaften / general specifications :
Betriebstemp. / Operating temperature: 0°C - + 70°C
Hochspannungsprüfung / Hipot test: 1500Vrms 1min.
Geeignet für 1000BaseT-Anwendungen gemäß IEEE 802.3at /
Compliant with IEEE 802.3at for 1000BaseT
Stromtragfähigkeit 600 mADC/ Designed to handle 600 mADC
Thermoplastic UL-94V0
1,8-2,8 V/ 14mA
50µ" nickel
over 0.01" cooper alloy
Freigabe erteilt / general release:
Kunde / customer
..................................................................................
..................................................................................
Datum / date
Unterschrift / signature
Würth Elektronik
..................................................
Mle
Mle
Mle
Revision 03
Revision 02
Revision 01
Revision 00
Änderung / modification
2014-05-21
2013-01-04
2012-06-28
2012-03-20
...............................................
Mle
Name
Geprüft / checked
Kontrolliert / approved
Datum / date
Würth Elektronik eiSos GmbH & Co.KG
D-74638 Waldenburg · Max-Eyth-Straße 1 - 3 · Germany · Telefon (+49) (0) 7942 - 945 - 0 · Telefax (+49) (0) 7942 - 945 - 400
http://www.we-online.com
SEITE 1 VON 3
Spezifikation für Freigabe / specification for release
Kunde / customer
:
Artikelnummer / part number
:
Bezeichnung :
description :
7499511611A
LAN-Übertrager WE-RJ45LAN 10/100/1000 BaseT PoE+
LAN-Transformer WE-RJ45LAN 10/100/1000 BaseT PoE+
DATUM / DATE : 2014-05-21
H

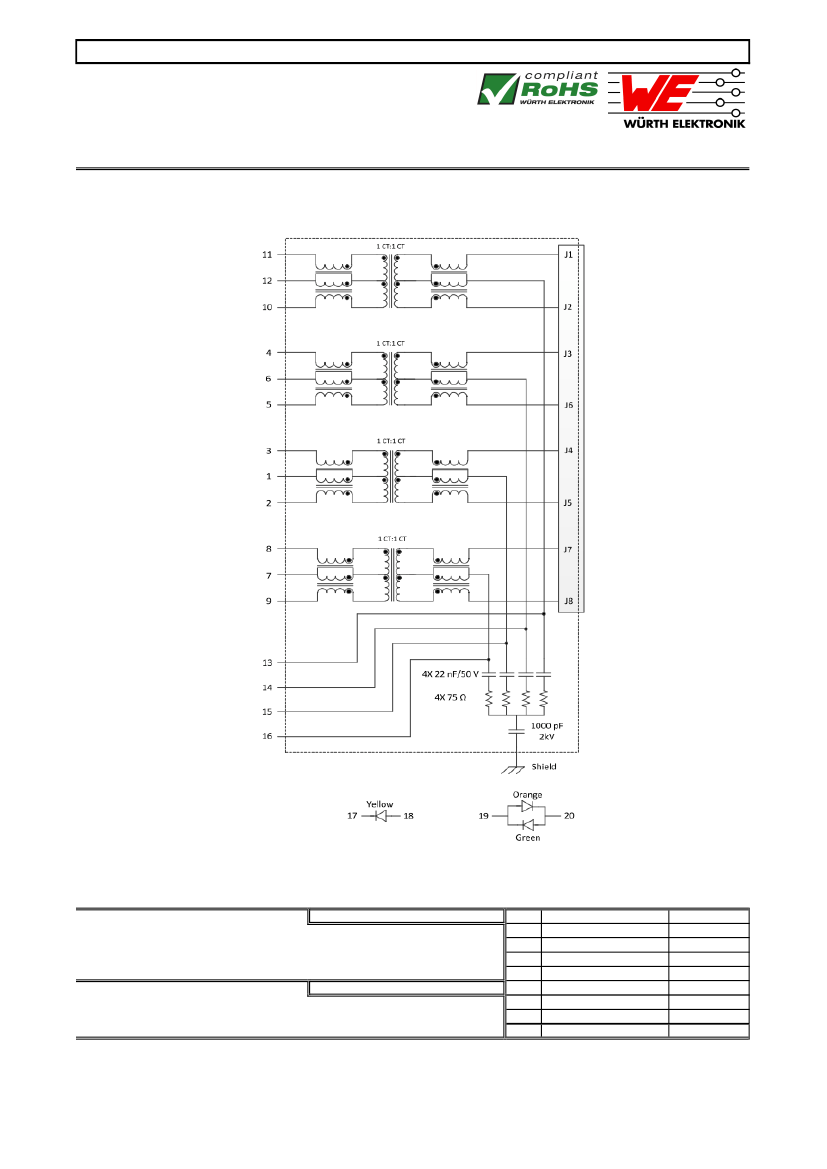

Schaltbild / Schematics :
Freigabe erteilt / general release:
Kunde / customer
..................................................................................
..................................................................................
Datum / date
Unterschrift / signature
Würth Elektronik
..................................................
Mle
Mle
Mle
Revision 03
Revision 02
Revision 01
Revision 00
Änderung / modification
2014-05-21
2013-01-04
2012-06-28
2012-03-20
...............................................
Mle
Name
Geprüft / checked
Kontrolliert / approved
Datum / date
Würth Elektronik eiSos GmbH & Co.KG
D-74638 Waldenburg · Max-Eyth-Straße 1 - 3 · Germany · Telefon (+49) (0) 7942 - 945 - 0 · Telefax (+49) (0) 7942 - 945 - 400
http://www.we-online.com
SEITE 2 VON 3
Spezifikation für Freigabe / specification for release
Kunde / customer
:
Artikelnummer / part number
:
Bezeichnung :
description :
7499511611A
LAN-Übertrager WE-RJ45LAN 10/100/1000 BaseT PoE+
LAN-Transformer WE-RJ45LAN 10/100/1000 BaseT PoE+
DATUM / DATE : 2014-05-21
I

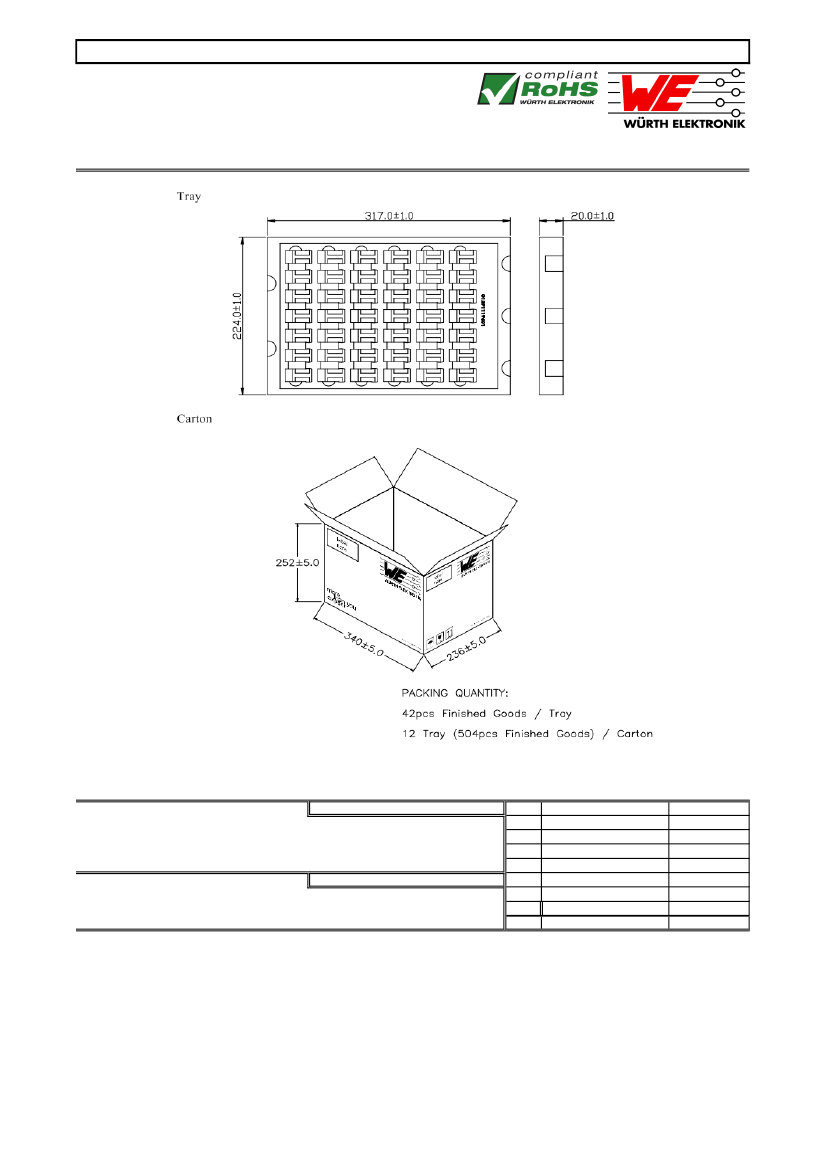

Verpackungsspezifikation / package specification :
dimensions in mm
Kunde / customer
Freigabe erteilt / general release:
..................................................................................
..................................................................................
Datum / date
Unterschrift / signature
Würth Elektronik
..................................................
Mle
Mle
Mle
Revision 03
Revision 02
Revision 01
Revision 00
Änderung / modification
2014-05-21
2013-01-04
2012-06-28
2012-03-20
...............................................
Mle
Name
Geprüft / checked
Kontrolliert / approved
Datum / date
This electronic component has been designed and developed for usage in general electronic equipment. Before incorporating this component into any equipment where higher safety and reliability is especially required
or if there is the possibility of direct damage or injury to human body, for example in the range of aerospace, aviation, nuclear control, submarine, transportation, (automotive control, train control, ship control),
transportation signal, disaster prevention, medical, public information network etc, Würth Elektronik eiSos GmbH must be informed before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
Würth Elektronik eiSos GmbH & Co.KG
D-74638 Waldenburg · Max-Eyth-Straße 1 - 3 · Germany · Telefon (+49) (0) 7942 - 945 - 0 · Telefax (+49) (0) 7942 - 945 - 400
http://www.we-online.com
SEITE 3 VON 3
