PD3FSC2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> PD3FSC2

PD3FSC2: Descriptionxlr connectors QG plastic panel MT; CategoryThe connector; File Size200KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

PD3FSC2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PD3FSC2	-	-	View	Buy Now

PD3FSC2 Overview

xlr connectors QG plastic panel MT

PD3FSC2 Parametric

Parameter Name	Attribute value
Manufacture	Switchcraf
Product Category	XLR Connectors
RoHS	Yes
Standard	Standard XLR
Number of Positions	3
Gende	Female
Termination Style	Solde
Mounting Style	Chassis (Panel)
Orientati	Vertical
Contact Material	Copper Alloy
Contact Plating	Silve
Col	Black
Factory Pack Quantity	100

Preview

Download Datasheet

View All

2.8

0.11

13.5

0.53

0.748

0.945

24.5

0.965

PART NUMBER

PD3FSC1

PD3FSC2

PD3FSC3

PD3FSC1AU

PD3FSC2AU

MOUNTING STYLE

SEE SECTION A-A

FRONT MOUNT

REAR MOUNT

FRONT MOUNT

REAR MOUNT

FRONT MOUNT

TERMINAL

PLATING

SILVER

GOLD

0.20

82°

3.5

0.138

(2) PLACES

PD3FSC3AU

PD3FSC1

FRONT MOUNT

SECTION A-A

SCALE 4 : 1

23.2

0.91

0.748

0.315

RECOMMENDED

PANEL CUT-OUT

2.4

0.094

0.79

2.3

0.09

PD3FSC2

REAR MOUNT

SECTION A-A

SCALE 4 : 1

19.8

0.780

15.5

0.610

9.3

0.37

0.157

24.5

0.965

31.8

1.25

21.3

0.84

3.2

0.13

5.9

0.23

2.5

0.098

0.20

82°

26.3

1.04

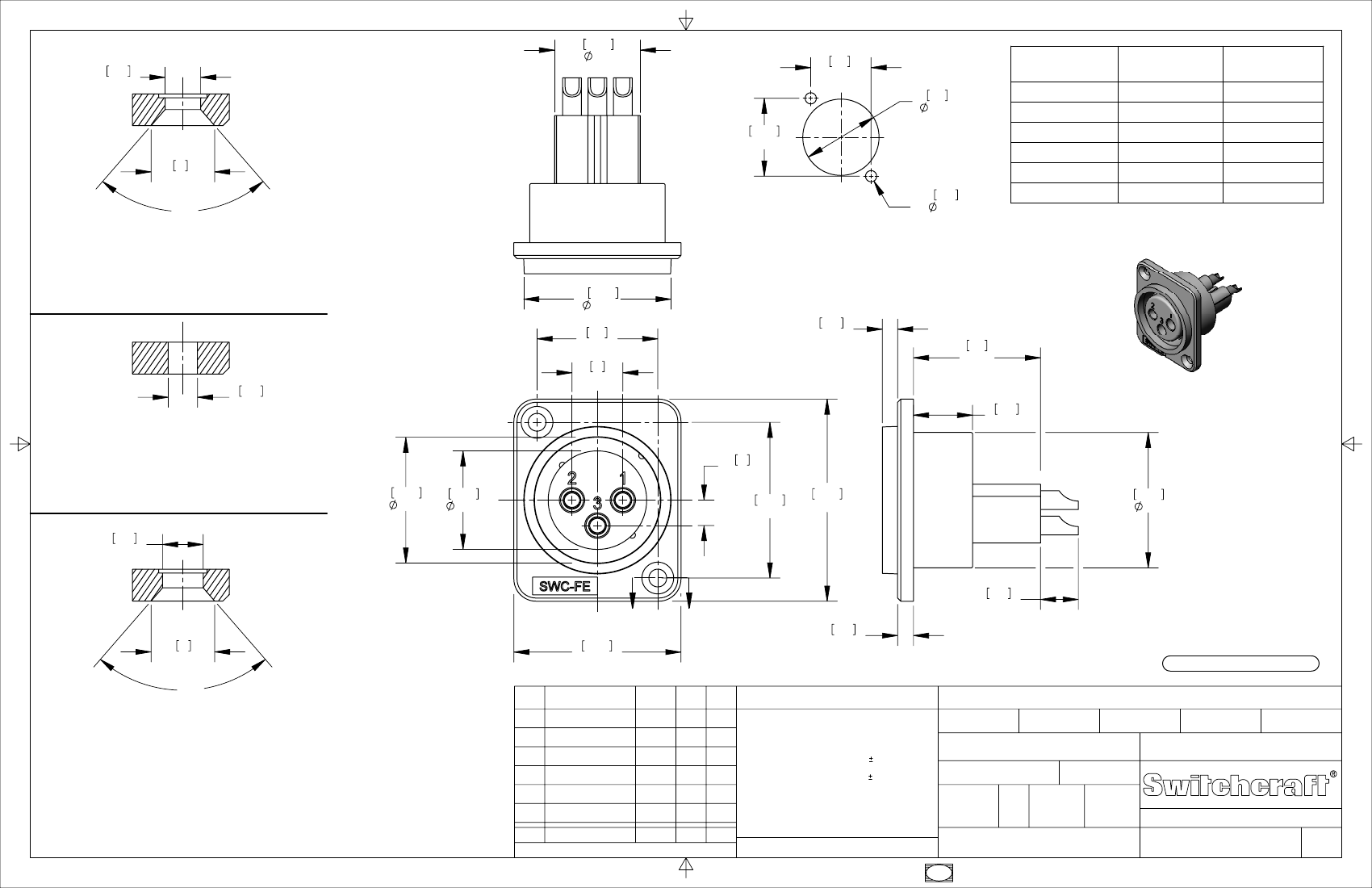

CUSTOMER DRAWING

THIS DRAWING DESCRIBES A DESIGN CONSIDERED PROPRIETARY IN NATURE, DEVELOPED AND MANUFACTURED

BY SWITCHCRAFT INC. AND IS RELEASED ON A CONFIDENTIAL BASIS FOR IDENTIFICATION PURPOSES ONLY.

PD3FSC3

FRONT MOUNT

NOTES:

UNLESS OTHERWISE SPECIFIED

1. ALL DIMENSIONS IN INCHES

- TWO PLACE DECIMALS

- THREE PLACE DECIMALS

0.02

0.005

SIZE

FINISH

WIDTH

MULT

LBS/M

MATERIAL

SPEC No.

TEMPER

SECTION A-A

SCALE 4 : 1

SPEC No.

FIRST USED ON

DATE DRAWN

CHKD

SCALE

2:1

1. MATERIALS:

HOUSING - THERMOPLASTIC, BLACK

PINS - COPPER ALLOY (SEE TABLE FOR FINISH)

2. THESE PRODUCTS ARE RoHS COMPLIANT.

REV

22118

ECO NUMBER

1/14/98

DATE

TJK

APVD

4/27/10

TJK

4/28/10

APVD

SHEET

REV

REVISIONS

DO NOT SCALE DRAWING

NAME

PART No.

PLASTIC PANEL MOUNT

QG CONNECTORS, SOLDERCUP, RoHS

PD3FSC

SERIES

SolidWorks CAD File

PD3FSC2 Related Products

	PD3FSC2	PD3FSC1	PD3FS1	PD3FSC3	PD3FSC3AU	PD3FSC2AU	PD3FSC1AU
Description	xlr connectors QG plastic panel MT	xlr connectors QG plastic panel MT	xlr connectors QG plastic panel mnt	xlr connectors QG plastic panel MT	xlr connectors QG plastic panel MT	xlr connectors QG plastic panel MT	xlr connectors QG plastic panel MT
Manufacture	Switchcraf	Switchcraf	Switchcraf	Switchcraf	Switchcraf	Switchcraf	Switchcraf
Product Category	XLR Connectors	XLR Connectors	XLR Connectors	XLR Connectors	XLR Connectors	XLR Connectors	XLR Connectors
RoHS	Yes	Yes	In Transiti	Yes	Yes	Yes	Yes
Standard	Standard XLR	Standard XLR	Standard XLR	Standard XLR	Standard XLR	Standard XLR	Standard XLR
Number of Positions	3	3	3	3	3	3	3
Gende	Female	Female	Female	Female	Female	Female	Female
Termination Style	Solde	Solde	Solde	Solde	Solde	Solde	Solde
Mounting Style	Chassis (Panel)	Chassis (Panel)	Chassis (Panel)	Chassis (Panel)	Chassis (Panel)	Chassis (Panel)	Chassis (Panel)
Orientati	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical
Contact Material	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy
Contact Plating	Silve	Silve	Silve	Silve	Gold	Gold	Gold
Col	Black	Black	Black	Black	Black	Black	Black
Factory Pack Quantity	100	100	50	100	100	100	100
