CM03CH100K25AQ

Description
Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, C0G, -/+60ppm/Cel TC, 0.00001uF, 0201,
CategoryPassive components    capacitor
File Size336KB,18 Pages
ManufacturerKyocera
Environmental Compliance
Download Datasheet Parametric View All

CM03CH100K25AQ Overview

Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, C0G, -/+60ppm/Cel TC, 0.00001uF, 0201,

CM03CH100K25AQ Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid274638066
package instruction, 0201
Reach Compliance Codecompliant
ECCN codeEAR99
capacitance0.00001 µF
Capacitor typeCERAMIC CAPACITOR
dielectric materialsCERAMIC
high0.3 mm
JESD-609 codee3
length0.6 mm
multi-layerYes
negative tolerance10%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package formSMT
method of packingTR, 7 Inch
positive tolerance10%
Rated (DC) voltage (URdc)25 V
seriesCM
size code0201
Temperature characteristic codeC0G
Temperature Coefficient60ppm/Cel ppm/°C
Terminal surfaceTin (Sn) - with Nickel (Ni) barrier
width0.3 mm

CM03CH100K25AQ Preview

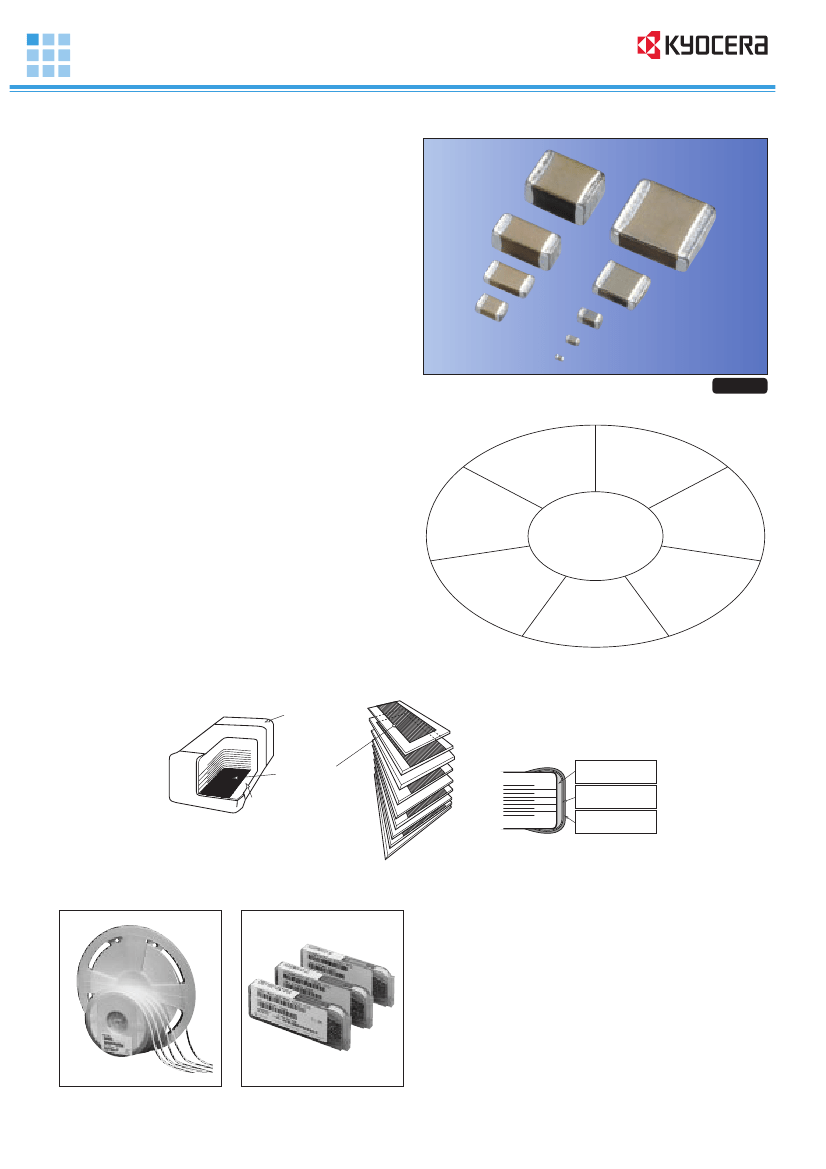

Multilayer Ceramic Chip Capacitors
Kyocera's series of Multilayer Ceramic Chip Capacitors
are designed to meet a wide variety of needs. We offer
a complete range of products for both general and
specialized applications, including CM series for general-
purpose, CT series for low profile, CU series for Hi-Q,
DM series for automotive, CF series for high-voltage,
AT series for Au termination, and ST series for soft
termination.
Features
• We have factories worldwide in order to supply our global customer
bases quickly and efficiently and to maintain our reputation as one
of the highest−volume producers in the industry.
• All our products are highly reliable due to their monolithic structure
of high−purity and superfine uniform ceramics and their integral
internal electrodes.
• By combining superior manufacturing technology and materials
with high dielectric constants, we produce extremely compact
components with exceptional specifications.
• Our stringent quality control in every phase of production from
material procurement to shipping ensures consistent manufacturing
and super quality.
• Kyocera components are available in a wide choice of dimensions,
temperature characteristics, rated voltages, and terminations to
meet specific configurational requirements.
RoHS Compliant
series
Soft Termination
series
Au Termination
ST
series
General
series
Low Profile
CM
AT
series
High-Voltage
CF
Multilayer
Ceramic Chip
Capacitors
CT
series
Automotive
DM
series
High-Q
CU
Structure
External Termination
Electrodes
Nickel Barrier Termination Products
Internal Electrodes
(Pd, Pd/ Ag or Ni or Cu)
Dielectric Ceramic Layer
Temperature compensation: Titanate family
Zirconate family
High dielectric constant:
Barium Titanate family
Ag or Cu or CuNi
Ni Plating
Sn or Au or Cu Plating
Tape and Reel
Bulk Case
Please contact your local AVX, Kyocera sales office or distributor for
specifications not covered in this catalog.
Our products are continually being improved. As a result, the
capacitance range of each series is subject to change without notice.
Please contact an sales representative to confirm compatibility with
your application.
Multilayer Ceramic Chip Capacitors
Kyocera Ceramic Chip Capacitors are available for different applications as classified below:
Series
Dielectric Options
Typical Applications
Features
Terminations
Available Size
CM
C0G (NP0)
X5R
X7R
X6S
X7S
General purpose
Wide cap range
Nickel barrier/ Tin
01005, 0201, 0402
0603, 0805, 1206
1210, 1812
CT
X5R
X7R
IC card
(Decoupling)
Low profile
Nickel barrier/ Tin
0201, 0402, 0603
0805, 1206, 1210
CU
C0G (NP0)
Power amplifier
High-Q
Nickel barrier/ Tin
01005
DM
X7R
Automotive
Thermal shock
Resistivity
High reliability
High voltage
250VDC, 630VDC
1000VDC, 2000VDC
3000VDC, 4000VDC
Au termination
Nickel barrier/ Tin
0603,0805,1206
CF
C0G (NP0)
X7R
High voltage
&
Power circuits
Optical
communications
PCB with
severe bending
conditions
Nickel barrier/ Tin
0805, 1206, 1210
1812, 2208, 1808
2220
AT
X5R
X7R
X5R
X7R
X7S
Nickel barrier/ Au
0201,0402
ST
Soft termination
Nickel barrier/ Tin
(Soft Termination)
1206,1210
Option
Negative temperature coefficient dielectric types are available on request.
Multilayer Ceramic Chip Capacitors
Dimensions
L
※Packaging
Code
E 8 / 2
W
Taping Material
Code
E
P
Material
Plastic
Paper
Taping Width
Code
4
8
12
Width
4mm
8mm
12mm
Pitch
Code
1
2
4
8
Pitch
1mm
2mm
4mm
8mm
T
P
P∼P
P
Dimensions and Packaging Quantities
Size
02
Code
JIS
0402
EIA
01005
Dimension
Code
A
A
L
0.4±0.02
0.6±0.03
W
0.2±0.02
0.3±0.03
Dimensions (mm)
T
P min.
0.2±0.02
0.22 max.
0.10
0.3±0.03
0.3±0.05
0.3±0.09
0.25 max.
0.22 max.
0.25 max.
0.13
0.10
0.07
P max.
0.14
0.20
0.23
0.20
P to P min.
0.13
0.20
0.19
0.20
B
03
0603
0201
C
D
E
A
B
C
D
05
1005
0402
E
F
1.0±0.10
G
H
J
K
A
B
C
105
1608
0603
D
E
F
A
B
C
D
E
F
G
H
J
K
L
M
A
B
C
D
E
F
G
H
J
K
L
A
B
C
D
E
F
G
A
B
A
B
C
D
E
F
A
A
B
C
1.6±0.20
0.8±0.20
1.6±0.15
0.8±0.15
1.0±0.15
1.0±0.20
1.6±0.10
0.5±0.15
0.5±0.20
0.8±0.10
0.5±0.10
1.0±0.05
0.5±0.05
0.6±0.05
0.6±0.09
0.3±0.05
0.3±0.09
0.33 max.
0.35 max.
0.5±0.05
0.35 max.
0.5±0.10
0.5±0.15
0.33 max.
0.5±0.20
0.55 max.
0.8±0.10
0.55 max.
0.20
0.8±0.15
0.55 max.
0.8±0.20
0.55 max.
0.95 max.
1.00 max.
0.6±0.1
0.85±0.10
1.05±0.10
1.25±0.10
0.55 max.
0.95 max.
1.25±0.15
0.95 max.
1.25±0.20
0.85±0.10
0.95 max.
1.00 max.
1.15±0.10
1.25±0.10
1.6±0.15
0.95 max.
1.00 max.
1.6±0.20
1.6±0.30
1.00 max.
1.40 max.
1.60 max.
1.6±0.15
2.20 max.
2.0±0.2
2.5±0.2
1.6 max.
2.2 max.
2.0 max.
2.0±0.2
2.5 max.
2.5±0.2
2.8 max.
2.8±0.2
2.2 max.
2.0 max.
2.5 max.
2.8 max.
0.60
0.50
0.15
0.35
0.30
2.0±0.10
1.25±0.10
21
2012
0805
0.20
0.75
0.70
2.0±0.15
2.0±0.20
1.25±0.15
1.25±0.20
3.2±0.20
1.6±0.15
0.30
0.85
1.40
316
3216
1206
3.2±0.20
3.2±0.30
3.2±0.35
1.6±0.20
1.6±0.30
0.50
0.70
1.90
32
3225
1210
3.2±0.20
2.5±0.20
0.30
1.00
1.40
42
4520
1808
4.5±0.20
2.0±0.20
0.15
0.85
2.60
43
4532
1812
4.5±0.30
3.2±0.20
0.30
1.10
2.00
52
55
5720
5750
2208
2220
5.7±0.40
5.7±0.40
2.0±0.20
5.0±0.40
0.15
0.30
0.85
1.40
4.20
2.50
Maximum quantity per reel
φ180
Reel
φ330
Reel
40kp (E4/1)
-
20kp (P8/2)
-
30kp (P8/1)
150kp (P8/1)
15kp (P8/2)
50kp (P8/2)
30kp (P8/1)
150kp (P8/1)
15kp (P8/2)
50kp (P8/2)
30kp (P8/1)
150kp (P8/1)
15kp (P8/2)
50kp (P8/2)
15kp (P8/2)
-
15kp (P8/2)
-
20kp (P8/1)
100kp (P8/1)
10kp (P8/2)
50kp (P8/2)
20kp (P8/1)
100kp (P8/1)
10kp (P8/2)
50kp (P8/2)
20kp (P8/1)
100kp (P8/1)
10kp (P8/2)
50kp (P8/2)
20kp (P8/1)
100kp (P8/1)
10kp (P8/2)
50kp (P8/2)
20kp (P8/1)
100kp (P8/1)
10kp (P8/2)
50kp (P8/2)
20kp (P8/1)
100kp (P8/1)
10kp (P8/2)
50kp (P8/2)
20kp (P8/1)
50kp (P8/2)
10kp (P8/2)
20kp (P8/1)
50kp (P8/2)
10kp (P8/2)
10kp (P8/2)
-
10kp (P8/2)
-
4kp (P8/4)
10kp (P8/4)
8kp (P8/2)
20kp (P8/2)
4kp (P8/4)
10kp (P8/4)
8kp (P8/2)
20kp (P8/2)
4kp (P8/4)
10kp (P8/4)
8kp (P8/2)
20kp (P8/2)
4kp (P8/4)
10kp (P8/4)
8kp (P8/2)
20kp (P8/2)
4kp (P8/4)
10kp (P8/4)
-
4kp (P8/4)
10kp (P8/4)
4kp (P8/4)
10kp (P8/4)
4kp (E8/4)
10kp (E8/4)
4kp (P8/4)
10kp (P8/4)
4kp (P8/4)
10kp (P8/4)
3kp (E8/4)
10kp (E8/4)
3kp (E8/4)
10kp (E8/4)
4kp (P8/4)
10kp (P8/4)
4kp (P8/4)
10kp (P8/4)
3kp (E8/4)
10kp (E8/4)
4kp (P8/4)
10kp (P8/4)
3kp (E8/4)
10kp (E8/4)
4kp (P8/4)
10kp (P8/4)
4kp (P8/4)
10kp (P8/4)
4kp (E8/4)
10kp (E8/4)
3kp (E8/4)
10kp (E8/4)
3kp (E8/4)
10kp (E8/4)
2.5kp (E8/4)
5kp (E8/4)
4kp (P8/4)
10kp (P8/4)
4kp (E8/4)
10kp (E8/4)
2.5kp (E8/4)
5kp (E8/4)
2kp (E8/4)
-
2kp (E8/4)
-
4kp (E8/4)
10kp (E8/4)
3kp (E8/4)
10kp (E8/4)
2.5kp (E8/4)
5kp (E8/4)
2.5kp (E8/4)
5kp (E8/4)
2kp (E8/4)
5kp (E8/4)
2kp (E8/4)
5kp (E8/4)
1kp (E8/4)
4kp (E8/4)
2kp (E12/4)
-
2kp (E12/4)
-
1kp (E12/8)
-
1kp (E12/8)
-
0.5kp (E12/8)
-
0.5kp (E12/8)
-
0.5kp (E12/8)
-
0.5kp (E12/8)
-
2kp (E12/4)
-
1kp (E12/8)
-
0.5kp (E12/8)
-
0.5kp (E12/8)
-
Note: Taping denotes the quantity packaged per reel (kp means 1000 pieces).  ∗ Please contact us.
Multilayer Ceramic Chip Capacitors
Ordering Information
KYOCERA PART NUMBER
SERIES CODE
CM
CT
CU
DM
=
=
=
=
General Purpose
Low Profile
High-Q
Automotive
CF
AT
ST
=
=
=
High Voltage
Au termination
Soft termination
CM
21
X7R
104
K
50
A
T
□□□
SIZE CODE
SIZE
02
=
03
=
05
=
105
=
21
=
316
=
EIA (JIS)
01005 (0402)
0201 (0603)
0402 (1005)
0603 (1608)
0805 (2012)
1206 (3216)
SIZE
32
=
42
=
43
=
52
=
55
=
EIA (JIS)
1210 (3225)
1808 (4520)
1812 (4532)
2208 (5720)
2220 (5750)
DIELECTRIC CODE
CODE EIA CODE
CG
=
C0G (NPO)
X7S
=
X7S (Option)
X5R
=
X5R
X6S
=
X6S (Option)
X7R
=
X7R
Negative temperature coefficient dielectric types are available on request.
CAPACITANCE CODE
Capacitance expressed in pF.
Two significant digits plus number of zeros.
For Values
<
10pF, Letter R denotes decimal point,
=
1R5
eg.
100000pF
=
104
1.5pF
=
104
=
R50
0.1μF
0.5pF
=
107
4700pF
=
472
100μF
TOLERANCE CODE
A
= ±0.05pF
(option)
B
= ±0.1pF
C
= ±0.25pF
D
= ±0.5pF
G
= ±2%
(option)
J
= ±5%
K
= ±10%
M
= ±20%
VOLTAGE CODE
04
06
10
16
25
50
=
=
=
=
=
=
4VDC
6.3VDC
10VDC
16VDC
25VDC
50VDC
100
250
400
630
=
=
=
=
100VDC
250VDC
400VDC
630VDC
1000
2000
3000
4000
=
=
=
=
1000VDC
2000VDC
3000VDC
4000VDC
TERMINATION CODE
A
=
Nickel Barrier/ Tin
∗G =
Nickel Barrier/ Au
∗K =
Nickel Barrier/ Au
Y
=
Nickel Barrier/ Cu
S
=
Nickel Barrier/ Tin
(Soft Termination)
G : AuSn solder and conductive adhesive.
K : Wire bonding and conductive adhesive.
PACKAGING CODE
B
C
T
Q
L
=
Bulk
=
Bulk Cassette (option)
=
7" Reel Taping & 4mm or 8mm
1
Cavity pitch
=
7" Reel Taping & 1mm Cavity pitch
=
13" Reel Taping & 4mm Cavity pitch
H
=
7" Reel Taping & 2mm Cavity pitch
N
=
13" Reel Taping & 2mm Cavity pitch
W
=
13" Reel Taping & 1mm Cavity pitch
P
=
7" Reel Taping & 1mm Cavity pitch
Carrier tape width 4mm.
∗1
Applied for size 43 to 55.
OPTION
Thickness max. value is indicated in CT series
EX. 125
1.25mm max.
095
0.95mm max.
Multilayer Ceramic Chip Capacitors
Temperature Characteristics and Tolerance
Temperature Compensation Type
Code
CG
CH
ppm/
°C
±30
0
±60
Temperature Range
−55
to 125°C
Note: All parts of C0G will be marked as “CG” but will conform to the above table.
Temperature coefficients are determined by calculation based on measurement at 20°C and 85°C.
High Dielectric Constant Type
EIA Dielectric
X5R
X7R
X7S
X6S
option
Temperature Range
−55
to 85°C
−55
to 125°C
−55
to 125°C
−55
to 105°C
ΔC
max.
±15%
±22%
Available Tolerances
Dielectric materials, capacitance values and tolerances are
available in the following combinations only:
EIA Dielectric
Tolerance
3
A=±0.05pF
B=±0.1pF
C=±0.25pF
C0G
D=±0.50pF
3
G=±2%
J=±5%
K=±10%
3
X6S
X7S
X5R
X7R
2
K=±10%
M=±20%
Capacitance
<0.5pF
≤5pF
1
<10pF
≥10pF
E12 Series
4
E3 Series
E Standard Number
E3
E6
1.0
1.2
1.0
1.5
1.5
1.8
2.2
2.2
2.7
2.2
3.3
3.3
3.9
4.7
4.7
5.6
4.7
6.8
6.8
8.2
8.2
9.1
6.8
7.5
5.6
6.2
3.9
4.7
4.3
5.1
3.3
3.6
2.7
3.0
1.8
2.2
2.0
2.4
1.5
1.6
1.2
1.3
E12
1.0
E24 (Option)
1.0
1.1
Note:
∗1
Nominal values below 10pF are available in the standard values of 0.5pF, 1.0pF, 1.5pF,
2.0pF, 3.0pF, 4.0pF, 5.0pF, 6.0pF, 7.0pF, 8.0pF, 9.0pF
2 J
= ±
5% for X7R (X5R) is available on request.
∗3
option
∗4
E6 series is available on request.
When taskspawn assigns a task, the parameters include priority and stack size. How do I write them? I just got started with this.
When taskspawn assigns a task, the parameters include priority and stack size. How should I write them? I just started to work on this. I see that the priority in the examples is mostly 90. If I creat...
ttww007 Embedded System
Brother who is familiar with op amps, please recommend a chip to me
I need to increase the output voltage of a DAC from 0 to 3V to 0 to 4V. I use a 5V power supply and have no special requirements. The converted voltage is used to adjust 3525. I tried it myself with O...
yup1983 Analog electronics
NMOS tube on-state voltage test problem
This is the data of an NMOS tube. When testing VGS(th), how many V should the VDS voltage be? The test conditions only state: ID=250uA, VDS=VGS, and it does not specify the V voltage used for VDS. I h...
fdingy Test/Measurement
Does jpeg compressed data contain a file header?
Does the jpeg compressed data contain a file header? Does it contain a file header after jpeg compression? Can it be directly stored as a .jpg format file?...
maq9627 Analogue and Mixed Signal
The use of volatile in TI DSP programming
This is well written, share it with everyone...
安_然 Microcontroller MCU
Looking for C language tutorial for MSP430 microcontroller
I want to learn MSP430, but it's hard to get C language books for this thing. Can anyone recommend some? Or share some e-books, thanks!...
hyc1210 Microcontroller MCU

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

Index Files: 365  554  213  263  1894  8  12  5  6  39
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
