VA100018D400R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> VA100018D400R

VA100018D400R: DescriptionVaristor, 18V, 0.4J, Through Hole Mount; CategoryPassive components The resistor; File Size509KB，10 Pages; ManufacturerAVX

Download Datasheet Parametric Compare View All

VA100018D400R Overview

Varistor, 18V, 0.4J, Through Hole Mount

VA100018D400R Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1475702725
Reach Compliance Code	compliant
ECCN code	EAR99
Circuit maximum DC voltage	18 V
Maximum energy absorption capacity	0.4 J
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	TUBULAR PACKAGE
Package form	Axial
Resistor type	VARISTOR
surface mount	NO
technology	METAL OXIDE FILM
Terminal location	AXIAL
Terminal shape	WIRE
Operating Voltage	18 V

Preview

Download Datasheet

View All

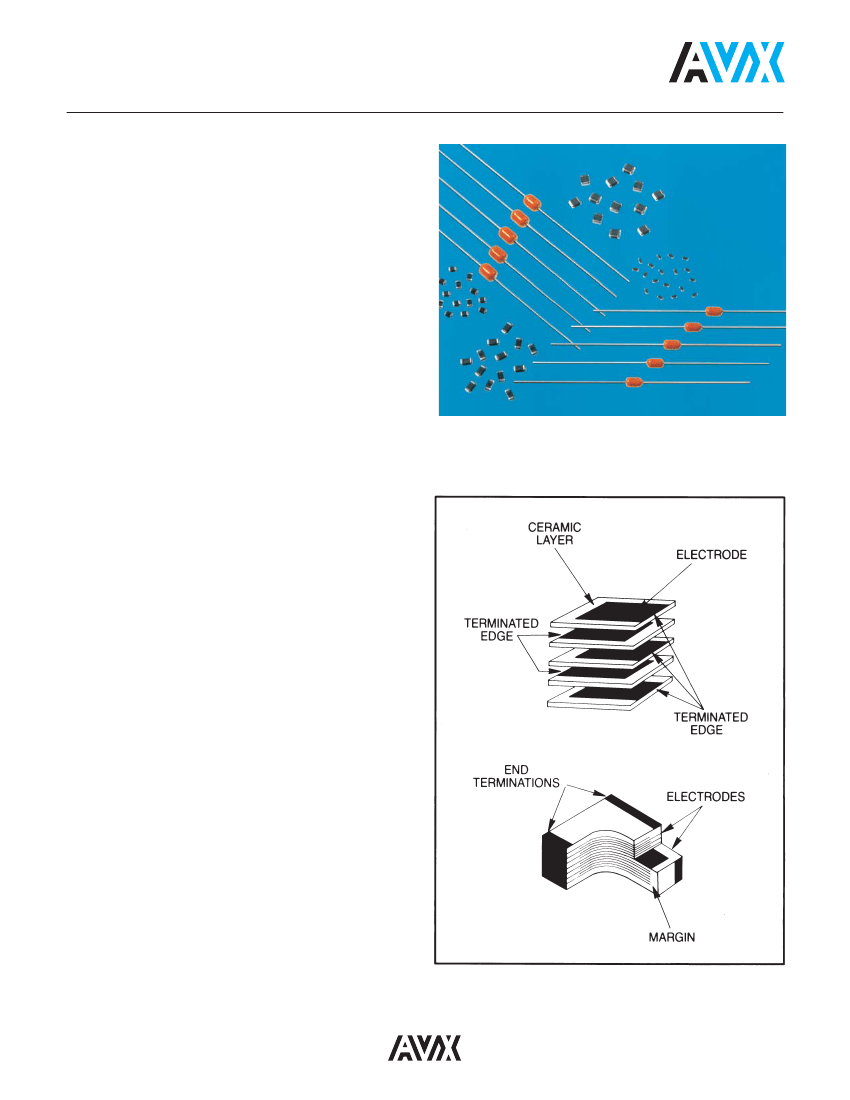

TransGuard

AVX Multilayer Ceramic Transient Voltage Suppressors

GENERAL DESCRIPTION

The AVX TransGuard

Transient Voltage Suppressors (TVS)

with unique high-energy multilayer construction represents

state-of-the-art overvoltage circuit protection. Monolithic

multilayer construction provides protection from voltage

transients caused by ESD, lightning, NEMP, inductive switch-

ing, etc. True surface mount product is provided in EIA

industry standard packages. Thru-hole components are

supplied as conformally coated axial devices.

TRANSGUARD

DESCRIPTION

TransGuard

products are zinc oxide (ZnO) based ceramic

semiconductor devices with non-linear voltage-current charac-

teristics (bi-directional) similar to back-to-back zener diodes.

They have the added advantage of greater current and energy

handling capabilities as well as EMI/RFI attenuation. Devices

are fabricated by a ceramic sintering process that yields a

structure of conductive ZnO grains surrounded by electrically

insulating barriers, creating varistor-like behavior.

AVX VG series parts (large case size, high energy) are glass

encapsulated. These parts provide the same high reliability

as traditional VC series parts. The glass encapsulation pro-

vides also enhanced resistance against harsh environment or

process such as acids, salts, chlorite flux.

The number of grain-boundary interfaces between conduct-

ing electrodes determines “Breakdown Voltage” of the

device. High voltage applications such as AC line protection

require many grains between electrodes while low voltage

requires few grains to establish the appropriate breakdown

voltage. Single layer ceramic disc processing proved to be a

viable production method for thick cross section devices

with many grains, but attempts to address low voltage

suppression needs by processing single layer ceramic disc

formulations with huge grain sites has had limited success.

AVX, the world leader in the manufacture of multilayer

ceramic capacitors, now offers the low voltage transient

protection marketplace a true multilayer, monolithic surface

mount varistor. Technology leadership in processing

thin dielectric materials and patented processes for

precise ceramic grain growth have yielded superior energy

dissipation in the smallest size. Now a varistor has voltage

characteristics determined by design and not just cell sorting

whatever falls out of the process.

Multilayer ceramic varistors are manufactured by mixing

ceramic powder in an organic binder (slurry) and casting it

into thin layers of precision thickness. Metal electrodes are

deposited onto the green ceramic layers which are then

stacked to form a laminated structure. The metal electrodes

are arranged so that their terminations alternate from one

end of the varistor to the other. The device becomes a

monolithic block during the sintering (firing) cycle providing

uniform energy dissipation in a small volume.

VA100018D400R Related Products

	VA100018D400R	VA100003D100R	VA100003A100D
Description	Varistor, 18V, 0.4J, Through Hole Mount	Varistor, 3.3V, 0.4J, Through Hole Mount	Varistor, 3.3V, 0.1J, Through Hole Mount
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible
Objectid	1475702725	1475702671	1475702659
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Circuit maximum DC voltage	18 V	3.3 V	3.3 V
Maximum energy absorption capacity	0.4 J	0.4 J	0.1 J
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of terminals	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package shape	TUBULAR PACKAGE	TUBULAR PACKAGE	TUBULAR PACKAGE
Package form	Axial	Axial	Axial
Resistor type	VARISTOR	VARISTOR	VARISTOR
surface mount	NO	NO	NO
technology	METAL OXIDE FILM	METAL OXIDE FILM	METAL OXIDE FILM
Terminal location	AXIAL	AXIAL	AXIAL
Terminal shape	WIRE	WIRE	WIRE
Operating Voltage	18 V	3.3 V	3.3 V
