REVISION Y
DO NOT
SCALE FROM
THIS PRINT
.200 5.08
REF
(No OF POS x .050[1.27]) + .021[0.53] REF
01
.070 1.78 REF .095 2.41 REF
.080 2.03 REF
-S: SINGLE END

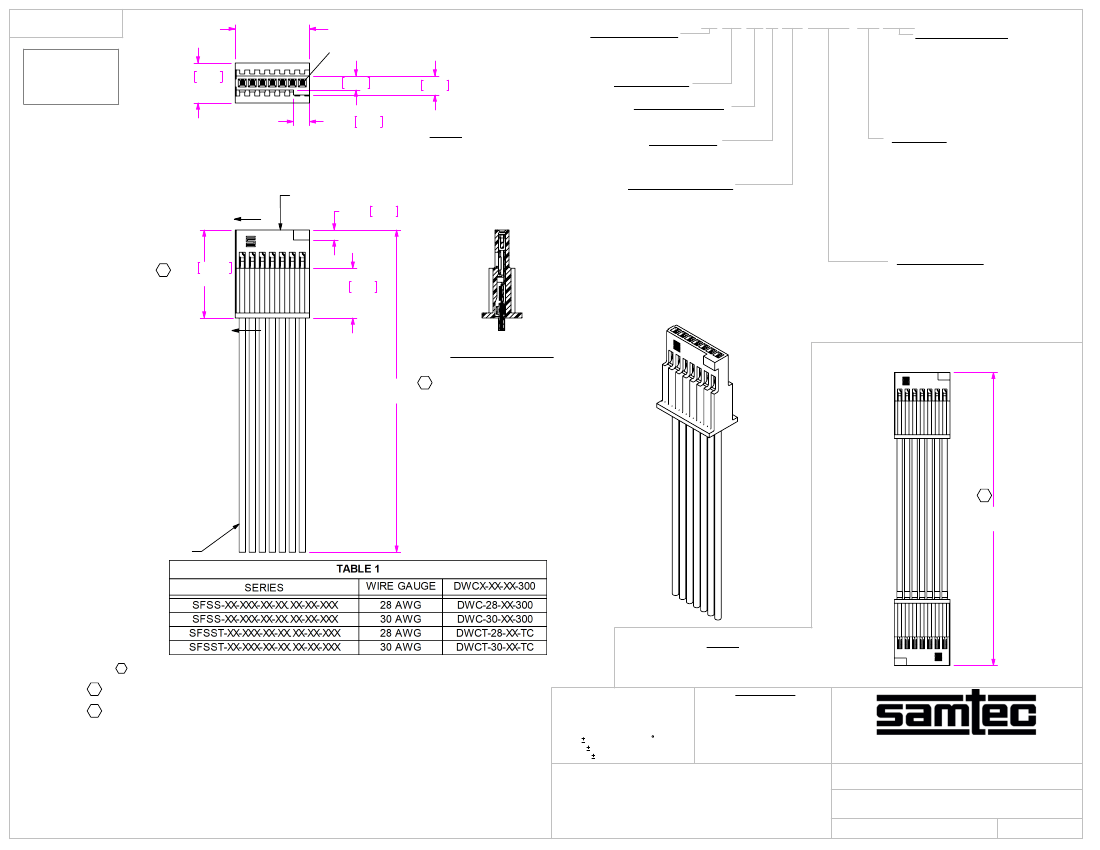

(SFSSX-07-28-X-XX.XX-S SHOWN)
FIG 1
FEP CABLE OPTION
-T: FEP INSULATION
LEAVE BLANK FOR STANDARD
PVC INSULATION
(SEE NOTE 11)
No OF POSITIONS
-02 THRU -50
WIRE GAUGE (AWG)
-28
-30
SFSSX-XX-XXX-XX-XX.XX-XX-XXX
-NXX OPTION (END 2)
(ONLY AVAILABLE WITH -D, -DR)
-NUS: NOTCH UP, STRAIGHT
(PIN 1 TO PIN N)
-NDS: NOTCH DOWN, STRAIGHT
(PIN 1 TO PIN 1)
-NUX: NOTCH UP
(PIN 1 TO PIN N)
-NDX: NOTCH DOWN
(PIN 1 TO PIN 1)
ISDF-XX-S
"A"
.050 1.27 REF
C
.440 11.18
REF
.249 6.32
REF
COLOR CODE:
LEAVE BLANK FOR ALL BLACK WIRE
C: COLOR CODED WIRE, SEE TABLE
2, SHT 4 (SEE NOTE 10)
PLATING SPECIFICATION
(VALUES GIVEN ARE IN MICRO INCHES)
-H: HEAVY GOLD, 30 Au / 50 Ni MIN ON
CONTACT, 3 Au / 50 Ni MIN ON TAIL
-G: GOLD, 10 Au / 50 Ni MIN ON
CONTACT, 3 Au / 50 Ni MIN ON TAIL
-F: FLASH SELECTIVE, 3 Au / 50 Ni MIN ON
CONTACT, 3 AU / 50 NI MIN ON TAIL
-GF: FLASH SELECTIVE, 3 Au / 50 Ni MIN ON
CONTACT, 3 AU / 50 NI MIN ON TAIL
**
(SEE TABLE 2, SHEET 4)
**: -GF ONLY AVAILABLE TO
EXISTING CUSTOMERS
SEE -F PLATING
END OPTION
(END OPTION COMBINATIONS NOT AVAILABLE)
-S: SINGLE END
-D: DOUBLE END
(MUST CHOOSE FROM -NXX OPTIONS)
-SR: SINGLE ENDED WITH RETENTION LATCH
(SEE SHEET 4, FIG 3)
(ONLY AVAILABLE ON -02 THRU -50 POS)
-DR: DOUBLE ENDED WITH RETENTION LATCH
(SEE SHEET 4, FIG 4)
(ONLY AVAILABLE ON -02 THRU -50 POS)
(MUST CHOOSE FROM -NXX OPTIONS)
ASSEMBLED LENGTH
SPECIFY IN INCHES
(SINGLE END: 03.00 INCH [76.2mm]
MINIMUM,
DOUBLE END: 03.25 INCH [82.6mm]
MINIMUM)
"A"
SECTION "A"-"A"
XX.XX
C
(SEE NOTE 8)
C
XX.XX
(SEE NOTE 8)
DWCX-XX-XX-300
(SEE TABLE 1)
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MINIMUM PULLOUT FORCE: 3.0 LBS [13.3 N].
C 3. CONTACT MUST BE INSERTED UNTIL
RETENTION FEATURE LOCKS INTO PLACE.
C 4. ALL FINISHED GOODS ARE TO BE ELECTRICAL TESTED INCLUDING
HI-POT TEST AT 1000 VOLTS DC. AFTER FINAL ELECTRICAL TEST,
LABEL EACH ASSEMBLY WITH (1) ET STAMP ON THE BODY.
5. TINNED COPPER WIRE IS RoHS COMPLIANT.
6. PARTS TO BE LAYER PACKAGED.
7. END OF DISCRETE WIRE MUST BE IN THE RANGE AFTER CRIMP.
8. FOR LENGTHS LESS THAN 12 in, TOLERANCE SHALL BE +/-.125.
FOR OTHER LENGTHS, TOLERANCE SHALL BE +/-2%.
9. REFER TO CRIMP SPECIFICATIONS PRINT FOR CRIMP AND STRIP DIMENSIONS,
TOLERANCES, TOOLING, AND ITS REQUIREMENTS.
10. COLOR CODED CABLE NOT AVAILABLE WITH SFSST (FEP).
11. ASSEMBLIES USING THE FEP OPTION ARE FOR CRIMP APPLICATIONS ONLY.
-D: DOUBLE END
(SFSSX-07-28-X-XX.XX-D-NUS SHOWN)
(SAME AS FIG 1, UNLESS OTHERWISE STATED)
*
PROPRIETARY NOTE
FIG 2
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
MATERIAL:
ANGLES
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
INSULATOR: LCP, COLOR: BLACK
CONTACT: BeCu
CABLE INSULATION: PVC OR FEP
WIRE: DWC: TINNED COPPER, DWCT: TIN PLATED COPPER
(SEE TABLE 1)
C:\EnterpriseVault\DWG\MISC\MKTG\SFSSX-XX-XXX-XX-XX.XX-XX-XXX-MKT.SLDDRW
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.050[1.27] SOCKET DISCRETE CABLE ASSEMBLY
SFSSX-XX-XXX-XX-XX.XX-XX-XXX
6/12/2008
SHEET
1
OF
4
BY:
GAYNOR
REVISION Y
01
N
N
01
NOTCH END 1
NOTCH END 2

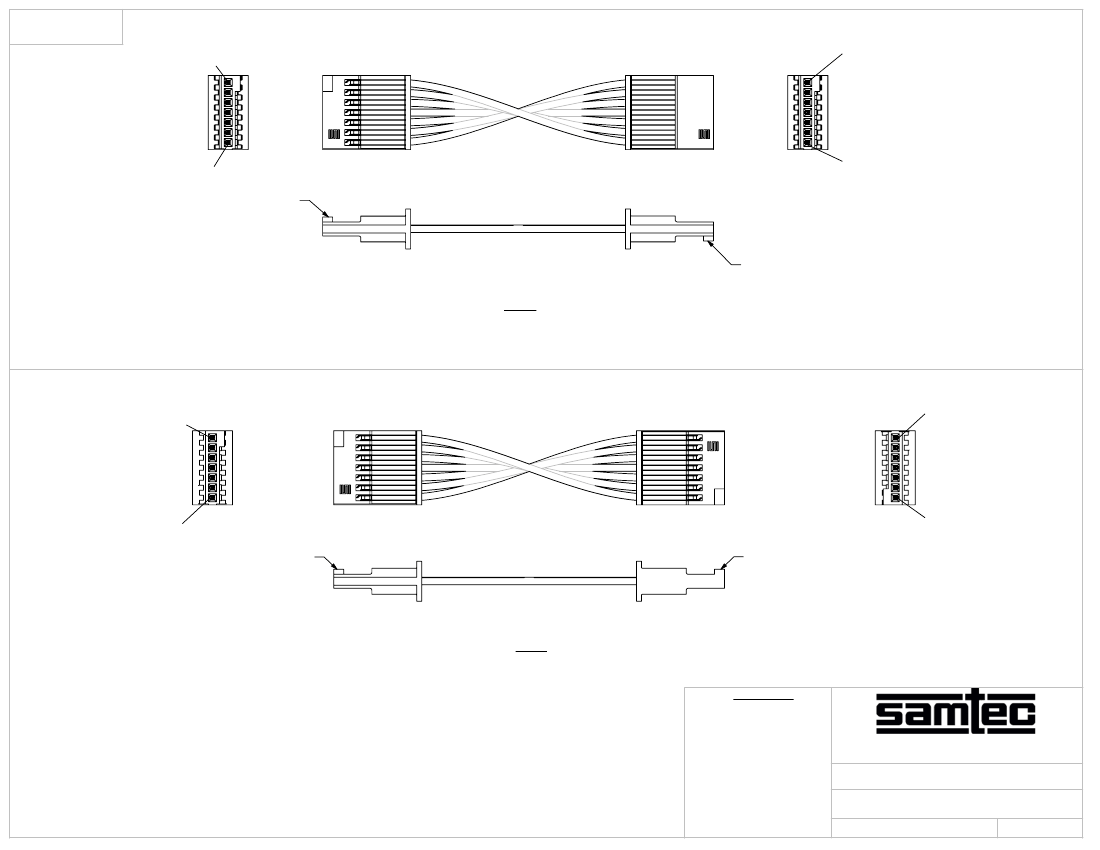

(END 2 NOTCH UP, CABLE STRAIGHT)
(PIN 1 TO PIN N)
-NUS
Y
01
01
N
N
NOTCH END 1
NOTCH END 1
*
PROPRIETARY NOTE
*
(END 2 NOTCH DOWN, CABLE STRAIGHT)
(PIN 1 TO PIN 1)
-NDS
Y
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:0.571429
.050[1.27] SOCKET DISCRETE CABLE ASSEMBLY
SFSSX-XX-XXX-XX-XX.XX-XX-XXX
BY:
GAYNOR
C:\EnterpriseVault\DWG\MISC\MKTG\SFSSX-XX-XXX-XX-XX.XX-XX-XXX-MKT.SLDDRW
6/12/2008
SHEET
2
OF
4
REVISION Y
01
01
N
NOTCH END 1
N
NOTCH END 2
(END 2 NOTCH DOWN)
-NDX
01
N
N
NOTCH END 1
NOTCH END 2
01
(END 2 NOTCH UP)
C:\EnterpriseVault\DWG\MISC\MKTG\SFSSX-XX-XXX-XX-XX.XX-XX-XXX-MKT.SLDDRW
*
PROPRIETARY NOTE
*
-NUX
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.050[1.27] SOCKET DISCRETE CABLE ASSEMBLY
SFSSX-XX-XXX-XX-XX.XX-XX-XXX
BY:
GAYNOR
6/12/2008
SHEET
3
OF
4
REVISION Y

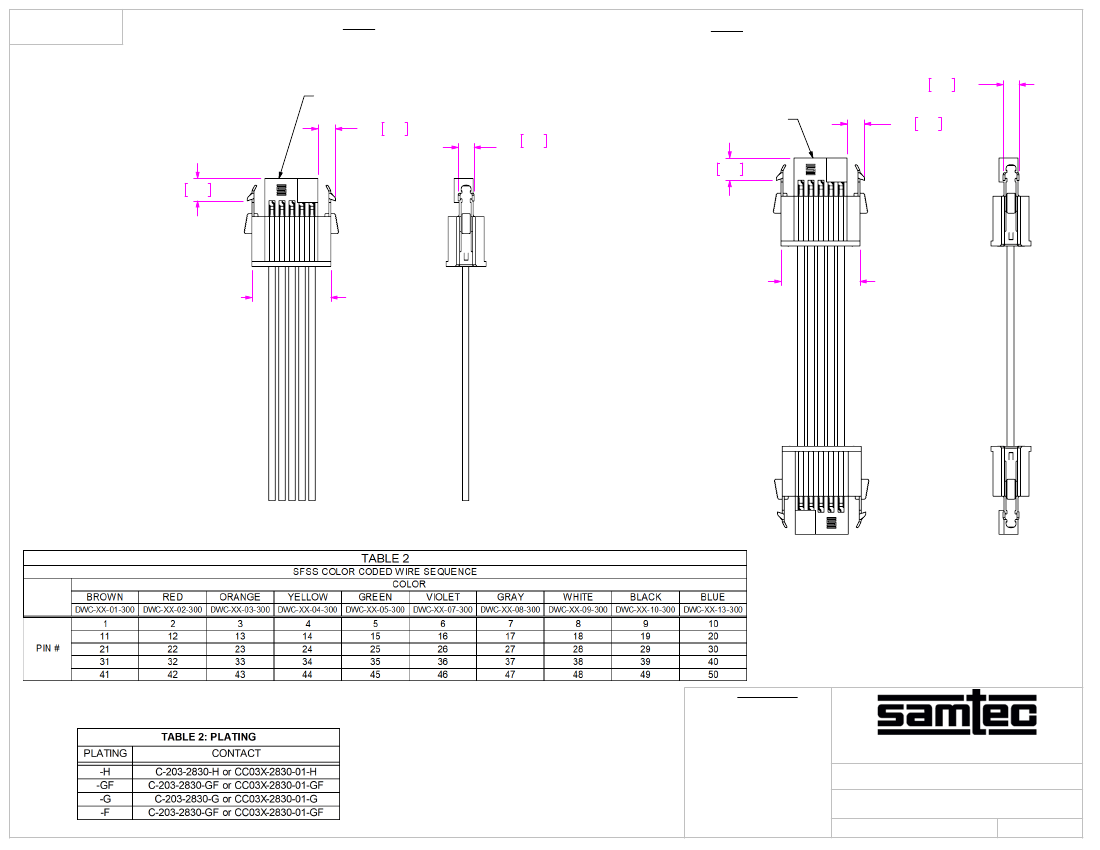

-SR: SINGLE END WITH RETENTION LATCH
(SFSSX-05-28-X-XX.XX-SR SHOWN)
(ONLY AVAILABLE ON -02 THRU -50 POS)
(SAME AS FIG 1, UNLESS OTHERWISE STATED)
ISDF-XX-S-M
.088 2.23 REF
FIG 3
-DR: DOUBLE END WITH RETENTION LATCH
(SFSSX-05-28-X-XX.XX-DR SHOWN)
(ONLY AVAILABLE ON -02 THRU -50 POS)
(SAME AS FIG 1, UNLESS OTHERWISE STATED)
.080 2.03 REF
ISDF-XX-S-M
.080 2.03
REF
.088 2.23 REF
FIG 4
.113 2.86 REF
.113 2.86 REF
(No OF POS x .050[1.27]) + .145[3.68]
REF
(No OF POS x .050[1.27]) + .145[3.68]
REF (TYP)
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
.050[1.27] SOCKET DISCRETE CABLE ASSEMBLY
C:\EnterpriseVault\DWG\MISC\MKTG\SFSSX-XX-XXX-XX-XX.XX-XX-XXX-MKT.SLDDRW
BY:
GAYNOR
SFSSX-XX-XXX-XX-XX.XX-XX-XXX
6/12/2008
SHEET
4
OF
4
