267002-1

Description
D Subminiature Connector, 15 Contact(s), Male, Solder Terminal, Plug,
CategoryThe connector    The connector
File Size71KB,2 Pages
ManufacturerAPI Technologies
Websitehttp://www.apitech.com/about-api
Download Datasheet Parametric View All

267002-1 Overview

D Subminiature Connector, 15 Contact(s), Male, Solder Terminal, Plug,

267002-1 Parametric

Parameter NameAttribute value
Reach Compliance Codecompli
ECCN codeEAR99
Body/casing typePLUG
Connector typeD SUBMINIATURE CONNECTOR
Contact point genderMALE
DIN complianceNO
empty shellNO
Filter functionYES
IEC complianceNO
insulator materialPOLYETHYLENE
MIL complianceNO
Manufacturer's serial number267002
Mixed contactsNO
Installation typeBOARD
Shell surfaceTIN
Shell materialSTEEL
Housing size2/A
Termination typeSOLDER
Total number of contacts15
UL Flammability Code94V-0
Base Number Matches1
Quiet Line
Filtered PCB Connectors
HD-20 Filtered Connectors–.590 Footprint
Plug
Material and Finish:
Front Shell—Steel,
tin plated
Housing—94V-0
rated thermoplastic,
black
Eyelets—Brass,
tin plated
Threaded Inserts—Zinc
Boardlocks—Copper
alloy, tin-lead
plated
Pin Contacts (Posted)—Brass,
duplex plated as follows:
.000030 [0.00076] gold on mating end,
tin-lead on termination end, with entire
contact .000050 [0.00127] (min.)
nickel underplated

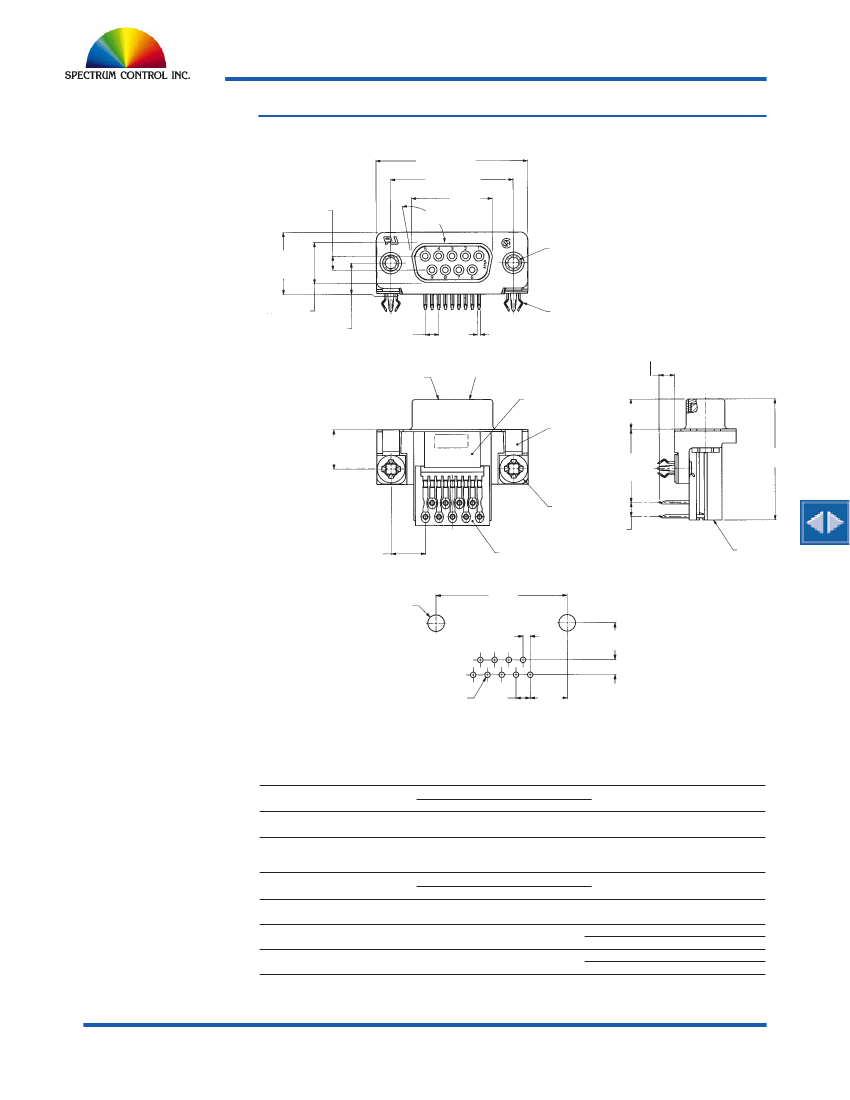

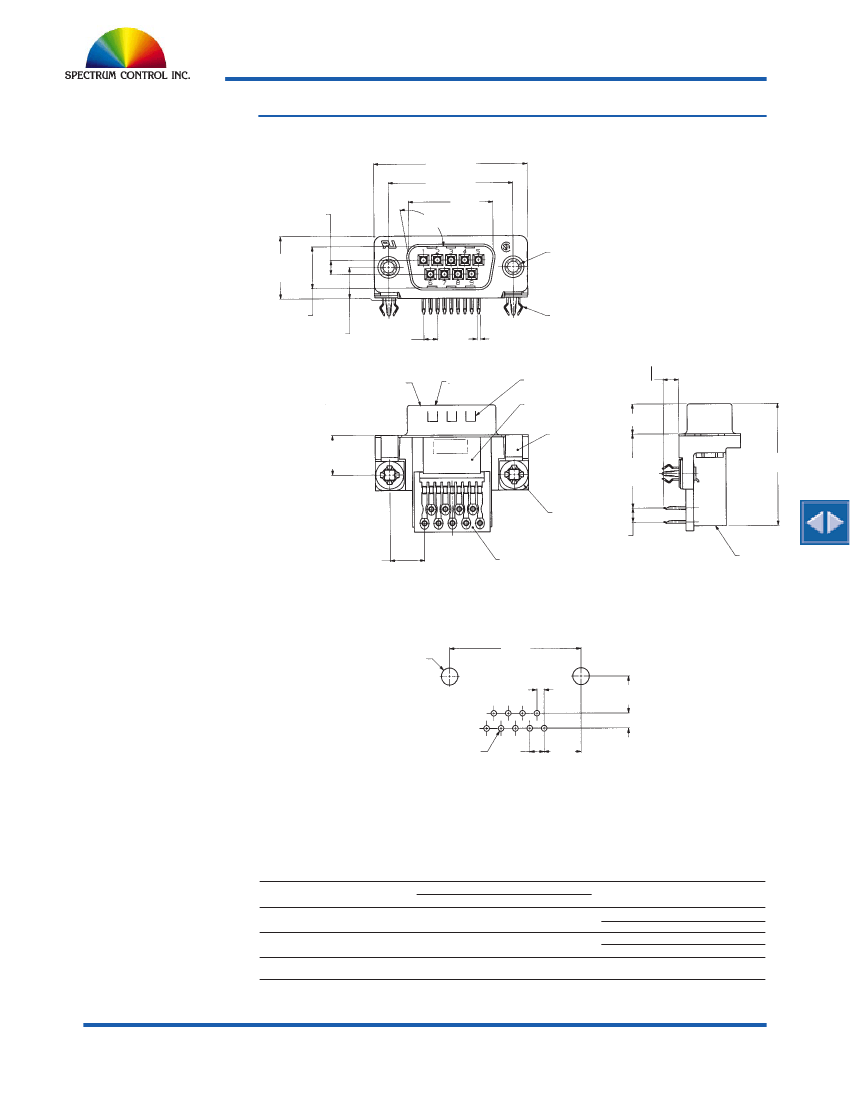

.112
[2.84]
A
B
.666
[16.92]
100°0’ TYP
.494±.015
[12.55±0.38]
TYP
4–40 THREADED INSERT
2 PLC
.329
[8.36]
.247±.010
[6.27±0.25]
TYP
.108±.010
[2.74±0.25]
TYP
MATING FACE
SHELL
BOARDLOCK
2 PLC
.026
[0.66] DIA CONTACT
TYP
.125±.015
[3.18±0.38]
TYP
GROUNDING INDENT
TYP
GROUND PLATE
C
.315±.010
[8.00±0.25]
TYP
GROUNDING
STRAP
2 PLC
.590±.015
[14.99±0.38]
TYP
D
EYELET
2 PLC
.112±.010
[2.84±0.25]
TYP
.276±.015
[7.01±0.38]
FILTER
HOUSING
.125±.003
DIA.
[3.18±0.08]
2 HOLES
.984
[24.99]
.054
[1.37]
TYP
.275
[6.98]
TYP
.112
[2.84]
.041
[1.04] DIA.
TYP
.108
[2.74]
TYP
.276
[7.01]
Contact Arrangement and PC Board Mounting Specifications–9 Position
Plugs—Ferrite Block and Capacitors
A
1.213
1
9
30.81
1.541
2
15
39.14
2.088
3
25
53.04
*Available with 100, 220, 470 or 1500 pF
Shell
Size
No. of
Pos.
Dimensions
B
C
.984
.235
24.99
5.97
1.312
.235
33.33
5.97
1.852
.230
47.04
5.84
D
.965
24.51
.965
24.51
.970
24.64
Capacitance*
pF
5600
820
5600
820
5600
Part
Number
93790-1
93790-2
267002-2
267002-1
93792-1
Dimensions are in inches and millimeters unless otherwise specified. Values in brackets are metric equivalents.
