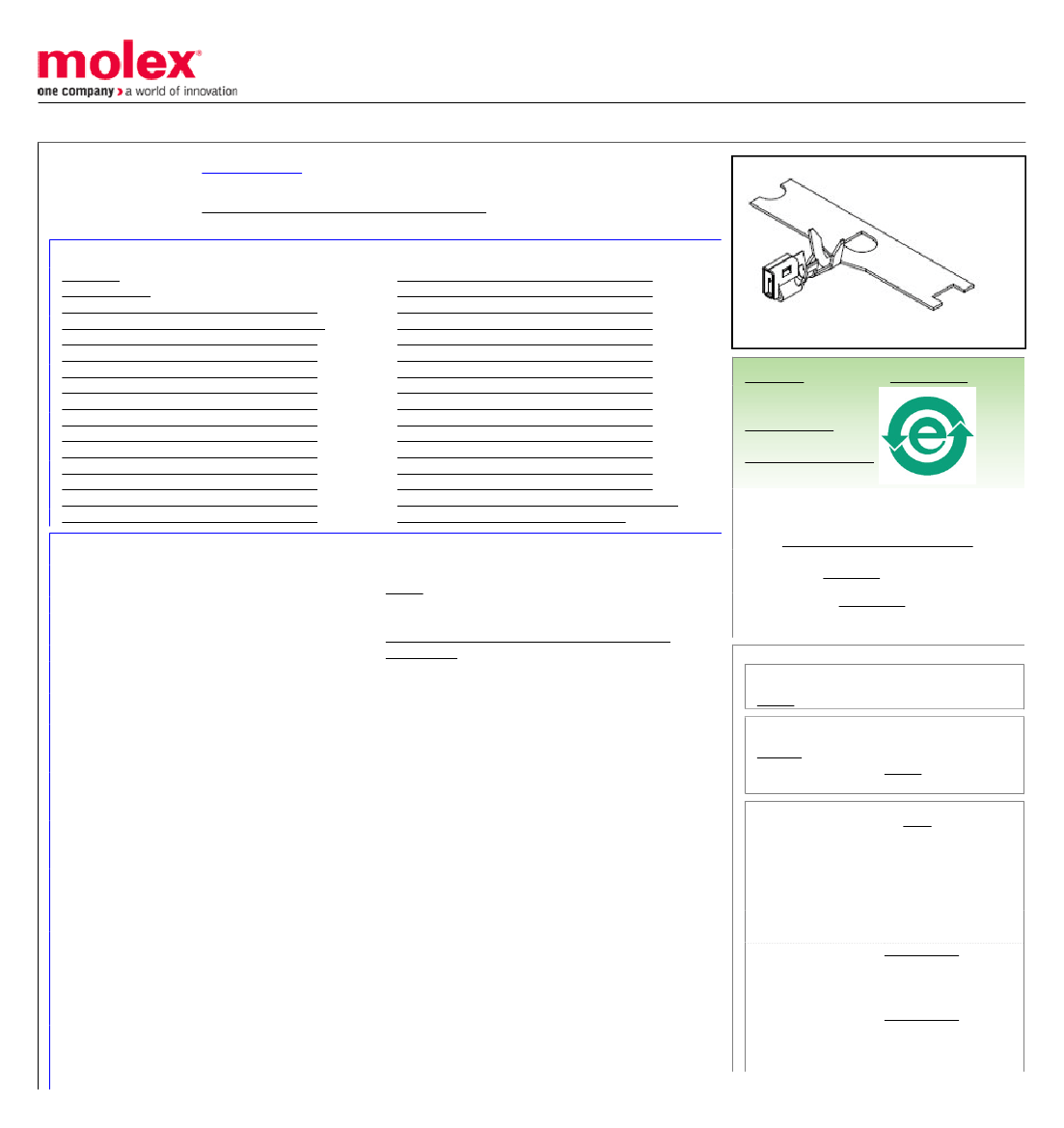

Part Number:
Status:
Overview:
Description:
50212-8000
Active
Micro-Latch™ Wire-to-Board Connector System
2.00mm Pitch Crimp Terminal, Female, 24-30 AWG, Reel
Documents:
3D Model
Drawing (PDF)
Product Specification PS-35507-002 (PDF)
Product Specification PS-502079-001 (PDF)
Product Specification PS-51065-005 (PDF)
Product Specification PS-51065-016 (PDF)
Product Specification PS-51065-017 (PDF)
Product Specification PS-51065-018 (PDF)
Product Specification PS-51089-001 (PDF)
Product Specification PS-51089-005 (PDF)
Product Specification PS-51090-003 (PDF)
Product Specification PS-51090-004 (PDF)
Product Specification PS-51090-005 (PDF)
Product Specification PS-51090-009 (PDF)
Product Specification PS-51090-016 (PDF)
Product Specification PS-51090-017 (PDF)
Product Specification PS-51090-018 (PDF)
Product Specification PS-51160-001 (PDF)
Product Specification PS-51160-006 (PDF)
Product Specification PS-51225-003 (PDF)
Product Specification PS-52968-006 (PDF)
Product Specification PS-52968-007 (PDF)
Product Specification PS-53358-001 (PDF)
Product Specification PS-53717-002 (PDF)
Product Specification PS-54111-001 (PDF)
Product Specification PS-54111-002 (PDF)
Product Specification PS-54214-001 (PDF)
Product Specification PS-54452-006 (PDF)
Product Specification PS-54452-007 (PDF)
Product Specification PS-55533-004 (PDF)
Packaging Specification SPK-50212-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Low-Halogen
China RoHS
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Crimp Quality Equipment
Overview
Packaging Alternative
Product Name
UPC
Crimp Terminals
50212
Signal
Yes
Micro-Latch™ Wire-to-Board Connector System
50212-8100 (Loose)
Mi II™, Micro-Latch™, Sherlock™
800753644625
Search Parts in this Series
50212Series
Use With
502351 DuraClik™ Wire-to-Board
Receptacle Housing, 51065 Micro-Latch™
Wire-to-Board Housing
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Hand Crimp Tool
0638190500
for 2.00mm Pitch
Terminal, 24-30
AWG
FineAdjust™
0639005200
Applicator for
2.00mm Pitch Wire-
to-Board Crimp
Physical
Gender
Material - Metal
Material - Plating Mating
Material - Plating Termination
Net Weight
Packaging Type
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Female
Phosphor Bronze
Tin
Tin
20.400/mg
Reel
Crimp or Compression
1.40mm max.
24, 26, 28, 30
N/A
Electrical
Current - Maximum per Contact
Voltage - Maximum
2A
125V
Material Info
Reference - Drawing Numbers
Crimp Specification
Packaging Specification
Product Specification
CS-50212
SPK-50212-001
PS-35507-002, PS-502079-001, PS-51065-005,
PS-51065-016, PS-51065-017, PS-51065-018,
PS-51089-001, PS-51089-005, PS-51090-003,
Sales Drawing
PS-51090-004, PS-51090-005, PS-51090-009,
PS-51090-016, PS-51090-017, PS-51090-018,
PS-51160-001, PS-51160-006, PS-51225-003,
PS-52968-006, PS-52968-007, PS-53358-001,
PS-53717-002, PS-54111-001, PS-54111-002,
PS-54214-001, PS-54452-006, PS-54452-007,
PS-55533-004, RPS-35507-003, RPS-35507-004,
RPS-35507-005, RPS-35507-006, RPS-35507-008,
RPS-35507-009, RPS-35507-010, RPS-35507-011,
RPS-50212-002, RPS-51065-001, RPS-51065-002,
RPS-51065-006, RPS-51065-007, RPS-51065-010,
RPS-51065-011, RPS-51065-012, RPS-51065-013,
RPS-51065-014, RPS-51065-015, RPS-51065-017,
RPS-51065-018, RPS-51065-019, RPS-51065-020,
RPS-51065-021, RPS-51065-022, RPS-51065-023,
RPS-51065-024, RPS-51065-025, RPS-51065-026,
RPS-51065-027, RPS-51065-028, RPS-51065-030,
RPS-51065-031, RPS-51065-032, RPS-51089-002,
RPS-51089-003, RPS-51089-004, RPS-51089-005,
RPS-51090-002, RPS-51090-005, RPS-51090-006,
RPS-51090-008, RPS-51090-009, RPS-51090-010,
RPS-51090-012, RPS-51090-013, RPS-51090-014,
RPS-51090-015, RPS-51090-017, RPS-51090-018,
RPS-51090-021, RPS-51090-022, RPS-51090-026,
RPS-51160-003, RPS-51160-004, RPS-51160-005,
RPS-51339-004, RPS-51339-007, RPS-52484-002,
RPS-52968-005, RPS-52968-012, RPS-52968-013,
RPS-52969-004, RPS-52969-006, RPS-53324-001,
RPS-53358-001, RPS-54111-001, RPS-54111-002,
RPS-54111-004, RPS-54111-005, RPS-54269-004,
RPS-54269-005, RPS-54452-011, RPS-55460-011,
RPS-87369-001
SD-50212-001
Terminals 24-30
AWG
T2 Terminator Die 0639105200
Extraction Tool
0011030043
Japan
Description
Product #
Extraction Tool
0571056000
Applicator for M211A 0571753000
Bench Press, 22-30
AWG Wire
Side-Feed Applicator 0571753200
For Full-Auto
Machine
