Datasheet> All Categories > Passive components> inductor> 21M391K

21M391K: DescriptionGeneral Purpose Inductor, 3.9uH, 10%, 1 Element, Phenolic-Core,; CategoryPassive components inductor; File Size2MB，1 Pages; ManufacturerGowanda Electronics

Download Datasheet Parametric View All

21M391K Overview

General Purpose Inductor, 3.9uH, 10%, 1 Element, Phenolic-Core,

21M391K Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	_compli
ECCN code	EAR99
structure	Cylindrical
core material	PHENOLIC
DC Resistance	1.2 Ω
Nominal inductance(L)	3.9 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e0
Lead diameter	0.644 mm
Lead length	36.525 mm
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package diameter	5.588 mm
Package length	14.224 mm
Package form	Axial
method of packing	TR
Minimum quality factor (at nominal inductance)	40
Maximum rated current	0.44 A
self resonant frequency	100 MHz
Shape/Size Description	TUBULAR PACKAGE
shield	NO
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal location	AXIAL
Terminal shape	PRINTED WIRING PIN
Test frequency	7.9 MHz
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

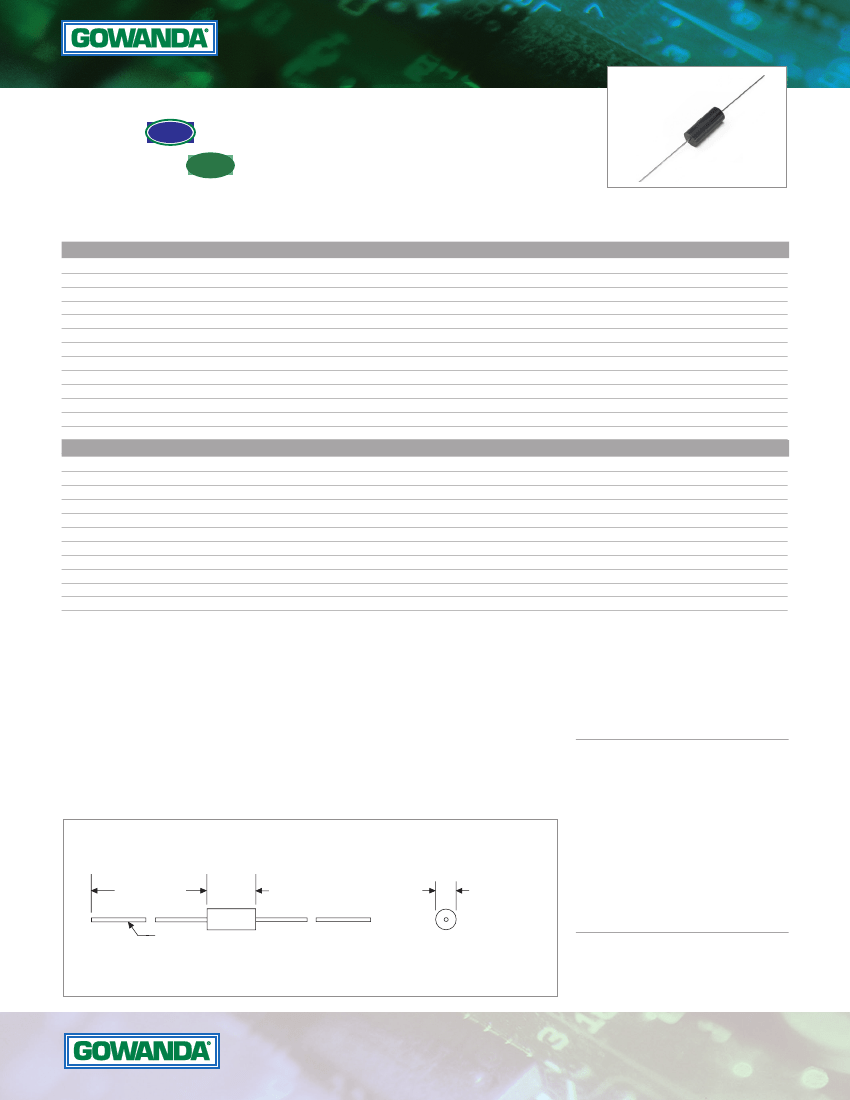

STANDARD RF INDUCTORS - THRU HOLE

21M

21MLF

PART

NUMBER

21M470K

21M560K

21M680K

21M820K

21M101K

21M121K

21M151K

21M181K

21M221K

21M271K

21M331K

21M391K

21M471K

21M561K

21M681K

21M821K

21M102K

21M122K

21M152K

21M182K

21M222K

21M272K

21M332K

21M392K

TRADITIONAL

COMPLIANT

RoHS

Wirewound, Molded

COTS

MIL SPEC

DESIGNATION

MS90542-01

MS90542-02

MS90542-03

MS90542-04

MS90542-05

MS90542-06

MS90542-07

MS90542-08

MS90542-09

MS90542-10

MS90542-11

MS90542-12

MS90542-13

MS14052-01

MS14052-02

MS14052-03

MS14052-04

MS14052-05

MS14052-06

MS14052-07

MS14052-08

MS14052-09

MS14052-10

MS14052-11

µH

0.47

0.56

0.68

0.82

1.0

1.2

1.5

1.8

2.2

2.7

3.3

3.9

4.7

5.6

6.8

8.2

10.0

12.0

15.0

18.0

22.0

27.0

33.0

39.0

MIN

TEST FREQ

L&Q

MHz

25.0

7.9

2.5

SRF

MHz

MIN

300

270

240

220

200

180

160

150

135

120

105

100

DCR

OHMS

MAX

0.06

0.08

0.11

0.14

0.19

0.28

0.37

0.50

0.65

1.00

1.20

1.80

0.13

0.20

0.22

0.26

0.45

0.52

0.70

1.00

1.30

1.50

2.00

CURRENT

RATING

mA DC

1970

1850

1700

1520

1290

1120

925

790

680

600

480

440

360

885

710

680

625

465

442

380

326

275

258

224

MS90542 - PHENOLIC CORE

MS14052 - POWDERED IRON CORE

Suffix “K” for 10% tolerance

Optional tolerances available; please contact factory

Custom designs are available to meet your specific requirements; please contact factory

*Add “LF” suffix for RoHS requirement. Example: 21M470KLF

Gowanda designates a component RoHS-compliant by adding “LF” (lead free) to the part number.

These LF components meet the ≤ .1% lead requirement and they are compatible with 260°C soldering processes.

NOTES:

• Operating Temperature Range:

-55°C to +125°C for MS90542 (Phenolic)

-55°C to +105°C for MS14052

(Powdered Iron)

• Current Rating at a 90°C ambient:

15°C temperature rise for MS14052

(Powdered Iron)

35°C temperature rise for MS90542

(Phenolic)

• DWV 1000 Vrms @ Sea Level

200 Vrms @ 70,000 Feet

• Laser Marking is standard

TAPE AND REEL SPECS:

Pcs./Reel maximum:

Pitch between parts:

Inside tape spacing:

Reel diameter:

Class:

1000

0.400 in.

2.500 in.

12 in.

1.438 ± 0.188

(36.525 ± 4.77)

22 AWG

10µH

± 10%

0.568 ± 0.010

(14.224 ± 0.25)

.220 ± 0.010

(5.588 ± 0.25)

in. (mm)

One Magnetics Pkwy, Gowanda, NY 14070 • (t) 716-532-2234 • (f) 716-532-2702 • sales@gowanda.com

www.gowanda.com

122113
