BZW06-299 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BZW06-299

BZW06-299: Description600 W, UNIDIRECTIONAL, SILICON, TVS DIODE; CategoryDiscrete semiconductor diode; File Size153KB，3 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com; Environmental Compliance

Download Datasheet Parametric Compare View All

BZW06-299 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BZW06-299	-	-	View	Buy Now

BZW06-299 Overview

600 W, UNIDIRECTIONAL, SILICON, TVS DIODE

BZW06-299 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SEMIKRON
Parts packaging code	DO-15
package instruction	O-PALF-W2
Contacts	2
Reach Compliance Code	compli
ECCN code	EAR99
Maximum breakdown voltage	368 V
Minimum breakdown voltage	332 V
Breakdown voltage nominal value	350 V
Shell connection	ISOLATED
Maximum clamping voltage	482 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-204AC
JESD-30 code	O-PALF-W2
JESD-609 code	e2
Maximum non-repetitive peak reverse power dissipation	600 W
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-50 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	5 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	299 V
surface mount	NO
technology	AVALANCHE
Terminal surface	Tin/Silver (Sn/Ag)
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

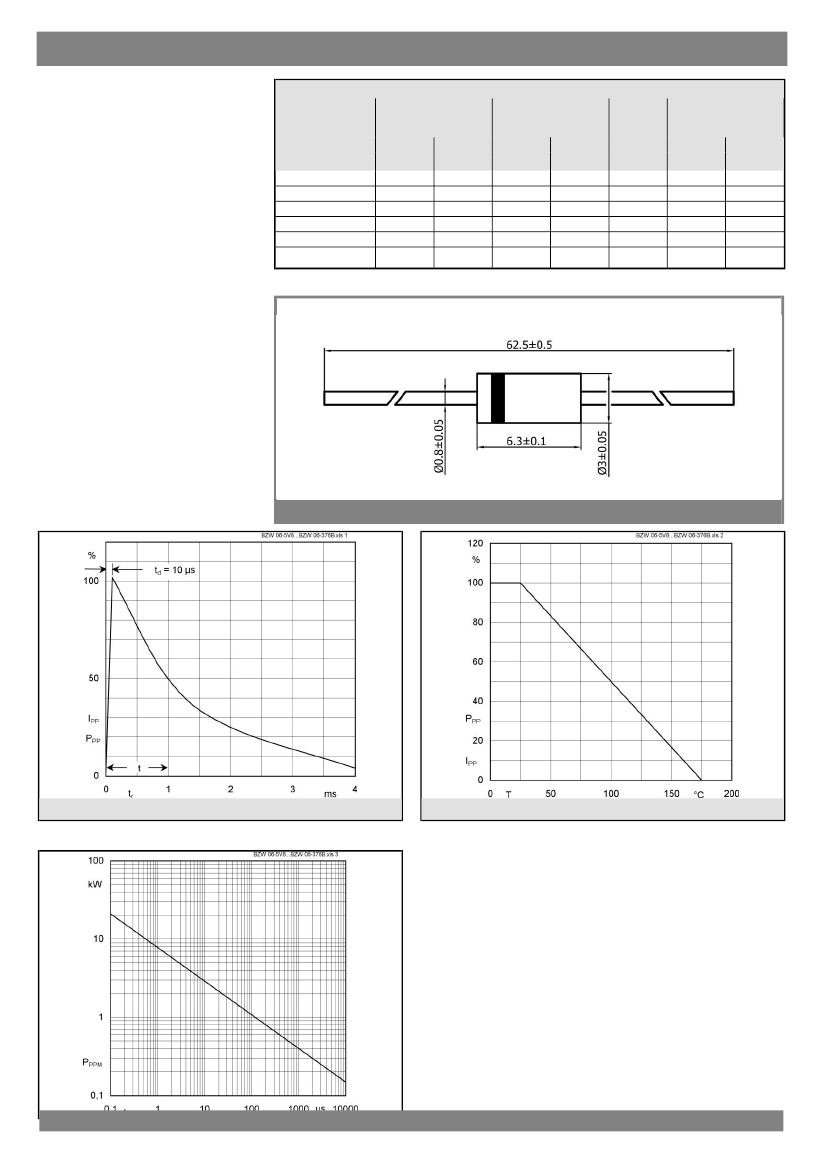

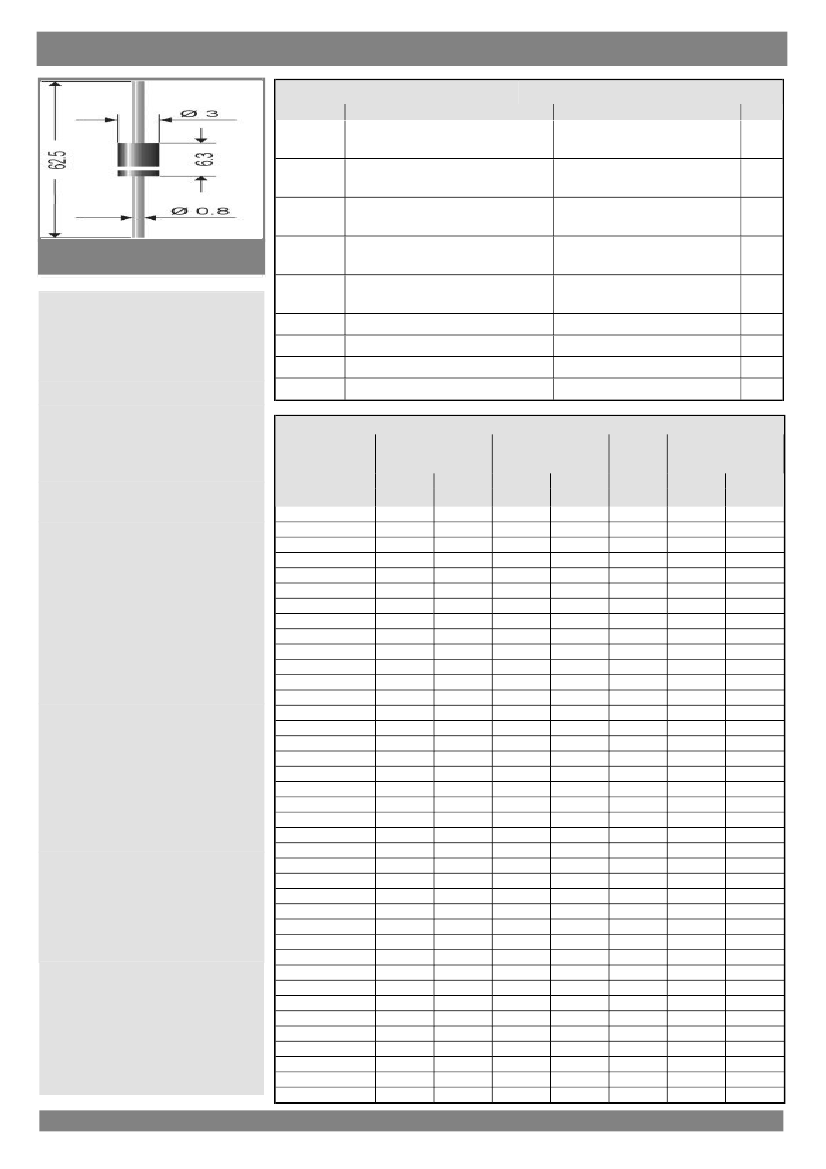

BZW 06-5V8 ... BZW 06-376B

Absolute Maximum Ratings

Symbol Conditions

Values

Units

Axial lead diode

Unidirectional and

bidirectional Transient

Voltage Suppressor

diodes

BZW 06-5V8...BZW 06-376B

Pulse Power

Dissipation: 600 W

Maximum Stand-off

voltage: 5,8...376 V

Features

Mechanical Data

02-04-2004 SCT

BZW06-299 Related Products

	BZW06-299	BZW06-239	BZW06-256	BZW06-273	BZW06-342	BZW06-376
Description	600 W, UNIDIRECTIONAL, SILICON, TVS DIODE	600 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-15	600 W, UNIDIRECTIONAL, SILICON, TVS DIODE	600 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-15	600 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-15	600 W, UNIDIRECTIONAL, SILICON, TVS DIODE
Is it Rohs certified?	conform to	conform to	conform to	-	conform to	conform to
Parts packaging code	DO-15	DO-15	DO-15	-	DO-15	DO-15
package instruction	O-PALF-W2	O-PALF-W2	O-PALF-W2	-	O-PALF-W2	O-PALF-W2
Contacts	2	2	2	-	2	2
Reach Compliance Code	compli	compli	compli	-	compliant	compli
ECCN code	EAR99	EAR99	EAR99	-	EAR99	EAR99
Maximum breakdown voltage	368 V	294 V	315 V	-	420 V	462 V
Minimum breakdown voltage	332 V	266 V	285 V	-	380 V	418 V
Breakdown voltage nominal value	350 V	280 V	300 V	-	400 V	440 V
Shell connection	ISOLATED	ISOLATED	ISOLATED	-	ISOLATED	ISOLATED
Maximum clamping voltage	482 V	384 V	414 V	-	548 V	603 V
Configuration	SINGLE	SINGLE	SINGLE	-	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	-	SILICON	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	-	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-204AC	DO-204AC	DO-204AC	-	DO-204AC	DO-204AC
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2	-	O-PALF-W2	O-PALF-W2
JESD-609 code	e2	e2	e2	-	e2	e2
Maximum non-repetitive peak reverse power dissipation	600 W	600 W	600 W	-	600 W	600 W
Number of components	1	1	1	-	1	1
Number of terminals	2	2	2	-	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	-	175 °C	175 °C
Minimum operating temperature	-50 °C	-50 °C	-50 °C	-	-50 °C	-50 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	-	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	-	LONG FORM	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	-	UNIDIRECTIONAL	UNIDIRECTIONAL
Maximum power dissipation	5 W	5 W	5 W	-	5 W	5 W
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	299 V	239 V	256 V	-	342 V	376 V
surface mount	NO	NO	NO	-	NO	NO
technology	AVALANCHE	AVALANCHE	AVALANCHE	-	AVALANCHE	AVALANCHE
Terminal surface	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	-	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)
Terminal form	WIRE	WIRE	WIRE	-	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	-	AXIAL	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
