S-29L131ADFE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> S-29L131ADFE

S-29L131ADFE: DescriptionEEPROM, 64X16, Serial, CMOS, PDSO8, SOP-8; Categorystorage storage; File Size873KB，18 Pages; ManufacturerABLIC

Download Datasheet Parametric Compare View All

S-29L131ADFE Overview

EEPROM, 64X16, Serial, CMOS, PDSO8, SOP-8

S-29L131ADFE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	SOIC
package instruction	LSOP, SOP8,.25
Contacts	8
Reach Compliance Code	compli
ECCN code	EAR99
Other features	DATA RETENTION: 10 YEARS
Maximum clock frequency (fCLK)	2 MHz
Data retention time - minimum	10
Durability	100000 Write/Erase Cycles
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
length	5.2 mm
memory density	1024 bi
Memory IC Type	EEPROM
memory width	16
Number of functions	1
Number of terminals	8
word count	64 words
character code	64
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	64X16
Package body material	PLASTIC/EPOXY
encapsulated code	LSOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE
Parallel/Serial	SERIAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	2/5 V
Certification status	Not Qualified
Maximum seat height	1.7 mm
Serial bus type	3-WIRE
Maximum standby current	4e-7 A
Maximum slew rate	0.002 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	1.8 V
Nominal supply voltage (Vsup)	2.7 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	4.4 mm
Maximum write cycle time (tWC)	10 ms
write protect	HARDWARE/SOFTWARE
Base Number Matches	1

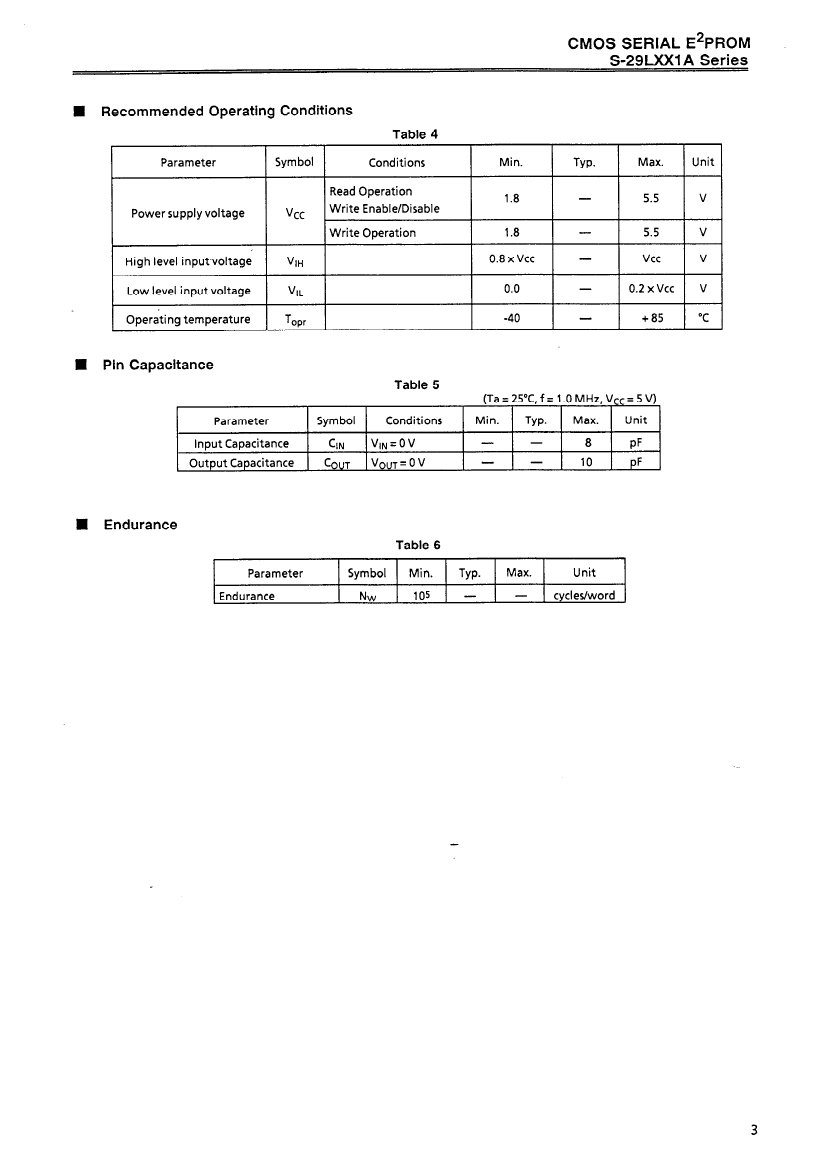

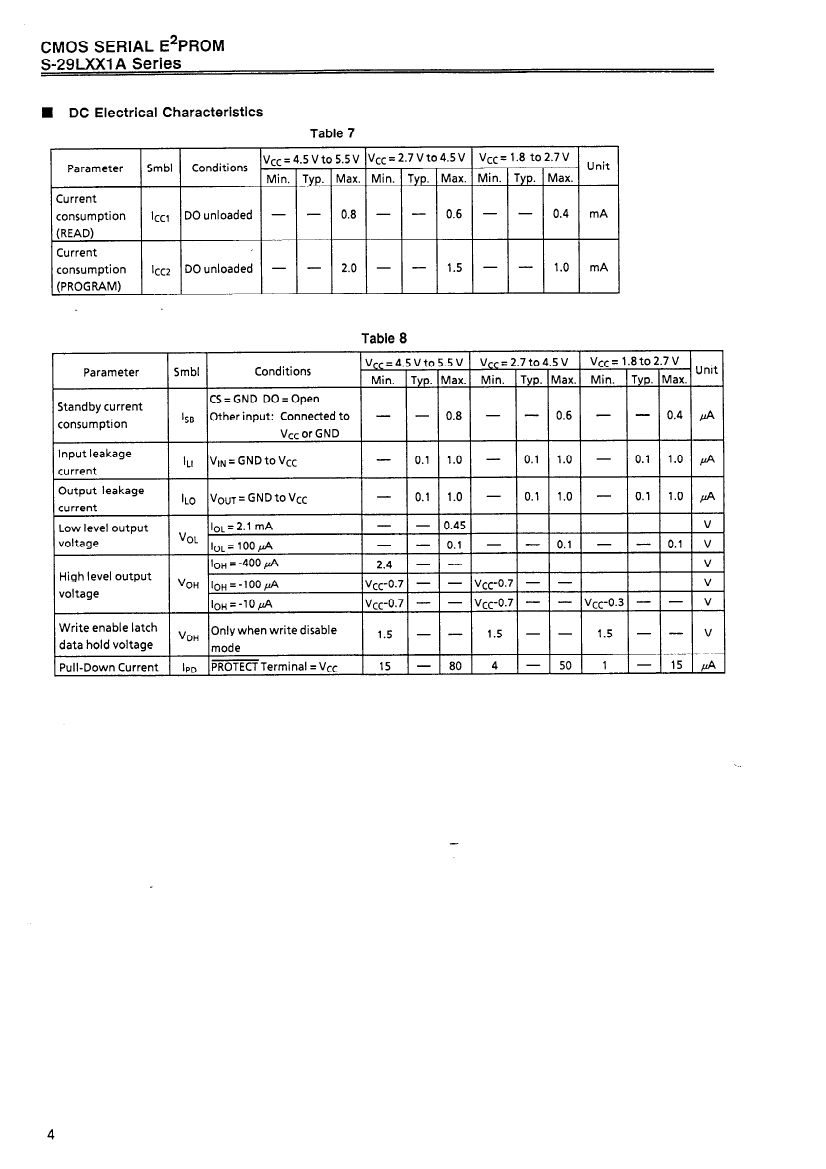

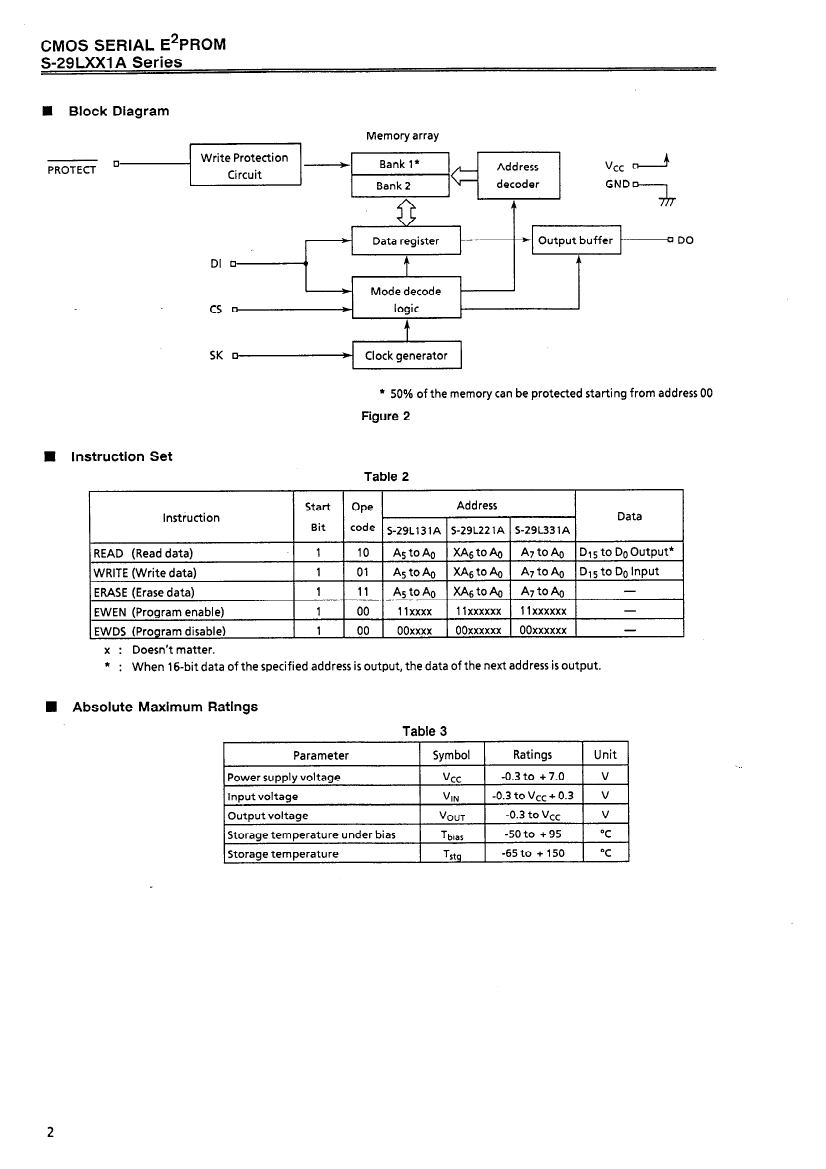

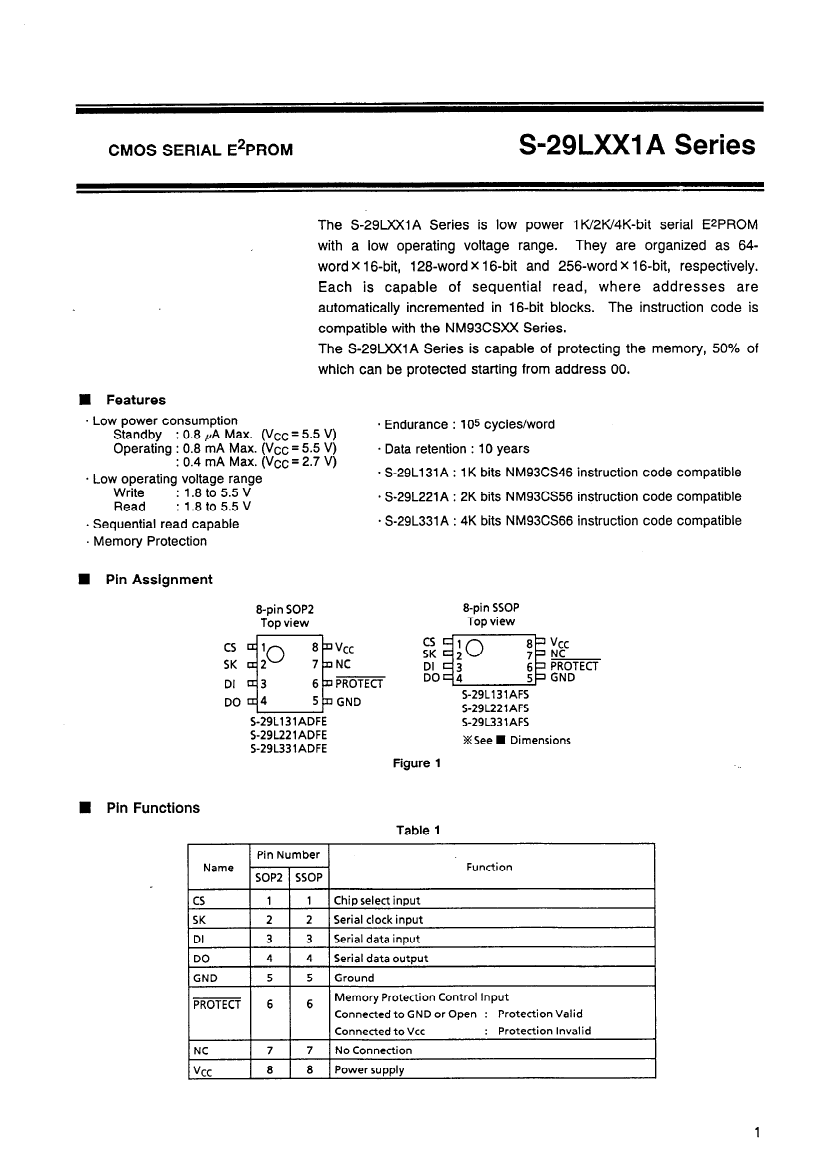

Preview

Download Datasheet

View All

S-29L131ADFE Related Products

	S-29L131ADFE	S-29L131AFS	S-29L331ADFE
Description	EEPROM, 64X16, Serial, CMOS, PDSO8, SOP-8	EEPROM, 64X16, Serial, CMOS, PDSO8, SSOP-8	EEPROM, 256X16, Serial, CMOS, PDSO8, SOP-8
Is it Rohs certified?	incompatible	incompatible	incompatible
Parts packaging code	SOIC	SOIC	SOIC
package instruction	LSOP, SOP8,.25	LSSOP, SSOP8,.25	LSOP, SOP8,.25
Contacts	8	8	8
Reach Compliance Code	compli	compli	compliant
ECCN code	EAR99	EAR99	EAR99
Other features	DATA RETENTION: 10 YEARS	DATA RETENTION: 10 YEARS	DATA RETENTION: 10 YEARS
Maximum clock frequency (fCLK)	2 MHz	2 MHz	2 MHz
Data retention time - minimum	10	10	10
Durability	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8
JESD-609 code	e0	e0	e0
length	5.2 mm	4.4 mm	5.2 mm
memory density	1024 bi	1024 bi	4096 bit
Memory IC Type	EEPROM	EEPROM	EEPROM
memory width	16	16	16
Number of functions	1	1	1
Number of terminals	8	8	8
word count	64 words	64 words	256 words
character code	64	64	256
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
organize	64X16	64X16	256X16
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSOP	LSSOP	LSOP
Encapsulate equivalent code	SOP8,.25	SSOP8,.25	SOP8,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE
Parallel/Serial	SERIAL	SERIAL	SERIAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	2/5 V	2/5 V	2/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.7 mm	1.3 mm	1.7 mm
Serial bus type	3-WIRE	3-WIRE	3-WIRE
Maximum standby current	4e-7 A	4e-7 A	4e-7 A
Maximum slew rate	0.002 mA	0.002 mA	0.002 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	1.8 V	1.8 V	1.8 V
Nominal supply voltage (Vsup)	2.7 V	2.7 V	2.7 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	0.65 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	4.4 mm	3.1 mm	4.4 mm
Maximum write cycle time (tWC)	10 ms	10 ms	10 ms
write protect	HARDWARE/SOFTWARE	HARDWARE/SOFTWARE	HARDWARE/SOFTWARE
Base Number Matches	1	1	-
