39-00-0038 (Cut Strip)

Description
headers & wire housings MN-FT term 18-24g F cut strip of 100
CategoryThe connector
File Size99KB,4 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric Compare View All

39-00-0038 (Cut Strip) Overview

headers & wire housings MN-FT term 18-24g F cut strip of 100

39-00-0038 (Cut Strip) Parametric

Parameter NameAttribute value
ManufactureMolex
Product CategoryHeaders & Wire Housings
RoHSYes
Pitch-
Number of Positions-
Number of Rows-
Contact GendeSocket (Female)
Contact PlatingTi
Housing Material-
Termination StyleCrim
Mounting Style-
Mounting Angle-
Contact MaterialBrass
Latching Type-
Mating Post Length-
Row Spacing-
Factory Pack Quantity100
Termination Post Length-
Voltage Rating600 V
Wire Gauge24-18

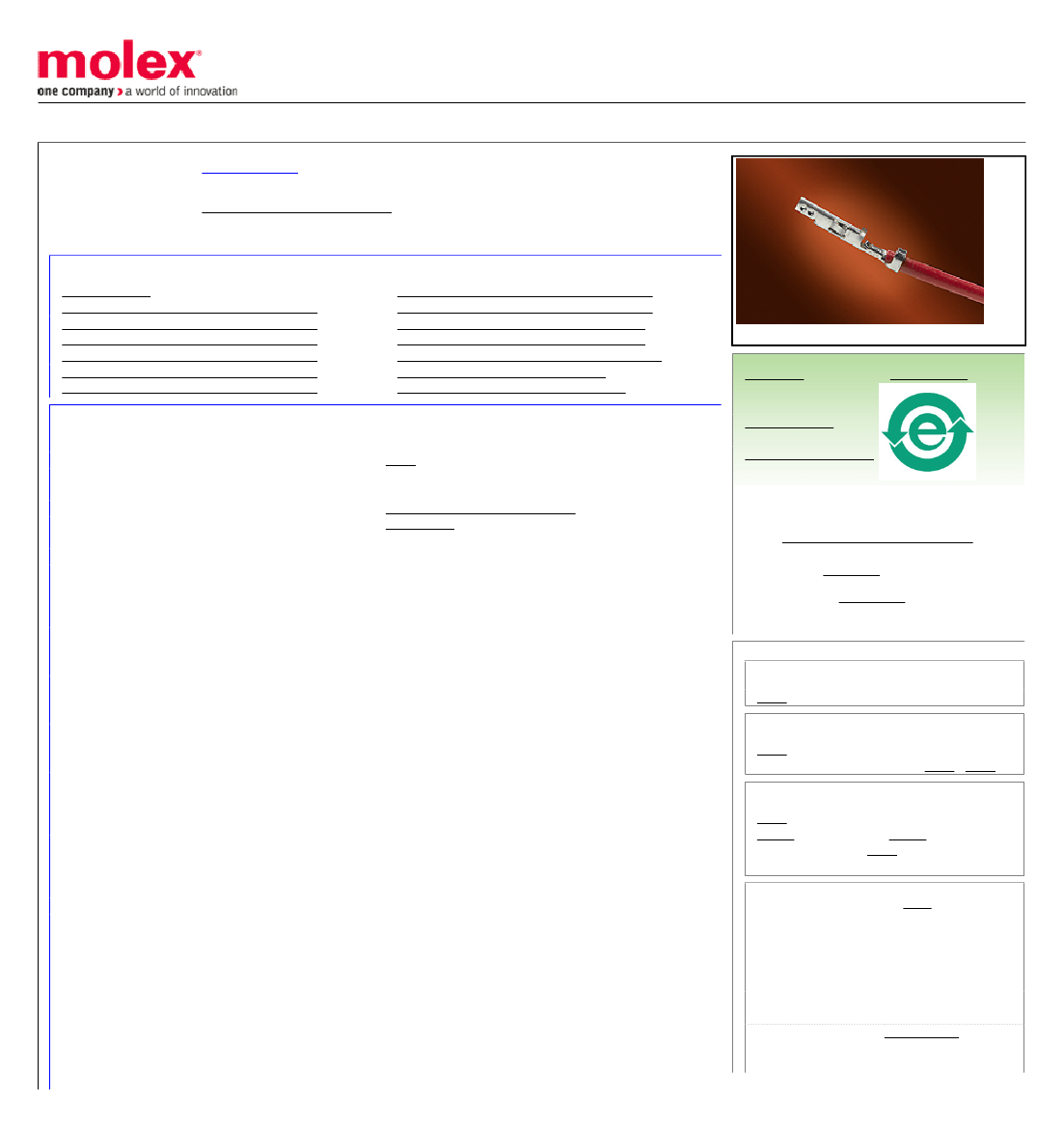

This document was generated on 04/03/2014
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
39-00-0038
Active
Mini-Fit Jr.™ Power Connectors
Mini-Fit® Female Crimp Terminal, Tin (Sn) over Copper (Cu) Plated Brass, 18-24
AWG, Reel
Documents:
Drawing (PDF)
Product Specification PS-51010-005 (PDF)
Product Specification PS-51010-006 (PDF)
Product Specification PS-51045-001 (PDF)
Product Specification PS-51045-002 (PDF)
Product Specification PS-51045-004 (PDF)
Product Specification PS-51096-001 (PDF)
Product Specification PS-52034-003 (PDF)
Product Specification PS-52034-004 (PDF)
Product Specification PS-5556-001 (PDF)
Product Specification PS-5556-002 (PDF)
Packaging Specification PK-5556-001 (PDF)
Test Summary TS-5556-002 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Low-Halogen
China RoHS
General
Product Family
Series
Application
Crimp Quality Equipment
Overview
Packaging Alternative
Product Name
UPC
Crimp Terminals
5556
Power
Yes
Mini-Fit Jr.™ Power Connectors
39-00-0039 (Loose)
Mini-Fit®
800753585010
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Durability (mating cycles max)
Gender
Material - Metal
Material - Plating Mating
Material - Plating Termination
Net Weight
Packaging Type
Plating min - Mating
Plating min - Termination
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
30
Female
Brass
Tin
Tin
0.130/g
Reel
0.889µm
0.889µm
Crimp or Compression
1.30-3.10mm
18, 20, 22, 24
N/A
Search Parts in this Series
5556Series
Mates With
5558 Mini-Fit® Crimp Male Terminals. Mini-
Fit Jr.™ Header, Dual Row, 5566 , 5569
Use With
5557 Mini-Fit Jr.™ Receptacle Housing,
30067 Mini-Fit® TPA, 42474 Mini-Fit®
BMI Panel Mount, 5559 Mini-Fit Jr.™ Plug
Housing, Dual Row
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
FineAdjust™
0639002600
Applicator for
Insulation OD
Electrical
Current - Maximum per Contact
Voltage - Maximum
9A
600V
Material Info
Old Part Number
5556T
Reference - Drawing Numbers
Packaging Specification
Product Specification
PK-5556-001
PS-51010-005, PS-51010-006, PS-51045-001,
PS-51045-002, PS-51045-004, PS-51096-001,
PS-52034-003, PS-52034-004, PS-5556-001,
PS-5556-002, RPS-30067-001, RPS-30067-002,
RPS-42474-001, RPS-51045-001, RPS-5557-008,
RPS-5557-024, RPS-5557-031, RPS-5557-036,
RPS-5557-037, RPS-5557-045, RPS-5557-046,
RPS-5566-002

39-00-0038 (Cut Strip) Related Products

39-00-0038 (Cut Strip) 39-00-0038 (Mouser Reel)
Description headers & wire housings MN-FT term 18-24g F cut strip of 100 headers & wire housings MN-FT term 18-24g F reel of 1000
Manufacture Molex Molex
Product Category Headers & Wire Housings Headers & Wire Housings
RoHS Yes Yes
Contact Gende Socket (Female) Socket (Female)
Contact Plating Ti Ti
Termination Style Crim Crim
Contact Material Brass Brass
Factory Pack Quantity 100 1000
Voltage Rating 600 V 600 V
Wire Gauge 24-18 24-18
