44478-1111 (Mouser Reel) datasheet, PDF

Datasheet> All Categories > The connector> 44478-1111 (Mouser Reel)

44478-1111 (Mouser Reel): Descriptionheaders & wire housings minifit hcs M term crp chain 18-20; CategoryThe connector; File Size37KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

44478-1111 (Mouser Reel) Overview

headers & wire housings minifit hcs M term crp chain 18-20

44478-1111 (Mouser Reel) Parametric

Parameter Name	Attribute value
Manufacture	Molex
Product Category	Headers & Wire Housings
RoHS	Yes
Pitch	-
Number of Positions	-
Number of Rows	-
Contact Gende	Pin (Male)
Contact Plating	Ti
Housing Material	-
Termination Style	Crim
Mounting Style	-
Mounting Angle	-
Contact Material	High Performance Alloy (HPA)
Current Rating	11 A
Latching Type	-
Mating Post Length	-
Packaging	Reel
Row Spacing	-
Factory Pack Quantity	1000
Termination Post Length	-
Wire Gauge	20-18

Preview

Download Datasheet

View All

This document was generated on 02/08/2012

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0444781111

Active

minifit_plus_hcs

Mini-Fit® HCS Crimp Terminal, 18-20 AWG, Reel, Copper (Cu) Alloy, Tin (Sn)

Documents:

Drawing (PDF)

Packaging Specification PK-44478-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

General

Product Family

Series

Application

Comments

Crimp Quality Equipment

Overview

Product Name

Crimp Terminals

44478

Power

High Current

Yes

minifit_plus_hcs

Mini-Fit® HCS

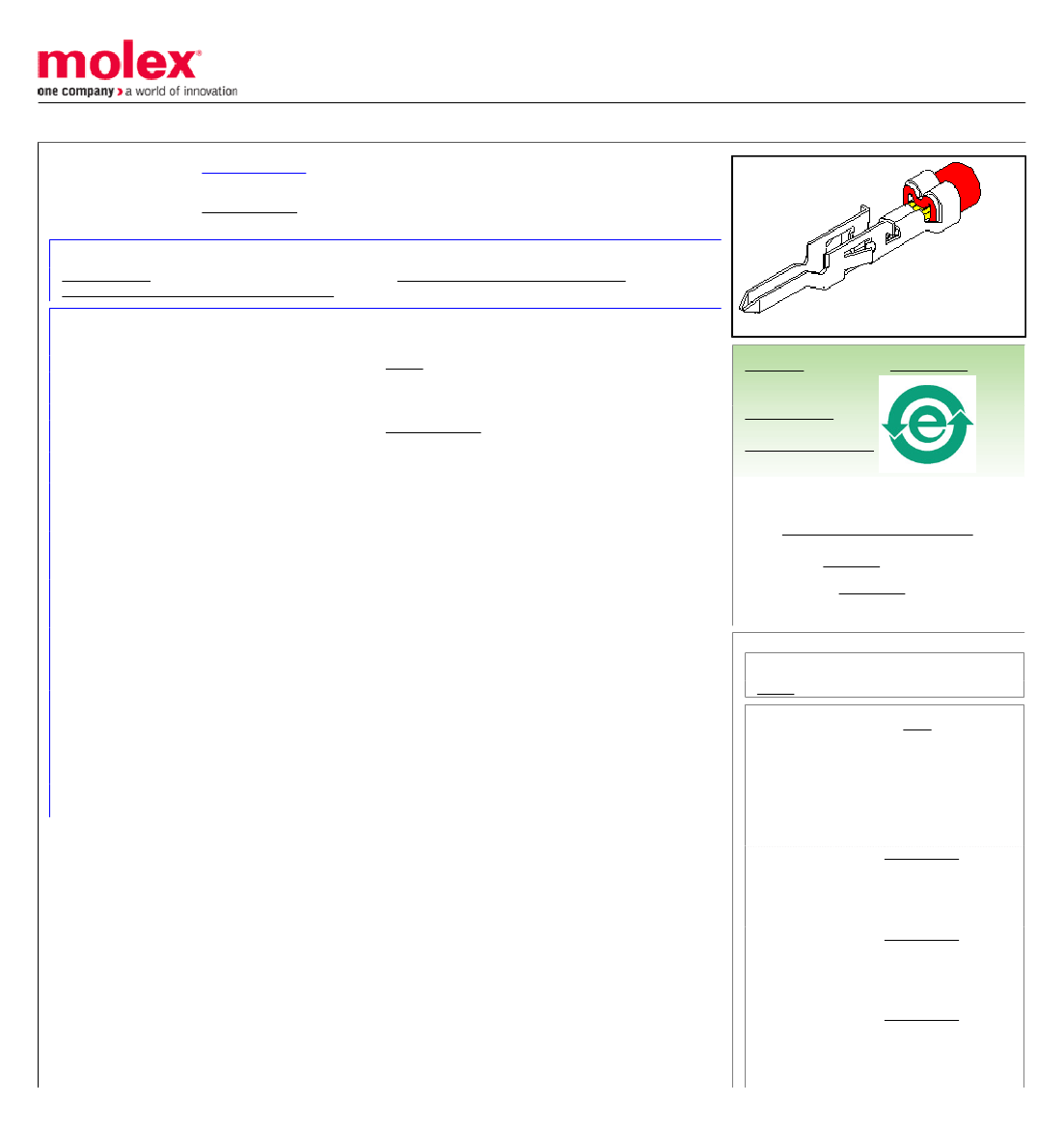

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Low-Halogen

China RoHS

Physical

Gender

Material - Metal

Material - Plating Mating

Material - Plating Termination

Packaging Type

Plating min - Mating

Plating min - Termination

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

Male

High Performance Alloy (HPA)

Tin

Reel

2.540µm

Crimp or Compression

1.30-3.10mm

18, 20

N/A

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Electrical

Current - Maximum per Contact

11A

Search Parts in this Series

44478Series

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

FineAdjust™

0639002600

Applicator for

insulation OD

2.50-2.95mm - 18-24

AWG

FineAdjust™

0639002900

Applicator for

insulation OD

1.65-2.05mm - 18-24

AWG

FineAdjust™

0639015600

Applicator for

insulation OD

1.90-2.30mm - 18-24

AWG

Material Info

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

PK-44478-001

RPS-44476-001

SD-44478-****

Recommended Resources
