EB4, EB6, EB8
www.vishay.com
Vishay Dale
Edgeboard Connectors, 200 °C Burn-In Connectors, Dual Readout

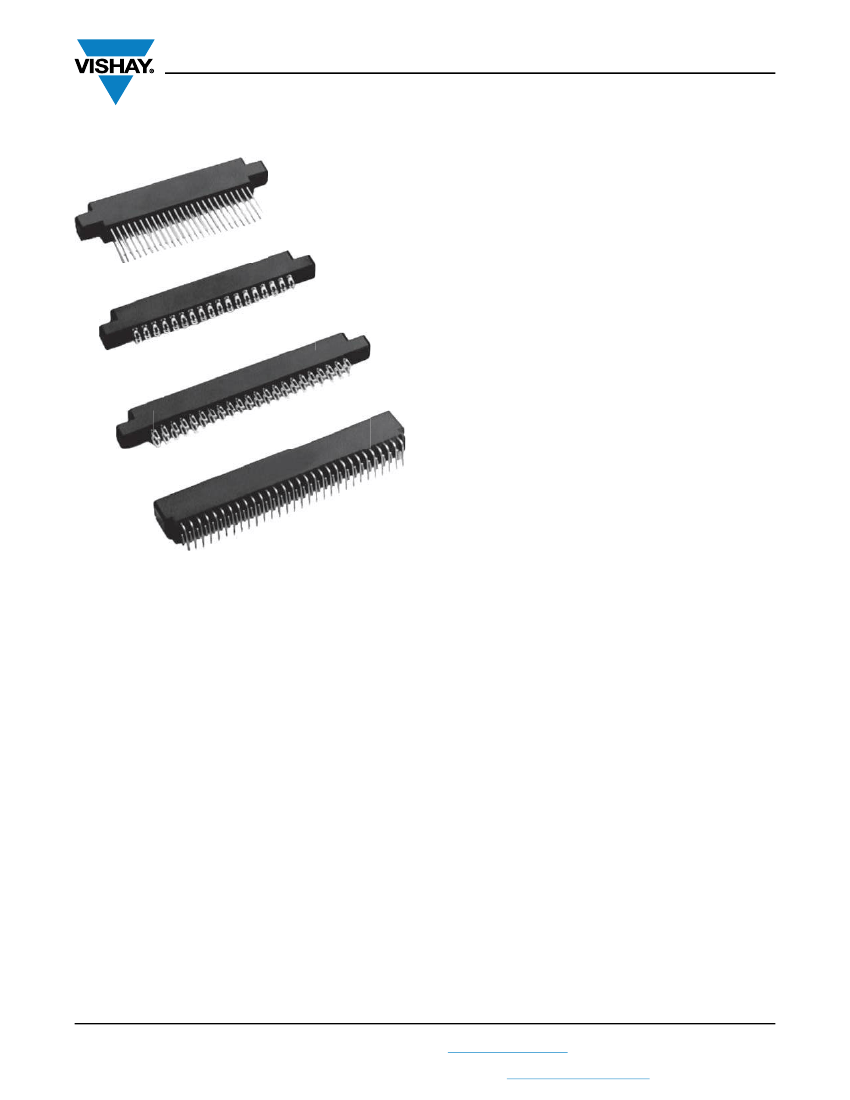

FEATURES
• EB4, 0.100" (2.54 mm) C-C; EB6, 0.125" (3.17 mm) C-C;
and EB8, 0.156" (3.96 mm) C-C
• Right angle styles included for all models
• High temperature, glass reinforced PPS connector bodies
- 200 °C
• High reliability copper-nickel-tin alloy contacts
• Accepts PC board thickness of 0.054" to 0.071" (1.37 mm
to 1.80 mm)
• High reliability bifurcated bellows contacts
• Gold plated contacts
• Card extender style terminals standard
• Variety of mounting styles available
•
Recognized under the Component Program of
Underwriters Laboratories, Inc. listed under file
E65524
APPLICATIONS
High temperature, long life connectors specifically designed
for burn-in oven and automatic temperature testing
applications.
Available in a wide range of sizes. Priced affordably and
competitively.
SPECIAL NOTE
ELECTRICAL SPECIFICATIONS
Current Rating:
EB4 = 3 A; EB6 = 3 A; EB8 = 5 A
Test Voltage Between Contacts:
At sea level: EB4 = 650 V
RMS
; EB6 = 1500 V
RMS
;
EB8 = 1800 V
RMS
At 70 000 feet (21 336 meters): EB4 = 275 V
RMS
;
EB6 = 325 V
RMS
; EB8 = 450 V
RMS
Insulation Resistance:
5000 M minimum at 500 V
DC
potential
Contact Resistance:
30 mV maximum at rated current
Humidity:
48 h at 95 % relative humity at + 90 °C, insulation
resistance 5000 M
Shock:
Threee 50G shocks in each of 3 mutually
perpendicular planes with no loss of continuity
When operating units at elevated temperatures, solder
having a melting point 50 °C above the operating
temperature should be used. Contact factory for specific
solder information.
MATERIAL SPECIFICATIONS
Body Material:
200 °C connectors: Fiberglass reinforced
polyphenylene sulfide, + 200 °C operating temperature,
flame retardant (UL 94 V-0)
Contacts:
Copper-nickel-tin alloy per ASTM B 740
Plating:
Gold plating (0.00003" (0.000762 mm) thick), over
0.00005" (0.00127 mm) minimum nickel underplate
Revision: 28-Feb-14
Document Number: 36006
1
For technical questions, contact:
connectors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
EB4, EB6, EB8
www.vishay.com
Vishay Dale
DIMENSIONS
in inches (millimeters)
EB4 0.100" (2.54 mm) C-C
0.060
(1.52)
R Typ.
A
B
C
0.100
(2.54)
Typ.
D
E
0.050
(1.27)
Typ.
0.287
(7.29)
0.342 (8.69)
Typ.
0.060 (1.52) Typ.
0.250
(6.35)
Typ.
0.430
(10.92)
Typ.
0.610 (15.49)
Typ.
0.180
(4.57)
Typ.
0.365
(9.27)
MODEL -
PART NUMBER
EB45-P6G
EB45-P10G
EB45-P12G
EB45-P15G
EB45-P18G
EB45-P20G
EB45-P22G
EB45-P25G
EB45-P28G
EB45-P30G
EB45-P31G
EB45-P35G
EB45-P36G
EB45-P40G
EB45-P43G
EB45-P44G
EB45-P48G
EB45-P49G
EB45-P50G
EB45-P60G
EB45-P65G
# OF CONTACT
POSITIONS
PER SIDE
6
10
12
15
18
20
22
25
28
30
31
35
36
40
43
44
48
49
50
60
65
A
1.435 (36.45)
1.835 (46.61)
2.035 (51.69)
2.335 (59.31)
2.635 (66.93)
2.835 (72.01)
3.035 (77.09)
3.335 (84.71)
3.635 (92.33)
3.835 (97.41)
3.935 (99.95)
4.335 (110.11)
4.435 (112.65)
4.835 (122.81)
5.135 (130.43)
5.235 (132.97)
5.635 (143.13)
5.735 (145.67)
5.835 (148.21)
6.835 (173.61)
7.335 (186.31)
B
1.175 (29.85)
1.575 (40.00)
1.775 (45.08)
2.075 (52.70)
2.375 (60.32)
2.575 (65.40)
2.775 (70.48)
3.075 (78.10)
3.375 (85.72)
3.575 (90.80)
3.675 (93.34)
4.075 (103.50)
4.175 (106.04)
4.575 (116.20)
4.875 (123.82)
4.975 (126.36)
5.375 (136.52)
5.475 (139.06)
5.575 (141.60)
6.575 (167.00)
7.075 (179.70)
C
0.700 (17.78)
1.100 (27.94)
1.300 (33.02)
1.600 (40.64)
1.900 (48.26)
2.100 (53.34)
2.300 (58.42)
2.600 (66.04)
2.900 (73.66)
3.100 (78.74)
3.200 (81.28)
3.600 (91.44)
3.700 (93.98)
4.100 (104.14)
4.400 (111.76)
4.500 (114.30)
4.900 (124.46)
5.000 (127.00)
5.100 (129.54)
6.100 (154.94)
6.600 (167.64)
D
0.860 (24.84)
1.260 (32.00)
1.460 (37.08)
1.760 (44.70)
2.060 (52.32)
2.260 (57.40)
2.460 (62.48)
2.760 (70.10)
3.060 (77.72)
3.260 (82.80)
3.360 (85.34)
3.760 (95.50)
3.860 (98.04)
4.260 (108.20)
4.560 (115.82)
4.660 (118.36)
5.060 (128.52)
5.160 (131.06)
5.260 (133.60)
6.260 (159.00)
6.760 (171.70)
E
0.750 (19.05)
1.150 (29.21)
1.350 (34.29)
1.650 (41.91)
1.950 (49.53)
2.150 (54.61)
2.350 (59.69)
2.650 (67.31)
2.950 (74.93)
3.150 (80.01)
3.250 (82.55)
3.650 (92.71)
3.750 (95.25)
4.150 (105.41)
4.450 (113.03)
4.550 (115.57)
4.950 (125.73)
5.050 (128.27)
5.150 (130.81)
6.150 (156.21)
6.650 (168.91)
CARD SLOT
DEPTH
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
ORDERING INFORMATION
When ordering connectors using the above part numbers:
= Indicate “E” for card extender, “K” for Wire Wrap™ or “3R” for right angle terminals
= Indicate “X” for standard mounting, “XF” for flush mounting or “XS” for side mounting
Revision: 28-Feb-14
Document Number: 36006
2
For technical questions, contact:
connectors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
EB4, EB6, EB8
www.vishay.com
Vishay Dale
DIMENSIONS
in inches (millimeters)
EB6 0.125" (3.17 mm) C-C
0.060
(1.52)
R Typ.
A
B
C
0.125
(3.17)
Typ.
D
E
0.060
(1.52)
Typ.
0.260
(6.60)
0.340 (8.64)
Typ.
0.060 (1.52) Typ.
0.250
(6.35)
Typ.
0.430
(10.92)
Typ.
0.610 (15.49)
Typ.
0.365
(9.27)
0.180
(4.57)
Typ.
MODEL -
PART NUMBER
EB65-P6G
EB65-P10G
EB65-P12G
EB65-P14G
EB65-P15G
EB65-P18G
EB65-P22G
EB65-P24G
EB65-P25G
EB65-P28G
EB65-P30G
EB65-P31G
EB65-P32G
EB65-P35G
EB65-P36G
EB65-P40G
EB65-P43G
EB65-P44G
EB65-P49G
EB65-P50G
# OF CONTACT
POSITIONS
PER SIDE
6
10
12
14
15
18
22
24
25
28
30
31
32
35
36
40
43
44
49
50
A
1.555 (39.50)
2.055 (52.20)
2.305 (58.55)
2.555 (64.90)
2.680 (68.07)
3.055 (77.60)
3.555 (90.30)
3.805 (96.65)
3.930 (99.82)
4.305 (109.35)
4.555 (115.70)
4.680 (118.87)
4.805 (122.05)
5.180 (131.57)
5.305 (134.75)
5.805 (147.45)
6.180 (156.97)
6.305 (160.15)
6.930 (176.02)
7.055 (179.20)
B
1.295 (32.89)
1.795 (45.59)
2.045 (51.94)
2.295 (58.29)
2.420 (61.47)
2.795 (70.99)
3.295 (83.69)
3.545 (90.04)
3.670 (93.22)
4.045 (102.74)
4.295 (109.09)
4.420 (112.27)
4.545 (115.44)
4.920 (124.97)
5.045 (128.14)
5.545 (140.84)
5.920 (150.37)
6.045 (153.54)
6.670 (169.42)
6.795 (172.59)
C
0.875 (22.22)
1.375 (34.92)
1.625 (41.28)
1.875 (47.62)
2.000 (50.80)
2.375 (60.32)
2.875 (73.02)
3.125 (79.38)
3.250 (82.55)
3.625 (92.08)
3.875 (98.42)
4.000 (101.60)
4.125 (104.78)
4.500 (114.30)
4.625 (117.48)
5.125 (130.18)
5.500 (139.70)
5.625 (142.88)
6.250 (158.75)
6.375 (161.92)
D
1.035 (26.29)
1.535 (38.99)
1.785 (45.34)
2.035 (51.69)
2.160 (54.86)
2.535 (64.39)
3.035 (77.09)
3.285 (83.44)
3.410 (86.61)
3.785 (96.14)
4.035 (102.49)
4.160 (105.66)
4.285 (108.84)
4.660 (118.36)
4.785 (121.54)
5.285 (134.24)
5.660 (143.76)
5.785 (146.94)
6.410 (162.81)
6.535 (165.99)
E
0.875 (22.22)
1.375 (34.92)
1.625 (41.28)
1.875 (47.62)
2.000 (50.80)
2.375 (60.32)
2.875 (73.02)
3.125 (79.38)
3.250 (82.55)
3.625 (92.08)
3.875 (98.42)
4.000 (101.60)
4.125 (104.78)
4.500 (114.30)
4.625 (117.48)
5.125 (130.18)
5.500 (139.70)
5.625 (142.88)
6.250 (158.75)
6.375 (161.92)
CARD SLOT
DEPTH
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
0.300 (7.62)
ORDERING INFORMATION
When ordering connectors using the above part numbers:
= Indicate “E” for card extender, “K” for Wire Wrap™ or “3R” for right angle terminals
= Indicate “X” for standard mounting, “XF” for flush mounting or “XS” for side mounting
Revision: 28-Feb-14
Document Number: 36006
3
For technical questions, contact:
connectors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
EB4, EB6, EB8
www.vishay.com
Vishay Dale
DIMENSIONS
in inches (millimeters)
EB8 0.156" (3.96 mm) C-C
0.060
(1.52)
R Typ.
0.030 (0.762)
A
B
C
D
0.156 (3.96) Typ.
0.250 (6.35)
EB75 = 0.440 (11.18)
EB85 = 0.460 (11.68)
E
MODEL -
PART NUMBER
EB85-P6G
EB85-P10G
EB85-P12G
EB85-P15G
EB85-P18G
EB85-P22G
EB85-P24G
EB85-P25G
# OF CONTACT
POSITIONS
PER SIDE
6
10
12
15
18
22
24
25
A
1.780 (45.21)
2.410 (61.21)
2.720 (69.09)
3.190 (81.03)
3.660 (92.96)
4.280 (108.71)
4.590 (116.59)
4.750 (120.65)
B
1.531 (38.89)
2.156 (54.76)
2.469 (62.71)
2.937 (74.60)
3.406 (86.51)
4.031 (102.39)
4.344 (110.34)
4.500 (114.30)
C
1.240 (31.50)
1.864 (47.35)
2.176 (55.27)
2.644 (67.16)
3.112 (79.04)
3.736 (94.89)
4.051 (102.90)
4.207 (106.86)
D
1.100 (27.94)
1.724 (43.79)
2.036 (51.71)
2.504 (63.60)
2.972 (75.49)
3.596 (91.34)
3.911 (99.34)
4.067 (103.30)
E
0.340 (8.64)
0.340 (8.64)
0.340 (8.64)
0.340 (8.64)
0.340 (8.64)
0.340 (8.64)
0.340 (8.64)
0.340 (8.64)
CARD SLOT
DEPTH
0.330 (8.38)
0.330 (8.38)
0.330 (8.38)
0.330 (8.38)
0.330 (8.38)
0.330 (8.38)
0.330 (8.38)
0.330 (8.38)
ORDERING INFORMATION
When ordering connectors using the above part numbers:
= Indicate “A” for solder eyelet or “E” for card extender.
Note:
Dimensions are the same for “A” or “E” styles
= Indicate “X” for standard mounting or “XS” for side mounting
Revision: 28-Feb-14
Document Number: 36006
4
For technical questions, contact:
connectors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
