46235-5001 (Cut Strip) datasheet, PDF

Datasheet> All Categories > The connector> 46235-5001 (Cut Strip)

46235-5001 (Cut Strip): Descriptionheaders & wire housings MF 3.0 term 20-24g F cut strip of 100; CategoryThe connector; File Size40KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

46235-5001 (Cut Strip) Overview

headers & wire housings MF 3.0 term 20-24g F cut strip of 100

46235-5001 (Cut Strip) Parametric

Parameter Name	Attribute value
Manufacture	Molex
Product Category	Headers & Wire Housings
RoHS	Yes
Pitch	-
Number of Positions	-
Number of Rows	-
Contact Gende	Socket (Female)
Contact Plating	Gold
Housing Material	-
Termination Style	Crim
Mounting Style	-
Mounting Angle	-
Contact Material	Copper, Zinc, Ti
Latching Type	-
Mating Post Length	-
Row Spacing	-
Factory Pack Quantity	100
Termination Post Length	-
Voltage Rating	600 V
Wire Gauge	24-20

Preview

Download Datasheet

View All

This document was generated on 01/07/2014

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

46235-5001

Active

Micro-Fit 3.0™ Connectors

Micro-Fit 3.0™ High Mating Cycle, Reduced Mating Force, Crimp Terminal, Female,

with 0.38µm Selective Gold (Au) over Nickel (Ni), 20-24 AWG, with Lubricant

Documents:

Drawing (PDF)

Product Specification PS-46235-001 (PDF)

Test Summary TS-46235-001 (PDF)

Test Summary TS-46235-501 (PDF)

RoHS Certificate of Compliance (PDF)

Product Literature (PDF)

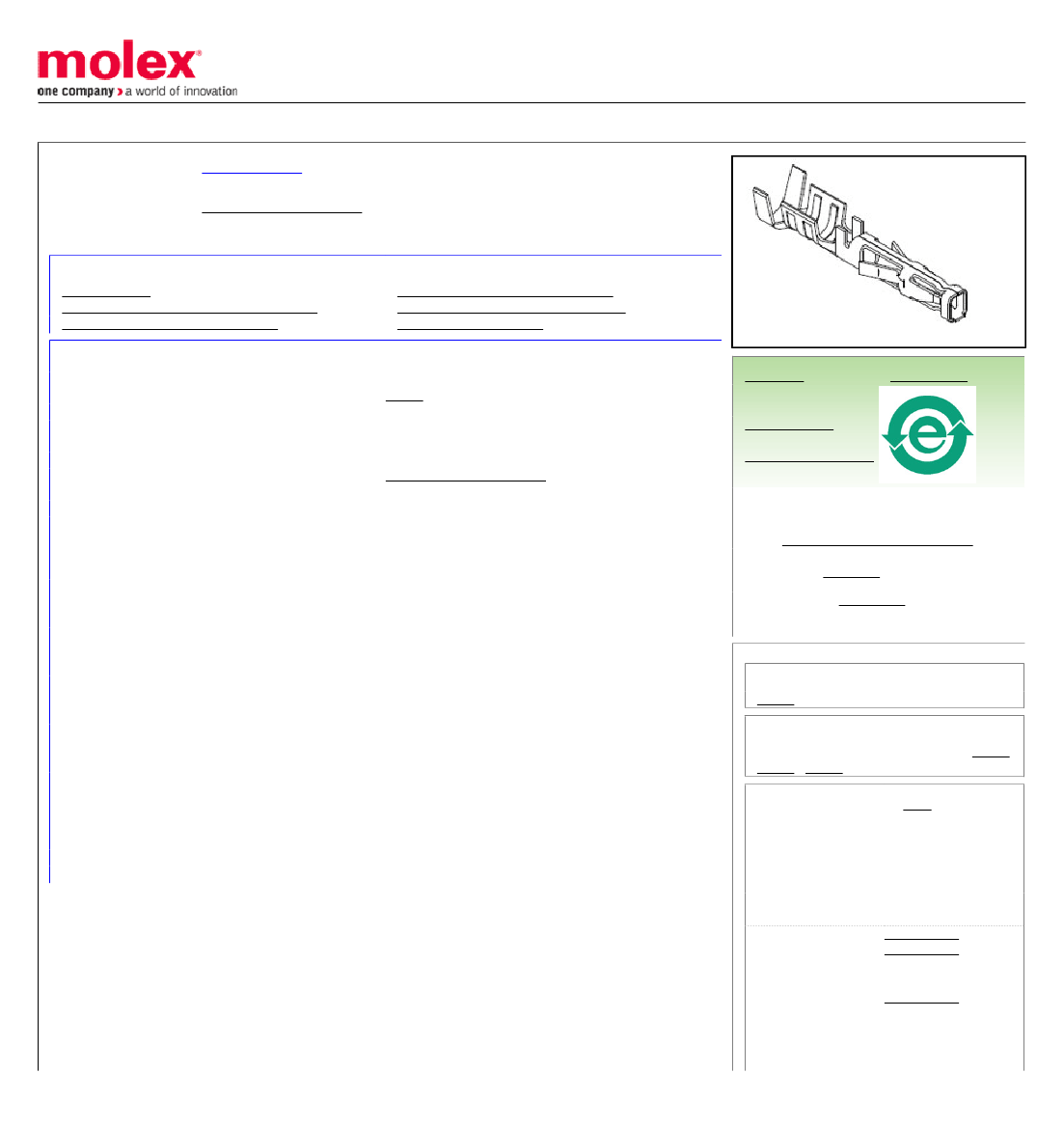

image - Reference only

Series

General

Product Family

Series

Application

Comments

Crimp Quality Equipment

Overview

Product Literature Order No

Product Name

UPC

Crimp Terminals

46235

Power

90% increase in mating cycles (250 cycles) and up to

50% reduction in mating force

Yes

Micro-Fit 3.0™ Connectors

987650-5984

Micro-Fit 3.0™

883906382377

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Low-Halogen

China RoHS

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Durability (mating cycles max)

Gender

Material - Metal

Material - Plating Mating

Material - Plating Termination

Net Weight

Packaging Type

Plating min - Mating

Plating min - Termination

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

250

Female

Copper-Zinc-Tin

Gold

Nickel

0.046/g

Reel

0.381µm

1.270µm

Crimp or Compression

1.85mm max.

20, 22, 24

N/A

Search Parts in this Series

46235Series

Use With

Micro-Fit 3.0™ Receptacle Housing 43025 ,

43645 , 44133

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Extraction Tool

0011030043

Hand Crimp Tool for 0638192900

Low Force Crimp

Terminals

FineAdjust™

0639001400

Applicator for

Low Force Crimp

Terminals, 20-24

AWG Wire

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

Test Summary

PS-46235-001

SD-46235-001

TS-46235-001, TS-46235-501
