690357101272 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 690357101272

690357101272: Descriptionheaders & wire housings WR-MM conn 2.54mm male str pcb TH 12p; CategoryThe connector; File Size167KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

690357101272 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	690357101272	-	-	View	Buy Now

690357101272 Overview

headers & wire housings WR-MM conn 2.54mm male str pcb TH 12p

690357101272 Parametric

Parameter Name	Attribute value
Manufacture	Wurth Electronics
Product Category	Headers & Wire Housings
RoHS	Yes
Pitch	1.27 mm
Number of Positions	12
Number of Rows	1
Contact Gende	Pin (Male)
Contact Plating	Ti
Housing Material	Polybutylene Terephthalate (PBT)
Termination Style	Through Hole
Mounting Style	-
Mounting Angle	Horizontal
Applicati	Wire-to-Board
Contact Material	Phosphor Bronze
Current Rating	1 A
Flammability Rating	UL 94 V-0
Insulation Resistance	1000 MOhms
Operating Temperature Range	- 40 C to + 105 C
Packaging	Tube
Voltage Rating	100 V

Preview

Download Datasheet

View All

MATERIAL:

HOUSING MATERIAL: PBT

FLAMABILITY RATING: UL94-V0

COLOR: RED

CONTACT MATERIAL: PHOSPHOR BRONZE

CONTACT TYPE: STAMPED

CONTACT PLATING: MATT TIN OVER NICKEL

QUALITY CLASS: 25 MATING CYCLES

PITCH: 2.54 MM PER ROW

ENVIRONNEMENTAL:

OPERATING TEMPERATURE: -40°C UP TO 105°C

COMPLIANCE: LEAD FREE AND ROHS

ELECTRICAL:

CURRENT RATING: 1.5 A PER PIN (PCB PIN)

WORKING VOLTAGE: 100VAC

INSULATION RESISTANCE: >1000MOHM

DIELECTRIC WITHSTANDING VOLT.: 500VAC/MN

CONTACT RESISTANCE: 10mOHM MAX

STANDARD

CERTFIED: E323964 / MOD. NUMBER 69035710xx7x

SOLDERING:

WAVE PROCESS ONLY

2.54±0.05

B±0.30

C±0.20

A±0.10

1.27±0.05

1.50

1.27±0.05 TYP.

2.54±0.05

4.10

5.0

Ø0.80±0.10

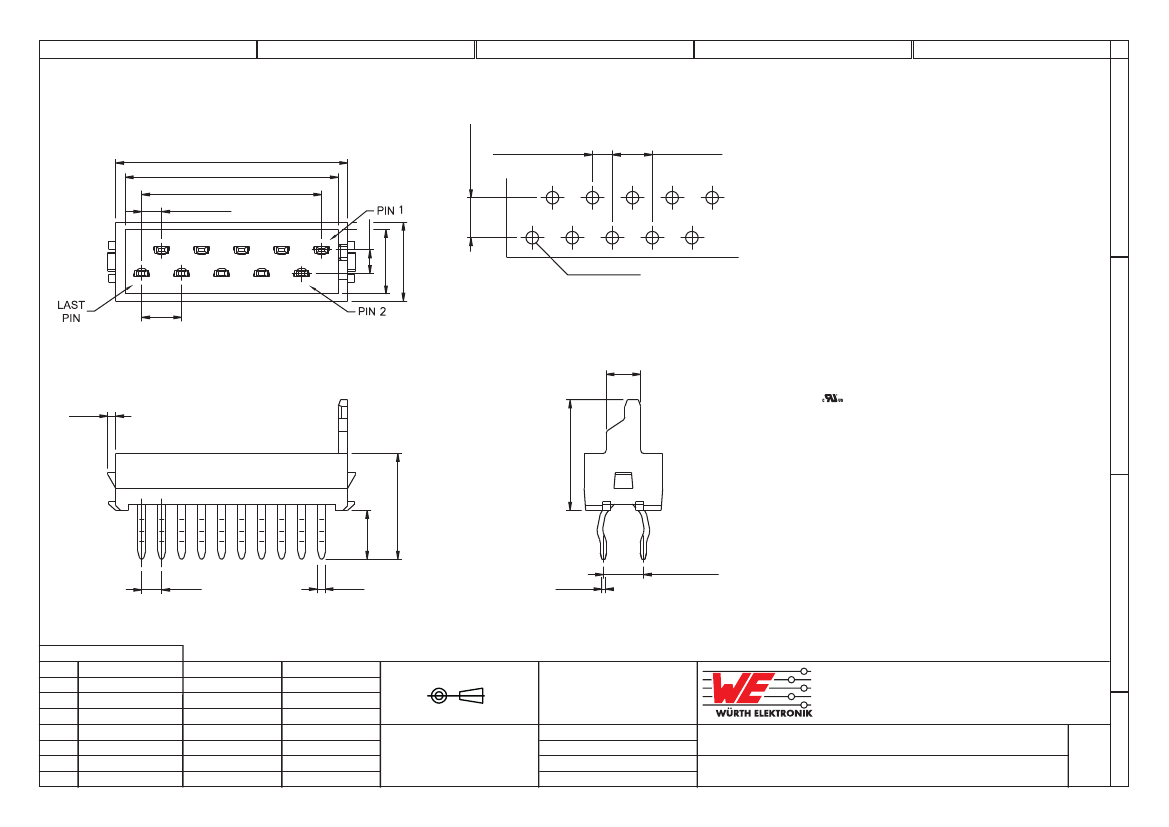

PCB LAYOUT - COMPONENT VIEW

2.54

2.20

0.50

7.0

3.1

6.70

DIMENSION:

DIM.A= 1.27 x No. of Spaces

DIM.B= DIM.A + 3.3

DIM.C= DIM.A + 2.1

AVAILABLE

xx : 4 TO 26 CIRCUITS

1.27

TYP.

0.56

0.25

2.54±0.30

PACKAGING:

x = 2 TUBE

RoHS Compliant

REV

27-MAY-11

07-APR-10

09-MAR-10

27-NOV-07

03-NOV-06

DATE

PCK&DESCRIPTION

PINNING

STANDARD

MODIFICATIONS

PDF

FILE

APPROVAL: RJ

SCALE:

SHEET: 1/1

DRAW: EAGER

PROJECTION:

GENERAL TOLERANCE

.X = +/- 0.2

.XX = +/- 0.15

UNIT: MM

DESCRIPTION: MM MALE CONNECTOR WITHOUT LATCH AND WITH

POLARIZATION

WERI PART NO: 690 357 10 xx 7 x

SIZE
