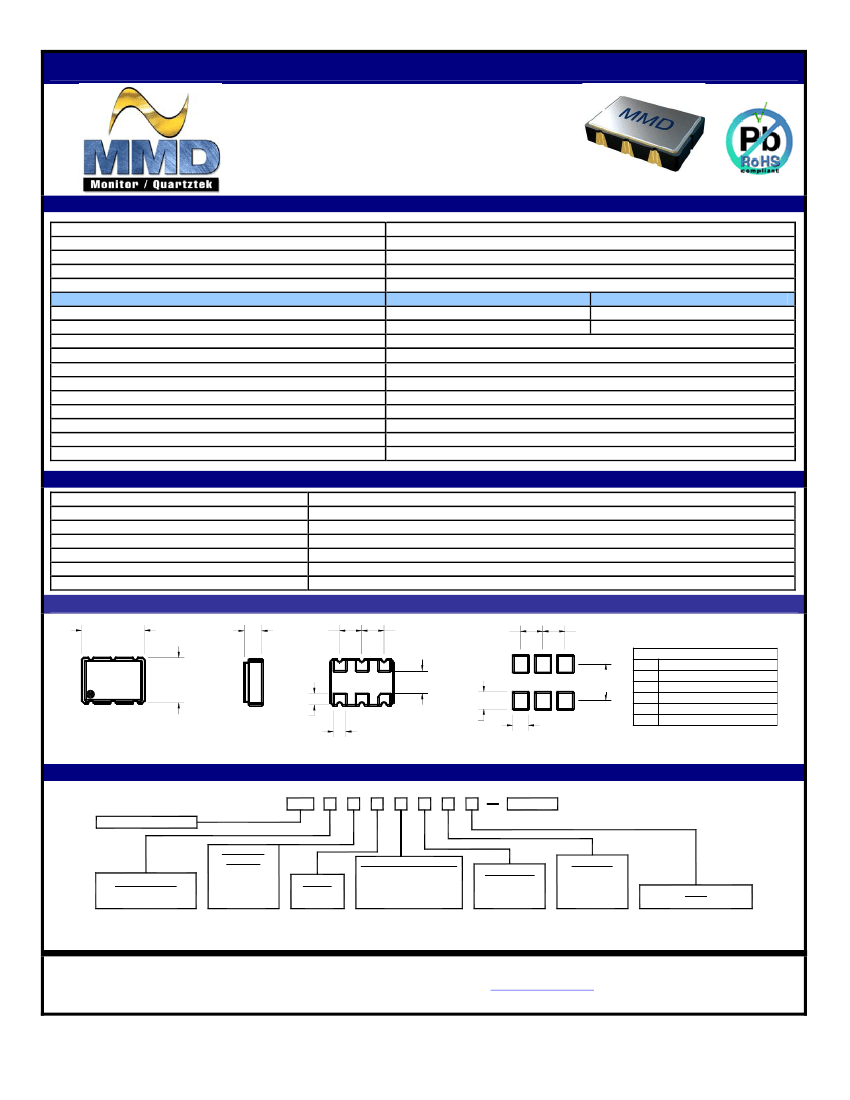

MVIJL/MVIJP SERIES – Low Jitter 5mm X 7mm PECL/LVPECL VCXO
Hermetically Sealed Ceramic SMD Package
Wide Frequency Range
Available to -55°C to +125°C Operating
Less than 1 pSec Jitter
ELECTRICAL SPECIFICATION:
Frequency Range
Frequency Stability (Inclusive of Temp., Load, Voltage and Aging)
Aging
Operating Temp.Range
Storage Temp. Range
Supply Voltage (Vdd)
Supply Current
Control Voltage
Logic “0”
Logic “1”
Symmetry (50% of waveform)
Load
Rise / Fall Time (20% to 80%)
Start Time
Jitter (RMS)
Linearity
Pullability
70.000 MHz to 622.080 MHz
(See Part Number Guide for Options)
±5 ppm / yr max
(See Part Number Guide for Options)
-55°C to +125°C
+3.3 VDC ±5% (LVPECL)
+5.0 VDC ±5% (PECL)
60mA
85mA
+1.65VDC ±1.50VDC
+2.50VDC ±2.00VDC
Vdd – 1.620 VDC max
Vdd- 1.025 vdc min
(See Part Number Guide for Options)
50 Ohms into Vdd-2.00 VDC
5nSec max
5mSec max
Less than 1 pSec
±10% max
(See Part Number Guide for Options)
MECHANICAL SPECIFICATION:
Humidty
Hermetic Seal
Solderability
Reflow Solderability
Vibration
Shock
MIL-STD-883
85% RH, 85°C, 48 Hours
Leak Rate 2 X 10
-8
ATM-cm
3
/sec max
MIL-STD-202G, Method 208
260°C for 10 seconds
MIL-STD-202G, Method 204 35G, 50 to 2000 Hz
MIL-STD-202G, Method 203 Test Cond E, 1000G’s, ½ Sinewave
Available with Level B Screening
MECHANICAL DIMENSIONS:
7.20 [.283]
MAX
2.00 [.079]
MAX
2.54 [.100]
2.54 [.100]
2.54 [.100]
2.54 [.100]
PIN CONNECTIONS
VOLTAGE CONTROL
ENABLE/DISABLE
GROUND
OUTPUT
COMPLIMENTARY OUTPUT
SUPPLY VOLTAGE
5.20 [.205]
MAX
4
3
1.30 [.051]
5
2
6
1
2.40 [.094]
4.20 [.165]
2.00 [.079]
1.40 [.055]
DIMENSIONS IN BRACKETS ARE IN INCHES
EXTERNAL BYPASS CAPACITOR RECOMMENDED
1.80 [.071]
RECOMMENDED
LAND PATTERN
PIN
PIN
PIN
PIN
PIN
PIN
1
2
3
4
5
6
PART NUMBERING GUIDE:
MVIJ
5 X 7 Ceramic VCXO
Frequency
Stability
020 = ±20 ppm
025 = ±25 ppm
050 = ±50 ppm
100 = ±100 ppm
1
Frequency
Supply Voltage
Blank = PECL (+5.0VDC)
3 = LVPECL (+3.3VDC)
Output
P = PECL
L = LVPECL
Operating Temperature
Blank = 0°C to +70°C
27 = -20°C to +70°C
48 = -40°C to +85°C
55 = -55°C to +125°C
Symmetry *
Blank = 40/60%
A = 45/55%
B = 47.5/52.5%
Pullability
A = ±200 ppm
C = ±100 ppm
D = ±50 ppm
P = ±25 ppm
Jitter
1 = Less than 1 pSec Jitter
*Option B (47.5/52.5%) Available up to 500MHz only
Please Consult with MMD sales department for any other parameters or options.
MMD Components,
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536,
www.mmdcomp.com
Sales@mmdcomp.com
Specifications subject to change without notice
Revision 10/6/05 A
