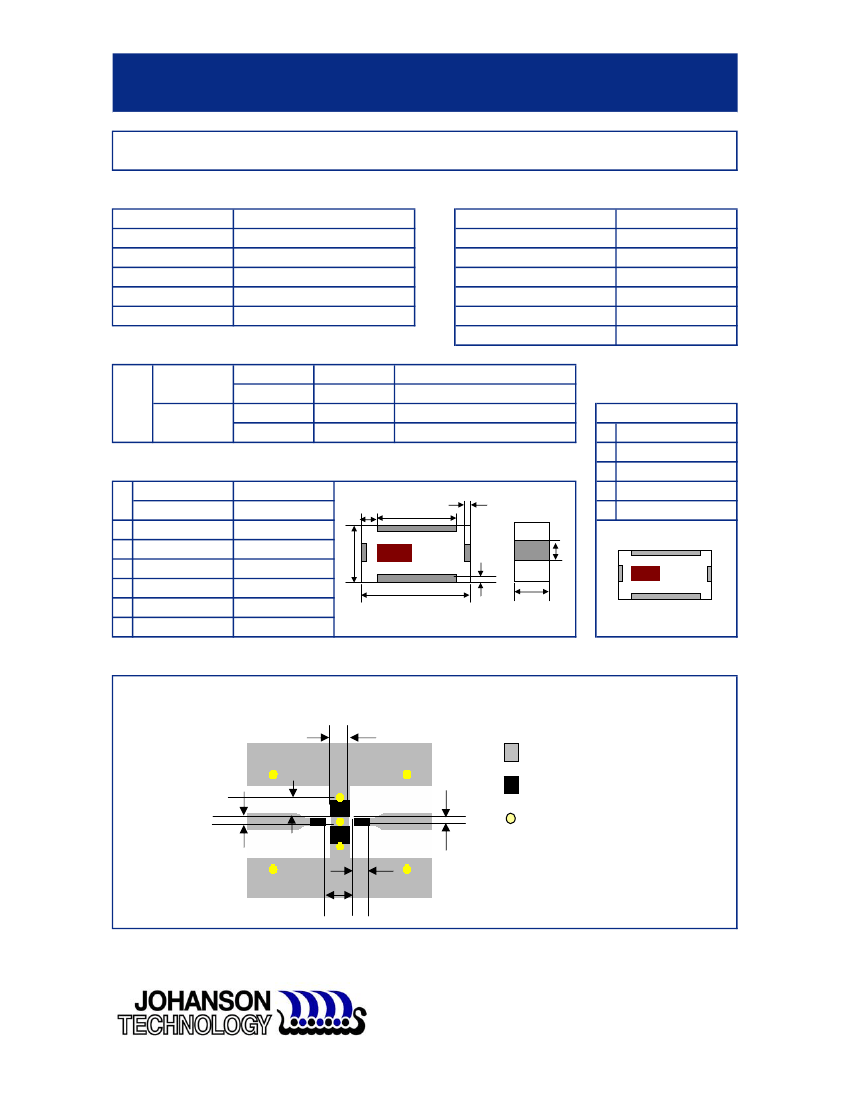

High Frequency Ceramic Solutions
2450 MHz Band Pass Filter
Detail Specification: 01/11/07
P/N 2450BP14E0100
Page 1 of 2
General Specifications
Part Number
Frequency (MHz)
Attenuation (min.)
Attenuation (min.)
Attenuation (min.)
Attenuation (min.)
2450BP14E0100
2400 - 2500
35 dB @ 824 - 960 MHz
38 dB @ 1710 - 1910 MHz
25 dB @ 4800 - 5000 MHz
20 dB @ 7200 - 7500 MHz
Insertion Loss
Return Loss
Impedance
Input Power
Operating Temperature
Storage Temperature
Reel Quantity
Bulk
T&R
100% Tin
Tin / Lead
Suffix = S
Suffix = E
Suffix = None
Suffix = /Pb
Eg. 2450BP14E0100S
Eg. 2450BP14E0100E
Eg. 2450BP14E0100(E or S)
Eg. 2450BP14E0100(E or S)/Pb
Terminal Configuration
No.
1
2.5 dB max.
9.5 dB min.
50
Ω
500 mW max.
-40 to +85°C
-40 to +85°C
4,000
P/N
Suffix Termination
Style
Packaging
Style
Function
GND
OUT
GND
IN
1
Mechanical Dimensions
In
L
W
T
a
b
c
d
2
mm
1.60 ± 0.10
0.80 ± 0.10
0.60 ± 0.10
0.70 ± 0.15
0.30 ± 0.10
0.15 ± 0.10
0.45 ± 0.15
L
W
d
a
c
3
4
0.063 ± 0.004
0.031 ± 0.004
0.024 ± 0.004
0.028 ± 0.006
0.012 ± 0.004
0.006 ± 0.004
0.018 ± 0.006
b
c
T
4
2
3
Mounting Considerations
Mount these devices with brown mark facing up.
* Line width should be designed to provide 50 ohm impedance, depending on PCB material and thickness
0.8
Solder
Land
0.4
*
0.7
*
0.3
Through-hole (
φ
0.35)
0.65
Units: mm
1.25
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2003 Johanson Technology, Inc. All Rights Reserved
High Frequency Ceramic Solutions
2450 MHz Band Pass Filter
Detail Specification: 01/11/07
P/N 2450BP14E0100
Page 2 of 2

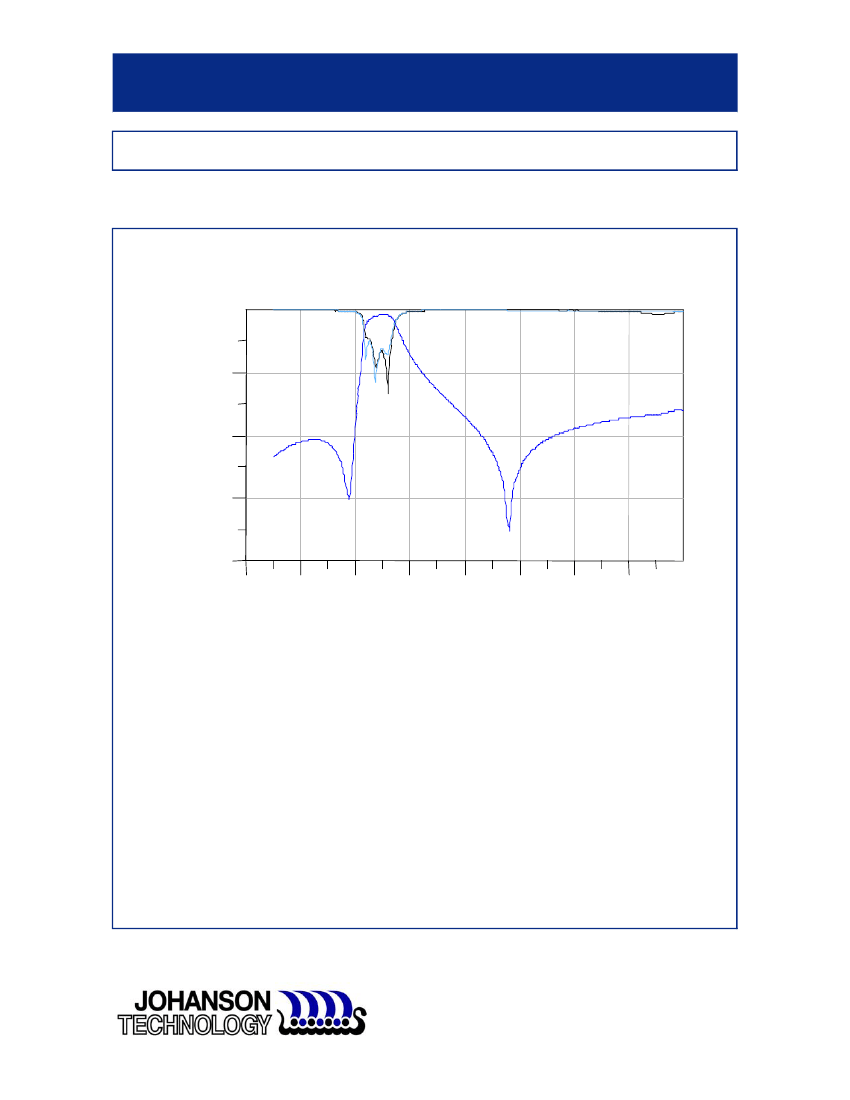

Typical Electrical Performance (T=25°C)
)
0
)
)
)
)
)
)
)
)
)
S(2,2)
)
)
)
)
-20
)
)
)
)
)
)
S(1,1)
)
)
dB
)
)
)
)
)
)
)
)
)
)
-40
S(2,1)
-60
-80
0
1
2
3
4
freq, GHz
5
6
7
8
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2003 Johanson Technology, Inc. All Rights Reserved
