662008231722 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 662008231722

Preview

662008231722: Descriptionheaders & wire housings WR-mpc3 hdr 3.0mm male dual ang 8P smd; CategoryThe connector; File Size936KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

662008231722 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	662008231722	-	-	View	Buy Now

662008231722 Overview

headers & wire housings WR-mpc3 hdr 3.0mm male dual ang 8P smd

662008231722 Parametric

Parameter Name	Attribute value
Manufacture	Wurth Electronics
Product Category	Headers & Wire Housings
RoHS	Yes
Type	Shrouded
Pitch	3 mm
Number of Positions	8
Number of Rows	2
Contact Gende	Pin (Male)
Contact Plating	Ti
Housing Material	Nyl
Termination Style	Through Hole
Mounting Style	-
Mounting Angle	Righ
Applicati	Wire-to-Board
Contact Material	Copper Alloy
Current Rating	5 A
Flammability Rating	UL 94 V-0
Insulation Resistance	1000 MOhms
Operating Temperature Range	- 25 C to + 105 C
Packaging	Tray
Voltage Rating	250 V

Preview

Download Datasheet

View All

1

2

3

4

5

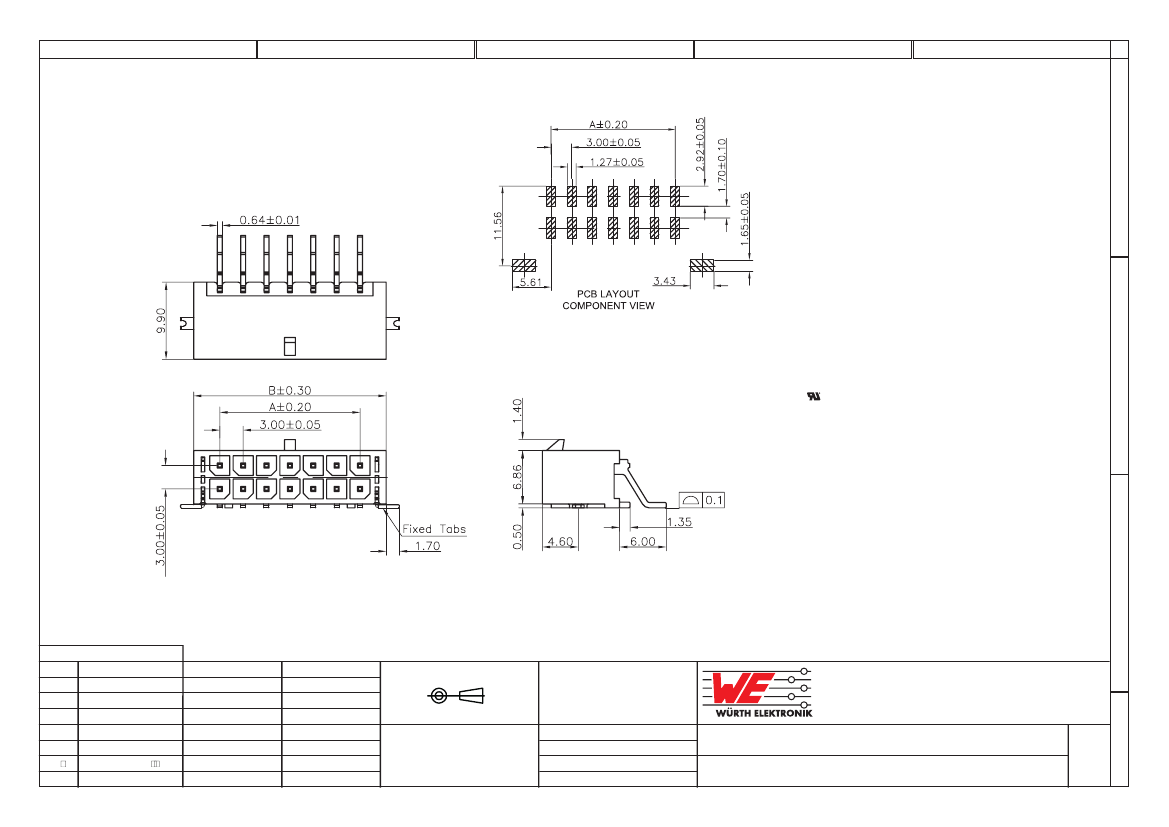

TECHNICAL CHARACTERISTICS

MATERIAL

INSULATOR: LCP

FLAMABILITY RATING: UL94-V0

COLOR: BLACK

CONTACT MATERIAL: COPPER ALLOY

CONTACT TYPE: STAMPED

CONTACT PLATING: TIN

QUALITY CLASS: 25 MATING CYCLES

PITCH: 3.00MM

ENVIRONMENTAL

OPERATING TEMPERATURE: -40 UP TO 105°C

COMPLIANCE: LEAD FREE AND ROHS

ELECTRICAL

CURRENT RATING:5A

WORKING VOLTAGE: 250V AC

INSULATOR RESISTANCE: >1000 MOHM

DIELECTRIC WITHSTANDING VOLTAGE: 1500V AC/MN

CONTACT RESISTANCE: 10 mOHM MAX

STANDARD

CERTIFIED: E323964

SOLDERING

JEDEC LEAD FREE REFLOW

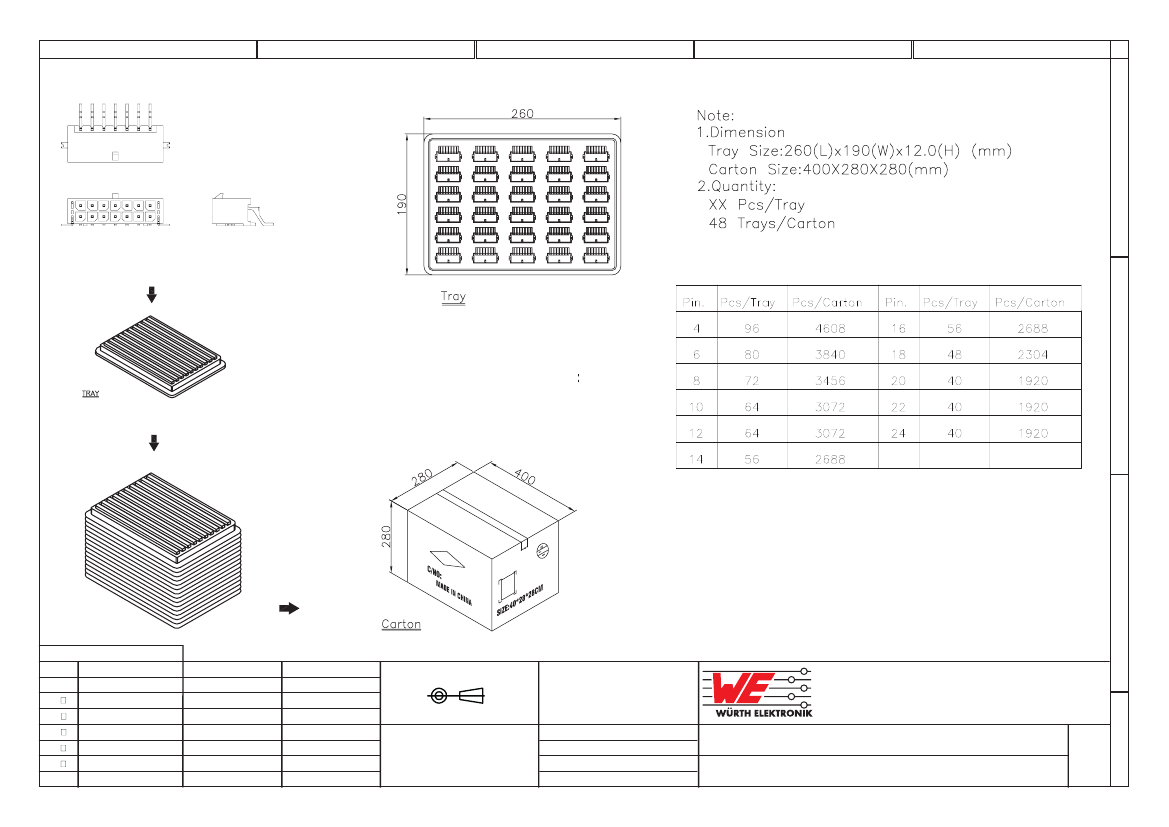

PACKAGING

TRAY

DIMENSION

A = 3.00 x (NB. PIN / 2 - 1)

B = 3.00 x (NB. PIN / 2 + 1) + 0.70

A

B

C

RoHS Compliant

G

F

E

D

C

B

A

REV

29-JUL-13

06-JUL-12

22-FEB-12

18-NOV-09

27-JUL-09

23-AVR-09

25-FEB-05

DATE

DWG & CARAC

PLASTIC

DESCRIPTION

STANDARD

REAR PIN

PACKAGING

PDF DRAW

FILE

QL

GG

JP

JC

JP

BY

APPROVAL: RJ

SCALE:

SHEET: 1/2

DRAW: PEARL

PROJECTION:

GENERAL TOLERANCE

.X = +/- 0.2

.XX = +/- 0.15

UNIT: MM

DESCRIPTION: 3.00MM MALE DUAL ROW SMT RIGHT ANGLE HEADER

SMT SOLDER TAB

WERI PART NO: 662 0xx 231 722

SIZE

A4

D

662008231722 Related Products

	662008231722	662002231722	662006231722	662010231722	662004231722
Description	headers & wire housings WR-mpc3 hdr 3.0mm male dual ang 8P smd	headers & wire housings WR-mpc3 hdr 3.0mm male dual ang 2P smd	headers & wire housings WR-mpc3 hdr 3.0mm male dual ang 6P smd	headers & wire housings WR-mpc3 hdr 3.0mm male dual ang 10p	headers & wire housings WR-mpc3 hdr 3.0mm male dual ang 4P smd
Manufacture	Wurth Electronics	Wurth Electronics	Wurth Electronics	Wurth Electronics	Wurth Electronics
Product Category	Headers & Wire Housings	Headers & Wire Housings	Headers & Wire Housings	Headers & Wire Housings	Headers & Wire Housings
RoHS	Yes	Yes	Yes	Yes	Yes
Type	Shrouded	Shrouded	Shrouded	Shrouded	Shrouded
Pitch	3 mm	3 mm	3 mm	3 mm	3 mm
Number of Positions	8	2	6	10	4
Number of Rows	2	2	2	2	2
Contact Gende	Pin (Male)	Pin (Male)	Pin (Male)	Pin (Male)	Pin (Male)
Contact Plating	Ti	Ti	Ti	Ti	Ti
Housing Material	Nyl	Nyl	Nyl	Nyl	Nyl
Termination Style	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Mounting Angle	Righ	Righ	Righ	Righ	Righ
Applicati	Wire-to-Board	Wire-to-Board	Wire-to-Board	Wire-to-Board	Wire-to-Board
Contact Material	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy
Current Rating	5 A	5 A	5 A	5 A	5 A
Flammability Rating	UL 94 V-0	UL 94 V-0	UL 94 V-0	UL 94 V-0	UL 94 V-0
Insulation Resistance	1000 MOhms	1000 MOhms	1000 MOhms	1000 MOhms	1000 MOhms
Operating Temperature Range	- 25 C to + 105 C	- 25 C to + 105 C	- 25 C to + 105 C	- 25 C to + 105 C	- 25 C to + 105 C
Packaging	Tray	Tray	Tray	Tray	Tray
Voltage Rating	250 V	250 V	250 V	250 V	250 V
