2TL222-61E datasheet, PDF - EEWORLD Datasheet

2TL222-61E: DescriptionToggle Switch, DPST, Momentary, 18A, 28VDC, Screw Terminal, Lever Actuator, Panel Mount-threaded; CategoryMechanical and electronic products switch; File Size192KB，1 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/

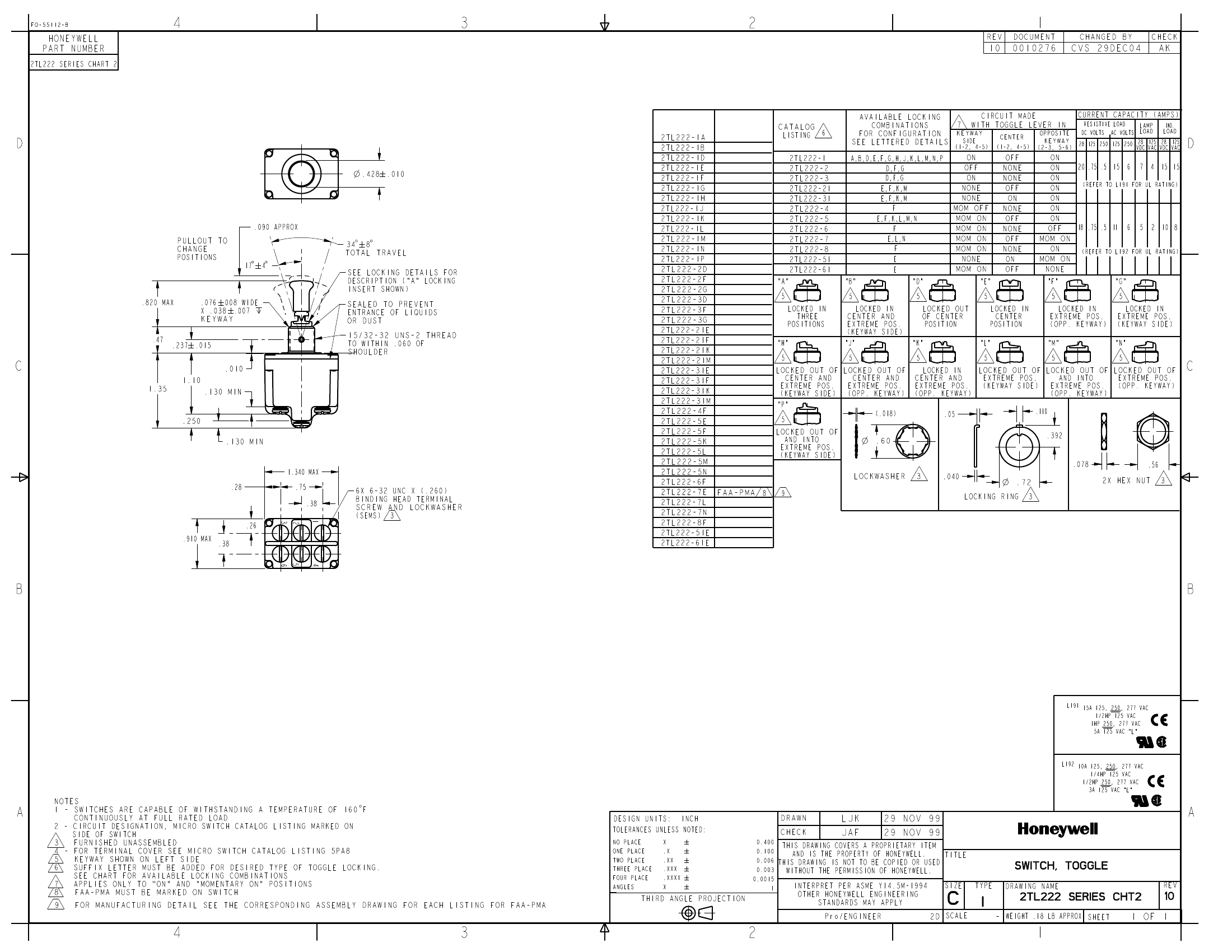

Download Datasheet Parametric View All

2TL222-61E Overview

Toggle Switch, DPST, Momentary, 18A, 28VDC, Screw Terminal, Lever Actuator, Panel Mount-threaded

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Actuator type	LEVER
body width	23.11 mm
body height	30.99 mm
Body length or diameter	34.04 mm
Contact (AC) maximum rated R load	11A@277VAC
Maximum contact current (AC)	11 A
Maximum contact current (DC)	18 A
Contact (DC) maximum rated R load	18A@28VDC
Maximum contact voltage (AC)	277 V
Maximum contact voltage (DC)	28 V
Manufacturer's serial number	2TL222
Installation features	PANEL MOUNT-THREADED
Maximum operating temperature	71 °C
seal	DUST PROOF; WATER PROOF
surface mount	NO
Switch action	MOMENTARY
switch function	DPST
Switch type	TOGGLE SWITCH
Termination type	SCREW
Base Number Matches	1
