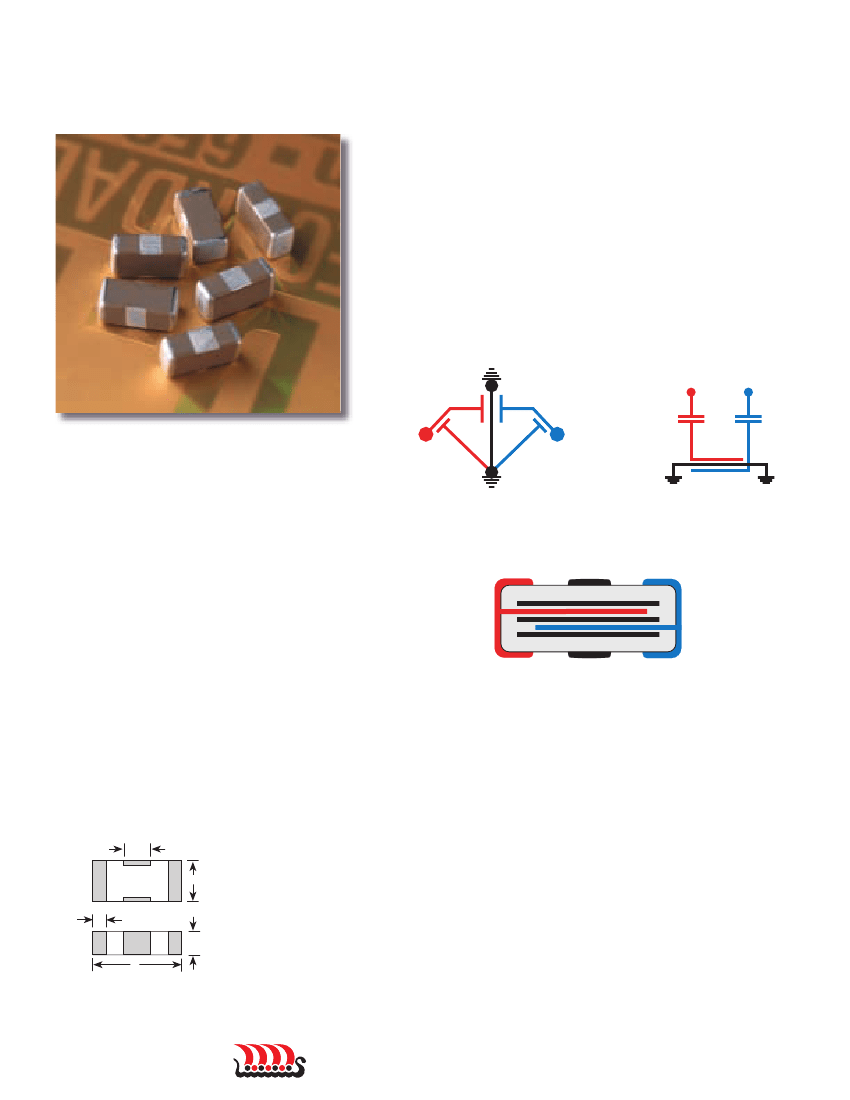

X2Y
®
EMI FILTER CAPACITORS
X2Y
®
filter chips employ a unique patented approach which
provide simultaneous line-to-line and line-to-ground filtering
via a matched or balanced pair of capacitors. Another
advantage of the matched capacitor design is the
elimination of temperature, voltage and aging effects.
X2Y
®
filters provide an optimal solution for many filtering
applications and can replace a combination of discrete
capacitors and inductors; saving significant board space
and reducing assembly costs.
Equivalent Circuits
G
A
B
A
B
OR
G1
G2
A
DVANTAGES
G
• Replaces two or three capacitors with one device
• Matched capacitance line to ground on both lines
• Low inductance due to cancellation effect
• Capacitance line to line
• Differential and common mode noise attenuation
• Reduces board area required for filtering
• Effects of temperature variation eliminated
• Effect of aging equal on both lines
Cross-sectional View
G
A
B
G
A
PPLICATIONS
• Balanced lines
• Twisted pairs
• Broadband input/output filtering
• EMI Suppression
For application notes and additional technical
information visit the X2Y Attenuator site at
www.x2y.com
MECHANICAL CHARACTERISTICS
CB
X15 / 0805
W
X18 / 1206
Inches
.125 ±.010
.062 ±.010
.070 Max.
.020 Typ.
.040 Typ.
(mm)
(3.17 ±.25)
(1.57 ±.25)
(1.78)
(0.50 )
(0.97 )
X41 / 1210
Inches
.125 ±.010
.095 ±.010
.070 Max.
.020 Typ.
.040 Typ.
(mm)
(3.18 ±.25)
(2.41 ±.25)
(1.78)
(0.50)
(0.97 )
Inches
Length
Width
Thickness
End Band
Ctr. Band
.080 ±.010
.050 ±.010
.060 Max.
.020 Typ.
.035 Typ.
(mm)
(2.03 ±.25)
(1.27 ±.25)
(1.52)
(0.50 )
(0.90 )
EB
T
L
X2Y
®
technology patents under license from X2Y ATTENUATORS, LLC. X2Y is a registered trademark of X2Y ATTENUATORS, LLC.
12
www.johanson dielectrics.com
