100390FC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> 100390FC

100390FC: DescriptionECL to TTL Translator, 6 Func, True Output, ECL, CQFP24, CERPACK-24; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size226KB，12 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

100390FC Overview

ECL to TTL Translator, 6 Func, True Output, ECL, CQFP24, CERPACK-24

100390FC Parametric

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	QFP
package instruction	QFF,
Contacts	24
Reach Compliance Code	unknow
ECCN code	EAR99
maximum delay	6.5 ns
Interface integrated circuit type	ECL TO TTL TRANSLATOR
JESD-30 code	S-GQFP-F24
length	9.398 mm
Number of digits	1
Number of functions	6
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature
Output characteristics	3-STATE
Output latch or register	NONE
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	QFF
Package shape	SQUARE
Package form	FLATPACK
Certification status	Not Qualified
Maximum seat height	2.159 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	ECL
Temperature level	OTHER
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	QUAD
width	9.398 mm
Base Number Matches	1

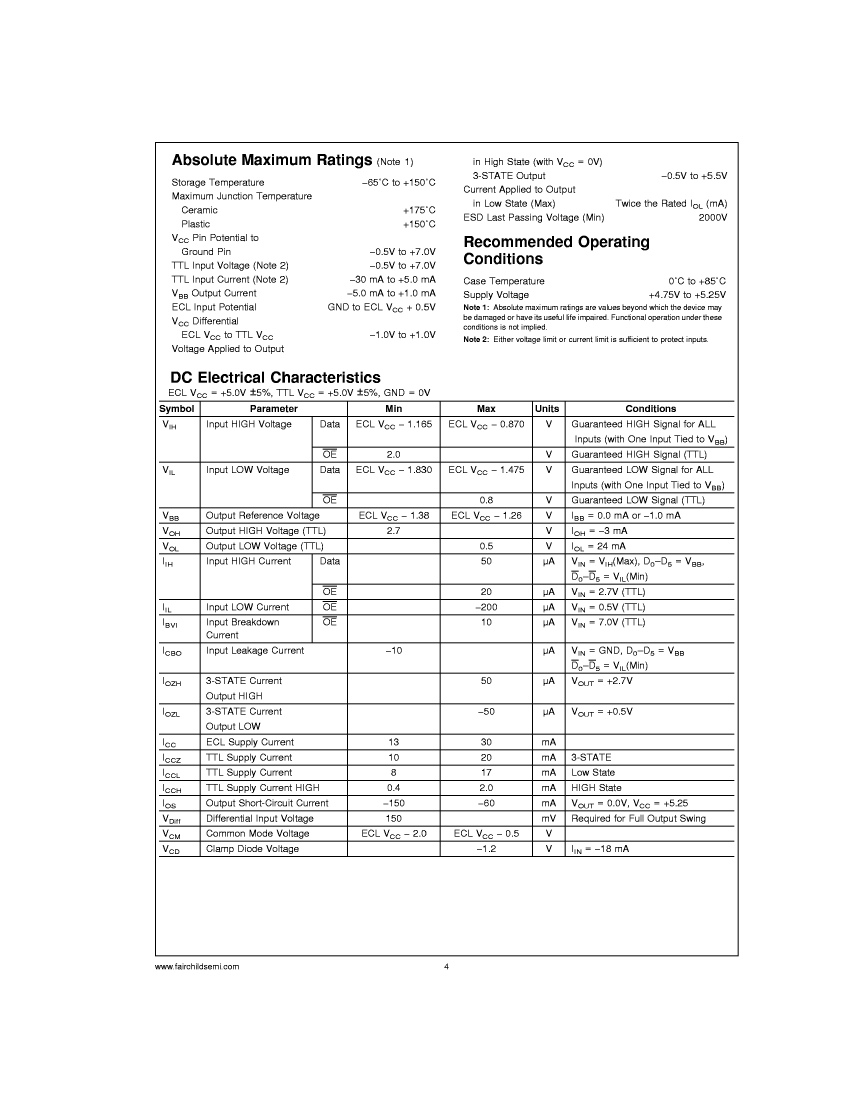

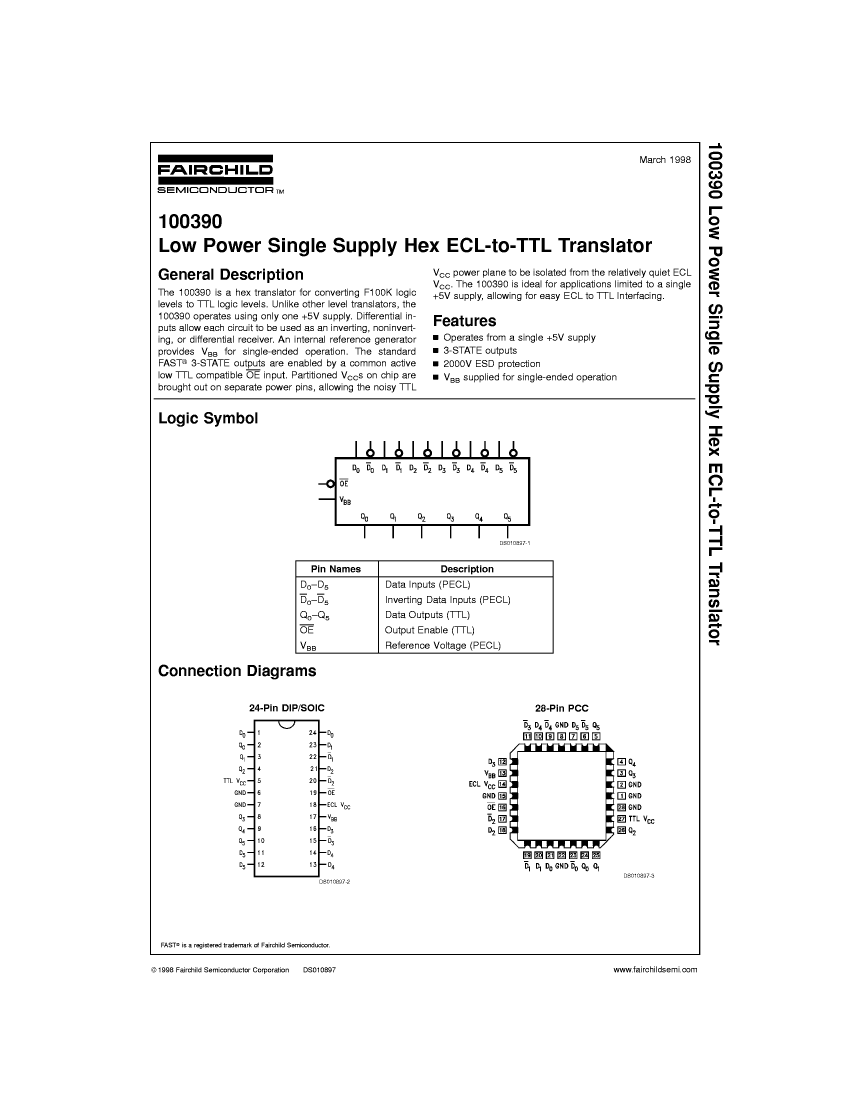

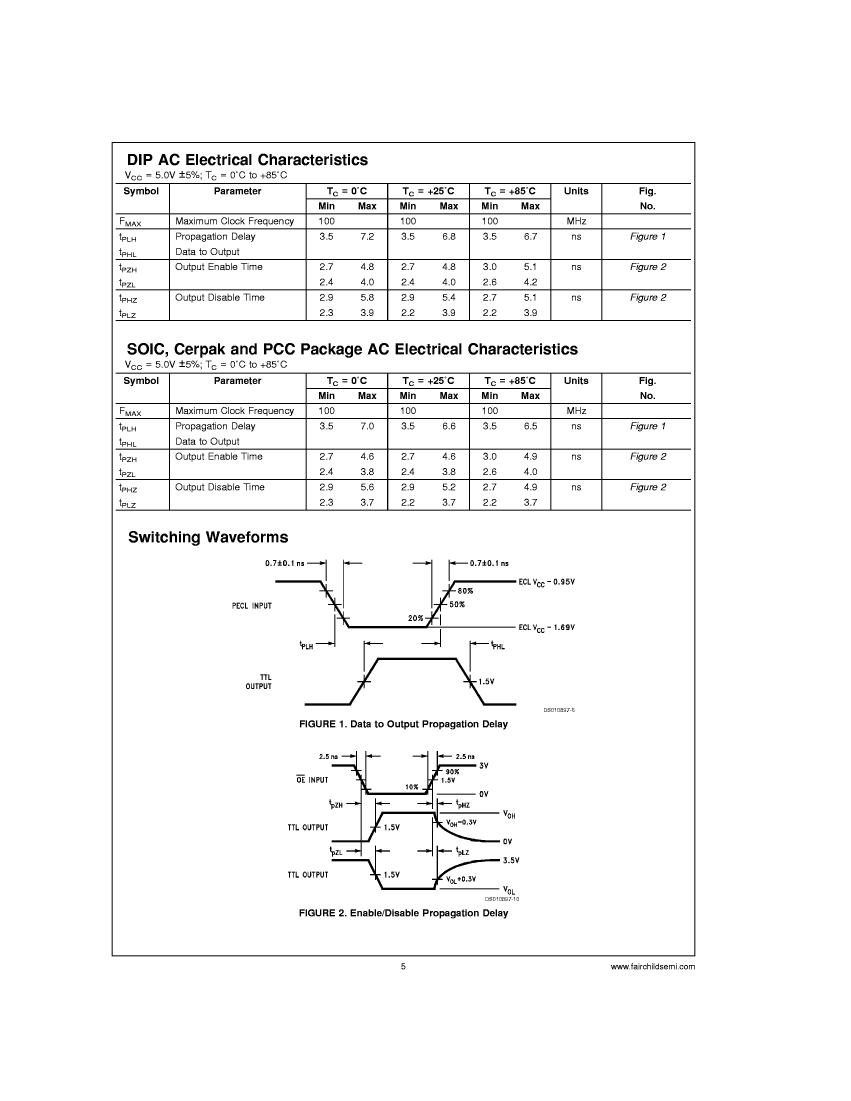

Preview

Download Datasheet

View All

100390FC Related Products

	100390FC	100390DC	100390DMQB	100390DM	100390FMQB	100390FM
Description	ECL to TTL Translator, 6 Func, True Output, ECL, CQFP24, CERPACK-24	ECL to TTL Translator, 6 Func, True Output, ECL, CDIP24, 0.400 INCH, CERAMIC, DIP-24	ECL to TTL Translator, 6 Func, True Output, ECL, CDIP24, 0.400 INCH, CERAMIC, DIP-24	ECL to TTL Translator, 6 Func, True Output, ECL, CDIP24, 0.400 INCH, CERAMIC, DIP-24	ECL to TTL Translator, 6 Func, True Output, ECL, CQFP24, CERPACK-24	ECL to TTL Translator, 6 Func, True Output, ECL, CQFP24, CERPACK-24
Parts packaging code	QFP	DIP	DIP	DIP	QFP	QFP
package instruction	QFF,	DIP,	DIP,	DIP,	QFF,	QFF,
Contacts	24	24	24	24	24	24
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Interface integrated circuit type	ECL TO TTL TRANSLATOR	ECL TO TTL TRANSLATOR	ECL TO TTL TRANSLATOR	ECL TO TTL TRANSLATOR	ECL TO TTL TRANSLATOR	ECL TO TTL TRANSLATOR
JESD-30 code	S-GQFP-F24	R-GDIP-T24	R-GDIP-T24	R-GDIP-T24	S-GQFP-F24	S-GQFP-F24
Number of digits	1	1	1	1	1	1
Number of functions	6	6	6	6	6	6
Number of terminals	24	24	24	24	24	24
Maximum operating temperature	85 °C	85 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-	-	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output latch or register	NONE	NONE	NONE	NONE	NONE	NONE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	QFF	DIP	DIP	DIP	QFF	QFF
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE
Package form	FLATPACK	IN-LINE	IN-LINE	IN-LINE	FLATPACK	FLATPACK
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.159 mm	5.72 mm	5.72 mm	5.72 mm	2.159 mm	2.159 mm
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	NO	YES	YES
technology	ECL	ECL	ECL	ECL	ECL	ECL
Temperature level	OTHER	OTHER	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	FLAT	FLAT
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	QUAD	DUAL	DUAL	DUAL	QUAD	QUAD
width	9.398 mm	10.16 mm	10.16 mm	10.16 mm	9.398 mm	9.398 mm
Base Number Matches	1	1	1	1	1	1
