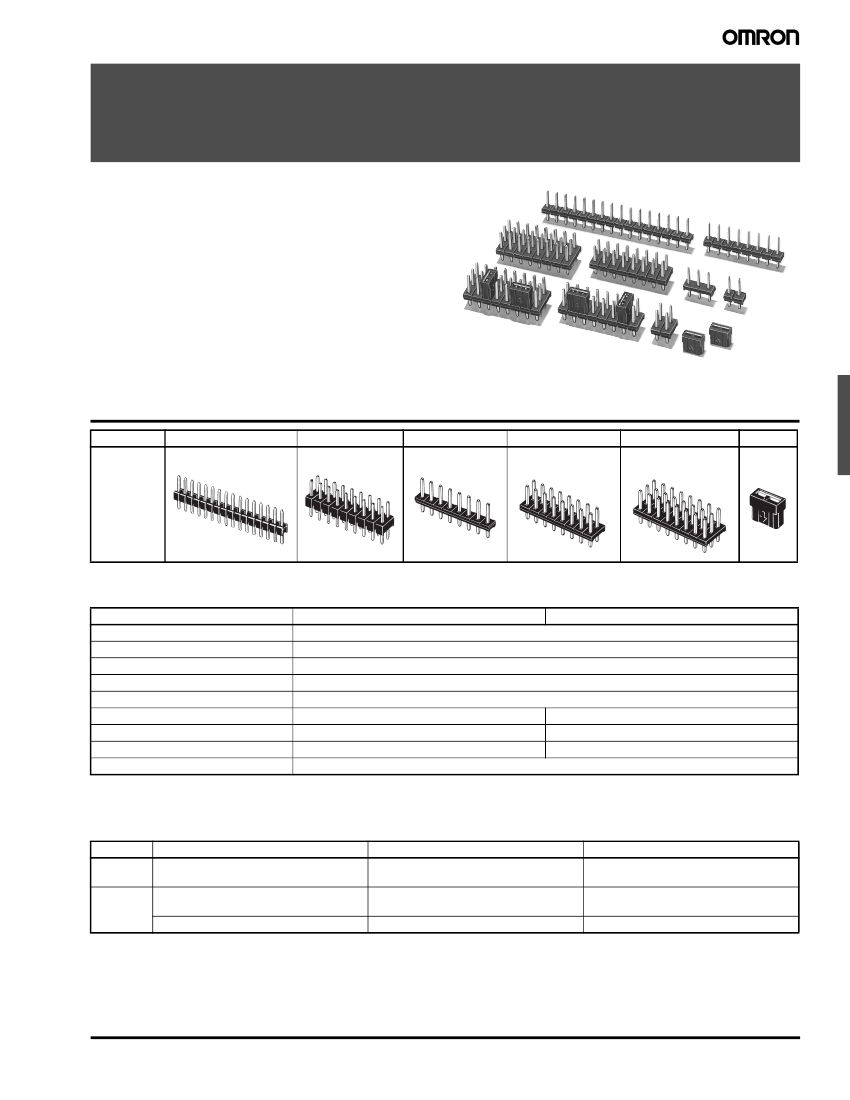

Header Plugs / Jumpers
XJ8/XG8S/XG8T
Low-profile Circuit Jumper Connectors
• Low profiles of 5.8 mm (XJ8) and 6.8 mm (XG8S/T).
• 2.54-mm grid can be mounted horizontally or vertically.
• Chose from Single-row, Double-row or Triple-row Connectors.
• Designed for easy insertion and protection against
accidental removal.
• Highly-reliable Jumper with 2-point contacts (XJ8A).
• All versions employ flame-resistant materials for base and
housing.
• XJ8 Connectors conform to UL standards (file no. E103202)
and CSA standards (file no. LR 62678).

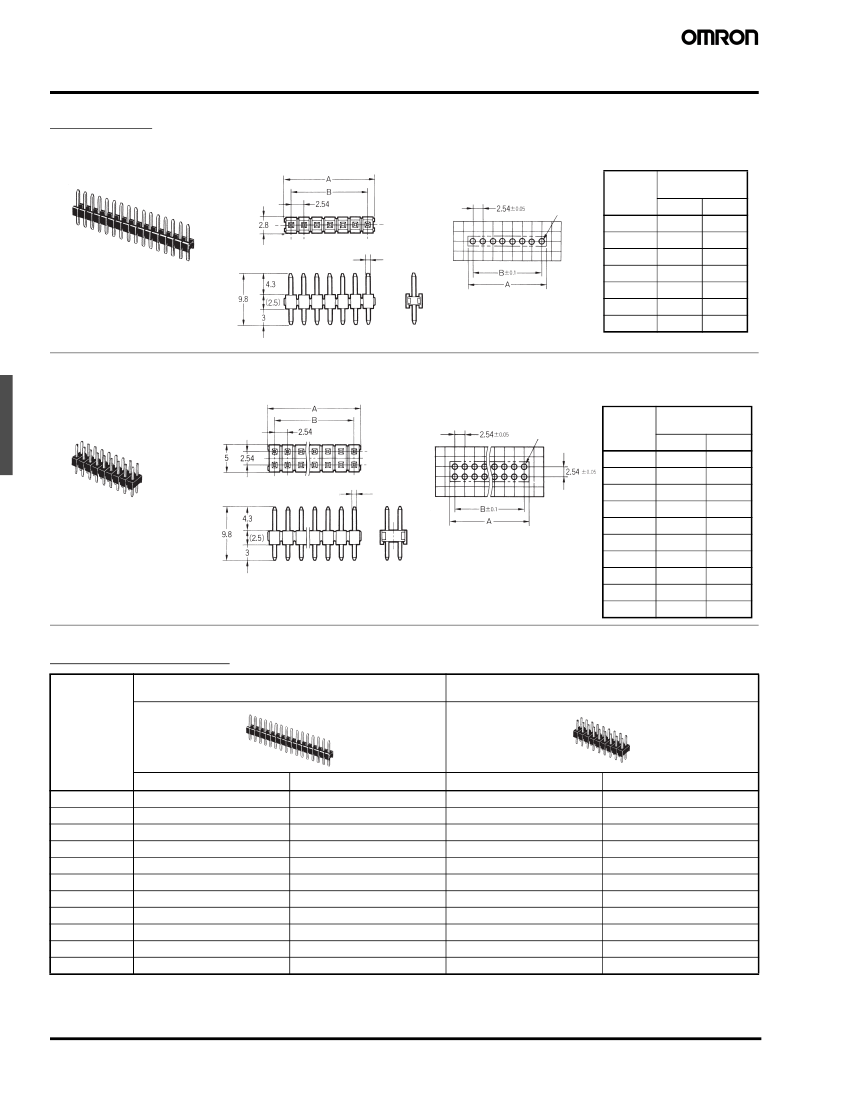

Header Plugs / Jumpers
Model
Appearance
XG8S
Single-row
XG8T
Double-row
XJ8B
Single-row
XJ8C
Double-row
XJ8D
Triple-row
XJ8A
Jumper
■
Ratings and Characteristics
Item
Rated voltage
Rated current
Contact resistance
Insulation resistance
Withstand voltage
Insertion force (See note.)
Removal force (See note.)
Insertion durability
Ambient temperature
2A
300 VAC
20 mΩ max. (at 20 mV, 100 mA max.)
1,000 MΩ min. (at 500 VDC)
750 VAC for 1 min (leakage current: 1 mA max.)
200 gf (1.96 N) max.
40 gf (0.39 N) min.
50 times
Operating:
−
55 to 105°C (with no icing)
800 gf (7.85 N) max.
100 gf (0.98 N) min.
20 times
Gold plating
Tin plating
Note:
Insertion and removal force are for the XJ8A.
■
Materials and Finish
Item
Base
Contacts
XJ8A
Fiber-glass reinforced PBT resin
(UL94V-0)/black
Phosphor bronze/nickel base,
0.15-μm gold plating
Phosphor bronze/nickel base, tin plating
XJ8B/C/D
Fiber-glass reinforced PPS resin
(UL94V-0)/black
Brass/nickel base,
0.15-μm gold plating (See note.)
---
XG8S/T
Fiber-glass reinforced PBT resin
(UL94V-0)/black
Brass/nickel base,
0.15-μm gold plating
Brass/nickel base, tin plating
Note:
For non-standard plating, contact your OMRON representative.
Header Plugs / Jumpers
XJ8/XG8S/XG8T
81

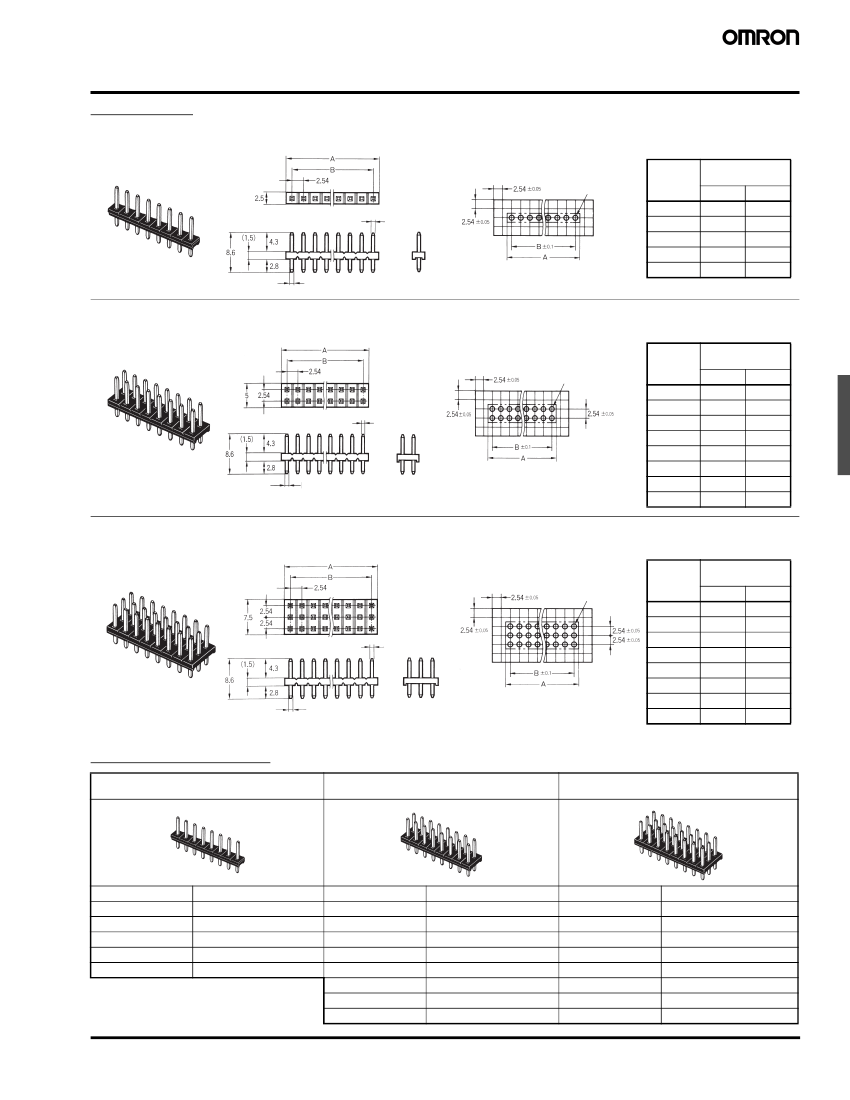

XJ8B/XJ8C/XJ8D
- Low-profile Single-, Double-, and Triple-row Jumper Plugs
Dimensions
■
XJ8B - Single Row
XJ8B-@@11
Mounting view (bottom view)
0.8
+0.1
dia.
0
No. of
contacts
2
3
4
8
16
0.635
×
0.635
Dimensions
(mm)
A
B
5.1
2.54
7.6
5.08
10.2
7.62
20.3
17.78
40.6
38.10
0.635
×
0.635
■
XJ8C - Double Row
XJ8C-@@11
Mounting holes (bottom view)
0.8
+0.1
dia.
0
No. of
contacts
2
4
6
8
10
12
14
16
0.635
×
0.635
0.635
×
0.635
Dimensions
(mm)
A
B
2.5
---
5.1
2.54
7.6
5.08
10.2
7.62
12.7
10.16
15.2
12.70
17.8
15.24
20.3
17.78
■
XJ8D - Triple Row
XJ8D-@@11
Mounting holes (bottom view)
0.8
+0.1
dia.
0
No. of
contacts
3
6
9
12
15
18
21
24
0.635
×
0.635
0.635
×
0.635
Dimensions
(mm)
A
B
2.5
---
5.1
2.54
7.6
5.08
10.2
7.62
12.7
10.16
15.2
12.70
17.8
15.24
20.3
17.78
Ordering Information
XJ8B
(Single Row)
XJ8B
(Double Row)
XJ8B
(Triple Row)
No. of contacts
2
3
4
8
16
Model (gold plated)
XJ8B-0211
XJ8B-0311
XJ8B-0411
XJ8B-0811
XJ8B-1611
No. of contacts
2
4
6
8
10
12
14
16
Model (gold plated)
XJ8C-0211
XJ8C-0411
XJ8C-0611
XJ8C-0811
XJ8C-1011
XJ8C-1211
XJ8C-1411
XJ8C-1611
No. of contacts
3
6
9
12
15
18
21
24
Model (gold plated)
XJ8D-0311
XJ8D-0611
XJ8D-0911
XJ8D-1211
XJ8D-1511
XJ8D-1811
XJ8D-2111
XJ8D-2411
Header Plugs / Jumpers
XJ8/XG8S/XG8T
83
XJ8A Jumper Socket
Dimensions
■
XJ8A
XJ8A-0211
(gold plating/black)
XJ8A-0241
(tin plating/black)
XJ8A-0214
(gold plating/natural)
Ordering Information
Appearance
No. of contacts
2
Plating
Gold plating
Tin plating
Gold plating
Housing color
Black
Black
Natural
Model
XJ8A-0211
XJ8A-0241
XJ8A-0214

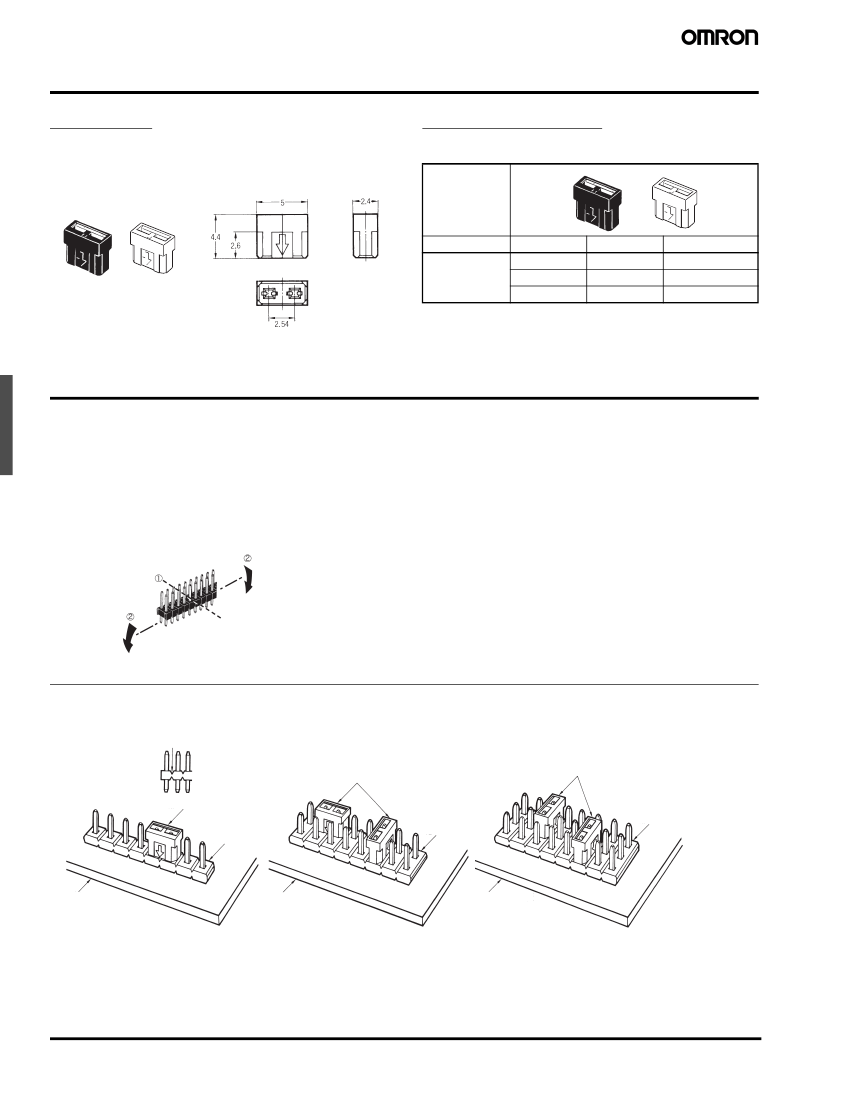

Precautions
■
Correct Use
Dividing the XJ8 / XG8S / XG8T
The above mentioned models may have the number of terminals and
rows reduced prior to pcb assembly, using the following method:
•
Plugs can be easily cut along the V-groove. Using a Cutter, make a
cut on the slot as indicated by the dotted line in the diagram. Then
fold the Plug manually in the direction of the arrows.
Automated Soldering Conditions (Jet Flow)
1.
Soldering temperature: 250 ±5°C
2.
Continuous soldering time: Within 5 s
(1) Using a cutter,
make a cut along
the dotted line.
(2) Manually fold in
the direction of the
arrows.
Mounting Example
•
Jumper Socket should be inserted so that the arrow points down.
V-groove
XJ8A
XJ8A
XJ8A
XJ8D
XG8S
XJ8B
XG8T
XJ8C
Circuit board
Circuit board
Circuit board
