T83C225K025ASZS

Description
CAPACITOR, TANTALUM, SOLID, POLARIZED, 25V, 2.2uF, SURFACE MOUNT, 2312, CHIP, ROHS COMPLIANT
CategoryPassive components    capacitor
File Size114KB,9 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

T83C225K025ASZS Overview

CAPACITOR, TANTALUM, SOLID, POLARIZED, 25V, 2.2uF, SURFACE MOUNT, 2312, CHIP, ROHS COMPLIANT

T83C225K025ASZS Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid2135685137
package instruction, 2312
Reach Compliance Codecompliant
ECCN codeEAR99
capacitance2.2 µF
Capacitor typeTANTALUM CAPACITOR
dielectric materialsTANTALUM (DRY/SOLID)
JESD-609 codee4
Manufacturer's serial numberT83
Installation featuresSURFACE MOUNT
negative tolerance10%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package shapeRECTANGULAR PACKAGE
method of packingTR, 7 INCH
polarityPOLARIZED
positive tolerance10%
Rated (DC) voltage (URdc)25 V
size code2312
surface mountYES
Delta tangent0.06
Terminal surfaceGold (Au)
Terminal shapeJ BEND

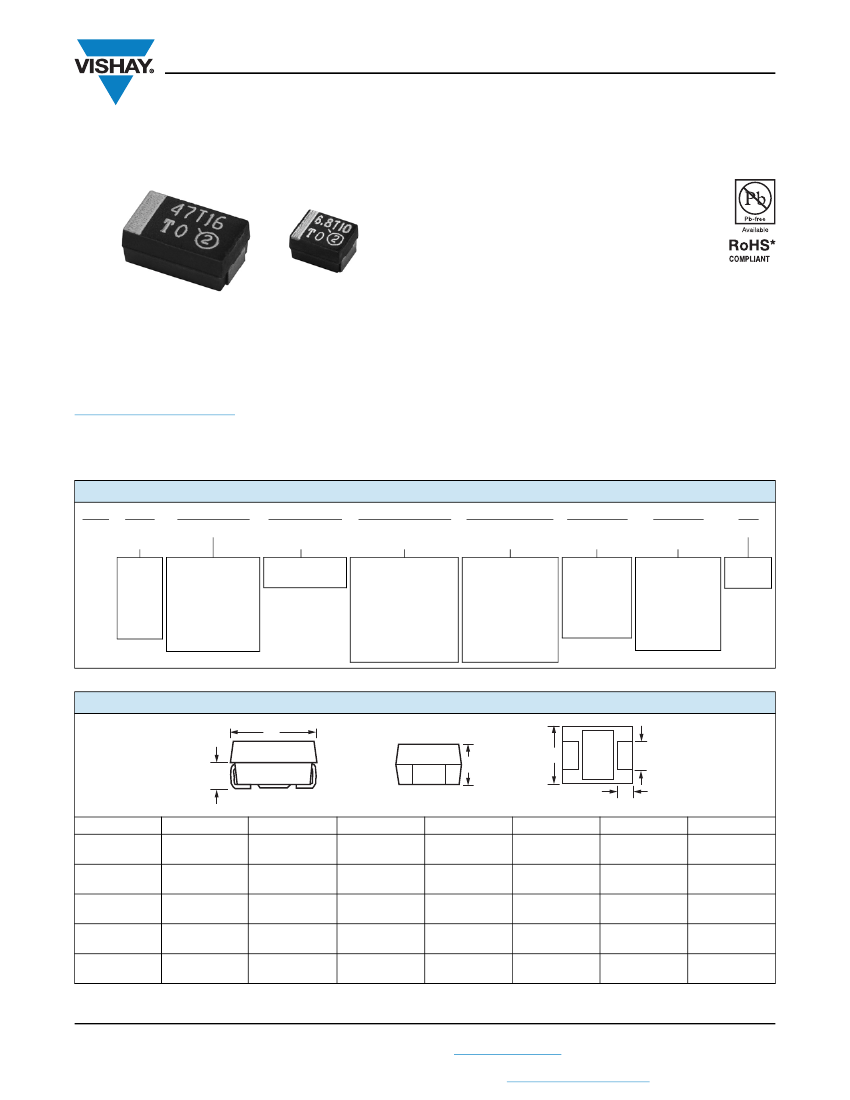

T83
www.vishay.com
Vishay Sprague
Solid Tantalum Surface Mount
T
ANTAMOUNT®
, Molded Case, Hi-Rel COTS
FEATURES
• Terminations: 100 % matte tin and tin/lead
• Standard EIA 535BAAC case sizes (A through E)
• Weibull grading and surge current test options
• Standard and low ESR options
• Mounting: Surface mount
• Compliant to RoHS Directive 2002/95/EC
• Moisture sensitivity level 1
Note
*
Pb containing terminations are not RoHS compliant, exemptions
may apply
PERFORMANCE/ELECTRICAL CHARACTERISTICS
www.vishay.com/doc?40088
Operating Temperature:
- 55 °C to + 125 °C
(above 85 °C, voltage derating is required)
Capacitance Range:
0.1 μF to 470 μF
Capacitance Tolerance:
± 10 %, ± 20 %
Voltage Rating:
4 V
DC
to 63 V
DC
ORDERING INFORMATION
T83
TYPE
D
CASE
CODE
See
Ratings
and
Case
Codes
table.
107
CAPACITANCE
This is expressed
in picofarads. The
first two digits are
the significant
figures. The third
is the number of
zeros to follow.
K
CAPACITANCE
TOLERANCE
K = ± 10 %
M = ± 20 %
010
DC VOLTAGE
RATING AT + 85 °C
This is expressed in
volts. To complete
the three-digit block,
zeros precede the
voltage rating. A
decimal point is
indicated by an “R”
(6R3 = 6.3 V).
E
TERMINATION
AND PACKAGING
C: Matte tin/7"
(178 mm) reels
H: Matte tin/7"
(178 mm), ½ reel
E: Tin/lead /7"
(178 mm) reel
L: Tin/lead/7"
(178 mm), ½ reel
A
RELIABILITY
LEVEL
A = 1.0 %
B = 0.1 %
C = 0.01 %
S = Hi-Rel
standard
Z = Non-ER
A
SURGE
CURRENT
A = 10 cycles at
+ 25 °C
B = 10 cycles at
- 55 °C/+ 85 °C
Z = None
S = 3 cycles
at + 25 °C
S
ESR
S = Std
L = Low
DIMENSIONS
in inches (millimeters)
L
W
T
H
(MIN.)
H
P
T
W
CASE CODE
A
B
C
D
E
EIA SIZE
3216-18
3528-21
6032-28
7343-31
7343-43
L
0.126 ± 0.008
[3.2 ± 0.20]
0.138 ± 0.008
[3.5 ± 0.20]
0.236 ± 0.012
[6.0 ± 0.30]
0.287 ± 0.012
[7.3 ± 0.30]
0.287 ± 0.012
[7.3 ± 0.30]
W
0.063 ± 0.008
[1.6 ± 0.20]
0.110 ± 0.008
[2.8 ± 0.20]
0.126 ± 0.012
[3.2 ± 0.30]
0.169 ± 0.012
[4.3 ± 0.30]
0.169 ± 0.012
[4.3 ± 0.30
H
0.063 ± 0.008
[1.6 ± 0.20]
0.075 ± 0.008
[1.9 ± 0.20]
0.098 ± 0.012
[2.5 ± 0.30]
0.110 ± 0.012
[2.8 ± 0.30]
0.157 ± 0.012
[4.0 ± 0.30]
P
0.031 ± 0.012
[0.80 ± 0.30]
0.031 ± 0.012
[0.80 ± 0.30]
0.051 ± 0.012
[1.3 ± 0.30]
0.051 ± 0.012
[1.3 ± 0.30]
0.051 ± 0.012
[1.3 ± 0.30]
T
W
0.047 ± 0.004
[1.2 ± 0.10]
0.087 ± 0.004
[2.2 ± 0.10]
0.087 ± 0.004
[2.2 ± 0.10]
0.094 ± 0.004
[2.4 ± 0.10]
0.094 ± 0.004
[2.4 ± 0.10]
T
H
(MIN.)
0.028
[0.70]
0.028
[0.70]
0.039
[1.0]
0.039
[1.0]
0.039
[1.0]
Revision: 26-Jan-12
Document Number: 40077
118
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
