Part Number

Search

66200421022

Description
headers & wire housings WR-mpc3 micro power connector
CategoryThe connector
File Size229KB,1 Pages
ManufacturerAll Sensors
Environmental Compliance
Download Datasheet Parametric Compare View All

66200421022 Online Shopping

Suppliers Part Number Price MOQ In stock
66200421022 - - View Buy Now

66200421022 Overview

headers & wire housings WR-mpc3 micro power connector

66200421022 Parametric

Parameter NameAttribute value
ManufactureWurth Electronics
Product CategoryHeaders & Wire Housings
RoHSYes
TypeShrouded
Pitch3 mm
Number of Positions4
Number of Rows2
Contact GendePin (Male)
Contact PlatingTi
Termination StyleThrough Hole
Mounting AngleRigh
Contact MaterialCopper Alloy
Current Rating5 A
Flammability RatingUL 94 V-0
Insulation Resistance1000 MOhms
Operating Temperature Range- 40 C to + 105 C
PackagingTube
Row Spacing3 mm
Voltage Rating250 VAC
1
2
3
4
5
TECHNICAL CHARACTERISTICS
MATERIAL
INSULATOR: LCP
FLAMABILITY RATING: UL94-V0
COLOR: BLACK
CONTACT MATERIAL: COPPER ALLOY
CONTACT TYPE: STAMPED
CONTACT PLATING: TIN
QUALITY CLASS: 25 MATING CYCLES
PITCH: 3.00MM
ENVIRONMENTAL
OPERATING TEMPERATURE: -40 UP TO 105°C
COMPLIANCE: LEAD FREE AND ROHS
ELECTRICAL
CURRENT RATING:5A
WORKING VOLTAGE: 250V AC
INSULATOR RESISTANCE: >1000 MOHM
DIELECTRIC WITHSTANDING VOLTAGE: 1500V AC/MN
CONTACT RESISTANCE: 10 mOHM MAX
STANDARD
CERTIFIED: E323964
SOLDERING
JEDEC LEAD FREE WAVE SOLDERING
PACKAGING
TUBE

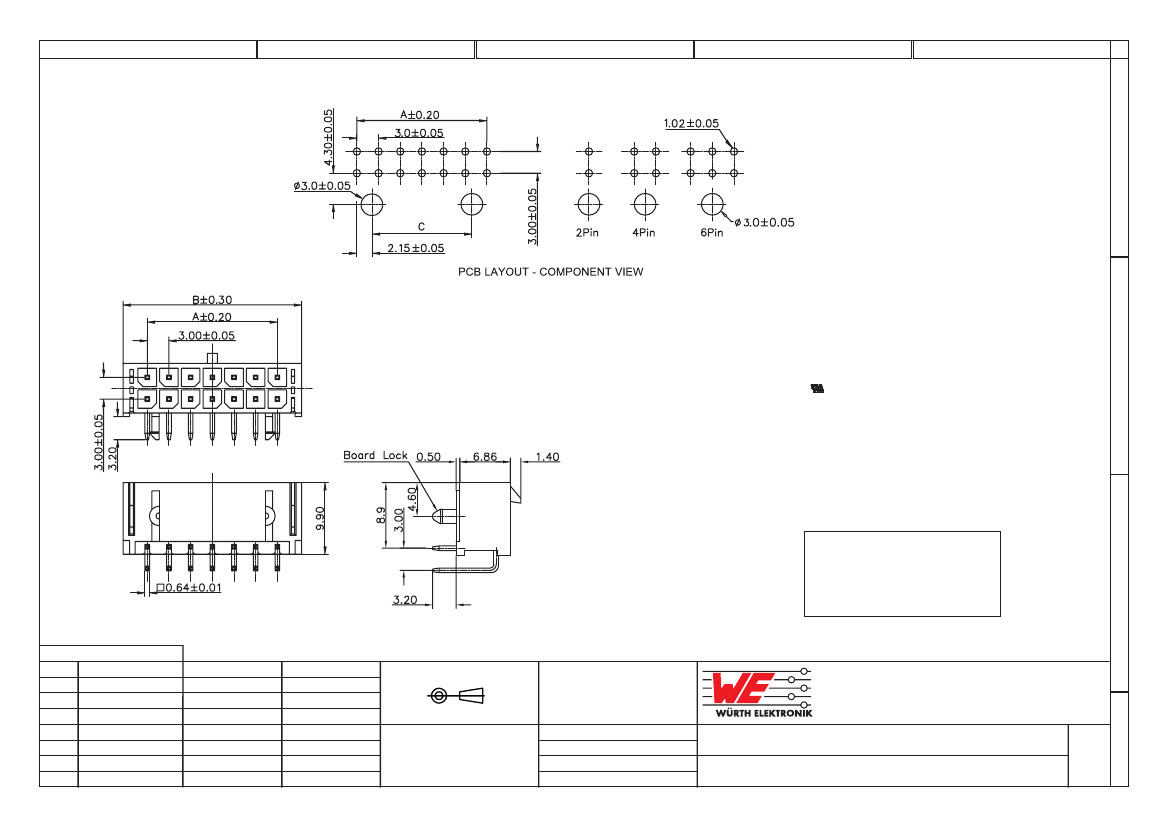

DIMENSION
A = 3.00 x (NB. PIN / 2 - 1)
B = 3.00 x (NB. PIN / 2 + 1) + 0.70
NB. PIN
2 to 6
8
10
12
14
C
-
4.68
7.68
10.68
13.68
NB. PIN
16
18
20
22
24
C
16.68
19.68
22.68
25.68
28.68
A
B
C
RoHS Compliant
PROJECTION:
GENERAL TOLERANCE
.X = +/- 0.2
.XX = +/- 0.15
APPROVAL: RJ
I
H
REV
17-FEB-14
29-JUL-13
DATE
SOLDERING
DWG & CARAC
FILE
QL
QL
BY
UNIT: MM
SCALE:
SHEET: 1/1
DRAW: PEARL
DESCRIPTION: 3.00MM MALE DUAL ROW RIGHT ANGLE HEADER WITH
PLASTIC PEGS
WERI PART NO: 662 0xx 210 22
SIZE
A4
D
