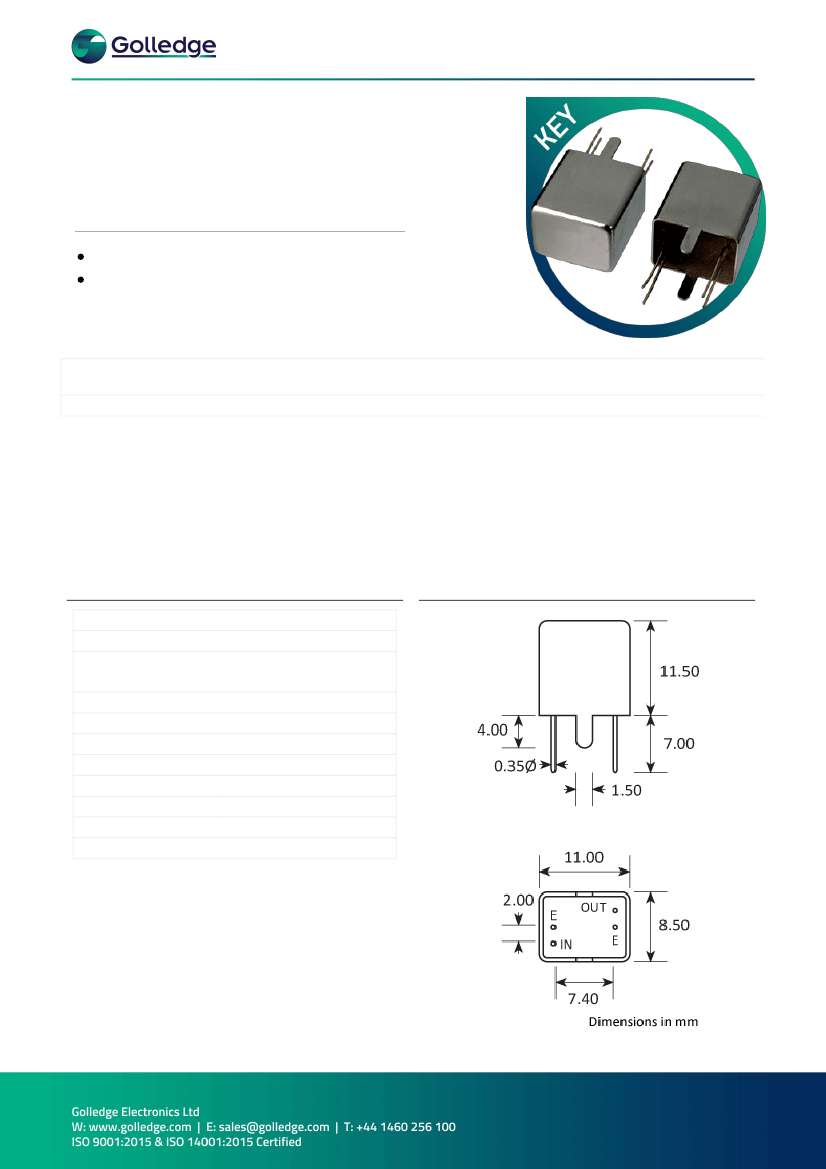

GMCF-21 21G7D
1/3
GMCF-21 21G7D
21.4MHz 8 pole crystal filter with
7.5kHz 3dB bandwidth
Comprehensive stocks
Custom specifications available
CONFIGURABLE OPTIONS
Parameter
Option Code
The GMCF-21 21G7D has no configurable options.
Please see the specifications table for more details or contact our team today if you have other specification
requirements.
SPECIFICATIONS
Centre frequency
Dimensions
Operating temperature
range
Number of poles
Pass band
Attenuation band
In-band ripple
Insertion loss
Guaranteed attenuation
Termination
Package style
21.4MHz
11.0 x 8.5 x 11.5mm
-20 to +70°C
8
-3dB @ ±3.75kHz min
-90dB @ ±12.5kHz max
2.0dB max
4.0dB max
-90dB max ±12.5 ~ ±300kHz
850
Ω
// 5.0pF
F11/8A
PACKAGE DRAWING
v1.0
GMCF-21 21G7D
2/3
ORDERING INFORMATION
To request a quotation for the GMCF-21 21G7D please use
the configurable options form to choose the options you
require and then submit your configured product to our team.
Our expert advisers are always happy to help with your
requirements and can be contacted on +44 1460 256 100 or
at sales@golledge.com.
Following product selection you will be issued with a seven
character Golledge part number. Your Golledge part number is
the internationally accepted Golledge manufacturing part
number (MPN) that should be used for all project
documentation, including bills of materials (BoMs) and
purchase orders.
If you have any queries regarding any of our documentation
our dedicated sales team will be happy to help.
HANDLING & STORAGE
Human Body Model (HBM) 1A (250V to <500V)
Moisture Sensitivity Level (MSL): 1 (or not applicable)
CONSTRUCTION
Metal can Epoxy base
MATERIAL COMPOSITION
Lead-free (< 0.1% by weight )
RoHS compliant with no exemptions.
declaration
REACH compliant.
See our statement
See our declaration
See our
Free of conflict minerals.
Free of Halogens.
See our declaration
See our
Free of Ozone-depleting substances.
declaration
v1.0
