29F0428-0T0 datasheet, PDF - EEWORLD Datasheet

29F0428-0T0: DescriptionData Line Filter, 4 FUNCTIONS, 10 A, FERRITE CHIP, THROUGH HOLE/SOLDER MOUNT; CategoryAnalog mixed-signal IC filter; File Size258KB，8 Pages; ManufacturerLaird

Download Datasheet Parametric Compare View All

29F0428-0T0 Overview

Data Line Filter, 4 FUNCTIONS, 10 A, FERRITE CHIP, THROUGH HOLE/SOLDER MOUNT

Part Numbers

Page 1 of 8

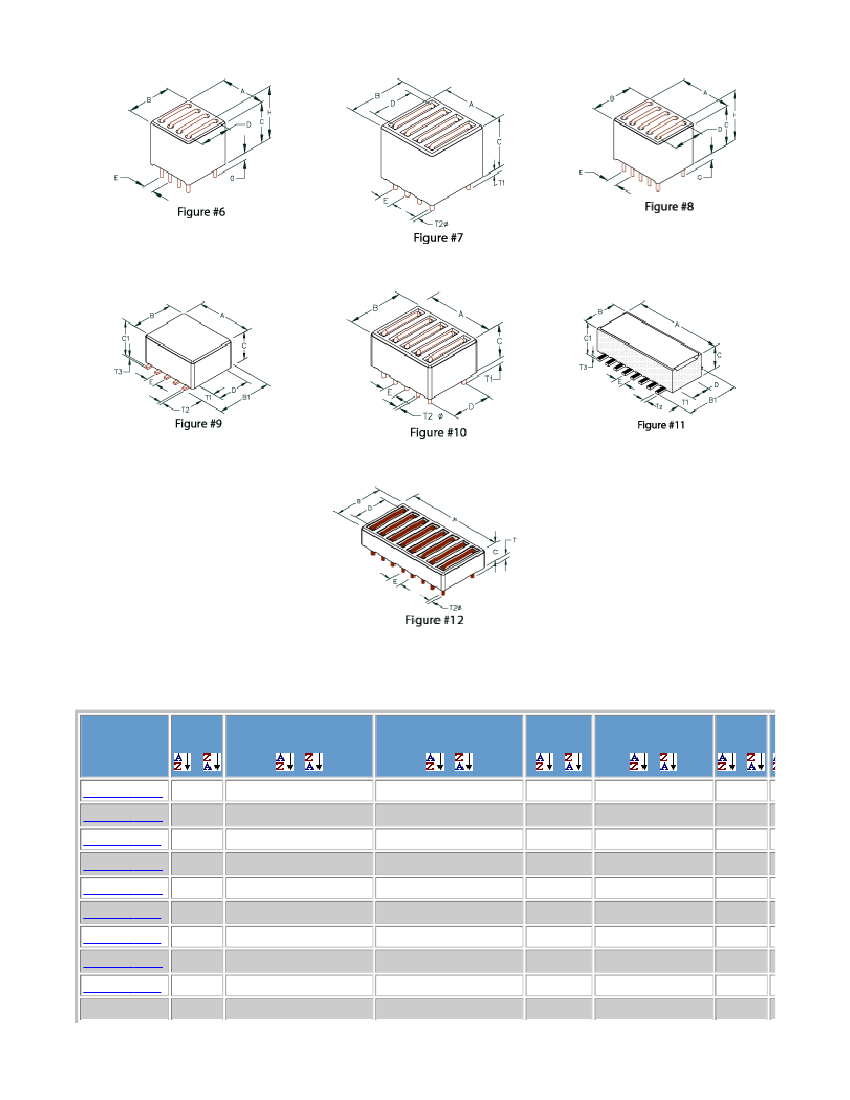

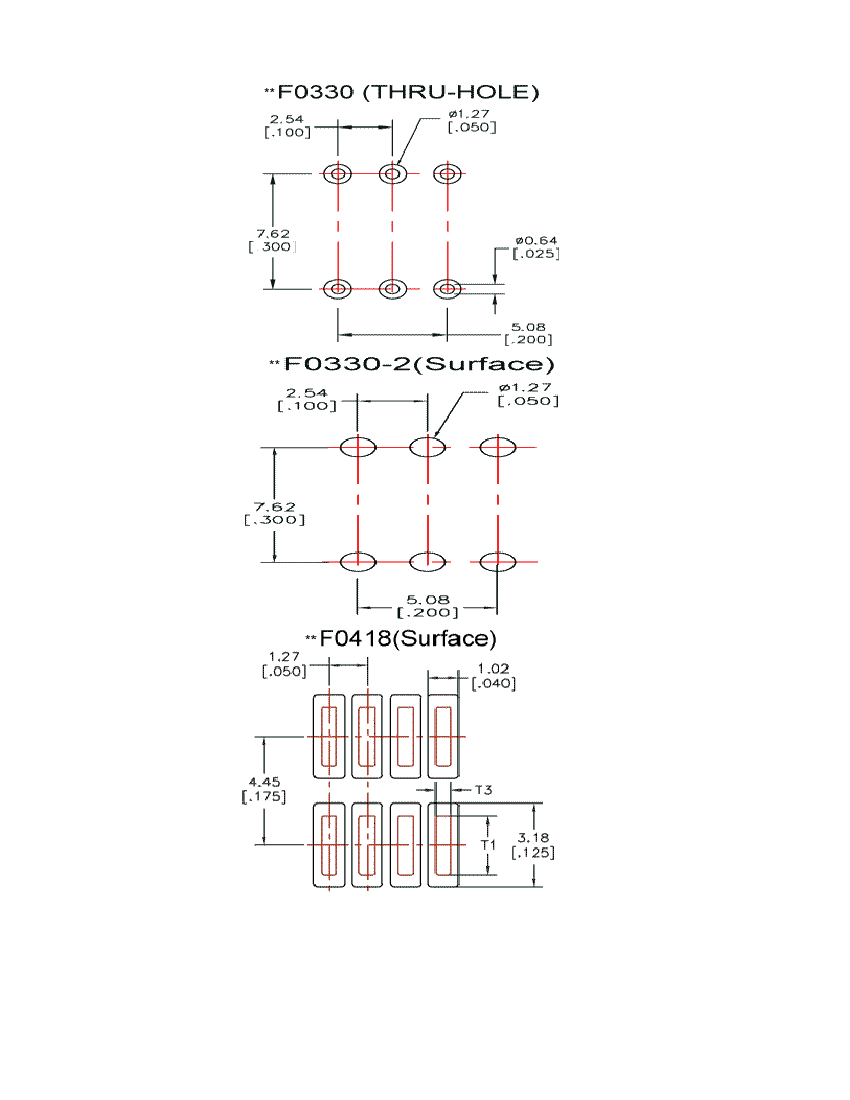

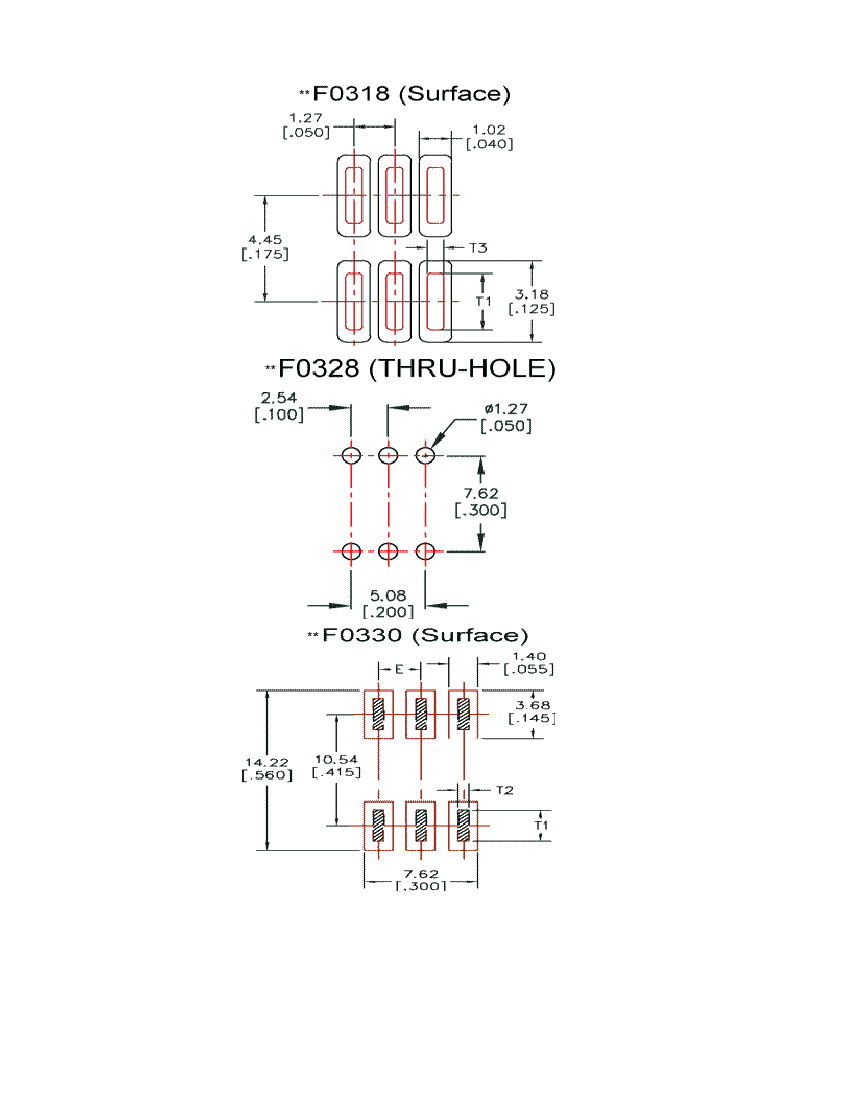

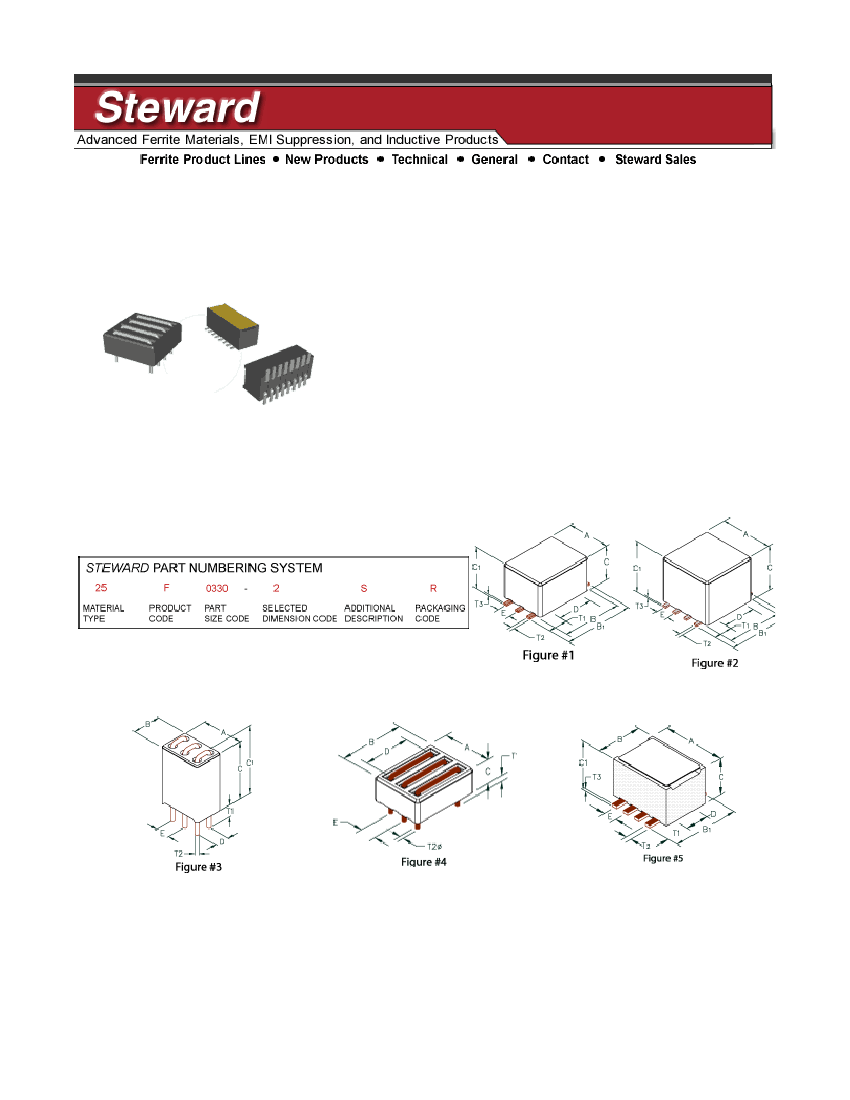

Multi-Line Arrays - Power

Filtering

Steward's multi-line ferrite products provide economical EMI

filtering of differential mode noise in surface mount and

through-hole PCB applications. They are designed to provide

high frequency suppression of both common and differential

mode EMI noise on groups of data/power lines. Steward's

multi-line ferrites, are rated up to 10 amperes per filtered

channel. Their rugged construction provides superior protection

against transient events as well as much higher peak current

handling capability than other EMI suppression devices.

http://www.steward.com/web_parts.asp?line=EMC+%2F+EMI+&family=Board+Level&p... 3/18/2003

	29F0428-0T0	29F0429-0T0	29F0430-2SR
Description	Data Line Filter, 4 FUNCTIONS, 10 A, FERRITE CHIP, THROUGH HOLE/SOLDER MOUNT	Data Line Filter, 4 FUNCTIONS, 10 A, FERRITE CHIP, THROUGH HOLE/SOLDER MOUNT	FERRITE 8A 200 OHM SMD
Is it Rohs certified?	incompatible	incompatible	incompatible
Reach Compliance Code	unknow	unknow	unknow
Base Number Matches	1	1	1
Is it lead-free?	Contains lead	Contains lead	-
ECCN code	EAR99	EAR99	-
filter type	FERRITE CHIP	FERRITE CHIP	-
high	10.14 mm	10 mm	-
JESD-609 code	e0	e0	-
length	10.88 mm	10.88 mm	-
Installation type	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	-
Number of functions	4	4	-
Output impedance	342 OHM Ω	285 OHM Ω	-
physical size	L10.88XB10.88XH10.14 (mm)/L0.428XB0.428XH0.399 (inch)	L10.88XB5.49XH10 (mm)/L0.428XB0.216XH0.394 (inch)	-
Rated current	10 A	10 A	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
width	10.88 mm	5.49 mm	-
