DS37-MFT-A-RSB-30GD datasheet, PDF

Datasheet> All Categories > The connector> The connector> DS37-MFT-A-RSB-30GD

DS37-MFT-A-RSB-30GD: DescriptionD Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug; CategoryThe connector The connector; File Size108KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

DS37-MFT-A-RSB-30GD Overview

D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug

DS37-MFT-A-RSB-30GD Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304483057
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.496 inch
subject depth	0.272 inch
body length	2.728 inch
Body/casing type	PLUG
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	15 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DS
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	RIVET
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-50 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	30u inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell material	STEEL
Terminal length	0.157 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	37

Preview

Download Datasheet

View All

SPECIFICATIONS

Current rating:

Contact material:

Contact plating:

Contact resistance:

Insulator material:

Insulator resistance:

Shell material:

Shell plating:

Jack screw material:

Jack screw plating:

Board lock material:

Board lock plating:

Withstanding:

Operating temperature:

5 amps

Brass, machined pin

Gold flash

15 milliohms max.

PBT + glass fiber, UL94V-0

1,000 megohms min.

Steel

Tin or zinc

Brass

Nickel

Brass

Tin or nickel

500VAC for 1 min

-50°C to +105°C

Dimensions

Pos.

9 30.80 24.99

15 39.15 33.32

25 53.00 47.04

37 69.30 63.50

50 67.00 61.00

16.30

24.65

38.40

54.80

52.20

RoHS compliant

Rev.

Description

Date

Approved

Series

Type

Footprint

Mounting

Options

DSXX

MFT

XXX

09, 15, 25, 37, 50 MFT=Female A=Standard tail [blank]=.120” thru hole

30GD=30µ” gold flash

MMT=Male

for .062” to .125” RSB=#4-40 riveted stand off, board locks BK=Black insulator

PCB

RCN=#4-40 riveted clinch nut

RJS=#4-40 riveted jackscrew

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Date

08/10/99

08/10/99 Part No.:

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

DSXX-MFT-A-RSB-XX

0.00 ± 0.20 Angles ± 3’

UNIT: mm

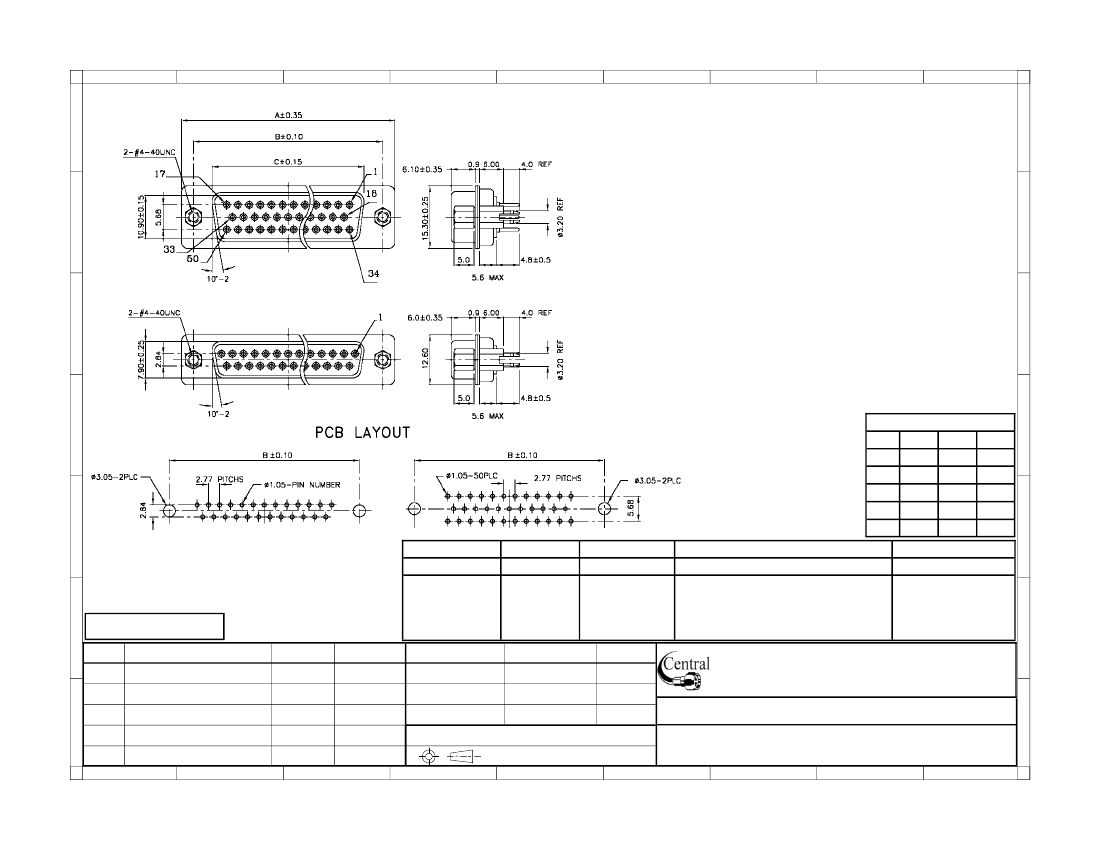

Description: Machined contact D-sub, female, straight PCB mount
