RL-5022-HC-2R2M datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> inductor> RL-5022-HC-2R2M

Preview

RL-5022-HC-2R2M: DescriptionGeneral Purpose Inductor, 2.2uH, 20%, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size863KB，2 Pages; ManufacturerRenco Electronics Inc.; Environmental Compliance

Download Datasheet Parametric View All

RL-5022-HC-2R2M Overview

General Purpose Inductor, 2.2uH, 20%, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT

RL-5022-HC-2R2M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2077374277
Reach Compliance Code	compliant
ECCN code	EAR99
core material	FERRITE
DC Resistance	0.006 Ω
Nominal inductance(L)	2.2 µH
Inductor Applications	HIGH CURRENT INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Manufacturer's serial number	RL-5022-HC
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
self resonant frequency	75 MHz
Shape/Size Description	CYLINDRICAL PACKAGE
shield	NO
surface mount	YES
Terminal surface	Tin (Sn)
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

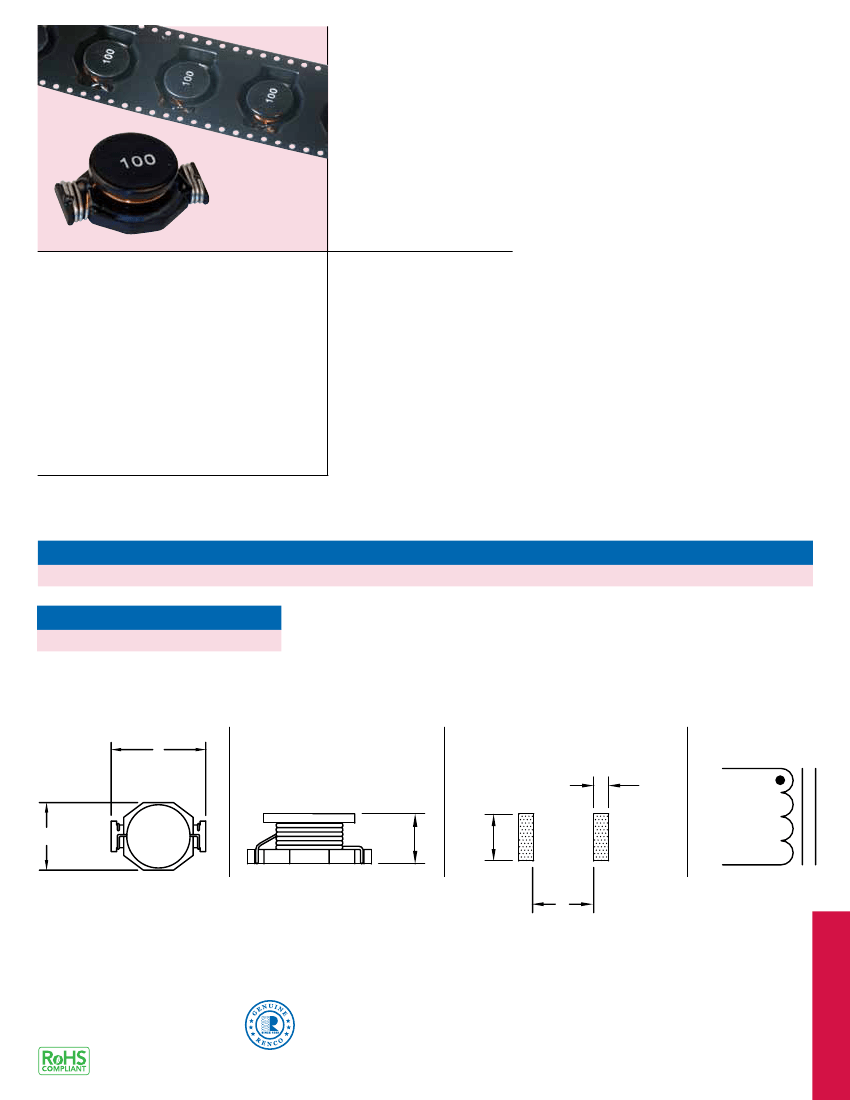

RL-5022-HC

DESCRIPTION

• Unshielded High Current SMD Inductor

UNSHIELDED ULTRA HIGH CURRENT

FEATURES & APPLICATIONS

• Low-cost, high-performance inductor

• Super low resistance with high current rating

• Excellent as DC-DC converter used in notebook computers

and step-up or step-down converters

ENVIRONMENTAL DATA

•

Storage temperature range:

-55°C to +130°C

Operating temperature range:

-40°C to +130°C

PACKAGING INFORMATION

• Packaging information: pg. 489

Verify operation with sample in actual circuit. Order samples at www.rencousa.com.

MECHANICAL DIMENSIONS

U.S. Standard (mm)

PART NUMBER

RL-5022-HC

A (MAX.)

0.88 (22.35)

B (MAX.)

0.64 (16.26)

C (MAX.)

0.32 (8.00)

D (REF.)

0.13 (3.18)

E (REF.)

0.34 (8.64)

F (REF.)

0.57 (14.35)

PART NUMBER

RL-5022-HC

PART WEIGHT

3.0g (0.11oz)

TOP VIEW

A

SIDE VIEW

RECOMMENDED LAND PATTERN

SCHEMATIC

ST

D

B

C

E

FN

F

RENCO ELECTRONICS INC.

595 International Place, Rockledge, FL 32955-4200 USA • www.rencousa.com • ISO 9001 Certiﬁed

Toll Free Engineering Hot Line: 800.645.5828 • P: 321.637.1000 • F: 321.637.1600

SURFACE MOUNTS
