FCZ-028-H051-99/R datasheet, PDF

Datasheet> All Categories > The connector> The connector> FCZ-028-H051-99/R

FCZ-028-H051-99/R: DescriptionCard Edge Connector, 28 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking; CategoryThe connector The connector; File Size100KB，1 Pages; ManufacturerE-tec Interconnect Ltd.

Download Datasheet Parametric View All

FCZ-028-H051-99/R Overview

Card Edge Connector, 28 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking

FCZ-028-H051-99/R Parametric

Parameter Name	Attribute value
Objectid	304895932
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.079 inch
subject depth	0.161 inch
body length	0.711 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	SN
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	250VAC V
maximum insertion force	ZIF N
Insulation resistance	50000000 Ω
insulator material	NYLON
Plug contact pitch	0.02 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.4 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	28

Preview

Download Datasheet

View All

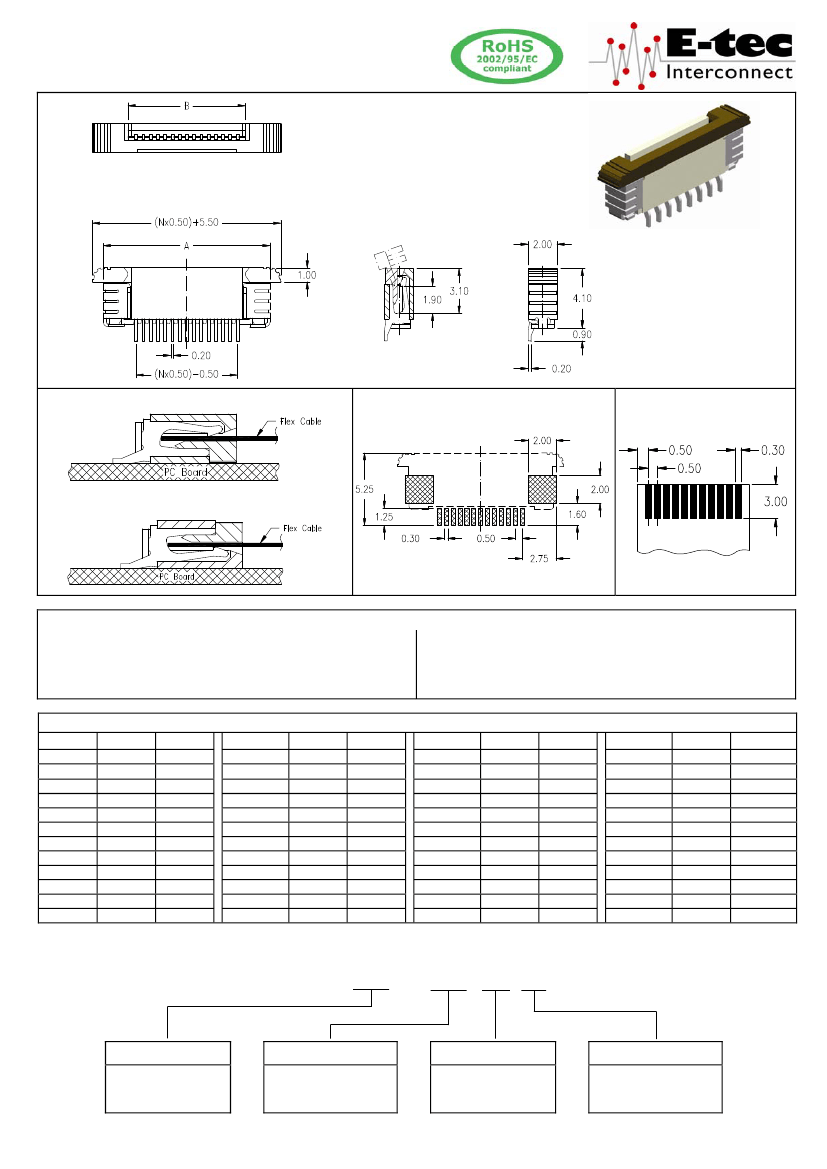

FPC/FFC

- SMT -

Connector ZIF Type

0.50mm pitch horizontal

upper contact style

050

PCB Surface Mount Layout

Recommended

FPC/FFC dimensions

lower contact style

051

thickness 0.30mm±0.05

SPECIFICATIONS

Current rating

Insulator resistance

Contact resistance

Withstanding voltage

0.4 A max.

50 MΩ min.

30 mΩ max.

250 V AC/1 Min.

Operating temperature

Processing temperature

Contact material

(RoHS compliant)

Contact plating

(RoHS compliant)

Insulator material

Dimensions

(mm)

Contacts

004

005

006

007

008

009

010

011

012

013

014

015

DIM “A”

6.00

6.50

7.00

7.50

8.00

8.50

9.00

9.50

10.00

10.50

11.00

11.50

DIM “B”

2.60

3.10

3.60

4.10

4.60

5.10

5.60

6.10

6.60

7.10

7.60

8.10

Contacts

016

017

018

019

020

021

022

023

024

025

026

027

DIM “A”

12.00

12.50

13.00

13.50

14.00

14.50

15.00

15.50

16.00

16.50

17.00

17.50

DIM “B”

8.60

9.10

9.60

10.10

10.60

11.10

11.60

12.10

12.60

13.10

13.60

14.10

Contacts

028

029

030

031

032

033

034

035

036

037

038

039

DIM “A”

18.00

18.50

19.00

19.50

20.00

20.50

21.00

21.50

22.00

22.50

23.00

23.50

DIM “B”

14.60

15.10

15.60

16.10

16.60

17.10

17.60

18.10

18.60

19.10

19.60

20.10

Contacts

040

041

042

043

044

045

046

047

048

049

050

DIM “A”

24.00

24.50

25.00

25.50

26.00

26.50

27.00

27.50

28.00

28.50

29.00

DIM “B”

20.60

21.10

21.60

22.10

22.60

23.10

23.60

24.10

24.60

25.10

25.60

- 55°C to +85°C

+250°C

+0/-5°C

for 3sec.

Phosphor Bronze

Tin

(leadfree)

Nylon

UL 94 V-0

How to order

FCZ - xxx – H xxx -

/ X

Nbr of contacts

004

050

Contact style

050

051

= upper

= lower

Plating

(leadfree)

Option

tin

If reel packing

(reel packing QTY. on request)
