3000H-F207B-L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3000H-F207B-L

3000H-F207B-L: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Female, 0.118 inch Pitch, Crimp Terminal, Locking, Plug; CategoryThe connector The connector; File Size293KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

3000H-F207B-L Overview

Board Connector, 14 Contact(s), 2 Row(s), Female, 0.118 inch Pitch, Crimp Terminal, Locking, Plug

3000H-F207B-L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	305223066
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.327 inch
subject depth	0.665 inch
body length	0.86 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	3000H
Plug contact pitch	0.118 inch
Match contact row spacing	0.118 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	14

Preview

Download Datasheet

View All

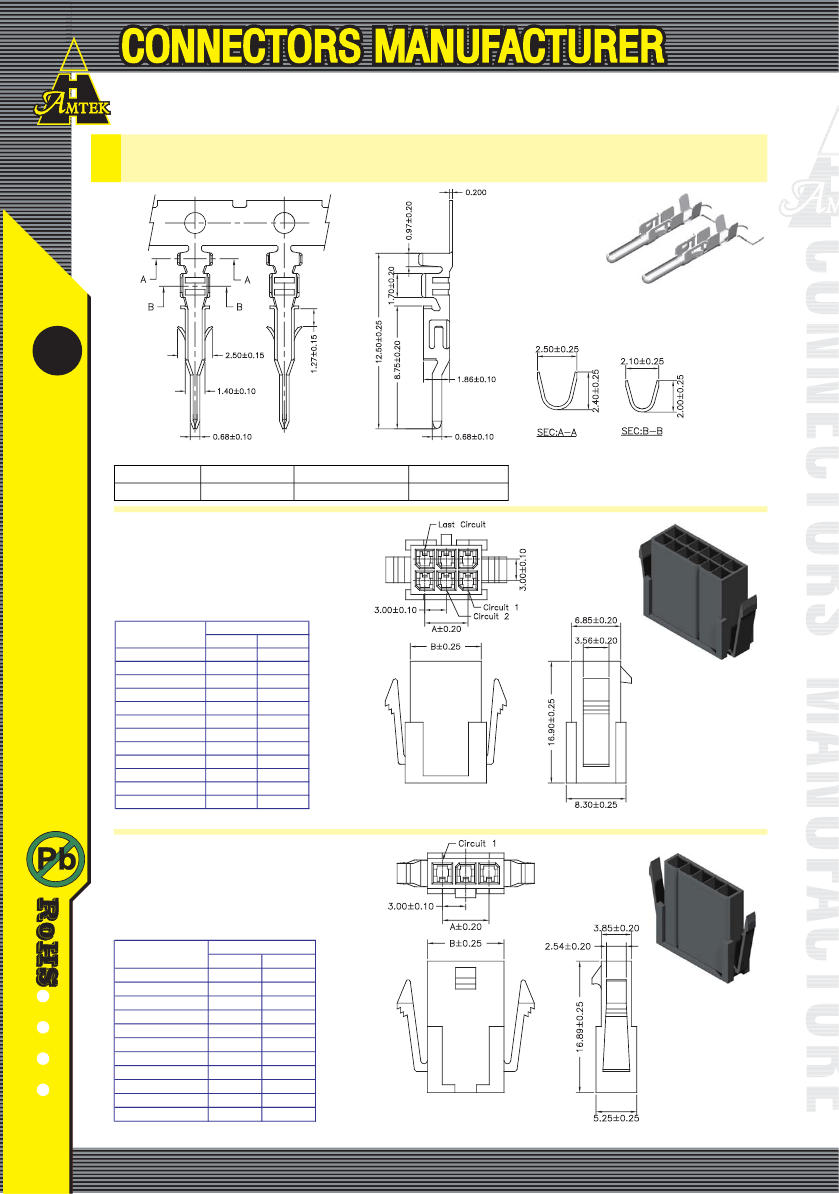

3.0mm Male Terminal / Female Housing

ousing wafer Terminal

Wire Range

AWG#20-#24

Specifications

Insulation O.D.

1.85mm(max)

Material

Phosphor Bronze

Finish

Tin Plated

Part No.:3000-MT-L

Current Rating: 5A AC,DC

Voltage Rating: 250V AC,DC

Temperature Range: -25°C to +85°C

Contact Resistance: 10mΩ Max

Insulation Resistance: 1000M

Min

Withstanding Voltage: 1500V AC/minute

Material: Nylon 66,UL94V-2

Part No.

3000H-F201B-L

3000H-F202B-L

3000H-F203B-L

3000H-F204B-L

3000H-F205B-L

3000H-F206B-L

3000H-F207B-L

3000H-F208B-L

3000H-F209B-L

3000H-F210B-L

3000H-F211B-L

3000H-F212B-L

Dimensions

---

3.85

3.00

6.85

6.00

9.85

9.00

12.85

12.00

15.85

15.00

18.85

18.00

21.85

21.00

24.85

24.00

27.85

27.00

30.85

30.00

33.85

33.00

36.85

Part No.:3000H-F2XXB-L

Specifications

Current Rating: 5A AC,DC

Voltage Rating: 250V AC,DC

Temperature Range: -25°C to +85°C

Contact Resistance: 10m

Max

Insulation Resistance: 1000M

Min

Withstanding Voltage: 1500V AC/minute

Material: Nylon 66,UL94V-2

Part No.

3000H-F102B-L

3000H-F103B-L

3000H-F104B-L

3000H-F105B-L

3000H-F106B-L

3000H-F107B-L

3000H-F108B-L

3000H-F109B-L

3000H-F110B-L

3000H-F111B-L

3000H-F112B-L

Dimensions

3.00

6.85

6.00

9.85

9.00

12.85

12.00

15.85

15.00

18.85

18.00

21.85

21.00

24.85

24.00

27.85

27.00

30.85

30.00

33.85

33.00

36.85

3-105

Part No.:3000H-F1XXB-L
