Preview

5222-37TB/JT: DescriptionD Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Lug Terminal, Plug; CategoryThe connector The connector; File Size217KB，1 Pages; ManufacturerRatioplast Electronics; Environmental Compliance

Download Datasheet Parametric View All

5222-37TB/JT Overview

D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Lug Terminal, Plug

5222-37TB/JT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	306855239
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.494 inch
subject depth	0.457 inch
body length	2.729 inch
Body/casing type	PLUG
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	5222
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation type	PANEL
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN OVER COPPER
Termination type	SOLDER LUG
Total number of contacts	37
Maximum wire diameter	20 AWG
Minimum wire diameter	24 AWG

Preview

Download Datasheet

View All

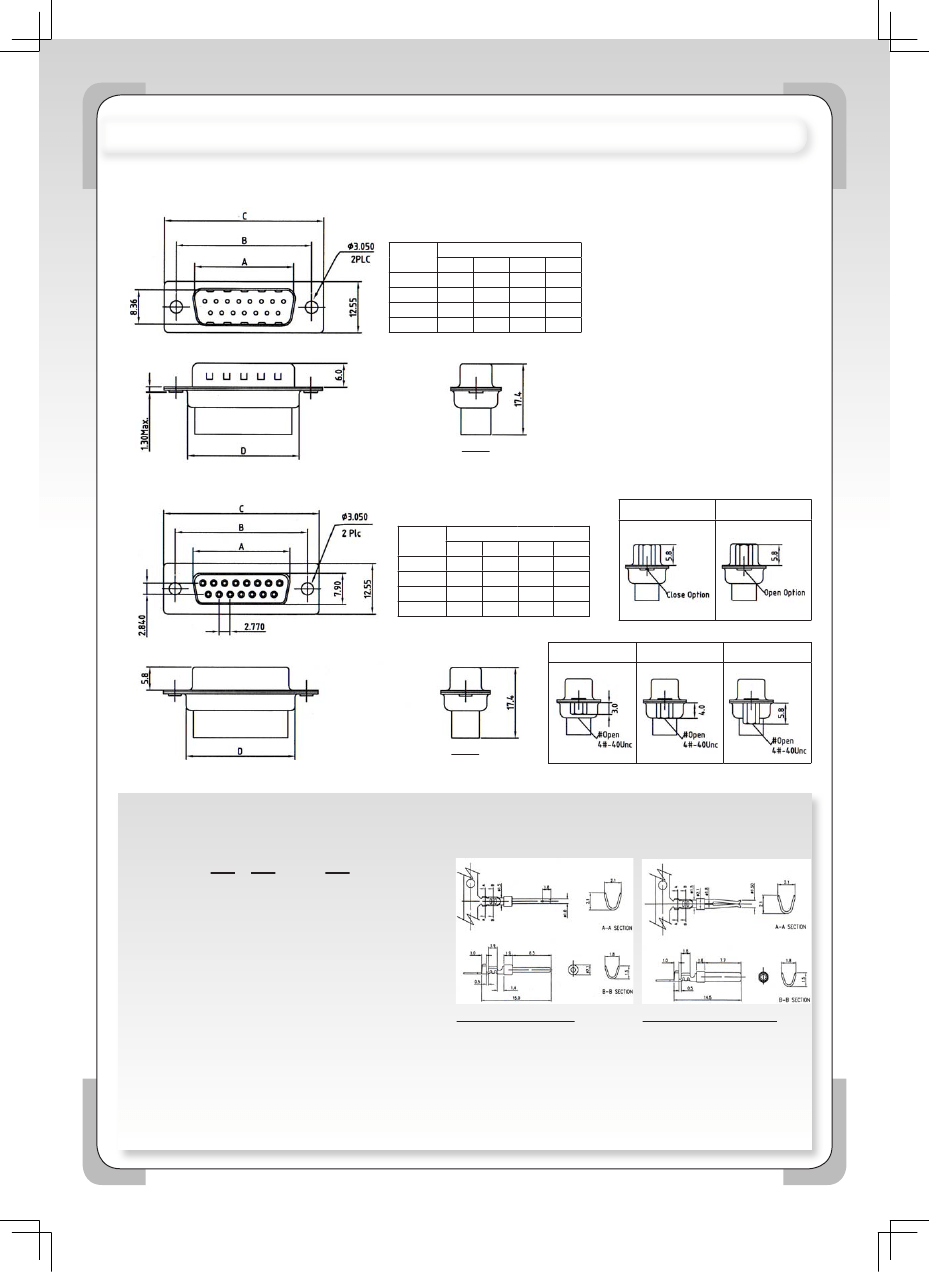

D-SUB. CONNECTOR CRIMP TYPE TERMINAL & HOUSING

SPECIFICATIONS

No. of

Contacts

09

15

25

37

Dimensions(mm)

A

B

C

D

16.92 24.99 30.81 19.23

25.25 33.32 39.14 27.56

38.96 47.04 53.04 41.28

55.42 63.50 69.32 57.33

Current Rating:

3A

Contact Resistance:

25mΩ Max.

Insulation Resistance:

1000MΩ Min. at 500V

Dielectric Voltage:

1000V at 1 Minute

Operating Temperature:

-55ºc to +105ºc

MATERIALS

Insulator:

PBT, UL94V-0 Rated

Contact:

Brass

Shell:

Brass,Steel

Contact Plating:

Gold Over Nickel Plated

Shell Plating:

Tin Over Copper Plated

*RoHS & REACH compliant.

5221

J

No. of

Contacts

09

15

25

37

Dimensions(mm)

A

B

C

D

16.33 24.99 30.81 19.23

24.66 33.32 39.14 27.56

38.38 47.04 53.04 41.28

54.84 63.50 69.32 57.33

JT

K3

K

K6

5222

ORDERING INFORMATION:

P/N 5 2 x x - x x T B / x x

1

2

3

1. CONNECTOR TYPE:

"21" MALE

"22" FEMALE

2. NO. OF CONTACTS:

09, 15, 25, 37, 50

3. MOUNTING OPTION:

" " Ø3.05MM THROUGH HOLES

OTHERS: K, K3, K6, J, JT, J4

NOTE: CRIMPING TOOL P/N HT-213

INSERTION & EXTRACTION

TOOL P/N HT-101

MALE TERMINAL:

5221-01 (per piece)

5221-0.5K (500pcs/Reel)

5221-10K (10000pcs/Reel)

FOR AWG24-26

FEMALE TERMINAL:

5222-01 (per piece)

5222-0.5K (500pcs/Reel)

5222-10K (10000pcs/Reel)

FOR AWG24-26

NOTE: P/N 5221-xxx/2024 & 5222-xxx/2024

FOR AWG20~24

C0011

Recommended Resources

Chinese pinyin learning machine circuit

Accurate second pulse signal generation circuit diagram

Two-way communication circuit circuit diagram

STR40090 series internal circuit diagram

555 electronic rolling ring game machine circuit

A humidity/frequency-audio decoding humidity detection, automatic exhaust ventilation and frog chirping circuit
