5252L-37PB0: DescriptionD Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, Hole .138-.163, Plug; CategoryThe connector The connector; File Size194KB，1 Pages; ManufacturerRatioplast Electronics; Environmental Compliance

Download Datasheet Parametric View All

5252L-37PB0 Overview

D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, Hole .138-.163, Plug

5252L-37PB0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	306855305
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.496 inch
body length	2.732 inch
Body/casing type	PLUG
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	5252L
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	HOLE .138-.163
Installation option 2	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN OVER COPPER
Termination type	IDC
Total number of contacts	37

Preview

Download Datasheet

View All

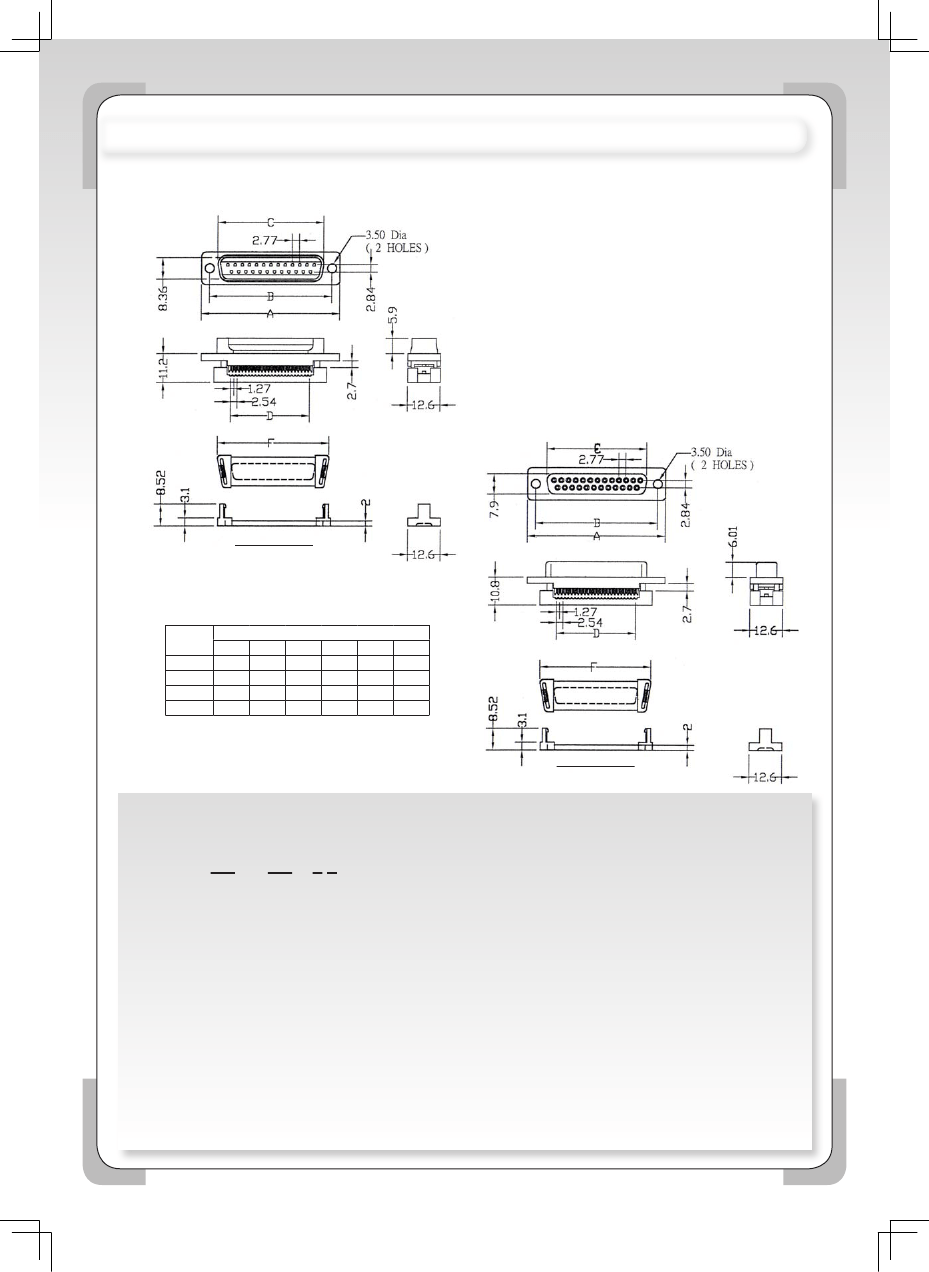

LOW PROFILE D-SUB. CONNECTOR ALL PLASTIC I.D.C. TYPE

SPECIFICATIONS

Current Rating:

3A

Contact Resistance:

25mΩ Max.

Insulation Resistance:

1000MΩ Min. at 500V

Dielectric Voltage:

1000V at 1 Minute

Operating Temperature:

-55ºc to +105ºc

MATERIALS

Insulator:

PBT, UL94V-0 Rated

Contact:

Brass

Shell:

Brass,Steel

Contact Plating:

Gold Over Nickel Plated

Shell Plating:

Tin Over Copper Plated

*RoHS & REACH compliant.

5251L-xxPxx

No. of

Contacts

09

15

25

37

A

30.89

39.14

53.09

69.39

Dimensions(mm)

B

C

D

E

24.99 16.92 10.16 16.33

33.32 25.25 17.78 24.66

47.04 38.96 30.48 38.38

63.50 55.45 45.72 54.84

F

21.78

29.62

43.35

59.92

5252L-xxPxx

ORDERING INFORMATION:

P/N 5 2 x x L - x x P x x

1

2 34

1. CONNECTOR TYPE:

"51" MALE

"52" FEMALE

2. NO. OF CONTACTS:

09, 15, 25, 37

3. INSULATOR COLOR:

"B" BLACK (STANDARD)

"U" BLUE (STANDARD)

"A" GRAY (OPTIONAL)

"N" DARK GREEN (OPTIONAL)

"R" DARK RED (OPTIONAL)

4. MOUNTING TYPE:

"0" Ø3.50MM THROUGH HOLES

C0021
