747D
Series
Large Can
Screw Terminal
High Frequency
Applications
Low Impedance
55 C to 105 C
Temperature
Range
Actual
Size

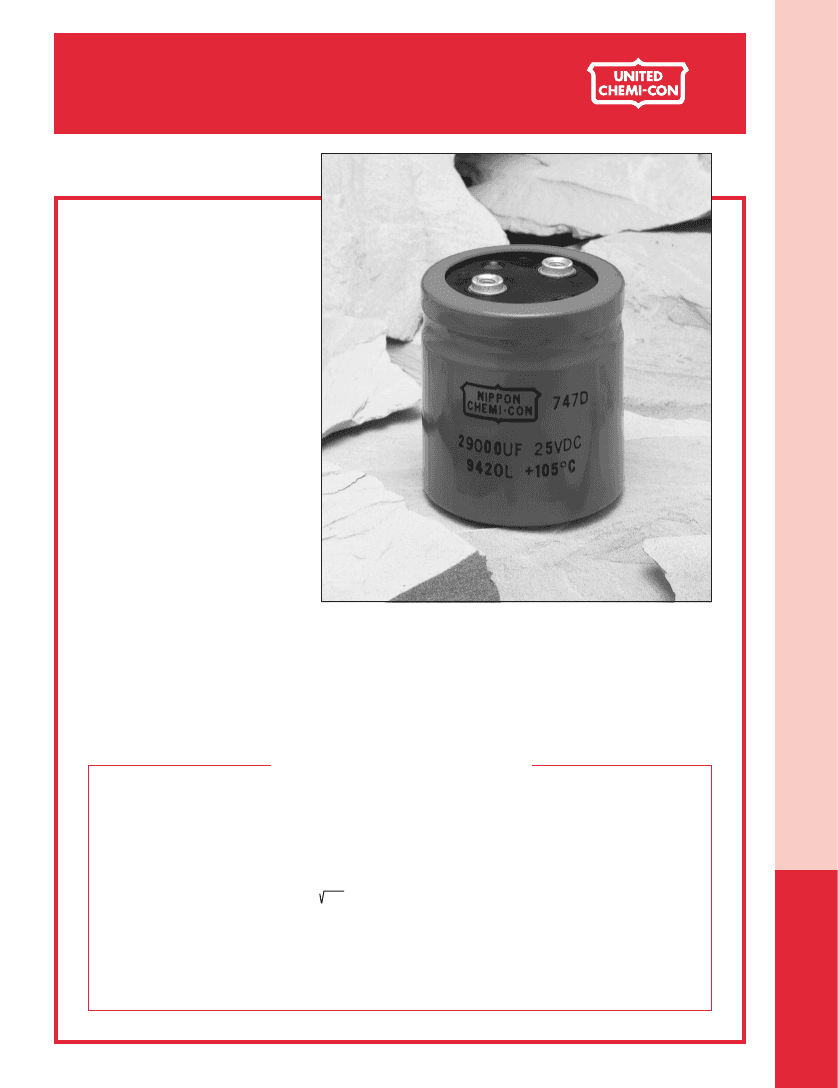

The 747D series offers a low impedance over an extended temperature range of 55 C to 105 C.
With the high ripple current capability and the low impedance, the 747D is ideal for high frequency
SMPS output filtering applications. The 747D series capacitors also offer a long life under normal
operating conditions.
Summary of Specifications
Screw terminals, high, low English and Metric.
Capacitance range: 4,800 to 310,000µF.
Voltage range: 6.3 to 35VDC.
Operating temperature range: 55 C to 105 C.
Leakage current in µA: I = K CV : K = 4.0 at 25 C after 5 minutes.
Standard capacitance tolerance: 20%
Nominal case size (D L): 1.375” 1.625” to 2.000” 5.625”
Rated lifetime: 2,000 hours at 105 C.
L ARGE CAN -105 C
747D
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
431
747D Series
747D Specifications
Item
Operating Temperature Range
Rated Voltage Range
Capacitance Range
Capacitance Tolerance
Leakage Current
I
55 to 105 C
6.3 to 35VDC
4,800 to 310,000 F at
20% ( M ) at
25 C, 120Hz
Characteristics
25 C, 120Hz
25 C after 5 minutes.
K CV : K = 4.0 at
Where I = Leakage current ( A ), C = Nominal capacitance ( F ) and V = Rated voltage ( V )
Low Temperature
Characteristics
Capacitance change:
At 120Hz, capacitance at
Impedance ( Z ) change:
At 120Hz, impedance at 55 C shall not exceed 3 times the specified value at 25 C.
At 20k -100kHz, impedance at 55 C shall not exceed 30 times the specified value at 25 C.
Ripple Current Multipliers
Refer to Section 4 of the
Mini-Glossary for explanation
of Ripple Current Multipliers.
Ambient Temperature ( C )
25 C
2.0
45 C
1.7
65 C
1.4
85 C
1.0
105 C
0.5
55 C shall not be less than 80% of the specified value at
25 C.
Frequency (Hz )
120Hz
0.90
400Hz
0.95
1kHz
0.98
5k -100kHz
1.00
Life Validation Test
The following specifications shall be satisfied when the capacitors are restored to
subjecting them to the DC rated voltage for 2,000 hours at 105 C.
Capacitance change:
≤
20% from initial measurement
ESR change
:
≤
1.5 initial specified limit
Leakage current
:
≤
initial specified limit
25 C after
Shelf Test
The following specifications shall be satisfied when the capacitors are restored to 25 C after
exposing them for 1,000 hours at 105 C without voltage applied. The rated voltage shall be
applied to the capacitors for a minimum of 30 minutes, at least 24 hours and not more than
48 hours before the measurements.
Capacitance change:
≤
15% from initial measurement
ESR change
:
≤
1.3 initial specified limit
Leakage current
:
≤
2 initial specified limit
Part Numbering System for 747D Series
747D
293
M
025
BA
2
A
When ordering, always specify complete catalog number for 747D Series.
Lead Code: A = Low Post 10 - 32 Screw Thread (Standard ).
B = High Post 10 - 32 Screw Thread.
I = High Post M5 Screw Thread.
Case Style: 2 = PVC Sleeve.
Case Code: See Case Sizes in Tables.
DC Rated Voltage: Expressed in Volts. Zero proceeds the voltage rating
when less than 100 volts. An R indicates a decimal point (e.g. 6R3 = 6.3V ).
Capacitance Tolerance: M = 20%
Capacitance Value: Expressed in Microfarads. The first two digits are
significant figures, the third digit indicates the number of zeros.
Series Name: Indicates Basic Capacitor Design.
L ARGE CAN -105 C
747D
432
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
747D Series
Diagram of Dimensions
Large Can / Screw Terminals
Unit: inches and mm
Terminal Specifications in Inches
Terminal
Code
A
B
I
Thread
10 - 32 NF- 2B
10 - 32 NF- 2B
M5
Thread
Depth
0.219
0.375
0.375
J 0.032
Height
0.063
0.250
0.250
Ø
S
0.010
Ø
T 0.010
Diameter Diameter
0.313
0.313
0.313
—
0.438
—
H Max.
Height
L 0.276
L 0.472
L 0.472
F
Vent
S
T
Terminal Specifications in Millimeters
Terminal
Code
A
B
I
Thread
10 - 32 NF- 2B
10 - 32 NF- 2B
M5
Thread
Depth
5.6
9.5
9.5
J 0.8
Height
1.6
6.4
6.4
Ø
S 0.25
Diameter
Ø
T 0.25
Diameter
H Max.
Height
L 7
L 12
L 12
8.0
8.0
8.0
—
11.1
—
J
PVC
Sleeve
L
H
L
'
MAX.
D
D
'
Insulating
Disk
Refer to the Mounting Hardware page at the beginning of the Large Can section for
mounting brackets and accessories.
Dimensions in Inches and Millimeters
Bare Can
Case
Code
inches
Ø
D
0.032
With Insulating Sleeve
mm
inches
L
1.60
041
048
054
067
079
092
105
117
130
143
054
067
079
092
105
117
130
143
Ø
D
'
Max.
Terminal Spacing
inches
L
'
Max.
044.5
050.8
057.2
069.9
082.6
095.3
108.0
120.7
133.4
146.1
057.2
069.9
082.6
095.3
108.0
120.7
133.4
146.1
F
0.016
mm
F
0.40
Typical
Weight
(grams)
043
054
063
082
105
122
129
162
179
201
133
176
213
261
381
326
337
408
mm
Ø
D
'
Max.
L
0.063
1.625
1.875
2.125
2.625
3.125
3.625
4.125
4.625
5.125
5.625
2.125
2.625
3.125
3.625
4.125
4.625
5.125
5.625
Ø
D
0.813
L
'
Max.
1.750
2.000
2.250
2.750
3.250
3.750
4.250
4.750
5.250
5.750
2.250
2.750
3.250
3.750
4.250
4.750
5.250
5.750
AN
AY
AA
AM
AB
AL
AC
AD
AE
AF
BA
BM
BB
BL
BC
BD
BE
BF
1.375
35.0
1.453
36.9
0.500
12.7
2.000
50.8
2.078
52.8
0.875
22.2
