BUS-61570-100 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> BUS-61570-100

BUS-61570-100: DescriptionMil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, FP-82; CategoryThe embedded processor and controller Microcontrollers and processors; File Size45KB，4 Pages; ManufacturerData Device Corporation

Download Datasheet Parametric View All

BUS-61570-100 Overview

Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, FP-82

BUS-61570-100 Parametric

Parameter Name	Attribute value
Maker	Data Device Corporation
Parts packaging code	DFP
package instruction	FP-82
Contacts	82
Reach Compliance Code	unknow
Address bus width	16
boundary scan	NO
letter of agreement	MIL-STD-1553B
Data encoding/decoding methods	NRZ
Maximum data transfer rate	0.125 MBps
External data bus width	16
JESD-30 code	R-XDFP-F82
low power mode	NO
Number of serial I/Os	2
Number of terminals	82
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	UNSPECIFIED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
Certification status	Not Qualified
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	FLAT
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553
Base Number Matches	1

Preview

Download Datasheet

View All

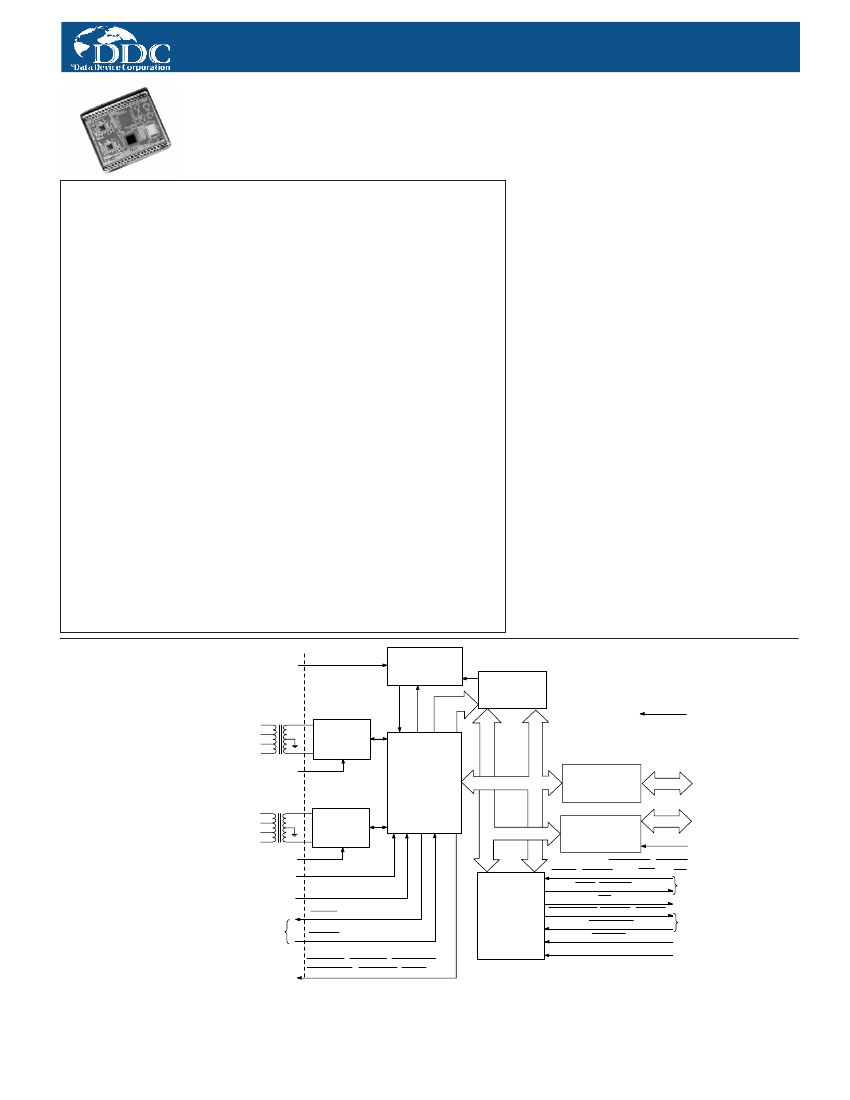

BUS-61559 SERIES

MIL-STD-1553B NOTICE 2

ADVANCED INTEGRATED MUX HYBRIDS

WITH ENHANCED RT FEATURES (AIM-HY’er)

DESCRIPTION

DDC’s BUS-61559 series of Advanced

Integrated Mux Hybrids with enhanced

RT Features (AIM-HY’er) comprise a

complete interface between a micro-

processor and a MIL-STD-1553B

Notice 2 bus, implementing Bus

Controller (BC), Remote Terminal (RX,

and Monitor Terminal (MT) modes.

Packaged in a single 78-pin DIP or

82-pin flat package the BUS-61559

series contains dual low-power trans-

ceivers and encoder/decoders, com-

plete BC/RT/MT protocol logic, memory

management and interrupt logic, 8K x 16

of shared static RAM, and a direct,

buffered interface to a host processor bus.

buffers to provide a direct interface to

a host processor bus. Alternatively,

the buffers may be operated in a fully

transparent mode in order to interface

to up to 64K words of external shared

RAM and/or connect directly to a com-

ponent set supporting the 20 MHz

STANAG-3910 bus.

The memory management scheme

for RT mode prevails an option for

separation of broadcast data, in com-

pliance with 1553B Notice 2. A circu-

lar buffer option for RT message data

blocks offloads the host processor for

bulk data transfer applications.

FEATURES

•

Complete Integrated 1553B

Notice 2 Interface Terminal

•

Functlonal Superset of BUS-

61553 AlM-HYSeries

•

Internal Address and Data

Buffers for Dlrect Interface to

Processor Bus

•

RT Subaddress Circular Buffers

to Support Bulk Data Transfers

Another feature besides those listed

The BUS-61559 includes a number of

to the right, is a transmitter inhibit con-

advanced features in support of

trol for the individual bus channels.

MIL-STD-1553B Notice 2 and STANAG

3838. Other salient features of the The BUS-61559 series hybrids oper-

BUS-61559 serve to provide the bene- ate over the full military temperature

fits of reduced board space require- range of -55 to +125”C and MIL-PRF-

ments enhanced software flexibility, 38534 processing is available. The

and reduced host processor overhead hybrids are ideal for demanding mili-

tary and industrial microprocessor-to-

The BUS-61559 contains internal

1553 applications

address latches and bidirectional data

•

Optlonal Separatlon of

RT Broadcast Data

•

Internal Interrupt Status and

Time Tag Registers

•

Internal ST Command

Illegalization

•

MIL-PRF-38534 Processing

Available

(ILLEGALIZATION ILLENA

ENABLE)

ILLEGALLIZATION

LOGIC

8K x 16

DUAL

PORT

RAM

BUS-25679

TX_INH_A

CLK IN (16MHz)

LOW-POWER

TRANSCEIVER

DUAL

ENCODER/

DECODER

BC/RT/MT

PROTOCOL

LOW-POWER

TRANSCEIVER

MEMORY DATA

DATA

BUFFERS*

D15-D∅

(PROCESSOR

DATA)

BUS-25679

TX_INH_A

(RT ADDRESS)

(BROADCAST

ENABLE)

(RTFAIL,

RTFLAG)

(BROADCAST,

MESSAGE

TIMING, DATA

STROBE AND ERROR

INDICATORS)

MEMORY ADDRESS

ADDRESS

LATCHES/

BUFFERS*

A15-A∅

(PROCESSOR

ADDRESS)

LATCH

CONTROL)

ADDR_LAT

(ADDRESS

RTAD 4-∅, RTADP

BRO_ENA

RTFAIL

RTFLAG

BCSTRCV, CMD_STR, TXDTA_STR

RXDTA_STR, MSG_ERR, INCMD

TRANSPARENT/BUFFERED, MSTCLR,

STRBD, SELECT, MEM/REG, RD/WR

MEMORY

IOEN, READYD

MANAGEMENT,

INT

SHARED

MEMEN-OUT,MEMWR, MEMOE

RAM/

PROCESSOR

MEMENA-IN

INTERFACE,

SSFLAG

INTERRUPT

LOGIC

TAGCLK

(PROCESSOR

CONTROL)

(INTERRUPT

REQUEST)

(MEMORY

CONTROL)

(SUBSYSTEM

FLAG)

(TIME TAG

CLOCK)

BU-61559 BLOCK DIAGRAM
