HDBS-1-6-26-S-A1

Description
D Type Connector, 26 Contact(s), Female, 0.09 inch Pitch, Solder Lug Terminal, Hole .112-.124, Plug
CategoryThe connector    The connector
File Size60KB，1 Pages
ManufacturerSouth Sea Terminal Co., Ltd.
Download Datasheet Parametric View All

HDBS-1-6-26-S-A1 Overview

D Type Connector, 26 Contact(s), Female, 0.09 inch Pitch, Solder Lug Terminal, Hole .112-.124, Plug

HDBS-1-6-26-S-A1 Parametric

Parameter NameAttribute value
Objectid303796347
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresW/O SCREW
body width0.494 inch
body length1.539 inch
Body/casing typePLUG
Contactor designPREASSEM CONN
Contact to complete cooperationAU
Contact completed and terminatedGOLD
Contact point genderFEMALE
Contact materialBRASS
contact modeSTAGGERED
Contact resistance30 mΩ
Contact styleRND PIN-SKT
Dielectric withstand voltage1000VAC V
Insulation resistance1000000000 Ω
Insulator colorWHITE
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial numberHDBS
Plug contact pitch0.09 inch
Match contact row spacing0.078 inch
Installation option 1HOLE .112-.124
Installation option 2MOUNTING FLANGE
Installation typePANEL
Number of rows loaded3
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Rated current (signal)5 A
GuidelineUL
reliabilityCOMMERCIAL
Shell surfaceTIN
Shell materialSTEEL
Terminal length
Termination typeSOLDER LUG
Total number of contacts26

Preview

Download Datasheet

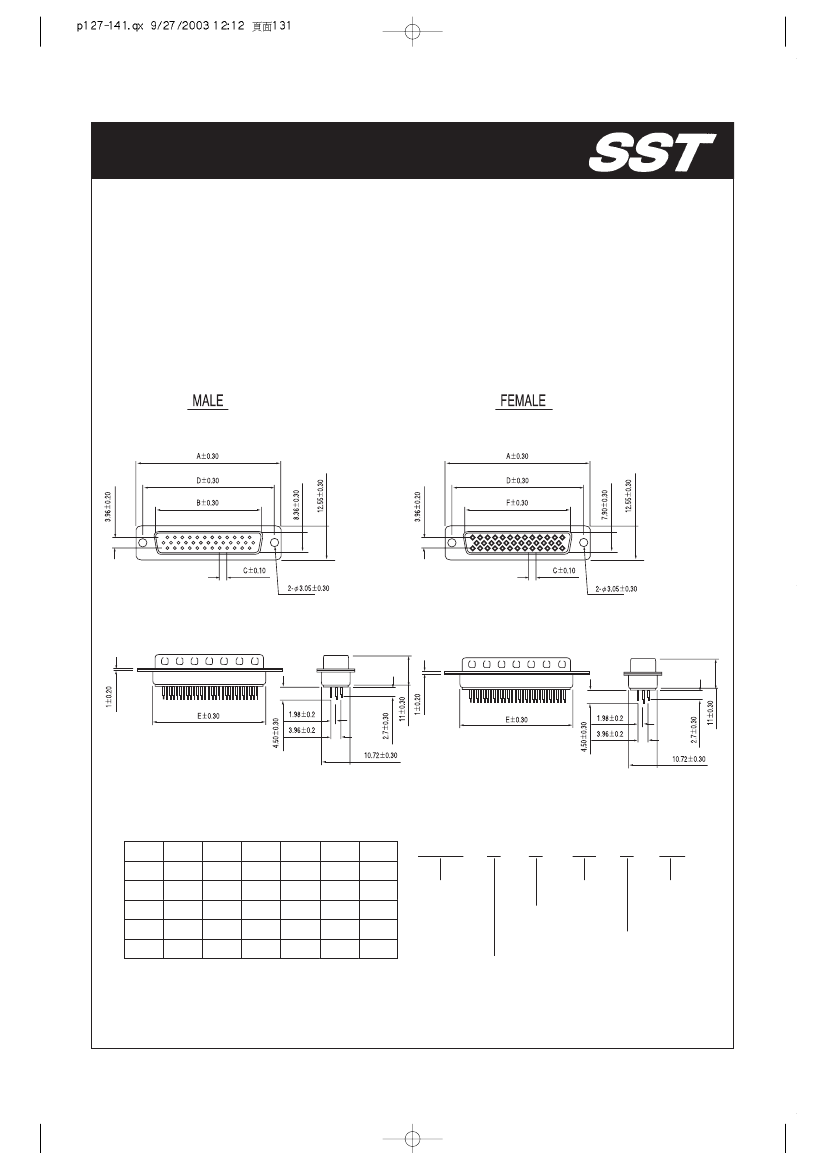

HDBS CONNECTOR SYSTEM
H.D-SUB Solder type
CURRENT RATING : 5A
WITHSTANDING VOLTAGE : 1000VAC(1 MIN)
INSULATION RESISTANCE : 1000 MEGOHMS MIN.
CONTACT RESISTANCE : 30 MILLIOHMS MAX
OPERATION TEMPERATURE : -40ºC TO+85ºC
CONTACT: BRASS, SELECTIVE GOLD OR
ALL GOLD
INSULATOR. PBT & 30% G.F.
SHELL: STELL, TIN PLATED
P
15
26
44
62
78
A
30.80
39.10
53.00
69.30
66.90
B
19.90
25.30
39.00
55.40
52.86
C
2.29
2.29
2.29
2.41
2.41
D
24.99
33.32
47.04
63.50
61.11
E
19.30
27.50
41.30
57.70
55.30
F
16.30
24.70
38.40
54.80
52.34
HDBS - X - X - XX - X - XX
Series
Color:
1: Black
3: Blue
6: White
Style
1:W/o SCREW
2:With SCREW
No. of
Contact
Plating
X1: Selective Gold
A1: All Gold
Contact Type
P: Male
S:Female
