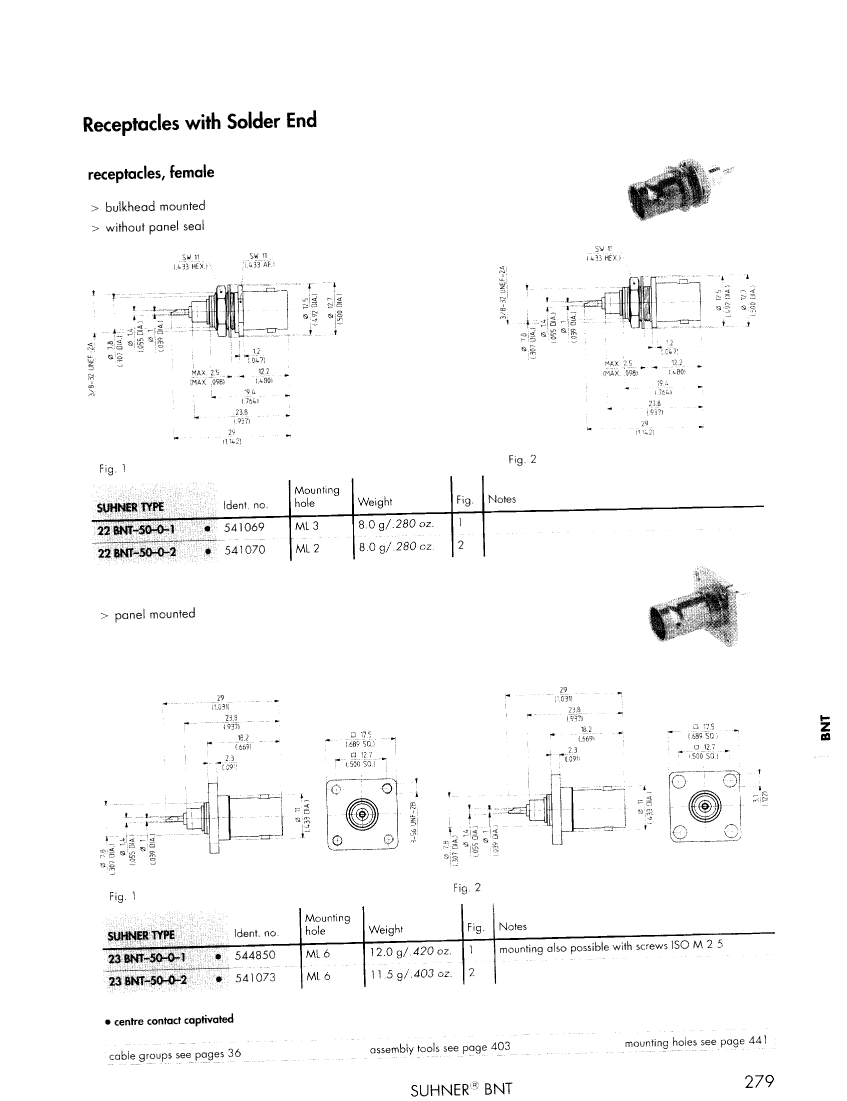

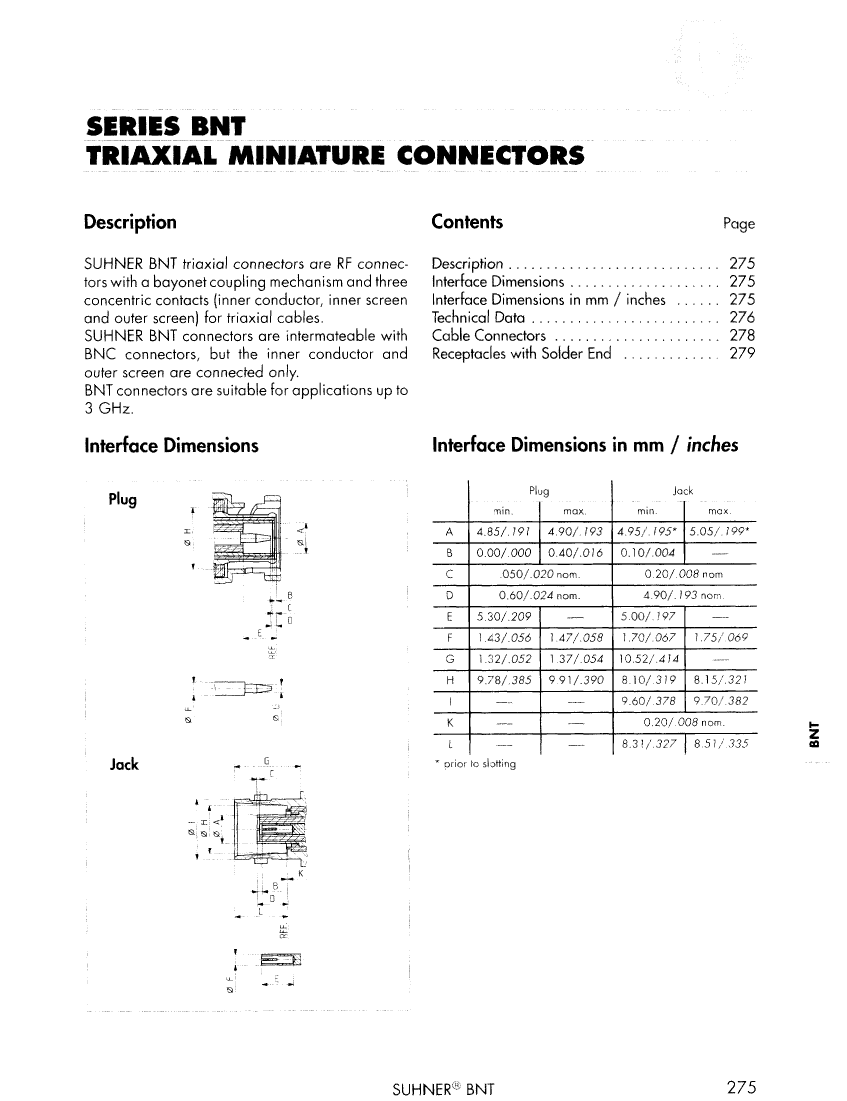

RF Connector, Female, Panel Mount, Board Mount, Solder Terminal, Receptacle
| Parameter Name | Attribute value |
| Reach Compliance Code | compli |
| ECCN code | EAR99 |
| Other features | CAPTIVE CENTER CONTACT |
| Body/casing type | RECEPTACLE |

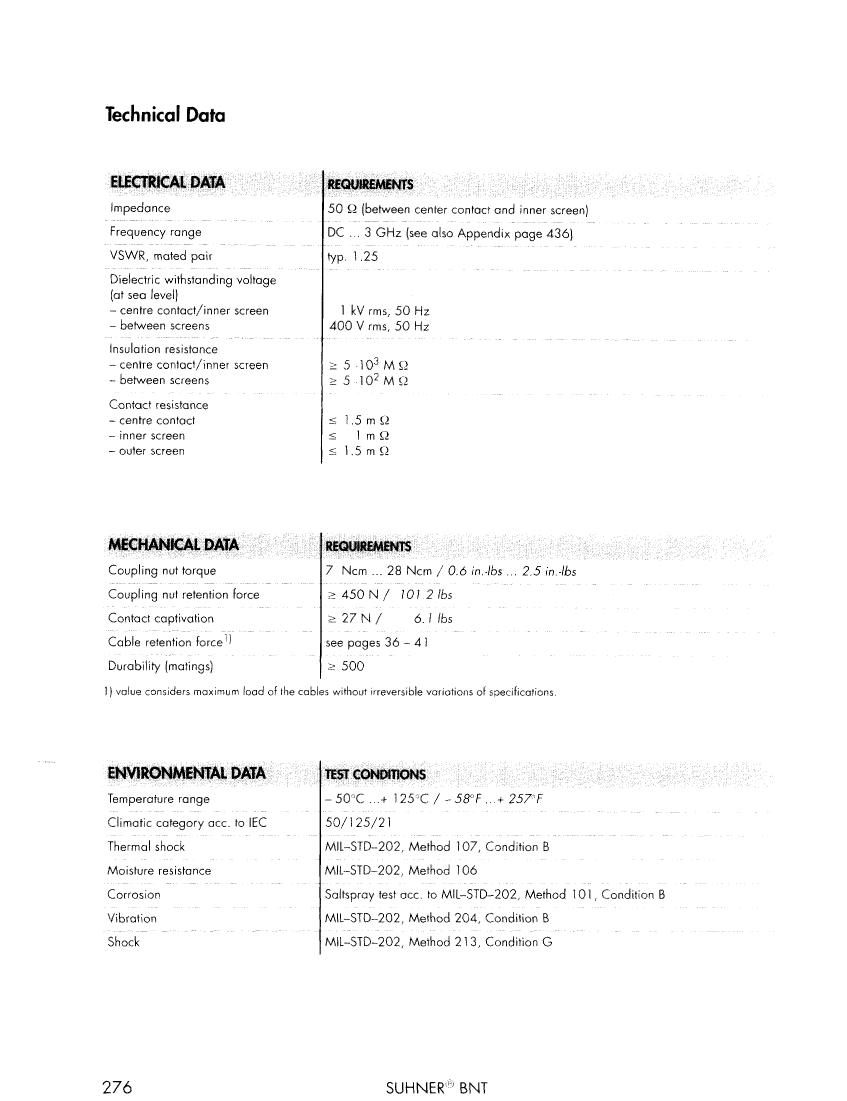

| Characteristic impedance | 50 Ω |
| Connector type | RF CONNECTOR |
| Contact to complete cooperation | GOLD |
| Contact completed and terminated | GOLD |
| Contact point gender | FEMALE |
| Coupling type | BAYONET |
| DIN compliance | NO |
| Filter function | NO |
| IEC compliance | NO |
| Insertion loss | 0.17 dB |

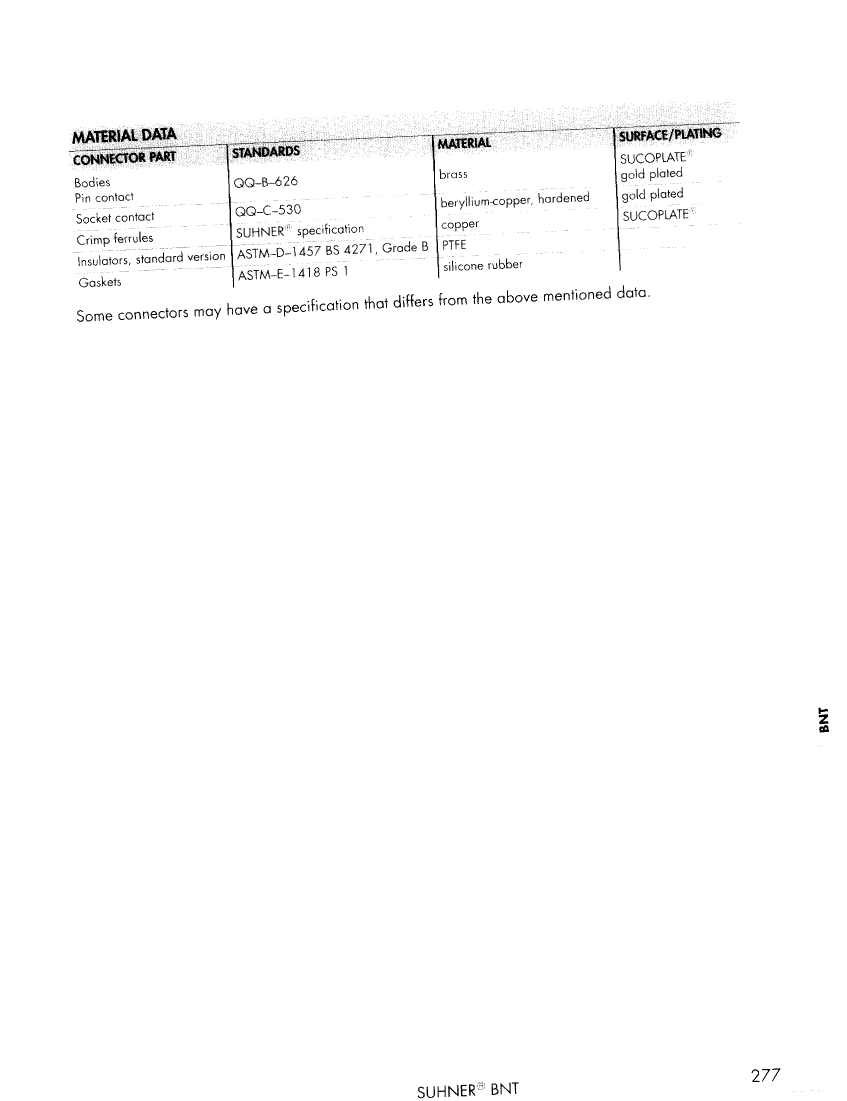

| insulator material | POLYTETRAFLUORO ETHYLENE |
| JESD-609 code | e4 |
| MIL compliance | NO |
| Manufacturer's serial number | BNT |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Maximum operating frequency | 3 GHz |
| Panel mounting | YES |
| Termination type | SOLDER |
| voltage standing wave ratio | 1.25 |
| Base Number Matches | 1 |

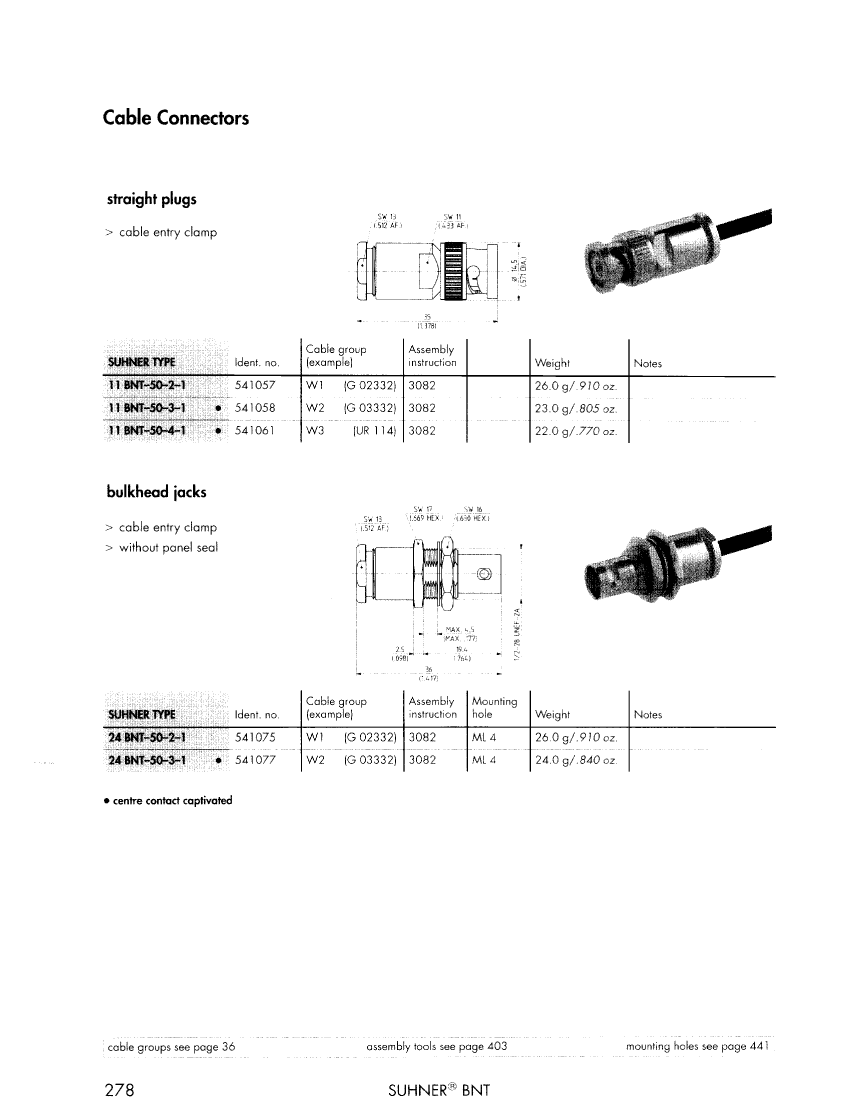

| 23BNT-50-0-2/133NH | 11BNT-50-2-1/133NH | 11BNT-50-3-1/133NH | 11BNT-50-4-1/133NH | 22BNT-50-0-1/133NH | 22BNT-50-0-2/133NH | 23BNT-50-0-1/133NH | 24BNT-50-2-1/133NH | 24BNT-50-3-1/133NH | |
|---|---|---|---|---|---|---|---|---|---|
| Description | RF Connector, Female, Panel Mount, Board Mount, Solder Terminal, Receptacle | RF Connector, Male, Cable Mount, Plug | RF Connector, Male, Cable Mount, Plug | RF Connector, Male, Cable Mount, Plug | RF Connector, Female, Panel Mount, Board Mount, Solder Terminal, Receptacle | RF Connector, Female, Panel Mount, Board Mount, Solder Terminal, Receptacle | RF Connector, Female, Panel Mount, Board Mount, Solder Terminal, Receptacle | RF Connector, Female, Panel Mount, Cable Mount, Jack | RF Connector, Female, Panel Mount, Cable Mount, Jack |
| Reach Compliance Code | compli | compli | compli | compli | compli | compli | compli | compli | compli |
| Other features | CAPTIVE CENTER CONTACT | APPLICABLE CABLE: G02332 | APPLICABLE CABLE: G03332, CAPTIVE CENTER CONTACT | APPLICABLE CABLE: UR114, CAPTIVE CENTER CONTACT | CAPTIVE CENTER CONTACT | CAPTIVE CENTER CONTACT | CAPTIVE CENTER CONTACT | APPLICABLE CABLE: G02332 | APPLICABLE CABLE: G03332, CAPTIVE CENTER CONTACT |
| Body/casing type | RECEPTACLE | PLUG | PLUG | PLUG | RECEPTACLE | RECEPTACLE | RECEPTACLE | JACK | JACK |
| Characteristic impedance | 50 Ω | 50 Ω | 50 Ω | 50 Ω | 50 Ω | 50 Ω | 50 Ω | 50 Ω | 50 Ω |
| Connector type | RF CONNECTOR | RF CONNECTOR | RF CONNECTOR | RF CONNECTOR | RF CONNECTOR | RF CONNECTOR | RF CONNECTOR | RF CONNECTOR | RF CONNECTOR |
| Contact to complete cooperation | GOLD | GOLD | GOLD | GOLD | GOLD | GOLD | GOLD | GOLD | GOLD |
| Contact completed and terminated | GOLD | GOLD | GOLD | GOLD | GOLD | GOLD | GOLD | GOLD | GOLD |
| Contact point gender | FEMALE | MALE | MALE | MALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE |
| Coupling type | BAYONET | BAYONET | BAYONET | BAYONET | BAYONET | BAYONET | BAYONET | BAYONET | BAYONET |
| DIN compliance | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Filter function | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Insertion loss | 0.17 dB | 0.17 dB | 0.17 dB | 0.17 dB | 0.17 dB | 0.17 dB | 0.17 dB | 0.17 dB | 0.17 dB |
| insulator material | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE |
| JESD-609 code | e4 | e4 | e4 | e4 | e4 | e4 | e4 | e4 | e4 |
| MIL compliance | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Manufacturer's serial number | BNT | BNT | BNT | BNT | BNT | BNT | BNT | BNT | BNT |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | CABLE | CABLE | CABLE | BOARD | BOARD | BOARD | CABLE | CABLE |
| Maximum operating frequency | 3 GHz | 3 GHz | 3 GHz | 3 GHz | 3 GHz | 3 GHz | 3 GHz | 3 GHz | 3 GHz |
| Panel mounting | YES | NO | NO | NO | YES | YES | YES | YES | YES |
| voltage standing wave ratio | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | - | EAR99 | EAR99 | EAR99 | EAR99 |
